Электросхемы Стартер Генератор GMC Value Van P3500 1993

Стартер Генератор

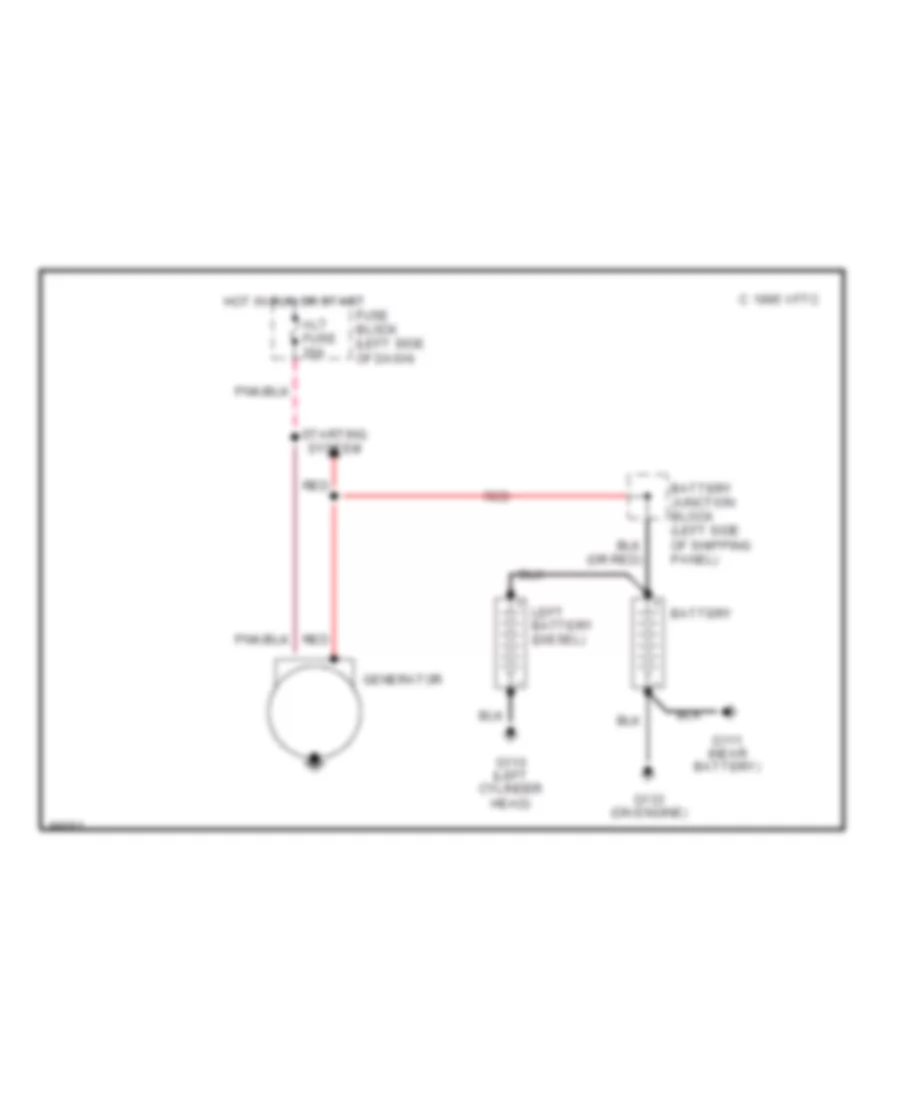

Электросхема Генератора для GMC Value Van P3500 1993

https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO

모든 배선 다이어그램에 액세스하십시오.

Электросхема Генератора для GMC Value Van P3500 1993 - Список элементов:

• 1995 vftc c
• Alt fuse 20a
• Battery
• Battery junction block (left side of shipping panel)
• Fuse block (left side of dash)
• G110 (left cylinder head)
• G111 (near battery)
• G133 (on engine)
• Generator
• Hot in run or start
• Left battery (diesel)
• Red
• Starting system

Электросхема стартера для GMC Value Van P3500 1993

https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO

모든 배선 다이어그램에 액세스하십시오.

Электросхема стартера для GMC Value Van P3500 1993 - Список элементов:

• 1995 vftc c
• A/t
• Acc
• Battery
• Battery junction block (left side of shipping panel)
• Charging system
• Clutch start switch (on clutch pedal support)
• Diesel
• Fusible link (rust 10 ga)
• Fusible link (rust 16 ga)
• Fusible link (rust 20 ga)
• G110 (left cylinder head)
• G111 (near battery)
• G125 (front of engine)
• G133 (on engine)
• Gas
• Glow plugs controller (diesel w/ m/t)
• Hot at all times
• Ignition switch
• Left battery (diesel)
• Lock
• M/t
• Off
• Power distribution system
• Red
• Run
• Start
• Starter motor
• Starter relay (lower left side of shipping panel)
