Противоугонная система Сигнализация

Электросхема открывания авто для Mazda B2500 TL 1999

Электросхема открывания авто для Mazda B2500 TL 1999 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
모든 배선 다이어그램에 액세스하십시오.Download PDF file

Электросхема открывания авто для Mazda B2500 TL 1999 - Список элементов:

  • (rear of right front fender) g105
  • 1996 vftc c
  • Alarm
  • All lock relay
  • All unlock relay
  • Anti- theft hood switch (on right front inner fender panel)
  • C214
  • C222
  • C409
  • C410
  • Data link connector (fastened to bottom of dash, near steering column)
  • Driver's unlock relay (behind right side of dash)
  • Engine compartment fuse/relay box (left rear of engine compt)
  • Exterior lights system
  • Fuse 18 15a
  • Fuse 20 7.5a
  • Fuse 9 20a
  • G104 (rear of left front fender)
  • G108 (left radiator support)
  • G309 (near left door sill)
  • Generic electric module (gem) (behind center of dash)
  • Generic electronic module
  • Horn system
  • Hot at all times
  • Hot in run or start
  • I/p fuse panel (behind left side of dash)
  • Instrument cluster
  • Left door disarm switch
  • Left door lock motor
  • Left door lock switch
  • Lock
  • Not used
  • Relay box (behind dash, right of steering column)
  • Remote anti-theft personality (rap) module (in left rear corner of cab)
  • Right door disarm switch
  • Right door lock motor
  • Right door lock switch
  • Un- lock
  • Unlock

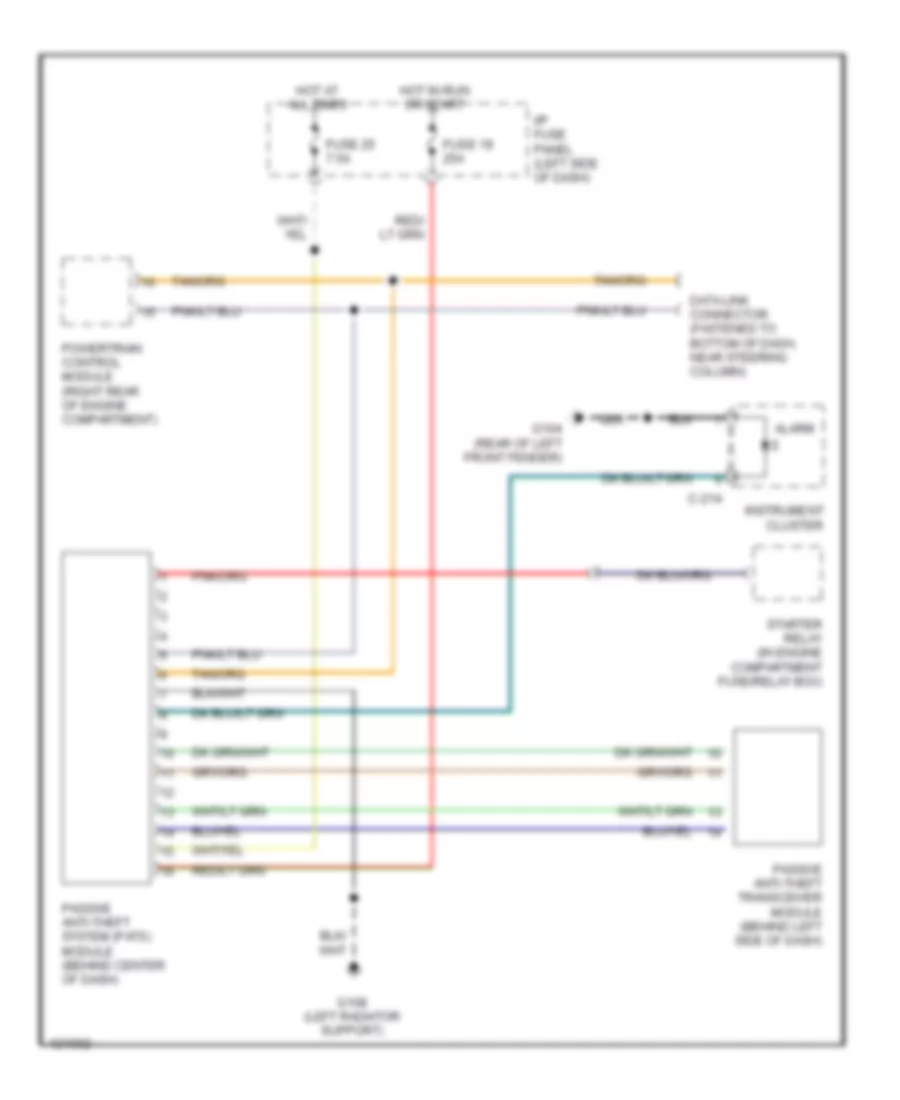

Электросхема иммобилайзера, КУСКИ для Mazda B2500 TL 1999

Электросхема иммобилайзера, КУСКИ для Mazda B2500 TL 1999 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
모든 배선 다이어그램에 액세스하십시오.Download PDF file

Электросхема иммобилайзера, КУСКИ для Mazda B2500 TL 1999 - Список элементов:

  • Alarm
  • C-214
  • Data link connector (fastened to bottom of dash, near steering column)
  • Fuse 19 25a
  • Fuse 25 7.5a
  • G104 (rear of left front fender)
  • G108 (left radiator support)
  • Hot at all times
  • Hot in run or start
  • I/p fuse panel (left side of dash)
  • Instrument cluster
  • Passive anti-theft system (pats) module (behind center of dash)
  • Passive anti-theft transceiver module (behind left side of dash)
  • Powertrain control module (right rear of engine compartment)
  • Starter relay (in engine compartment fuse/relay box)
