БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ

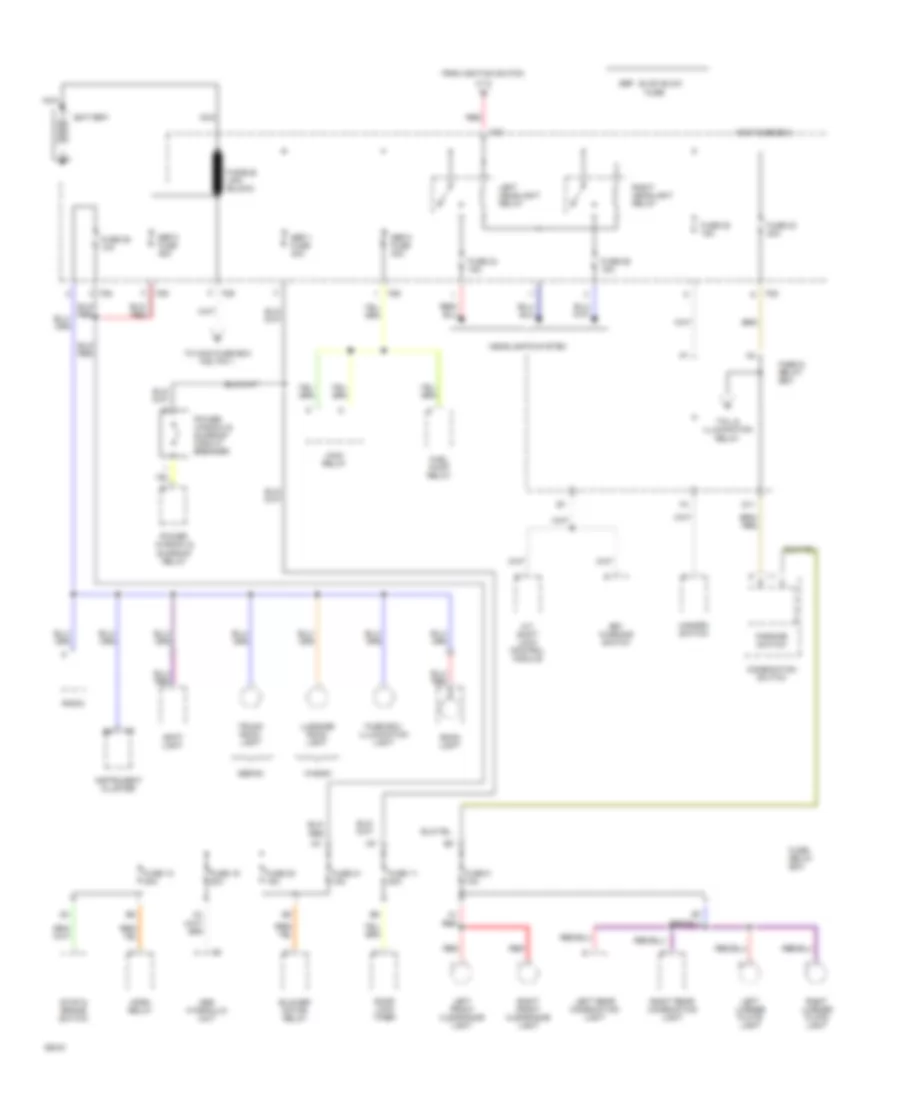

Электросхема блока предохранителей и реле (1 из 3) для Subaru Impreza L 1993

Электросхема блока предохранителей и реле (1 из 3) для Subaru Impreza L 1993 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
모든 배선 다이어그램에 액세스하십시오.Download PDF file

Электросхема блока предохранителей и реле (1 из 3) для Subaru Impreza L 1993 - Список элементов:

  • A/t shift lock control module
  • Abs hydraulic unit
  • Battery
  • Blower motor relay
  • Combination switch
  • D11
  • Door lock timer
  • F25
  • F26
  • F27
  • F28
  • F29
  • From ignition switch
  • Fuel pump relay
  • Fuse
  • Fuse & relay box
  • Fuse 11 20a
  • Fuse 12 20a
  • Fuse 19 20a
  • Fuse 20 15a
  • Fuse 21 15a
  • Fuse 22 15a
  • Fuse 23 20a
  • Fuse 24 15a
  • Fuse 25 10a
  • Fuse 26 15a
  • Fuse 5 10a
  • Fuse box illumination light
  • Fuse/ relay box
  • Fusible link (black)
  • Hazard switch
  • Headlights system
  • Horn relay
  • I18
  • Instrument cluster
  • Key warning switch
  • Left front clearance light
  • Left headlight relay
  • Left license plate light
  • Left rear combination light
  • Luggage room light
  • Main fuse box
  • Main relay
  • Nca
  • Parking switch
  • Power window & sunroof circuit breaker
  • Power window & sunroof relay
  • Radio
  • Red
  • Right front clearance light
  • Right headlight relay
  • Right license plate light
  • Right rear combination light
  • Room light
  • Sbf-1 fuse 30a
  • Sbf-2 fuse 30a
  • Sbf-3 fuse 45a
  • Sbf: slow blow
  • Sedan
  • Spot light
  • Stop & brake switch
  • Tail & illumination relay
  • To main fuse box f29, pin 1
  • Trunk room light
  • Wagon

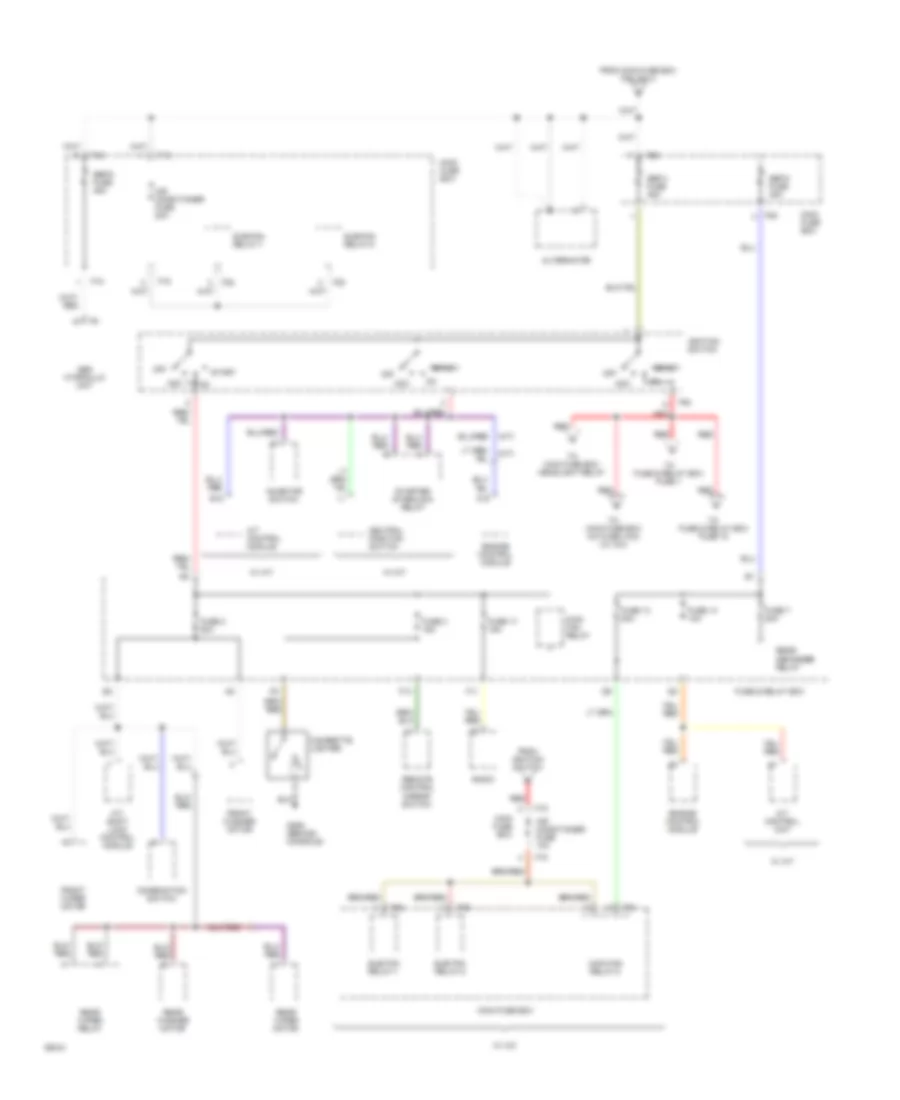

Электросхема блока предохранителей и реле (2 из 3) для Subaru Impreza L 1993

Электросхема блока предохранителей и реле (2 из 3) для Subaru Impreza L 1993 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
모든 배선 다이어그램에 액세스하십시오.Download PDF file

Электросхема блока предохранителей и реле (2 из 3) для Subaru Impreza L 1993 - Список элементов:

  • (a/t)
  • (m/t)
  • A/t control module
  • A/t control unit
  • A/t shift lock control module
  • A16
  • Abs hydraulic unit
  • Acc
  • Air conditioner fuse 10a
  • Air conditioner fuse 20a
  • Alternator
  • B12
  • Cigarette lighter
  • Combination switch
  • Engine control module
  • F11
  • F13
  • F18
  • F19
  • F20
  • F21
  • F22
  • F25
  • F29
  • F63
  • From ignition switch
  • From main fuse box f29, pin 2
  • Front washer motor
  • Front wiper motor
  • Fuse & relay box
  • Fuse 13 20a
  • Fuse 14 10a
  • Fuse 17 15a
  • Fuse 2 20a
  • Fuse 3 15a
  • Fuse 7 20a
  • G206 (behind console)
  • Ignition switch
  • Inhibitor switch
  • Main fan relay
  • Main fan relay-2
  • Main fuse box
  • Neutral position switch
  • Off
  • Radio
  • Rear defogger relay
  • Rear washer motor
  • Rear wiper motor
  • Rear wiper relay
  • Red
  • Remote control mirror switch
  • Sbf-4 fuse 45a
  • Sbf-5 fuse 45a
  • Sbf-6 fuse 45a
  • Start
  • Starter interlock relay
  • Sub fan relay-1
  • Sub fan relay-2
  • Sub-fan relay-1
  • Sub-fan relay-2
  • To fuse & relay box fuse 1
  • To fuse & relay box fuse 18
  • To main fuse box a/c fuse (10a) (w/ a/c)
  • To main fuse box headlight relay
  • W/ a/c
  • W/ a/t
  • W/ m/t

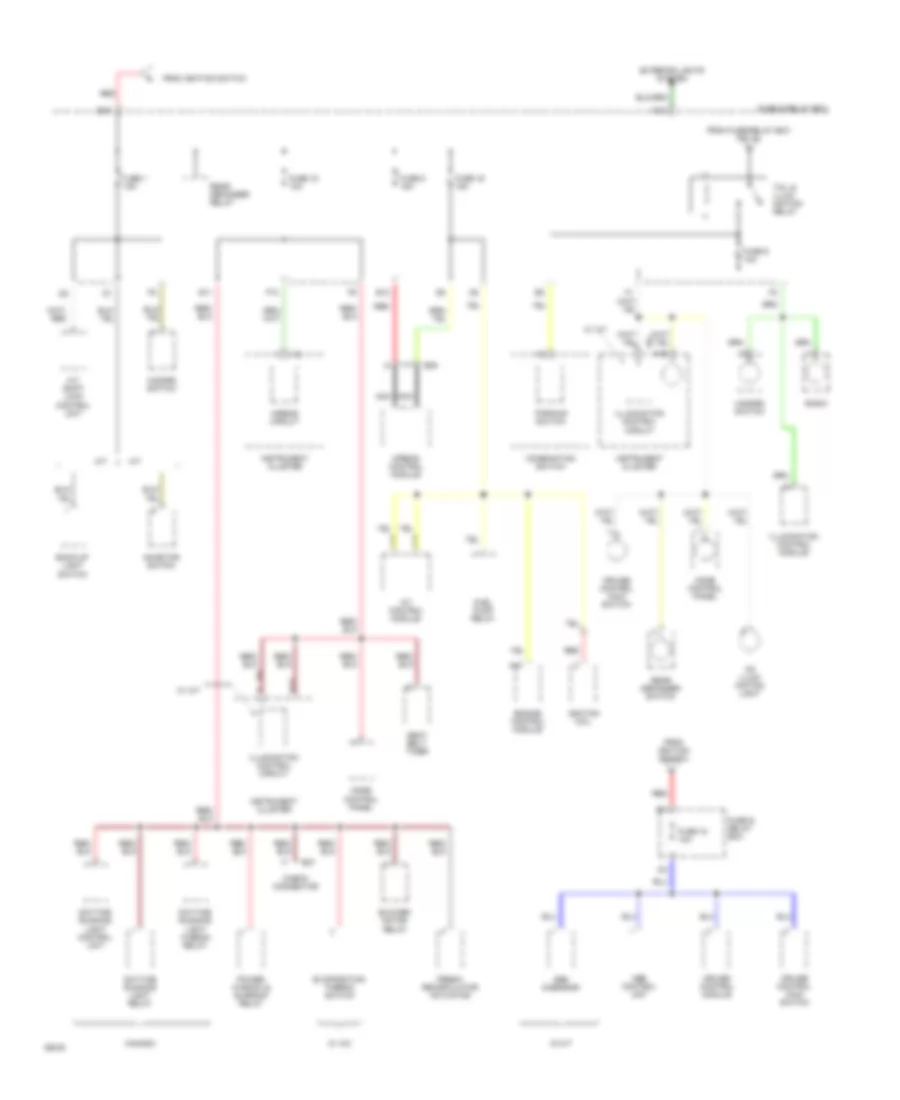

Электросхема блока предохранителей и реле (3 из 3) для Subaru Impreza L 1993

Электросхема блока предохранителей и реле (3 из 3) для Subaru Impreza L 1993 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
모든 배선 다이어그램에 액세스하십시오.Download PDF file

Электросхема блока предохранителей и реле (3 из 3) для Subaru Impreza L 1993 - Список элементов:

  • A/t
  • A/t control module
  • A/t shift lock control unit
  • A10
  • A15
  • A16
  • Abs control unit
  • Abs g-sensor
  • Airbag circuit
  • Airbag control module
  • B13
  • B37
  • B39
  • Back-up light switch
  • Blower motor relay
  • Canada
  • Cd illum- ination light
  • Check connector
  • Combination switch
  • Cruise control main switch
  • Cruise control module
  • D10
  • Daytime running light control unit
  • Daytime running light hi-beam relay
  • Daytime running light relay
  • E10
  • E11
  • E12
  • Engine control module
  • Evaporation thermo switch
  • Exterior lights system
  • F10
  • Fresh/ recirculator actuator
  • From fuse/relay box pin a2
  • From ignition switch
  • Fuel pump relay
  • Fuse & relay box
  • Fuse 1 15a
  • Fuse 15 10a
  • Fuse 16 15a
  • Fuse 18 10a
  • Fuse 8 15a
  • Fuse 9 10a
  • Hazard switch
  • I16
  • I19
  • Ignition coil
  • Illumination control circuit
  • Illumination control module
  • Inhibitor switch
  • Instrument cluster
  • M/t
  • Mode control panel
  • Nca
  • Parking switch
  • Power window & sunroof relay
  • Radio
  • Rear defogger relay
  • Rear defogger switch
  • Red
  • Seat belt timer
  • Tail & illum- ination relay
  • W/ a/c
  • W/ a/t
  • W/ m/t
