SEAT LEON 2002 – Body electrical Toledo and León . Wiring diagrams, Pin Connector, Location

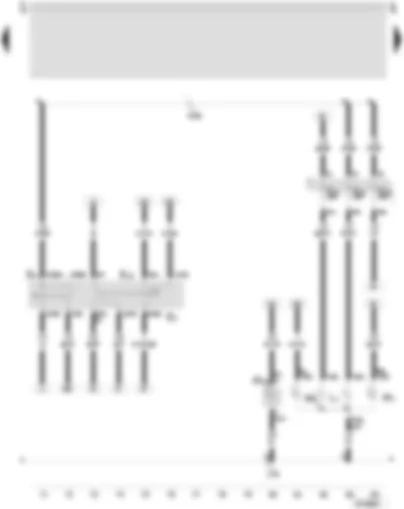

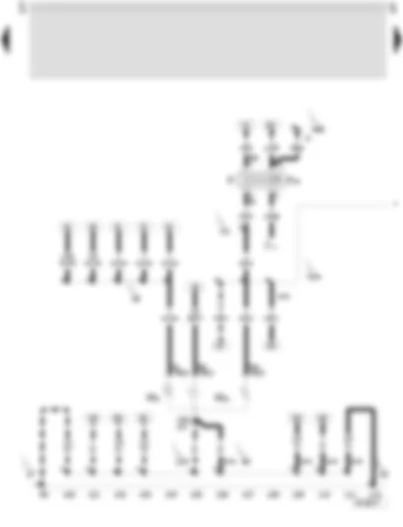

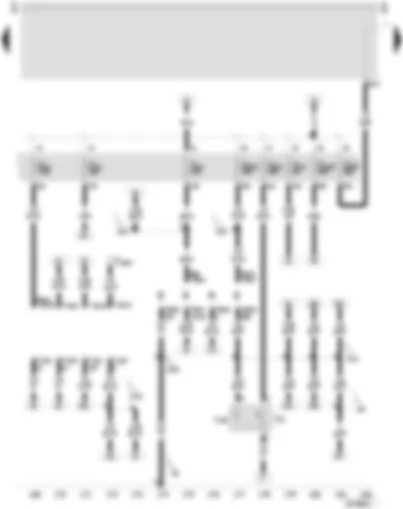

Wiring Diagram SEAT LEON 2002 - Battery - starter - ignition/starter switch - X contact relief relay

A	Battery
B	Starter
D	Ignition/starter switch
J59	X contact relief relay
S162	Fuse -1- (30), in fuse box/battery
S163	Fuse -2- (30), in fuse box/battery
S164	Fuse -3- (30), in fuse box/battery
S176	Fuse -4- (30), in fuse box/battery
S177	Fuse -5- (30), in fuse box/battery
S178	Fuse -6- (30), in fuse box/battery
S179	Fuse -7- (30), in fuse box/battery
S180	Fuse -8- (30), in fuse box/battery
T6l	6-pin connector, brown, in protective housing for connectors, on left in plenum chamber
500	Screw connection -1- (30), on relay plate
501	Screw connection -2- (30), on relay plate
503	Screw connection -2- (75x), on relay plate
A2	Positive (+) connection (15), in dash panel wiring harness
A32	Positive (+) connection (30), in dash panel wiring harness
A49	Connection -1-, in dash panel wiring harness
A80	Connection -1- (X), in dash panel wiring harness

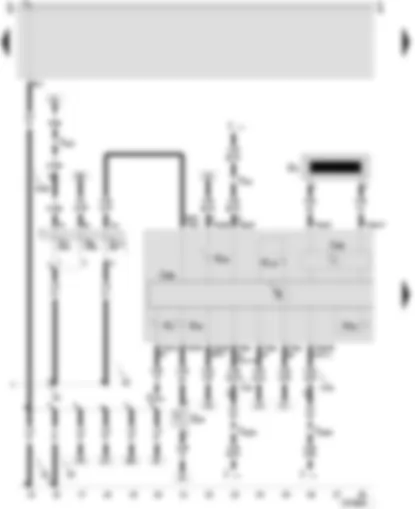

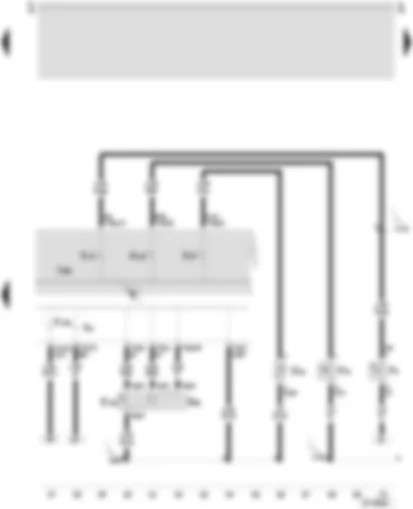

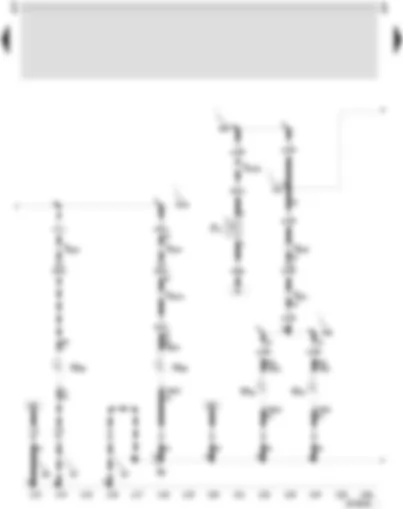

Wiring Diagram SEAT LEON 2002 - Control unit with display in dash panel insert - immobilizer reading coil - belt switch - driver's side - lights switched on warning buzzer

C	Alternator
D2	Immobilizer reading coil
E24	Belt switch, driver's side
H16	Lights switched on warning buzzer
J...	Engine control units
J285	Control unit with display in dash panel insert
J362	Immobilizer control unit
K2	Alternator warning lamp
K19	Seat belt warning system warning lamp
K63	Warning lamp for symbol 'Yellow triangle' (Auto-check system with voice)
K117	Immobilizer warning lamp
S5	Fuse in fuse box/relay plate
S7	Fuse in fuse box/relay plate
S11	Fuse in fuse box/relay plate
T10	10-pin connector, orange, in protective housing for connectors, in plenum chamber, left
T10d	10-pin connector, green, in protective housing for connectors, in plenum chamber, left
81	Earth connection -1-, in dash panel wiring harness
A2	Positive (+) connection (15), in dash panel wiring harness
A121	Connection (high bus), in dash panel wiring harness
A122	Connection (low bus), in dash panel wiring harness
B163	Positive (+) connection -1- (15), in interior wiring harness

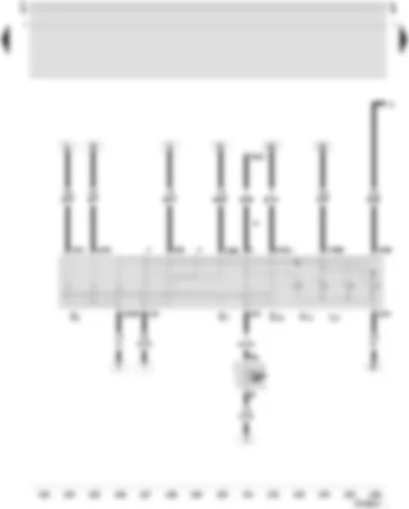

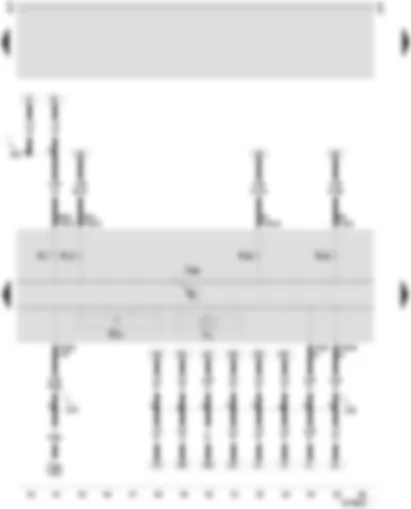

Wiring Diagram SEAT LEON 2002 - Control unit with display in dash panel insert - rev. counter - trailer operation warning lamp - reserve fuel warning lamp - oil level/oil temperature sender

G5	Rev. counter
G22	Speedometer sender
J...	Engine control units
J255	Climatronic control unit
J285	Control unit with display in dash panel insert
K18	Trailer operation warning lamp
K105	Reserve fuel warning lamp
L75	Digital display illumination
S22	Fuse in fuse box/relay plate
S223	Fuse in fuse box
Y4	Odometer display
T10	10-pin connector, orange, in protective housing for connectors, in plenum chamber, left
T12d	12-pin connector, on Climatronic
T14a	14-pin connector, in cable channel left
A27	Connection (speed signal), in dash panel wiring harness
A43	Connection (57L), in dash panel wiring harness
A44	Connection (57R), in dash panel wiring harness
A84	Connection (58L), in dash panel wiring harness
A85	Connection (58R), in dash panel wiring harness
*	Only Toledo
---	Only León

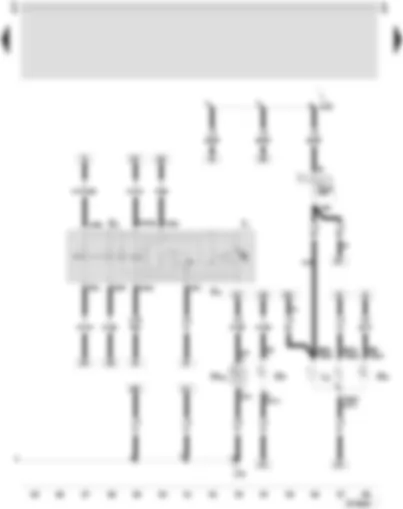

Wiring Diagram SEAT LEON 2002 - Control unit with display in dash panel insert - main beam warning lamp - rear fog light warning lamp - left turn signal warning lamp - digital clock

G21	Speedometer
J285	Control unit with display in dash panel insert
J393	Convenience system central control unit
K1	Main beam warning lamp
K13	Rear fog light warning lamp
K65	Left turn signal warning lamp
K94	Right turn signal warning lamp
Y2	Digital clock
135	Earth connection -2-, in dash panel wiring harness
A13	Connection (door contact switch), in dash panel wiring harness
A51	Connection (56), in dash panel wiring harness

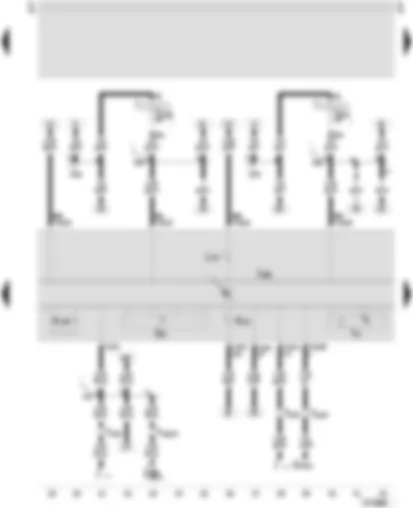

Wiring Diagram SEAT LEON 2002 - Control unit with display in dash panel insert - multi-function display call-up button - handbrake warning switch

E86	Multi-function display call-up button
E109	Multi-function display, memory switch
F9	Handbrake warning switch
F34	Brake fluid level warning contact
G33	Windscreen washer fluid level sender
J285	Control unit with display in dash panel insert
K4	Side light warning lamp
K14	Handbrake warning lamp
K37	Windscreen washer fluid level warning lamp
K102	Tailgate/bootlid closed warning lamp
K118	Brake system warning lamp
179	Earth connection, in left headlight wiring harness
269	Earth connection (sender earth) -1-, in dash panel wiring harness
A115	Connection (handbrake warning), in dash panel wiring harness

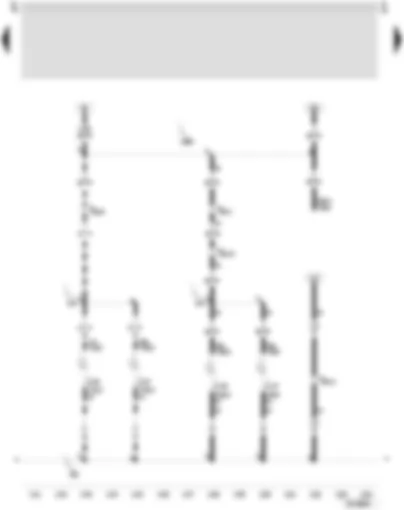

Wiring Diagram SEAT LEON 2002 - Turn signal switch - headlight dipper/flasher switch - parking light switch - twin filament bulb/sealed beam insert - left

E2	Turn signal switch
E4	Headlight dipper/flasher switch
E19	Parking light switch
L1	Twin filament bulb/sealed beam insert, left
M1	Side light bulb, left
M5	Turn signal bulb, front left
M18	Side turn signal bulb, left
S18	Fuse in fuse box/relay plate
S19	Fuse in fuse box/relay plate
S21	Fuse in fuse box/relay plate
T8	8-pin connector, headlight, left
179	Earth connection, in left headlight wiring harness
B166	Connection (56a), in interior wiring harness

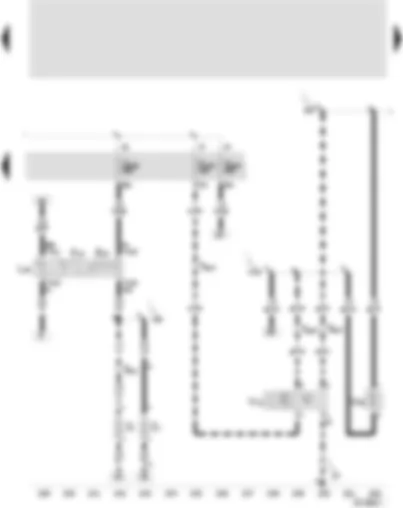

Wiring Diagram SEAT LEON 2002 - Hazard warning light switch - hazard warning light system warning lamp - twin filament bulb/sealed beam insert - right

E3	Hazard warning light switch
J1	Turn signal relay
K6	Hazard warning light system warning lamp
L2	Twin filament bulb/sealed beam insert, right
M3	Side light bulb, right
M7	Turn signal bulb, front right
M19	Side turn signal bulb, right
S20	Fuse in fuse box/relay plate
T8a	8-pin connector, headlight, right
179	Earth connection, in left headlight wiring harness
B167	Connection (56b), in interior wiring harness
*	Only models with range control adjuster
**	Only models without range control adjuster

Wiring Diagram SEAT LEON 2002 - Brake light switch - cruise control system brake pedal switch (diesel direct injection system) - turn signal bulb - rear left - brake and tail light bulb - left

F	Brake light switch
F47	Cruise control system brake pedal switch (diesel direct injection system)
J...	Engine control units
M6	Turn signal bulb, rear left
M21	Brake and tail light bulb, left
T6h	6-pin connector, in left luggage compartment
86	Earth connection -1-, in rear wiring harness
219	Earth connection -2-, in tailgate/boot lid wiring harness
A6	Positive (+) connection (left turn signal), in dash panel wiring harness
A98	Positive (+) connection -4- (30), in dash panel wiring harness
B131	Connection (54), in interior wiring harness
W1	Positive (+) connection -1- (54), in rear wiring harness
*	Only models with diesel engine
**	Only Toledo
---	Only León

Wiring Diagram SEAT LEON 2002 - Reversing light switch - reversing light bulb - left - reversing light bulb - right - high level brake light bulb

F4	Reversing light switch
M16	Reversing light bulb, left
M17	Reversing light bulb, right
M25	High level brake light bulb
T5j	5-pin connector, brown, in bootlid
T5k	5-pin connector, in flap right
T5l	5-pin connector, in flap left
T5m	5-pin connector, in bootlid
T5n	5-pin connector, in left luggage compartment
T5s	5-pin connector
T10	10-pin connector, orange, in protective housing for connectors, on left in plenum chamber
98	Earth connection, in tailgate/boot lid wiring harness
A87	Connection (RL), in dash panel wiring harness
B131	Connection (54), in interior wiring harness
W3	Connection, in rear wiring harness
W33	Connection (reversing light), in tailgate/boot lid wiring harness
*	Only Toledo
---	Only León

Wiring Diagram SEAT LEON 2002 - Turn signal bulb - rear right - reversing light bulb - left - reversing light bulb - right - brake and tail light bulb - right

M8	Turn signal bulb, rear right
M16	Reversing light bulb, left
M17	Reversing light bulb, right
M22	Brake and tail light bulb, right
T3j	3-pin connector, in tailgate/boot lid, left
T3k	3-pin connector, in tailgate/boot lid, right
T5a	5-pin connector
T6h	6-pin connector, in left luggage compartment
T6i	6-pin connector, in right luggage compartment
98	Earth connection, in tailgate/boot lid wiring harness
A5	Positive (+) connection (right turn signal), in dash panel wiring harness
W3	Connection, in rear wiring harness
W33	Connection (reversing light), in tailgate/boot lid wiring harness
*	Only Toledo
---	Only León

Wiring Diagram SEAT LEON 2002 - Rear fog light bulb - left - rear fog light bulb - right

L46	Rear fog light bulb, left
L47	Rear fog light bulb, right
T3j	3-pin connector, in tailgate/boot lid, left
T3k	3-pin connector, in tailgate/boot lid, right
T5a	5-pin connector
T5k	5-pin connector, in flap right
T5l	5-pin connector, in flap left
T5m	5-pin connector, in bootlid
T5n	5-pin connector, in left luggage compartment
T6i	6-pin connector, in right luggage compartment
98	Earth connection, in tailgate/boot lid wiring harness
A88	Connection (rear fog light), in dash panel wiring harness
W4	Connection -1- (rear fog light), in rear wiring harness
*	Only Toledo
---	Only León

Wiring Diagram SEAT LEON 2002 - Tailgate/boot lid release switch - tank filler flap remote release switch - luggage compartment light switch - button illumination

E165	Tailgate/boot lid release switch
E204	Tank filler flap remote release switch
F5	Luggage compartment light switch
G266	Oil level/oil temperature sender
J393	Convenience system central control unit
L76	Button illumination
S323	Fuel tank lock release fuse
V155	Tank filler flap release motor
W3	Luggage compartment light
T5a	5-pin connector
T5m	5-pin connector, in bootlid
T5n	5-pin connector, in left luggage compartment
T14a	14-pin connector, in cable channel left
85	Earth connection -1-, in engine compartment wiring harness
A29	Connection (interior light), in dash panel wiring harness
B114	Connection (inhibitor switch), in interior wiring harness
Y1	Positive (+) connection (30), in interior light wiring harness
W15	Connection -1- (luggage compartment light), in rear wiring harness
*	Only Toledo
**	Only models with maintenance intermittent extension
---	Only León

Wiring Diagram SEAT LEON 2002 - Cigarette lighter light bulb - radio - cigarette lighter

L28	Cigarette lighter light bulb
R	Radio
S10	Fuse in fuse box/relay plate
S12	Fuse in fuse box/relay plate
S13	Fuse in fuse box/relay plate
S15	Fuse in fuse box/relay plate
S239	Fuse in fuse box
S240	Fuse in fuse box
S241	Fuse in fuse box
S242	Fuse in fuse box
U1	Cigarette lighter
T10d	10-pin connector, green, in protective housing for connectors, on left in plenum chamber
T16	16-pin connector, self-diagnosis
255	Earth connection -1-, in radio wiring harness
A4	Positive (+) connection (58b), in dash panel wiring harness
A11	Positive (+) connection (58b), in dash panel wiring harness
A21	Connection (86s), in dash panel wiring harness
A76	Connection (diagnosis wire K), in dash panel wiring harness
V22	Positive (+) connection (30a), in navigation wiring harness

Wiring Diagram SEAT LEON 2002 - Lighting switch - front and rear fog light switch - rear fog light switch - fog light warning lamp - lighting switch light bulb

E1	Light switch
E7	Fog light switch
E18	Rear fog light switch
K17	Fog light warning lamp
L9	Light switch light bulb
S236	Fuse in fuse box
T8a	8-pin connector, headlight, right
*	Provision for fog lights

Wiring Diagram SEAT LEON 2002 - Horn plate - horn/dual tone horn - dual tone horn relay - glove box light - number plate light

H	Horn plate
H1	Horn/dual tone horn
J4	Dual tone horn relay
S1	Fuse in fuse box/relay plate
S3	Fuse in fuse box/relay plate
S4	Fuse in fuse box/relay plate
W6	Glove box light
X	Number plate light
T5a	5-pin connector
T5b	5-pin connector, next to steering column
T5k	5-pin connector, in flap right
T5m	5-pin connector, in bootlid
T5n	5-pin connector, in left luggage compartment
176	Earth connection, in right headlight wiring harness
A37	Connection (58a), in dash panel wiring harness
A61	Positive (+) connection (X), in dash panel wiring harness
A90	Connection (dual tone horn), in dash panel wiring harness
W41	Positive (+) connection (58), in licence plate light wiring harness
*	Only models with dual tone horn
**	Only Toledo
---	Only León

Wiring Diagram SEAT LEON 2002 - Switches and instruments - lighting control - headlight range control adjuster - headlight range control motor -left - headlight range control motor - right

E20	Lighting regulator - switches and instruments
E102	Headlight range control adjuster
V48	Headlight range control motor, left
V49	Headlight range control motor, right
T8	8-pin connector, headlight, left
T8a	8-pin connector, headlight, right
101	Earth connection, in headlight range adjustment wiring harness
176	Earth connection, in right headlight wiring harness
A103	Connection -2- (56), in dash panel wiring harness
A114	Connection (headlight range control), in dash panel wiring harness
*	Only models with range control adjuster

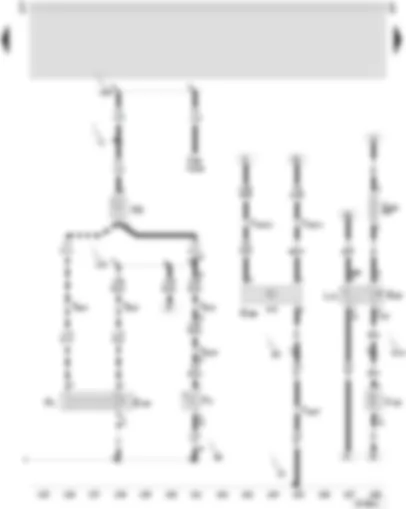

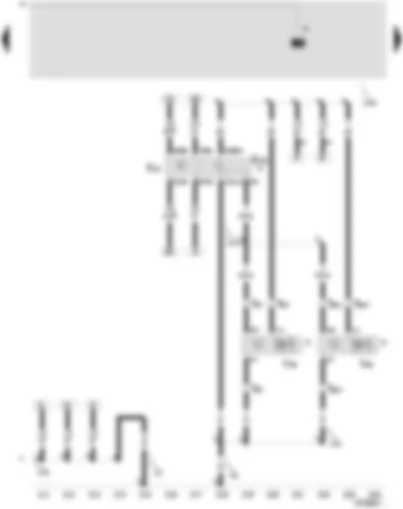

Wiring Diagram SEAT LEON 2002 - Fresh air blower switch - fresh air/air recirculating flap switch - fresh air/air recirculation warning lamp - fresh air regulation light bulb

E9	Fresh air blower switch
E159	Fresh air/air recirculating flap switch
K114	Fresh air/air recirculation warning lamp
L16	Fresh air control light bulb
N24	Fresh air blower with overheating fuse series resistor
S2	Fuse in fuse box/relay plate
S225	Fuse in fuse box
V2	Fresh air blower
V154	Fresh air/recirculating air flap control motor
T4c	4-pin connector, under front passenger's seat
162	Earth connection, in blower motor wiring harness
A20	Connection (15a), in dash panel wiring harness
L66	Connection, in heater blower wiring harness

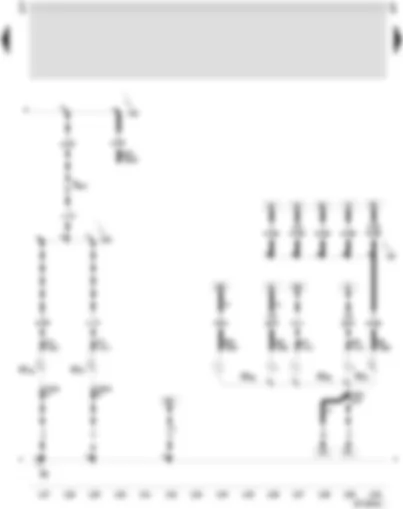

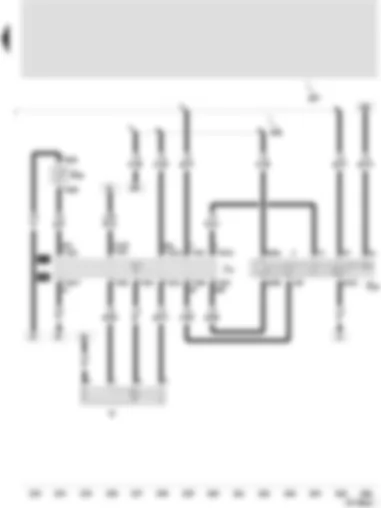

Wiring Diagram SEAT LEON 2002 - Heated rear window switch - heated rear window warning lamp - heated rear window switch bulb - rear window wiper motor - windscreen and rear window washer pump - heated rear window

E15	Heated rear window switch
K10	Heated rear window warning lamp
L39	Heated rear window switch bulb
S224	Fuse in fuse box
S226	Fuse in fuse box
S227	Fuse in fuse box
V12	Rear window wiper motor
V59	Windscreen and rear window washer pump
Z1	Heated rear window
T5s	5-pin connector
T7a	7-pin connector, in centre console
A97	Connection (53), in dash panel wiring harness
A102	Connection (windscreen wiper), in dash panel wiring harness
W8	Connection(15a), in rear wiring harness
*	Only Toledo
---	Only León

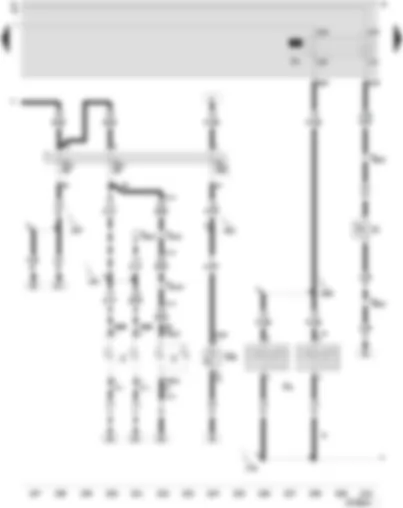

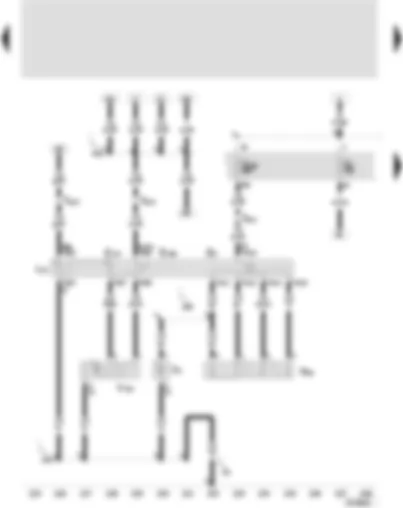

Wiring Diagram SEAT LEON 2002 - Intermittent wiper switch - intermittent wiper control - automatic intermittent wash/wipe relay - windscreen wiper motor

E22	Intermittent wiper switch
E38	Intermittent wiper control
J31	Automatic intermittent wash/wipe relay
V	Windscreen wiper motor
A96	Connection (53a), in dash panel wiring harness
A97	Connection (53), in dash panel wiring harness

SEAT LEON 2002 Overview of relay

Overview of relay

1 -

2 -	Relay on relay plate

q	Position of relays

2 -

Relay in left engine compartment:

A -	Secondary air pump relay -J299- (100)

-	High heat output relay -J360- (100) (only models with auxiliary heater)

B -	Terminal 30 voltage supply relay -J689- (428)

-	Current supply relay for Simos control unit -J363- (429) (for models with engine code BFQ only)

-	Low heat output relay -J359- (53) (only models with auxiliary heater)

C -

Vacant



SEAT LEON 2002 Relay on relay plate

Relay on relay plate

1 -	Dual tone horn relay -J4- (53)

2 -	X-contact relief relay -J59- (100)

3 -

Vacant

4 -	Fuel pump relay -J17- (409)

-	Glow plug relay -J52- (103)

V y Vl -

Automatic intermittent wash and wipe relay -J31-

-	with rain sensor, with/without headlight washer system (192)

-	without rain sensor, with headlight washer system (389)

-	without rain sensor, without headlight washer system (377)



SEAT LEON 2002 Relay on the 13 position additional relay carrier above the relay plate

Relay on the 13 position additional relay carrier above the relay plate

Left-handdrive vehicles:

1 -	Telephone relay

2....9 -

Vacant

10 -	Fuel pump relay (turbo diesel engine unit injectors) (167) -J17- (up to October 2002)

-	Fuel pump relay (TDI-PD) (53) (from November 2002)

11 -	Automatic gearbox relay AG4 -J60- (175)

12 -	Terminal 30 voltage supply relay -J317- (109)

13 -	Radiator fan relay (53)



Right-handdrive vehicles: 1....5 -  Vacant 6 -  Telephone switch-over relay 7 -  Radiator fan relay -J26- (53) 8 -  Terminal 30 voltage supply relay (109) 9 -  Automatic gearbox relay AG4 -J60- (175) 10 -  Fuel pump relay (turbo diesel engine unit injectors)-J17- (167) (up to October 2002)  -  Fuel pump relay (TDI-PD) (53) (from November 2002) 11 -  Vacant 12 -  Cigarette lighter relay Australia -J193- (53) 13 -  Vacant

https://portal-diagnostov.com/license.html https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO 모든 배선 다이어그램에 액세스하십시오.

SEAT LEON 2002 Glow plug activation control unit:

Glow plug activation control unit:

A -	Glow plug activation control unit -J370- (with engine code ARL only)



SEAT LEON 2002 Overview of fuses

Overview of fuses

1 -

q	Position of fuses

2 -

3 -	Fuse on fuse holder -S162-, -S163-, -S164-, -S176-, -S177-, -S178-, -S179-, -S180-, next to battery

q	Location, up to August 2000:

q	Location, from September 2000:

Fuse in fuse holder, dash panel

Fuse colours

30 A -

green

25 A -

white

20 A -

yellow

15 A -

blue

10 A -

red

7,5 A -

brown

5 A -

beige

3 A -

purple

The fuse electrical connections are shown in the respective current flow diagrams. The fuses for options not mentioned are also shown in the respective Current flow diagrams.

Fuses from S 24 are designated with an additional characteristic o. distinctive feature "2" in the Current Flow Diagram, for example: S 40 is designated as S 240.



SEAT LEON 2002 Position of fuses in fuse holder, left dash panel

Position of fuses in fuse holder, left dash panel

No.		Current Flow Diagram designation	Nominal value		Function/component	Terminal
1	-	-S1-	10A	-	Glove compartment light, heated washer jets
2	-	-S2-	10A	-	Turn signals
3	-	-S3-	5A	-	Side light warning lamp
4	-	-S4-	5A	-	Number plate light
5	-	-S5-	7.5A	-	Number plate light
6	-	-S6-	5A	-	Electric folding exterior mirror and window regulator (applicable up to October 2001) Convenience system central control unit (applicable from November 2001)
7	-	-S7-	10A	-	Reversing light
8	-	-S8-	5A	-	Telephone
9	-	-S9-	5A	-	ABS/ESP/HALDEX
10	-	-S10-	10A	-	Petrol engine control unit (applicable up to October 2001) Diesel engine control unit (applicable up to October 2001) - S-contact (applicable from November 2001)
11	-	-S11-	5A	-	Dash panel insert
12	-	-S12-	7.5A	-	Diagnosis voltage
13	-	-S13-	10A	-	Brake lights
14	-	-S14-	10A	-	Interior light
15	-	-S15-	5A	-	Dash panel insert, steering angle sender
16	-	-S16-	10A	-	Compressor

SEAT LEON 2002 Position of fuses in fuse holder, left dash panel

Toledo/León	Fitting Locations	No.  802 / 5

Toledo/León Fitting Locations No.  802 / 6 Toledo/León Fitting Locations No.  802 / 7 Auxiliary fuse above additional relay carrier Right-handdrive vehicles A -  Seat adjustment fuse -S45- (30 A) B -  Vacuum pump fuse (20 A) C -  Window regulator fuse -S37- (30 A) D -  Fuel charging hole fuse -S323- (10 A) E -  Alarm horn fuse -S111- (15 A)  -  Turn signal fuse -S144- (15 A) F -  Taxi fuse (15 A) G -  Vacant H -  Vacant   https://portal-diagnostov.com/license.html https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO 모든 배선 다이어그램에 액세스하십시오. Left-handdrive vehicles: A -  Seat adjustment fuse -S45- (30 A) B -  Vacuum pump fuse (20 A) C -  Window regulator fuse -S37- (30 A) D -  Vacant E -  Taxi fuse (15 A) F -  Alarm horn fuse 1 -S111- (15 A)  -  Turn signal fuse -S144- (15 A) G -  Fuel charging hole fuse -S323- (10 A) H -  Vacant   https://portal-diagnostov.com/license.html https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO 모든 배선 다이어그램에 액세스하십시오. SEAT LEON 2002 Fuse on fuse holder, next to battery (up to August 2000): Fuse on fuse holder, next to battery (up to August 2000): Fuses: S162 -  Glow plug heater 50 A S163 -  Engine control unit 50 A S164 -  Radiator fan 40 A S176 -  Passenger compartment, 110A S177 -  Alternator (90 A), 110 A  -  Alternator (120 A), 150 A S178 -  ABS (pump), 30 A S179 -  ABS, 30 A S180 -  Radiator fan 30 A

https://portal-diagnostov.com/license.html https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO 모든 배선 다이어그램에 액세스하십시오.

SEAT LEON 2002 Fuse on fuse holder, next to battery (from September 2000):

Fuse on fuse holder, next to battery (from September 2000):

A -	Red wire, 16mm²



Fuses: S162 -  Glow plug heater 50 A S163 -  Engine control unit 50 A S164 -  Radiator fan 40 A S176 -  Passenger compartment, 110A S177 -  Alternator (90 A), 110 A  -  Alternator (120 A), 150 A S178 -  ABS (pump), 30 A S179 -  ABS, 30 A S180 -  Radiator fan 30 A

https://portal-diagnostov.com/license.html https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO 모든 배선 다이어그램에 액세스하십시오.

SEAT LEON 2002 Overview of coupling station and connections for wiring harness

Overview of coupling station and connections for wiring harness

1 -	Coupling station in protective housing, in plenum chamber

q	With connectors -T10g-, -T10d-, -T10e-, -T10-, -T6l-, -T10h-,

2 -	Coupling station, right B-pillar

q	With connector

3 -	Coupling station on left of C-pillar

q

Location

4 -	Coupling station on left of A-pillar

q	With connector

5 -	Coupling station in engine compartment, in left wiring harness

q

Location

Coupling station in protective housing, in plenum chamber

1 -	10-pin connector -T10g-, grey, automatic gearbox

2 -	10-pin connector, -T10d-, white, data bus wire, engine control unit, automatic gearbox, Motronic control unit, ABS control unit

3 -	10-pin connector -T10e-, black, cruise control system, Motronic control unit, engine control unit

4 -	10-pin connector -T10-, orange, reversing lights, engine control unit, starter, Climatronic control unit, Motronic control unit

5 -	6-pin connector -T6l-, brown, starter, fuel pump relay, engine control unit

Toledo/León	Fitting Locations	No.  803 / 3

6 -	10-pin connector -T10h-, blue, accelerator position sender, Motronic control unit, engine control unit

7 -	10-pin connector, -T10v-, green, radiator outlet coolant temperature sender, radiator fan control unit, potentiometer for temperature selection rotary knob

SEAT LEON 2002 Coupling station, right B-pillar

Coupling station, right B-pillar

1 -	10-pin connector -T10m-, black, signal loudspeakers, central locking, rear electric window regulator, rear door warning lamp

The wiring on the B-pillar, left, is installed vice versa.



SEAT LEON 2002 Coupling station on left of C-pillar Coupling station on left of C-pillar See connectors in fitting locations: Multi-pin connections. 1 -  Earth connection 2 -  Rear fog light, number plate light, reversing lights black 3 -  Rear window wiper and washer system (only for Leon) pink 4 -  Central locking brown

https://portal-diagnostov.com/license.html https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO 모든 배선 다이어그램에 액세스하십시오.

SEAT LEON 2002 Coupling station on left of A-pillar

Coupling station on left of A-pillar

1 -	10-pin connector -T10i-, black, central locking, electric mirror adjustment, radio with muting / electric windows

The wiring on the A-pillar, right, is installed vice versa.



SEAT LEON 2002 Coupling station in engine compartment, in left wiring harness Coupling station in engine compartment, in left wiring harness See connectors in fitting locations: Multi-pin connections.

https://portal-diagnostov.com/license.html https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO 모든 배선 다이어그램에 액세스하십시오.

SEAT LEON 2002 Overview of earth points in engine compartment

Overview of earth points in engine compartment

608	Earth point, in centre of plenum chamber ⇒ -arrow-



10 Earth point, in plenum chamber ⇒ -arrow-

https://portal-diagnostov.com/license.html https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO 모든 배선 다이어그램에 액세스하십시오.

609	Earth point, on right in plenum chamber ⇒ -arrow-



1 Earth strap, battery - body ⇒ Arrow A

https://portal-diagnostov.com/license.html https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO 모든 배선 다이어그램에 액세스하십시오.

12	Earth points, on left in engine compartment ⇒ -arrow B-



2 Earth strap, gearbox - body ⇒ -arrow-

https://portal-diagnostov.com/license.html https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO 모든 배선 다이어그램에 액세스하십시오.

Overview of earth points in vehicle interior

Toledo/León	Fitting Locations	No.  801 / 6

43	Earth point, lower part of right A-pillar ⇒ -arrow-



78 Earth point on right B-pillar ⇒ -arrow-

https://portal-diagnostov.com/license.html https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO 모든 배선 다이어그램에 액세스하십시오.

77	Earth point on left B-pillar ⇒ -arrow-



44 Earth point, lower part of left A-pillar ⇒ -arrow-

https://portal-diagnostov.com/license.html https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO 모든 배선 다이어그램에 액세스하십시오.

33	Earth point behind dash panel on right ⇒ -arrow-

42	Same earth point as ⇒ -arrow-



32	Earth point behind dash panel on left ⇒ -arrow-



45 Earth point, behind dash panel

https://portal-diagnostov.com/license.html https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO 모든 배선 다이어그램에 액세스하십시오.

SEAT LEON 2002 Overview of earth points in luggage compartment (Toledo)

Overview of earth points in luggage compartment (Toledo)

50	Earth point, on left in luggage compartment

  Overview of earth points in luggage compartment (León)

57	Earth point, left rear pillar
