Электросхемы СИСТЕМА КОНДИЦИОНЕРА Jaguar X-Type 2003

СИСТЕМА КОНДИЦИОНЕРА

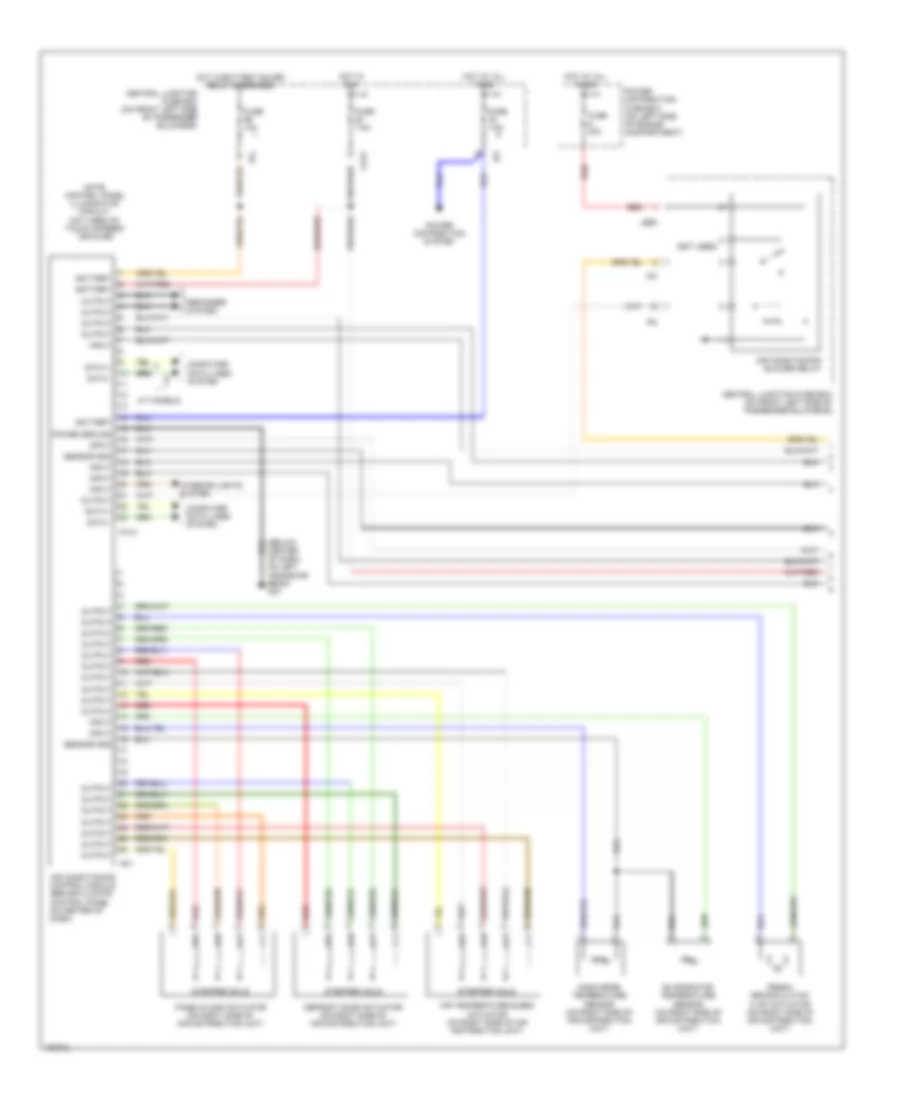

Электросхема кондиционера (1 из 2) для Jaguar X-Type 2003

Электросхема кондиционера (1 из 2) для Jaguar X-Type 2003 - Список элементов:

• (below center of dash, on left crosscar beam) g37
• (not used)
• A/t models
• Ac1
• Air conditioning blower relay
• Air conditioning control module (behind climate control panel on center of dash)
• Air temperature blend actuator (on right side of air distribution unit)
• Battery
• Ca75
• Central junction fuse box (on front left side of passenger bulkhead)
• Computer data lines system
• Data +
• Data -
• Defogger system
• Defrost door actuator (on right side of air distribution unit)
• Discharge temperature sensor (on right side of air distribution unit)
• Evaporator temperature sensor (on right side of air distribution unit)
• Fresh/ recirculation flap actuator (on right side of air distribution unit)
• Fuse 10a
• Fuse 30a
• Fuse 7.5a
• Hot at all times
• Hot in run
• Hot w/battery saver relay energized
• Input
• Interior lights system
• Ip101
• Ip2
• Ip3
• Ip4
• Jb50
• Note: control panel illumination circuit- not used on "touch screen" vehicles
• Output
• Panel/floor actuator (on right side of air distribution unit)
• Power distribution fuse box (on left side of engine compartment)
• Power distribution system
• Power ground
• Red
• Sensor gnd
• Stepper coils

Электросхема кондиционера (2 из 2) для Jaguar X-Type 2003

Электросхема кондиционера (2 из 2) для Jaguar X-Type 2003 - Список элементов:

• (below center of dash, on right crosscar beam) g36
• (not used)
• (on generator bracket) g17
• (under left headlamp) g11
• Air conditioning compressor clutch
• Air conditioning compressor clutch relay
• Air conditioning pressure sensor (on left side of engine compartment)
• Ambient temperature sensor
• Battery voltage
• Blower (behind right side of dash)
• Control
• Cooling fan module (near left side of radiator)
• Engine control module (on right front side of engine compartment)
• Fuse 10a
• Fuse 15a
• Fuse 80a
• Ground
• Hot at all times
• Hot w/ems control relay energized
• In-car temperature sensor (behind center of dash)
• Input
• Jb188
• Left cooling fan
• Nca
• Note: vehicles without navigation- "touch screen"- a/ccm incorporates control panel for climate control system vehicles with navigation "touch screen"- a/ccm is remotely mounted on climate control unit. driver control inputs received via network communication
• Output
• Power distribution fuse box (on left side of engine compartment)
• Pwm1
• Pwr ground
• Red
• Right cooling fan
• Sense
• Sensor ground
• Sensor voltage
• Solar sensor (at top center of dash)

Электросхема кондиционера с ручный управлением (1 из 2) для Jaguar X-Type 2003

Электросхема кондиционера с ручный управлением (1 из 2) для Jaguar X-Type 2003 - Список элементов:

• (below center of dash, on left crosscar beam) g37
• (not used)
• A/t models
• Ac1
• Accm gnd
• Air conditioning blower relay
• Air conditioning control module (behind climate control panel on center of dash)
• Air temperature blend actuator (on right side of air distribution unit)
• Battery
• Blower (behind left side of dash)
• Blower gnd
• Blower series resistor (behind left side of dash, near blower motor)
• Ca75
• Central junction fuse box (on front left side of passenger bulkhead)
• Computer data lines system
• Data +
• Data -
• Defogger system
• Defrost door actuator (on right side of air distribution unit)
• Discharge temperature sensor (on right side of air distribution unit)
• Evaporator temperature sensor (on right side of air distribution unit)
• Fresh/ recirculation flap actuator (on right side of air distribution unit)
• Fuse 10a
• Fuse 15a
• Fuse 30a
• Fuse 7.5a
• Fuse 80a
• G36 (below center of dash, on right crosscar beam)
• Hot at all times
• Hot in run
• Hot w/battery saver relay energized
• Hot w/ems control relay energized
• Ignition
• Input
• Interior lights system
• Ip101
• Ip135
• Ip2
• Ip3
• Ip39
• Ip4
• Jb50
• Output
• Panel/floor actuator (on right side of air distribution unit)
• Power distribution fuse box (on left side of engine compartment)
• Power distribution system
• Red
• Sensor gnd
• Stepper coils

Электросхема кондиционера с ручный управлением (2 из 2) для Jaguar X-Type 2003

Электросхема кондиционера с ручный управлением (2 из 2) для Jaguar X-Type 2003 - Список элементов:

• (not used)
• (on generator bracket) g17
• (under left headlamp) g11
• Air conditioning compressor clutch
• Air conditioning compressor clutch relay
• Air conditioning pressure sensor (on left side of engine compartment)
• Battery voltage
• Cooling fan module (near left side of radiator)
• Engine control module (on right front side of engine compartment)
• Fuse 10a
• Hot at all times
• Hot w/ems control relay energized
• Input
• Jb188
• Left cooling fan
• Nca
• Output
• Power distribution fuse box (on left side of engine compartment)
• Pwm1
• Pwr ground
• Red
• Right cooling fan
• Sensor ground
• Sensor voltage
