All Wiring Diagrams for Porsche Boxster S 2010

ACTIVE BODYWORKS

Active Bodyworks Wiring Diagram for Porsche Boxster S 2010

List of elements for Active Bodyworks Wiring Diagram for Porsche Boxster S 2010:

• Button module
• Can comfort high
• Can comfort low
• Computer data lines system
• Drive spoiler (rear flap)
• Fuse f3 15a
• Fuse holder a
• Gp3 (cayman: left side of middle support frame) (boxster: behind left side of dash)
• Gp8 (left side of engine compt)
• Ground
• Hot at all times
• Illumination
• Interior lights system
• Rear control unit (under driver's seat)
• Red
• Spoiler extended micro sw
• Spoiler extension
• Spoiler mode func light
• Spoiler retracted micro sw
• Spoiler retraction
• Spoiler sw module
• Sport mode func light
• Term 30 motors
• Vehicle electrical system control unit

AIR CONDITIONING

Automatic A/C Wiring Diagram (1 of 2) for Porsche Boxster S 2010

List of elements for Automatic A/C Wiring Diagram (1 of 2) for Porsche Boxster S 2010:

• (w/o top) ntc evaporator
• +5v
• A/c compressor
• Air conditioning fan
• Can comfort high
• Can comfort low
• Central flap
• Central flap recir- culation drive motor
• Circulating air/ outside air flap drive motor
• Climatronic control unit
• Close circ air
• Compressor volt
• Computer data lines system
• Cool
• Defrost
• Fan actuation
• Fan backrest
• Fan feed back
• Fan feed back(+)
• Fan outlet sensor
• Fan seat
• Final stage fan
• Footwell
• Footwell/def flap
• Footwell/defrost
• Footwell/defrost flap drive motor
• Fuse f2 7.5a
• Fuse holder c
• Gnd
• Gp5 (right side of dash)
• Gp7 (below left seat)
• Hot
• Hot w/ terminal 15 relay energized
• Intake air temperature sensor
• Left fan
• Left seat
• Middle level
• Nca
• Ntc
• Open (fresh air)
• Outlet temperature sensor (behind right side of front bumper)
• Outside air flap
• Outside sensor
• Pmu
• Pwm
• Red
• Refrigerant pressure sensor
• Right fan
• Right seat
• Sensor gnd
• Sun sensor
• Sun sensor (under top center of dash)
• Temp
• Temperature flap
• Temperature flap drive motor
• Term 15
• Term 30
• Term 31
• Water press sens

Automatic A/C Wiring Diagram (2 of 2) for Porsche Boxster S 2010

List of elements for Automatic A/C Wiring Diagram (2 of 2) for Porsche Boxster S 2010:

• (or red)
• 2.9l
• 3.4l
• 80a
• Actuation fan
• Actuation input
• Air conditioning compressor (left front of engine)
• Batt
• Can high
• Can high comfort
• Can low
• Can low comfort
• Computer data lines system
• Coolant temperature sensor (ntc) (on engine)
• Cooling water fan control unit
• Cu a/c
• Current distributor (behind right side of dash)
• Dme control unit
• Eng compt blwr rly
• Eng compt temp sen
• Engine compartment high fan relay
• Engine compartment purge fan (cleaner fan) (left front side of engine compt)
• Engine compartment temperature sensor
• Engine controls & transmission systems
• Front end control unit (right side of front luggage compt)
• Fuse f1 10a
• Fuse f10 30a
• Fuse f6 80a
• Fuse f8 7.5a
• Fuse holder b
• Fuse holder d
• Fuse holder f
• Gnd
• Gp1 (front of right front fender)
• Gp9 (at left side of engine compt)
• Heater relay
• Hot at all times
• Hot w/ dme relay energized
• Left cooling water fan
• Left fan +
• Left fan -
• Midi fuse
• Nca
• Ntc wagger
• Pas (driver recognition) control unit (under dash, left of steering column)
• Power distribution system
• Red
• Relay support 1 (under left side of dash, in footwell)
• Relay support 2 (left side of rear luggage compt)
• Right cooling water fan
• Sens gnd
• Tank leakage diagnostic module
• Tcrmx
• Term 15
• Term 15 final stage
• Term 87

Manual A/C Wiring Diagram (1 of 2) for Porsche Boxster S 2010

List of elements for Manual A/C Wiring Diagram (1 of 2) for Porsche Boxster S 2010:

• (not used)
• +5v
• A/c compressor
• Air conditioning fan
• Can comfort high
• Can comfort low
• Central flap
• Central flap recir- culation drive motor
• Climatronic control unit
• Close circ air
• Computer data lines system
• Cool
• Defrost
• Defrost flap drive motor
• Fan actuation
• Fan feedback
• Fan feedback (+)
• Final stage fan
• Footwell
• Footwell/def flap
• Footwell/defrost
• Fresh air circulating drive motor
• Fuse f2 7.5a
• Fuse holder c
• Gp5 (right side of dash)
• Hot
• Hot w/ term 15 relay energized
• Middle level
• Ntc
• Ntc evaporator
• Open (fresh air)
• Red
• Refrigerant pressure sensor
• Sensor gnd
• Sun sensor
• Sun sensor (under top center of dash)
• Temperature flap
• Temperature flap drive motor
• Term 15
• Term 30
• Term 31
• Water press sens

Manual A/C Wiring Diagram (2 of 2) for Porsche Boxster S 2010

List of elements for Manual A/C Wiring Diagram (2 of 2) for Porsche Boxster S 2010:

• (or red)
• 2.9l
• 3.4l
• 80a
• Actuation fan
• Actuation input
• Air conditioning compressor (left front of engine)
• Batt
• Can high
• Can high comfort
• Can low
• Can low comfort
• Computer data lines system
• Cooling water fan control unit
• Cooling water temperature sensor (ntc) (on engine)
• Cu a/c
• Current distributor (behind right side of dash)
• Dme control unit
• Eng compt blwr rly
• Eng compt temp sen
• Engine compartment high fan relay
• Engine compartment purge fan (cleaner fan) (left front side of engine compt)
• Engine compartment temperature sensor
• Engine controls & transmission systems
• Front end control unit (right side of front luggage compt)
• Fuse f1 10a
• Fuse f10 30a
• Fuse f6 80a
• Fuse f8 7.5a
• Fuse holder b
• Fuse holder d
• Fuse holder f
• Gnd
• Gp1 (front of right front fender)
• Gp9 (at left side of engine compt)
• Heater relay
• Hot at all times
• Hot w/ dme relay energized
• Left cooling water fan
• Left fan +
• Left fan -
• Midi fuse
• Nca
• Ntc wagger
• Pas (driver recognition) control unit (under dash, left of steering column)
• Power distribution system
• Red
• Relay support 1 (under left side of dash, in footwell)
• Relay support 2 (left side of rear luggage compt)
• Right cooling water fan
• Sens gnd
• Tank leakage diagnostic module
• Tcrmx
• Term 15
• Term 15 final stage
• Term 87

ANTI-LOCK BRAKES

Anti-lock Brakes Wiring Diagram for Porsche Boxster S 2010

List of elements for Anti-lock Brakes Wiring Diagram for Porsche Boxster S 2010:

• (at left front side of luggage compt) gp psm
• (below left side of dash)
• +bs
• Active speed sensor
• Brake fluid level
• Brake fluid level control switch (in brake fluid reservoir)
• Brake paid wear +
• Brake paid wear -
• Brake pedal switch
• Button module
• Can drive lo
• Can hi drive
• Can high
• Can low
• Computer data lines system
• Current distributor (behind right side of dash)
• Diag kline
• Diagnosis plug socket
• Eng rly act
• Engine relay
• Exterior lights system
• Front end control unit (right side of front luggage compt)
• Fuse f10 25a
• Fuse f4 10a
• Fuse f5 50a
• Fuse f8 10a
• Fuse holder c
• Gnd
• Gp psm (at left front side of luggage compt)
• Gp psm (at left frontside of luggage compt)
• Gp4 (center of dash)
• Gp6 (below right seat)
• Gp7 (below left seat)
• Hot at all times
• Hot w/ terminal 15 relay energized
• Instrument cluster
• Left front brake pad wear/speed sensor (at wheel assembly)
• Left rear brake pad wear/speed sensor (at wheel assembly)
• Lf dp
• Lf ds
• Lr dp
• Lr ds
• Lr eos
• Mtr ctrl
• Nca
• Parking brake contact (base of hand brake lever)
• Pressure sensor
• Prk brk contact
• Psm (porsche stability management control unit) (left side of front luggage compt)
• Psm passive bulb in button
• Psm passive button
• Rate off turn sensor
• Rate ofturn sensor
• Return pump motor
• Rf dp
• Right front brake pad wear/speed sensor (at wheel assembly)
• Right rear brake pad wear/speed sensor (at wheel assembly)
• Rr dp
• Rr ds
• Speed sensor
• Sw +
• Terminal 15
• U battery eng rly
• Valve relay
• Valve rly act
• Wear sensor
• Wheel
• Wheel speed a

ANTI-THEFT

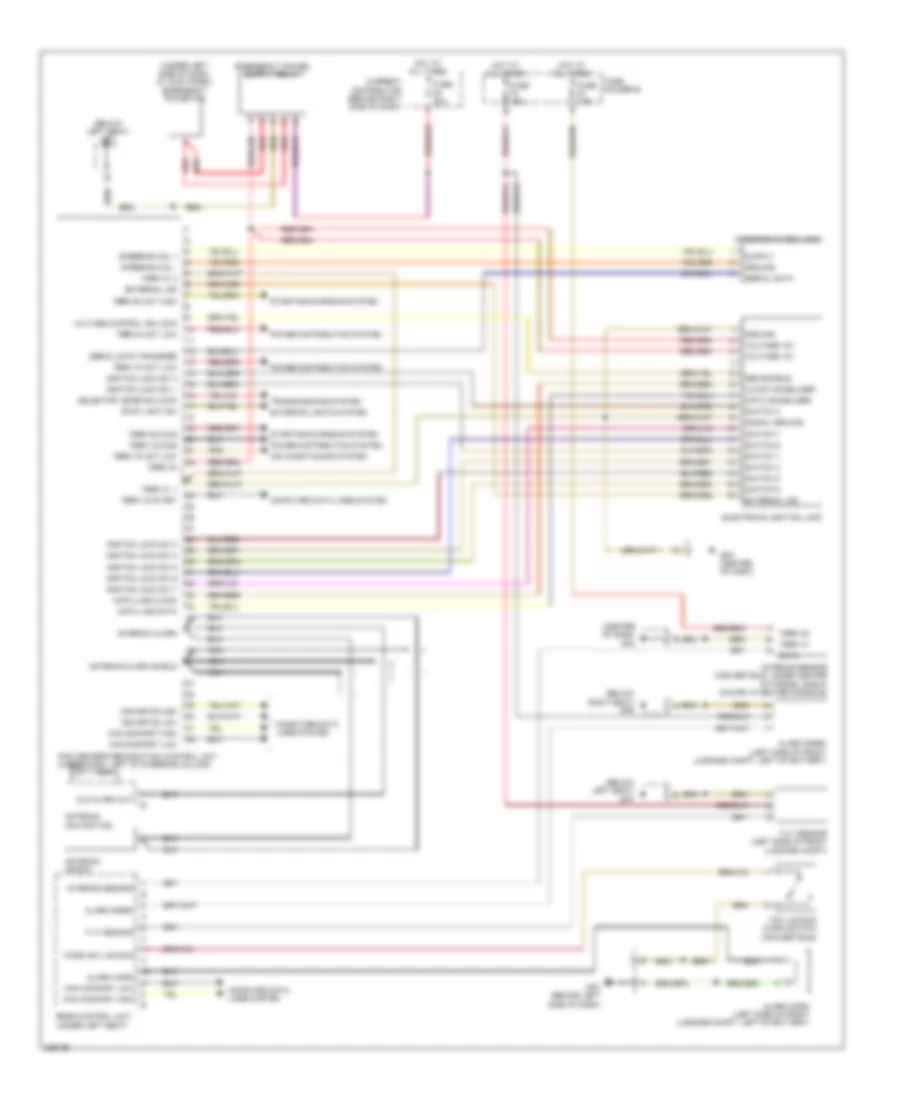

Anti-theft Wiring Diagram for Porsche Boxster S 2010

List of elements for Anti-theft Wiring Diagram for Porsche Boxster S 2010:

• (below left seat) gp7
• (below right seat) gp6
• (center of dash) gp4
• (under left side of dash, at kick panel) emergency power pin
• Air conditioning system
• Alarm horn
• Alarm horn (left side of front luggage compt, left of battery)
• Alarm siren
• Alarm siren (left side of front luggage compt, left of battery)
• Antenna (navigation)
• Antenna (radio)
• Antenna alarm
• Antenna alarm shield
• Can comfort high
• Can comfort low
• Can drive high
• Can drive low
• Clock immobilizer
• Cls alarm out
• Computer data lines system
• Current distributor (behind right side of dash)
• Data
• Data immobilizer
• Data line clock
• Data line data
• Electronic ignition lock
• Exterior lights system
• External ind
• Fuse f2 7.5a
• Fuse f3 15a
• Fuse f6 80a
• Fuse holder b
• Gp3 (behind left side of dash)
• Gp4 (center of dash)
• Ground
• Hot at all times
• Ignition lock sw 1
• Ignition lock sw 2
• Ignition lock sw 3
• Ignition lock sw 4
• Ignition lock sw 5
• Ignition lock sw 6
• Ignition lock sw 7
• Interior sensor
• Interior sensor (convertible: under center of parcel shelf) (coupe: in center console)
• Micro sw locking
• Nca
• Pas (driver's recognition) control unit (under dash, left of steering column)
• Power distribution system
• Rear control unit (under left seat)
• Red
• Reg enable
• Selector lever sw/lock
• Serial data
• Serial data transfer
• Signal ground
• Starting/charging system
• Steering col +
• Steering col -
• Steering wheel lock
• Stop light sw
• Switch 1
• Switch 2
• Switch 3
• Switch 4
• Switch 5
• Switch 6
• Switch 7
• Term 15 act low
• Term 15 diag
• Term 15 start
• Term 30
• Term 31
• Term 31 1
• Term 31 2
• Term 50 act high
• Term 50 diag
• Term 75 act low
• Term s act low
• Tilt sensor
• Tilt sensor (left side of front luggage compt)
• Top locking micro switch (convertible)
• Transmissions system
• Voltage 12v
• Voltage control ign lock

BODY CONTROL MODULES

Front Controller Wiring Diagram for Porsche Boxster S 2010

List of elements for Front Controller Wiring Diagram for Porsche Boxster S 2010:

• Alwr -
• Alwr sensor +
• Alwr sensor -
• Alwr sensor input 1
• Alwr stepping motor 1
• Alwr stepping motor 2
• Anti-lock brakes system
• Can comfort high
• Can comfort low
• Computer data lines system
• Control unit + term 30
• Cooling fans system
• Current distributor (behind right side of dash)
• Deep range horn
• Door locks system
• Exterior lights system
• Exterior temp transmitter
• Exterior temp transmitter -
• Fan actuation
• Final stage fan term 15
• Front end control unit (right side of front luggage compt)
• Front luggage compt light
• Front micro lock switch
• Fuse f3 10a
• Fuse f3 70a
• Fuse f8 70a
• Fuse f9 80a
• Fuse holder c
• Gp1 (front of right front fender)
• Ground connection 2
• Hazard-warning ind light
• Hazard-warning switch
• Headlights system
• High range horn
• Horns system
• Hot at all times
• Hot w/ terminal 15 relay energized
• Interior lights system
• Left high beam
• Left high/low beam +
• Left low beam
• Left turn signal/side marker +
• Lf fog, drl, side marker lt term 30
• Lf front turn signal
• Lf rear turn signal
• Lf term 30 turn signal
• Lh front fog lamp
• Lh front side marker light
• Lh side marker light/turn signal
• Low beam switch
• Lugg compt emer unlocking sw
• Outside temperature sensor (behind right side of front bumper)
• Power distribution system
• Red
• Rf side marker light
• Rf side turn signal/marker light
• Rh front fog lamp
• Rh front turn signal
• Rh rear turn signal
• Rh term 30 turn signal
• Right high beam
• Right high/low beam +
• Right low beam
• Side marker light switch
• Term 15
• Unlocking hooks -
• Unlocking hooks connection 1
• Unlocking hooks connection 2
• Unlocking luggage compt
• Wheel speed sensor

Rear Control Unit Wiring Diagram for Porsche Boxster S 2010

List of elements for Rear Control Unit Wiring Diagram for Porsche Boxster S 2010:

• Active bodyworks system
• Alarm siren
• Alarm-horn
• Anti-theft system
• Backup light
• Can comfort high
• Can comfort low
• Cls alarm
• Cls alarm function light
• Computer data lines system
• Convertible top closed
• Convertible top closed micro sw
• Convertible top locking micro sw
• Convertible top open
• Convertible top opened micro sw
• Door locks system
• Exterior lights system
• Fuse f3 15a
• Fuse f6 15a
• Fuse f7 15a
• Fuse holder a
• Glove box micro sw
• Gp7 (below left seat)
• High mounted stop light
• Hot at all times
• Interior lights system
• Interior sensor
• Left side marker light
• Left stop light
• License plate lighting
• Luggage compartment light
• Power tops system
• Rear control unit (under left seat)
• Rear fog light
• Rear lid micro sw
• Rear spoiler extension
• Rear spoiler retraction
• Rear window wiper
• Red
• Right side marker light
• Right stop light
• Spoiler extended micro sw
• Spoiler retracted micro sw
• Stop light switch
• Tailgate unlocking
• Term 15 emergency light
• Term 30 left
• Term 30 motors
• Term 30 right
• Term 31
• Tilt sensor
• Wiper/washer system

Vehicle Electrical System Control Module Wiring Diagram for Porsche Boxster S 2010

List of elements for Vehicle Electrical System Control Module Wiring Diagram for Porsche Boxster S 2010:

• 80a
• Active bodyworks system
• Automatic light switch
• Backup light switch
• Can comfort high
• Can comfort low
• Computer data lines system
• Control unit term 30
• Convertible
• Coupe
• Current distributor (behind right side of dash)
• Defogger system
• Fog light switch
• Front cover opener button
• Function light sport 2
• Fuse f2 80a
• Fuse f6 7.5a
• Fuse f8 70a
• Fuse holder b
• Gp3 (behind left side of dash)
• Gp4 (center of dash)
• Ground connection 1
• Ground connection 2
• Headlight cleaner pump rly
• Headlights system
• Headlights system exterior lights system
• Home link led
• Homelink button 1
• Homelink button 2
• Homelink button 3
• Homelink keypad
• Homelink transmitter (right front of front trunk)
• Hot at all times
• Inside light -
• Inside light sw term 30
• Inside light term 30
• Inside light terminal
• Interior lights
• Interior lights system
• Led
• Left seat heater
• Left seat heater +
• Light orientation terminal
• Lin
• Lin homelink
• Midi fuse (exhaust)
• Motor drive tank-folds conn 1
• Motor drive tank-folds conn 2
• Power distribution system
• Rain sensor +
• Rain sensor -
• Rain sensor signal
• Rear cover opener button
• Rear fog light switch
• Rear spoiler func light
• Rear spoiler mod button
• Rear window defogger rly
• Red
• Right seat heater
• Right seat heater +
• Seats system
• Sport mode func light
• System
• Tank cover -
• Tank cover term 30
• Term 15
• Trunk, tailgate, fuel doors system
• Vehicle electrical system control unit
• Washing fluid pump
• Washing fluid pump +
• Windshield wiper mtr parking sw
• Wiper motor +
• Wiper motor stage 2
• Wiper mtr break
• Wiper mtr stage 1
• Wiper/washer system

COMPUTER DATA LINES

Computer Data Lines Wiring Diagram for Porsche Boxster S 2010

List of elements for Computer Data Lines Wiring Diagram for Porsche Boxster S 2010:

• "k" lead diagnosis
• (left kick panel) gateway control unit
• 2.9l
• 3.4l
• Air bag control unit (under center console)
• Can hi
• Can high comfort
• Can high diagnosis
• Can high display
• Can high drive
• Can lo
• Can low comfort
• Can low diagnostics
• Can low display
• Can low drive
• Cd radio
• Climatronic control unit
• Corner sensitive headlights control unit
• Current distributor (behind right side of dash)
• Diagnosis connector (below left side of dash)
• Dme control unit
• Driver door control unit
• Front control unit
• Fuse f1 15a
• Fuse f2 7.5a
• Fuse f6 80a
• Fuse holder b
• Fuse holder c
• Gp electronics (at left side of dash)
• Gp4 (center of dash)
• Ground
• Hot at all times
• Hot w/ terminal 15 relay energized
• Info not available
• Instrument cluster
• K line
• Left seat memory control unit (under left seat)
• Parking assistant control unit (under left seat)
• Pas (driver recognition) control unit (under dash, left of steering column)
• Pasm control unit (right kick panel)
• Passenger door control unit
• Pdk control unit
• Porsche communications management (pcm) (in center console)
• Psm (porsche stability management) control unit (left side of front luggage compt)
• Rate of turn sensor
• Rdk control unit
• Rear control unit (under left seat)
• Red
• Right seat memory control unit (under right seat)
• Selector lever control unit
• Sportchrono
• Steering column combined module
• Term 15
• Terminal 15
• Vehicle electrical system control unit
• Wake up
• Wakeup
• Weight recognition control unit (under passenger seat)

COOLING FAN

Cooling Fan Wiring Diagram for Porsche Boxster S 2010

List of elements for Cooling Fan Wiring Diagram for Porsche Boxster S 2010:

• 2.9l
• 3.4l
• 80a
• Actuation fan
• Actuation input
• Batt
• Can high
• Can high comfort
• Can low
• Can low comfort
• Computer data lines system
• Coolant temperature sensor (ntc) (on engine)
• Cooling water fan control unit
• Dme control unit
• Engine compartment temperature sensor
• Front end control unit (right side of front luggage compt)
• Gnd
• Gp1 (front of right front fender)
• Hot at all times
• Left cooling water fan
• Left fan +
• Left fan -
• Midi fuse
• Nca
• Ntc coolant pump
• Power distribution system
• Red
• Right cooling water fan
• Sens gnd
• Temp sen
• Term 15
• Term 15 final stage

CRUISE CONTROL

Cruise Control Wiring Diagram for Porsche Boxster S 2010

List of elements for Cruise Control Wiring Diagram for Porsche Boxster S 2010:

• (under accelerator pedal) pedal valve sensor
• + bs
• +5v
• +5v pdl valve sens 1
• +5v pdl valve sens 2
• 2.9l
• 3.4l
• Brake pedal switch
• Bridge plug 1 (relay support 1)
• Can comfort high
• Can comfort low
• Can display high
• Can display low
• Can drive high
• Can drive low
• Can high drive
• Can low drive
• Clutch interlock switch (clutch pedal)
• Computer data lines system
• Dme control unit
• Fuse f3 15a
• Fuse f4 10a
• Fuse holder b
• Fuse holder c
• Gp4 (center of dash)
• Hot at all times
• Pas (driver's recognition) control unit (under dash, left of steering column)
• Pdl valve sens 1 gnd
• Pdl valve sens 1 sig
• Pdl valve sens 2 gnd
• Pdl valve sens 2 sig
• Psm (porsche stability management) control unit (left side of front luggage compt)
• Rear control unit (under left seat)
• Release
• Sport chrono
• Steering column combined module
• Stop light sw
• Term 30
• Term 31
• Throttle valve (middle of intake manifold)
• Throttle vlv gnd
• Throttle vlv mtr (+)
• Throttle vlv mtr (-)
• Throttle vlv sig
• Wake up

DEFOGGERS

Defogger Wiring Diagram for Porsche Boxster S 2010

List of elements for Defogger Wiring Diagram for Porsche Boxster S 2010:

• Can high comfort
• Can low comfort
• Computer data lines system
• Coupe
• Fuse f9 25a
• Fuse holder a
• Gp3 (behind left side of dash)
• Gp6 (below right seat)
• Hot at all times
• Rear window def relay
• Rear window defogger
• Rear window heating relay (relay support 1)
• Vehicle electrical system control unit

Heated Mirrors Wiring Diagram for Porsche Boxster S 2010

List of elements for Heated Mirrors Wiring Diagram for Porsche Boxster S 2010:

• Battery
• Can high comfort
• Can low comfort
• Computer data lines system
• Driver's door control unit
• Driver's mirror control unit
• Fuse f1 30a
• Fuse f4 30a
• Fuse holder a
• Gp13 (near battery)
• Hot at all times
• Mirror heater
• Mirror heater +
• Mirror heating +
• Mirror heating -
• Mirror heating gnd
• Passenger's door control unit
• Passenger's mirror control unit
• Term 30 power window
• Term 31

ELECTRONIC SUSPENSION

Electronic Suspension Wiring Diagram for Porsche Boxster S 2010

List of elements for Electronic Suspension Wiring Diagram for Porsche Boxster S 2010:

• (behind left side of dash) gp3
• Button module
• Button signal
• Can high
• Can low
• Computer data lines system
• Damptronic
• Front axle signal
• Fuse f2 7.5a
• Fuse f8 10a
• Fuse f9 15a
• Fuse holder c
• Gp6 (below right seat)
• Ground
• Hot at all times
• Hot w/ terminal 15 relay energized
• Led1
• Left front shock absorber valve (low on left front shock absorber)
• Left rear shock absorber valve (low on left rear shock absorber)
• Left rear vertical sensor (left rear absorber)
• Lf shock absorber +
• Lf shock absorber -
• Lr shock absorber +
• Lr shock absorber -
• Pasm (damptronic) control unit (right kick panel)
• Rear axle vertical sens gnd
• Rear axle vertical sens sig
• Red
• Rf shock absorber +
• Rf shock absorber -
• Rf vertical sens gnd
• Right front shock absorber valve (low on right front shock absorber)
• Right front vertical sensor (right front absorber)
• Right rear shock absorber valve (low on right rear shock absorber)
• Rr shock absorber +
• Rr shock absorber -
• Signal
• Term 15
• Term 30
• Term 31

ENGINE PERFORMANCE

2.9L

2.9L, Engine Performance Wiring Diagram (1 of 3) for Porsche Boxster S 2010

List of elements for 2.9L, Engine Performance Wiring Diagram (1 of 3) for Porsche Boxster S 2010:

• +5v
• B+ plug socket (right side of trans- mission)
• Battery
• Before cat heat o2s1
• Before cat heat o2s2
• Before cat o2s 1 gnd
• Before cat o2s 1 sig
• Before cat o2s 2 gnd
• Before cat o2s 2 sig
• Behind cat heat o2s1
• Behind cat heat o2s2
• Behind cat o2s 1 gnd
• Behind cat o2s 1 sig
• Behind cat o2s 2 gnd
• Behind cat o2s 2 sig
• Camshaft sensor 1
• Camshaft sensor 2
• Can hi display
• Can lo display
• Clock sig
• Computer data lines system
• Current
• Diagnostic test con
• Dme control unit
• Electronics gnd
• Eng compt temp sen
• Eng speed sens shd
• Final stage gnd
• Flap over valve
• Fuse f3 7.5a
• Fuse holder d
• Generator
• Generator term
• Gp8 (at left side of engine compt)
• Gp9 (at left side of eng compt)
• Ground
• Hfm +5v
• Hfm gnd
• Hot at all times
• Htr +
• Htr -
• Inj valve/cylinder 3
• Inj valve/cylinder 4
• Inj valve/cylinder 5
• Inj valve/cylinder 6
• Injectors gnd
• Instrument cluster
• Intake temp sensor
• Lift control valve cylinders 1-3 (cylinder head cover)
• Lift control valve cylinders 4-6 (cylinder head cover)
• Lift ctrl cyl 1-3
• Lift ctrl cyl 4-6
• Maf signal
• Mass air flow sensor
• Maxi fuse 40a
• Nca
• Ntc coolant temp
• Oxygen sensor (cyl 1-3)
• Oxygen sensor (cyl 4-6)
• Oxygen sensor ahead of catalytic converter
• Pipe distribution flap valve
• Pipe flap
• Pressure ctrl +
• Pump current reg in
• Pump current reg out
• Red
• Resistor
• Second air pump rly
• Secondary air pump (net to intake bridge)
• Secondary air pump rear maxi fuse (left side of engine compt, on on fuses support)
• Secondary air pump relay (relay support 2)
• Sensors gnd
• Sports exhaust sys
• Starter
• Starting/ charging system
• Tank venting valve
• Temp motor oil
• Term 15
• Term 30
• Term 87
• Throttle valve gnd
• Throttle valve sig
• Throttle vlv mtr (+)
• Throttle vlv mtr (-)
• Volt +
• Volt -
• Voltage

2.9L, Engine Performance Wiring Diagram (2 of 3) for Porsche Boxster S 2010

List of elements for 2.9L, Engine Performance Wiring Diagram (2 of 3) for Porsche Boxster S 2010:

• (relay support 1) fuel pump relay
• (under battery, in fuel tank) fuel pump/ level sensor
• Air conditioning & cooling fans systems
• Camshaft adjustment (cyl 1-3) (top of engine)
• Camshaft adjustment (cyl 4-6) (top of engine)
• Camshaft sensor 1
• Camshaft sensor 2 (at left rear & right front of engine)
• Current distributor
• Engine coolant temperature sensor (on engine)
• Engine speed sensor (left side of clutch bell housing)
• Engine temperature sensor (middle of engine)
• Fuse f1 25a
• Fuse f5 25a
• Fuse f6 25a
• Fuse f7 15a
• Fuse f7 80a
• Fuse holder d
• Gnd
• Gp3 (behind left side of dash)
• Hot at all times
• Mfi-di relay
• Nca
• Ntc
• Oil pressure regulation shift valve
• Oil temperature & oil pressure sensor (on engine oil pan)
• Resonance flap switch over valve
• Sig
• Sports exhaust system valve
• Tank venting valve (near fuel fill flap)
• Throttle valve (middle of intake manifold)

2.9L, Engine Performance Wiring Diagram (3 of 3) for Porsche Boxster S 2010

List of elements for 2.9L, Engine Performance Wiring Diagram (3 of 3) for Porsche Boxster S 2010:

• (center of dash)
• (expansion tank) cooling water level switch
• (on engine block) knock sensor 1
• (on engine block) knock sensor 2
• (on intake manifolds) fuel injectors
• (under accelerator pedal) pedal valve sensor
• +5v pdl value sens 1
• +5v pdl value sens 2
• Bridge plug (relay support 1)
• Button sports
• Camshaft adj 1
• Camshaft adj 2
• Can high
• Can low
• Clutch interlock switch (clutch pedal)
• Coolant level sw
• Cooling fans system
• Cooling water valve
• Crash shut-down
• Dme control unit
• Dmtl heating element
• Dmtl pump
• Dmtl valve
• Electronic mufflers system
• Eng compt blwr rly
• Eng speed sensor
• Fuel pump relay ctrl
• Gateway control unit (left kick panel)
• Gp11 (at left side of engine compt)
• Gp4
• Gp9 (left side of engine compt)
• Ign coil 1
• Ign coil 2
• Ign coil 3
• Ign coil 4
• Ign coil 5
• Ign coil 6
• Ignition coils (cylinder head cover)
• Inj valve/cylinder 1
• Inj valve/cylinder 2
• Knock sens 1
• Knock sens 2
• Led sports exhaust
• Mfi+di relay ctrl
• Oil pressure
• Pdk control unit
• Pdl value sens 1 gnd
• Pdl value sens 1 sig
• Pdl value sens 2 gnd
• Pdl value sens 2 sig
• Plug spark
• Pressure ctrl -
• Release
• Spark plug
• Start release
• Starter inter lk a
• Starting/charging system
• Tank leakage diagnostics module

3.4L

3.4L, Engine Performance Wiring Diagram (1 of 4) for Porsche Boxster S 2010

List of elements for 3.4L, Engine Performance Wiring Diagram (1 of 4) for Porsche Boxster S 2010:

• (not used)
• +5v veh sens
• Actual value 1
• Actual value 2
• Air temp sens
• Bank 1
• Bank 2
• Can high
• Can low
• Clutch switch
• Compt purge fan
• Computer data lines system
• Cooling water level switch (expansion tank)
• Cooling water shutoff valve
• Current vk b1
• Current vk b2
• Diagnostics mod
• Dme control unit
• Dme relay
• Dmtl-heizung
• Electronic mufflers system
• Exhaust system
• Fuel pump 1
• Fuse f1 25a
• Fuse f3 7.5a
• Fuse f4 20a
• Fuse f5 25a
• Fuse f6 25a
• Fuse f7 15a
• Fuse f8 7.5a
• Fuse holder d
• Gp11 (at left side of engine compt)
• Hot at all times
• Lsf gnd nk b1
• Lsf gnd nk b2
• Lsf htr nk b1
• Lsf htr nk b2
• Lsf sig nk b1
• Lsf sig nk b2
• Lsu gnd vk b1
• Lsu htr vk b1
• Oxy sens 2 gnd
• Oxygen sens 1
• Oxygen sens 2
• Oxygen sensor catalytic converter 1 bank 1
• Oxygen sensor catalytic converter bank 2
• Pedal valve sensor (under accelerator pedal)
• Potentiometer 1
• Potentiometer 2
• Pwg +5v 1
• Pwg +5v poti 2
• Scavenge blwr
• Sens heating
• Sensor ground
• Shutoff valve
• Signal, maf b1
• Starter relay
• Starting/ charging system
• Tank leakage diagnostics module (w/ on board refueling vapor recovery)
• Term 15
• Term 30a
• Term 31 gnd
• Term 87 sply
• W/ on board refueling vapor recovery
• Water lvl sw

3.4L, Engine Performance Wiring Diagram (2 of 4) for Porsche Boxster S 2010

List of elements for 3.4L, Engine Performance Wiring Diagram (2 of 4) for Porsche Boxster S 2010:

• (under battery, in fuel tank) fuel pump/ level sensor
• A/t
• Bridge plug (relay support 1)
• Camshaft adjustment 1 cylinders 1-3 (top of engine)
• Camshaft adjustment 2 cylinders 4-6 (top of engine)
• Can high instrument cluster
• Can low
• Clutch interlock switch (clutch pedal)
• Computer data lines system
• Distribution pipe flap valve
• Engine compartment purge fan
• Fuel lvl sens
• Fuel pump relay 1
• Fuse f1 10a
• Fuse holder f
• Gnd
• Gp11 (at left side of engine compt)
• Gp3 (behind left side of dash)
• Gp4 (center of dash)
• Hot at all times
• Intake pipe flap valve (front middle middle of engine)
• Lift control valve cylinders 1-3 (cylinder head cover)
• Lift control valve cylinders 4-6 (cylinder head cover)
• M/t
• Mass air flow sensor
• Ntc
• Oil level
• Oil level gnd
• Pdk control unit
• Relay support 1 (under left side of dash, in footwell)
• Signal
• Sply
• Starter interlock
• Volt ref

3.4L, Engine Performance Wiring Diagram (3 of 4) for Porsche Boxster S 2010

List of elements for 3.4L, Engine Performance Wiring Diagram (3 of 4) for Porsche Boxster S 2010:

• (boxster: on engine oil pan) (cayman) oil pressure sensor (boxster) oil temperature pressure sensor
• (left side of rear luggage compt) relay support 2
• (middle of engine) engine compartment temperature sensor
• (middle of intake manifold) throttle valve
• (under left side of dash, in footwell) relay support 1
• +5v
• Air cleaner flap
• Camshaft sens 1
• Camshaft sens 2
• Camshaft sensor 1 cylinders 1-3
• Camshaft sensor 2 cylinders 4-6 (left rear & right front of engine)
• Crash out
• Dme control unit
• Dme relay
• Engine compartment fan relay
• Engine shield
• Engine speed +
• Engine speed -
• Fuel inj cyl 2 -
• Fuel inj cyl 5 -
• Generator pwm
• Ground
• Ignition cyl 3
• Ignition cyl 4
• Ignition cyl 5
• Knock sensor 1
• Knock sensor 2
• Micro relay
• Nca
• Ntc
• Ntc water sensor
• Oil level sensor
• Oil regulation -
• Output
• Power distribution system
• Pressure sensor
• Regulation +
• Signal
• Speed sensor (left side of clutch bell housing)
• Starting/ charging system
• Tank vent valve (near fuel fill flap)
• Term 15
• Term 31
• Thro valve +5v
• Thro vlv gnd

3.4L, Engine Performance Wiring Diagram (4 of 4) for Porsche Boxster S 2010

List of elements for 3.4L, Engine Performance Wiring Diagram (4 of 4) for Porsche Boxster S 2010:

• (on engine block) knock sensor 1 cylinders 1-3
• (on engine block) knock sensor 2 cylinders 4-6
• Adjuster b2
• Camshaft adjuster
• Cooling water
• Dme control unit
• Electronic mufflers system
• Eng compt temp
• Exhaust system
• Fuel inj cyl 1 +
• Fuel inj cyl 1 -
• Fuel inj cyl 2 +
• Fuel inj cyl 3 +
• Fuel inj cyl 3 -
• Fuel inj cyl 4 +
• Fuel inj cyl 4 -
• Fuel inj cyl 5 +
• Fuel inj cyl 6 +
• Fuel inj cyl 6 -
• Fuel injectors (on intake manifolds)
• Gnd, sens
• Gp11 (at left side of engine compt)
• High sens rail
• Ignition coils (cylinder head cover)
• Ignition cyl 1
• Ignition cyl 2
• Ignition cyl 6
• Knock sens 1
• Knock sens 2
• Motor +
• Motor -
• Nca
• Oil pressure
• Oil pressure regulation shift valve
• Oil temp sens
• Quantity control valve
• Quantity ctrl vlv
• Resonance flap
• Tank vent vlv
• Thro vlv sens 1
• Thro vlv sens 2
• Vlv lift ctrl b1
• Vlv lift ctrl b2

EXTERIOR LIGHTS

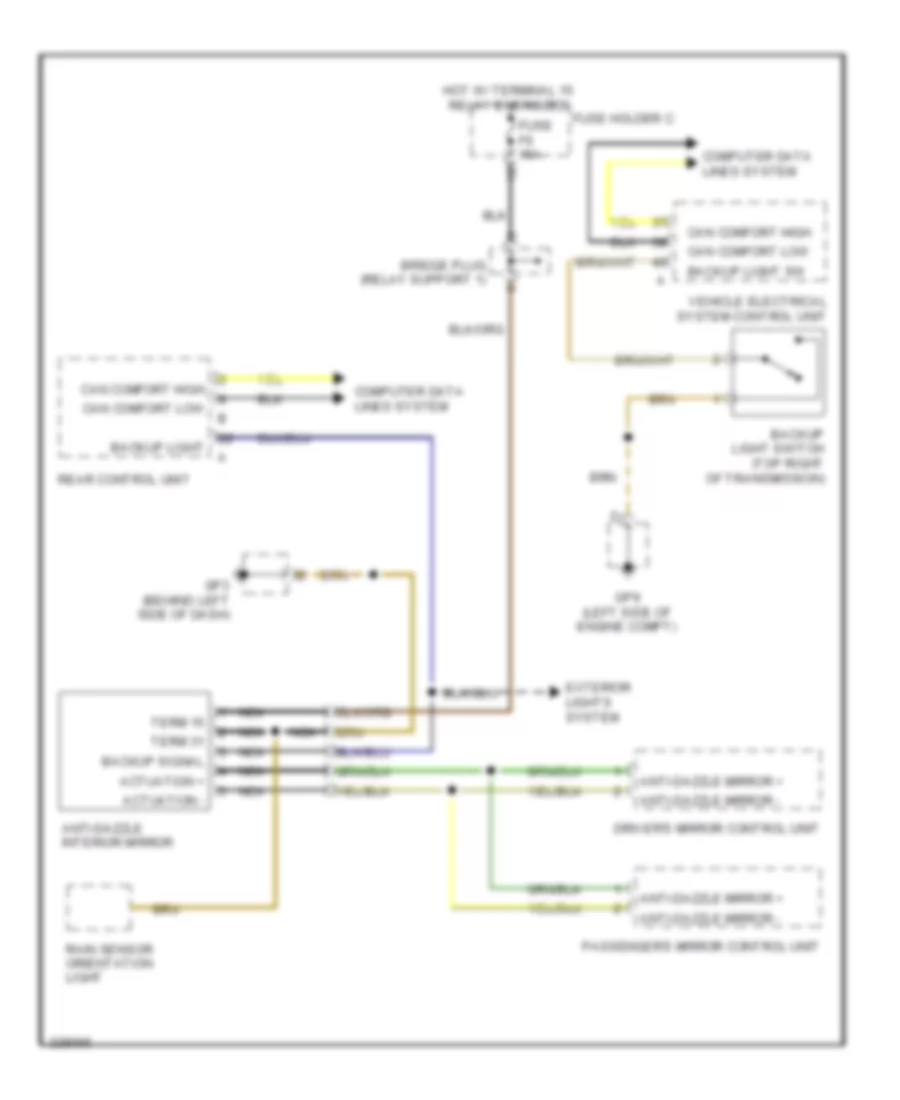

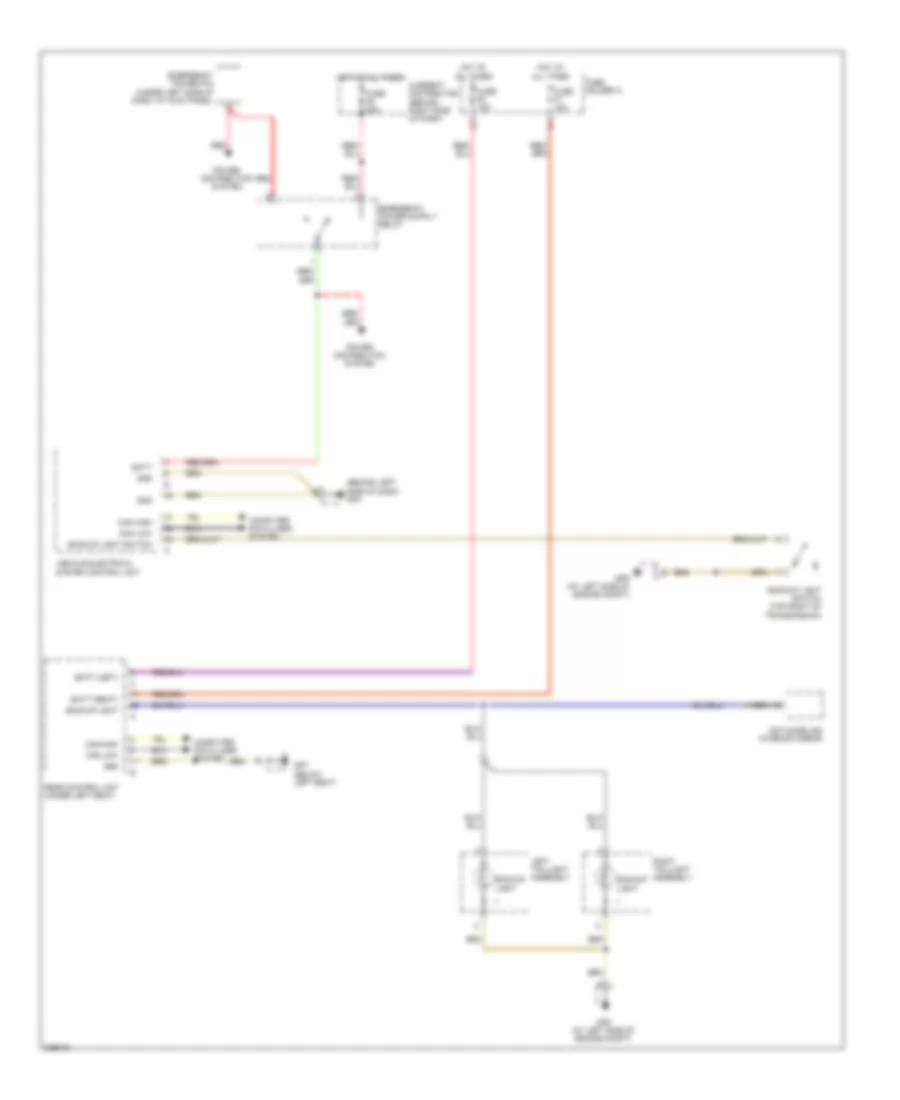

Backup Lamps Wiring Diagram for Porsche Boxster S 2010

List of elements for Backup Lamps Wiring Diagram for Porsche Boxster S 2010:

• (behind left side of dash) gp3
• Anti-dazzling interior mirror
• Backup light
• Backup light switch
• Backup light switch (top right of transmission)
• Batt
• Batt (left)
• Batt (right)
• Can high
• Can low
• Computer data lines system
• Current distributor (behind right side of dash)
• Emergency power pin (under left side of dash, at kick panel)
• Fuse f6 15a
• Fuse f6 80a
• Fuse f7 15a
• Fuse holder a
• Gnd
• Gp7 (below left seat)
• Gp8 (at left side of engine compt)
• Gp9 (at left side of engine compt)
• Hot at all times
• Left taillight assembly
• Nca
• Power distribution system
• Rear control unit (under left seat)
• Red
• Right taillight assembly
• Vehicle electrical system control unit

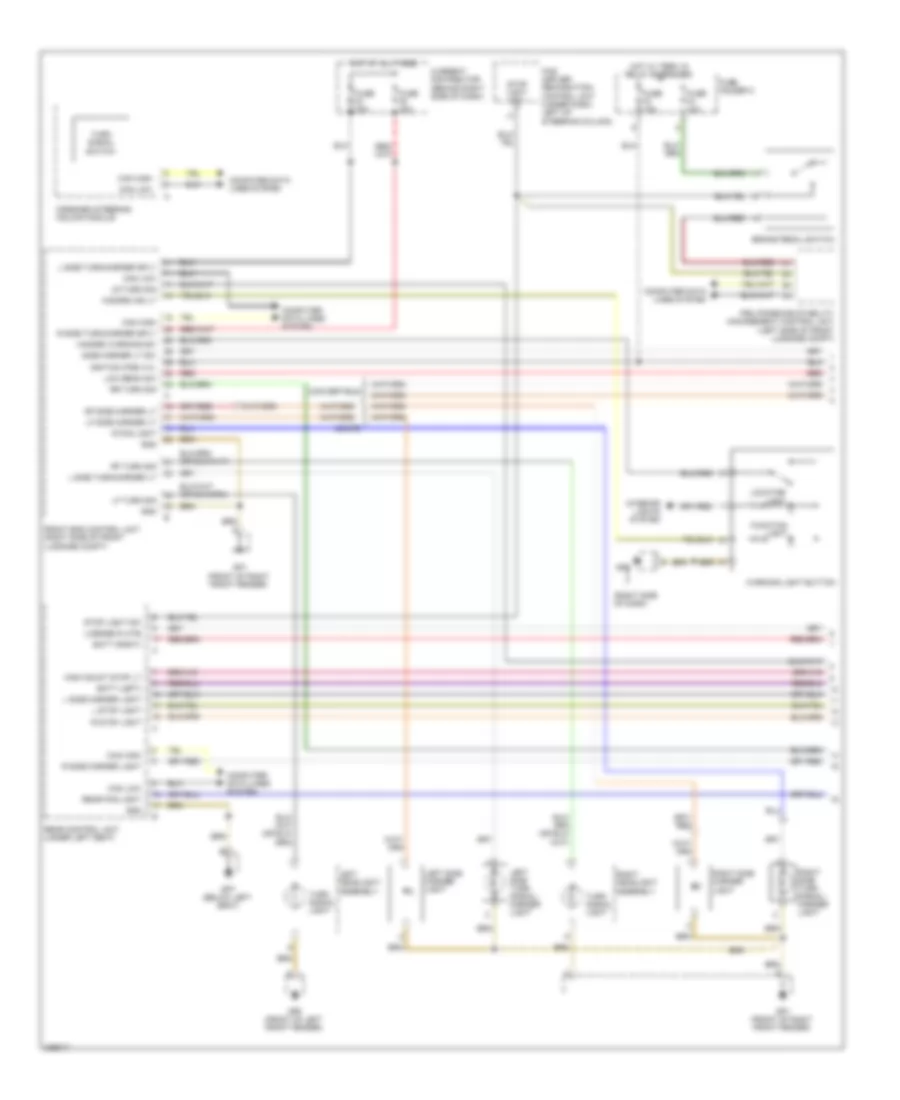

Exterior Lamps Wiring Diagram (1 of 2) for Porsche Boxster S 2010

List of elements for Exterior Lamps Wiring Diagram (1 of 2) for Porsche Boxster S 2010:

• (right side of dash)
• Batt (left)
• Batt (right)
• Brake pedal switch
• Can high
• Can low
• Combined steering column module
• Computer data lines system
• Convertible
• Coupe
• Current distributor (behind right side of dash)
• Front end control unit (right side of front luggage compt)
• Function light
• Fuse f3 10a
• Fuse f3 70a
• Fuse f4 10a
• Fuse f8 70a
• Fuse holder c
• Gnd
• Gp1 (front of right front fender)
• Gp2 (front of left front fender)
• Gp5
• Gp7 (below left seat)
• Hazard ind lt
• Hazard warning sw
• High mount stop lt
• Hot at all times
• Hot w/ term 15 relay energized
• Ignition (pos ii/iii)
• Interior lights system
• L side marker light
• L side turn/marker lt
• L side turn/marker sply
• L stop light
• Left headlight assembly
• Left side marker light
• Left side turn signal/ marker light
• Lf side marker lt
• Lf turn sig
• License plate
• Locating light
• Low beam sw
• Lr turn sig
• Pas (driver recognition) control unit (under dash, left of steering column)
• Psm (porsche stability management) control unit (left side of front luggage compt)
• R fog light
• R side marker light
• R side turn/marker sply
• R stop light
• Rear control unit (under left seat)
• Rear fog light
• Red
• Rf side marker lt
• Rf turn sig
• Right headlight assembly
• Right side marker light
• Right side turn signal/ marker light
• Rr turn sig
• Side marker lt sw
• Stop light sw
• Turn signal light
• Turn signal switch
• Warning light button

Exterior Lamps Wiring Diagram (2 of 2) for Porsche Boxster S 2010

List of elements for Exterior Lamps Wiring Diagram (2 of 2) for Porsche Boxster S 2010:

• (at left side of engine compt) gp8
• 3rd high mounted stop light
• Automatic light
• Automatic light sw
• Backup lamps circuit
• Batt
• Can high
• Can low
• Computer data lines system
• Current distributor (behind right side of dash)
• Emergency power pin (under left side of dash, at kick panel)
• Fog light
• Front fog light sw
• Fuse f6 15a
• Fuse f6 80a
• Fuse f7 15a
• Fuse holder a
• Gnd
• Gp1 (front of right front fender)
• Gp3 (behind left side of dash)
• Gp4 (center of dash)
• Gp7 gp6 (coupe) (convertible) (below (below right seat)
• Gp8 (at left side of engine compt)
• Hot at all times
• Illum
• Interior lights system
• Left front daytime running lights
• Left front fog light
• Left license plate light
• Left seat)
• Left taillight assembly
• Light switch
• Low beam
• Power distribution system
• Rear fog light
• Rear fog light sw
• Red
• Right front daytime running lights
• Right front fog light
• Right license plate light
• Right taillight assembly
• Side marker light
• Side marker lt
• Side marker rt
• Stop light
• Taillight
• Term 15
• Turn signal
• Vehicle electrical system control module
• W/ drl
• W/o drl

GROUND DISTRIBUTION

Ground Distribution Wiring Diagram (1 of 4) for Porsche Boxster S 2010

List of elements for Ground Distribution Wiring Diagram (1 of 4) for Porsche Boxster S 2010:

• (except xenon & halogen) right headlight assembly
• Amplifier
• Battery
• Brake fluid reservoir
• Convertible
• Cooling water fan control unit
• Corner sensitive headlights control unit
• Coupe
• Daytime running light
• Diagnostic plug socket
• Driver's door control unit
• Emergency open button
• Except xenon & halogen
• Front end control unit
• Front fog light
• Front lock micro switch
• Gp electronics (at left side of dash)
• Gp psm (at left front side of luggage compt)
• Gp1 (front of right front fender)
• Gp13 (near battery)
• Gp2 (front of left front fender)
• High range horn
• Home link transmitter
• Left headlight assembly
• Low range two tone horn
• Luggage compartment lid actuator
• Mobile phone
• Nca
• Passenger's door control unit
• Pcm
• Psm control unit
• Rate of turn sensor
• Side marker light
• Side marker turn signal light
• Subwoofer
• Telephone handset
• Television tuner
• Television tuner shield
• W/ bose
• W/o bose
• Xenon & halogen

Ground Distribution Wiring Diagram (2 of 4) for Porsche Boxster S 2010

List of elements for Ground Distribution Wiring Diagram (2 of 4) for Porsche Boxster S 2010:

• (convertible) convertible top closed relay
• (convertible) convertible top open relay
• (convertible) convertible top/glass roof button
• (convertible) orientation inside light switch
• (convertible) top locking micro switch
• (coupe) light switch
• (not used)
• Alarm horn
• Ashtray light
• Bridge plug 1 (relay support 1)
• Button module
• Cigar lighter
• Clutch interlock switch
• Combined steering column module
• Diagnostic plug socket
• Electronic ignition lock
• Fuel pump/ fuel level sensor
• Gateway control unit
• Gp3 (behind left side of dash)
• Gp4 (center of dash)
• Headlight washer relay
• Headlight washing fluid pump
• Instrument cluster
• Interior sensor
• Left heated spray jet
• Left vents light
• Light switch
• Luggage compartment light
• Package tray plug socket
• Parking brake contact switch
• Pas (driver recognition) control unit
• Rdk control unit
• Rear window defogger relay
• Socket
• Sport- chrono
• Vehicle electrical system control unit
• Washing fluid level switch
• Windshield washing fluid pump
• Wiper motor

Ground Distribution Wiring Diagram (3 of 4) for Porsche Boxster S 2010

List of elements for Ground Distribution Wiring Diagram (3 of 4) for Porsche Boxster S 2010:

• (convertible) rear window defogger
• (coupe) 3rd light
• (coupe) back window heating
• Air bag control unit
• Alarm siren
• Central locking system switch
• Climatronic control unit
• Driver's side air bag sensor
• Electrical static discharge
• Fan final stage
• Fresh air circulating servo motor
• Glove compartment micro switch
• Gp air bag (under center console)
• Gp5 (right side of dash)
• Gp6 (below right seat)
• Left buckle
• Left front sensor
• Middle vents light
• Nca
• Pasm (damptronic) control unit
• Passenger air bag off
• Passenger's side air bag sensor
• Refrigerant pressure sensor
• Right buckle
• Right front brake pad wear control speed sensor
• Right front sensor
• Right heated spray jet
• Right memory seat control unit
• Right power seat switch
• Right rear brake pad wear contact speed sensor
• Right vents light
• To left door
• To left seat
• To right door
• To right seat
• Warning light button
• Weight recognition control unit

Ground Distribution Wiring Diagram (4 of 4) for Porsche Boxster S 2010

List of elements for Ground Distribution Wiring Diagram (4 of 4) for Porsche Boxster S 2010:

• (convertible) convertible top transmission
• (convertible) high mount stop light
• (coupe) rear window module
• (not used)
• Backup light switch
• Dme control unit
• Drive spoiler
• Engine compartment plug fan
• Fan backrest
• Fan seat
• Gp11 (at left side of engine compt)
• Gp7 (below left seat)
• Gp8 (at left side of engine compt)
• Gp9 (at left side of engine compt)
• Ignition coil 1
• Ignition coil 2
• Ignition coil 3
• Ignition coil 4
• Ignition coil 5
• Ignition coil 6
• Left front brake pad wear contact speed sensor
• Left license plate light
• Left memory seat control unit
• Left rear brake pad wear contact speed sensor
• Left seat side bolster heating element
• Left tail light assembly
• Left taillight assembly
• Maxi fuse (secondary air pump relay)
• Nca
• Parking assistant control unit
• Pdk contorl unit
• Power seat switch
• Pump motor
• Rear control unit
• Right license plate light
• Right tail light assembly
• Seat cushions side heating element
• Seat width adjustment valve block
• Selector lever control unit
• Sill button module
• Tailgate release actuator
• Tailgate switch
• Tilt sensor

HEADLIGHTS

Headlights Wiring Diagram, with Cornering Headlights for Porsche Boxster S 2010

List of elements for Headlights Wiring Diagram, with Cornering Headlights for Porsche Boxster S 2010:

• (front of left front fender) gp2
• +5v
• Alwr sensor +5v
• Alwr sensor in
• Bridge plug (relay support 1)
• Can high
• Can low
• Computer data lines system
• Corner sensitive headlights control unit
• Current distributor (behind right side of dash)
• Exterior lights system
• Front end control unit (right side of front luggage compt)
• Fuse f3 10a
• Fuse f3 70a
• Fuse f6 15a
• Fuse f8 70a
• Fuse holder c
• Gnd
• Gnd alwr sensor
• Gnd mtr
• Gnd mtr ahba
• Gp1 (front of right front fender)
• Hi beam
• Hot at all times
• Hot w/ terminal 15 relay energized
• Left front alwr sensor
• Left headlight assembly
• Left rear alwr sensor
• Lh alwr sensor
• Lh hi beam
• Lin mtr
• Lin mtr ahba
• Lt aim ctrl sply
• Lt headlt sply
• Lt lin mtr
• Red
• Rh hi beam
• Right headlight assembly
• Rt aim ctrl sply
• Rt headlt sply
• Rt lin mtr
• Sig
• Sply
• Terminal 15
• Turn sig
• Vers +
• Vers + alwr

Headlights Wiring Diagram, with Halogen Lamps (1 of 2) for Porsche Boxster S 2010

List of elements for Headlights Wiring Diagram, with Halogen Lamps (1 of 2) for Porsche Boxster S 2010:

• Automatic light
• Automatic light sw
• Batt
• Can high
• Can low
• Computer data lines system
• Current distributor (behind right side of dash)
• Exterior lights system
• Fog light
• Front end control unit (right side of front luggage compt)
• Front fog light sw
• Fuse f3 10a
• Fuse f3 70a
• Fuse f8 70a
• Fuse holder c
• Gnd
• Gp1 (front of right front fender)
• Gp2 (front of left front fender)
• Gp3 (behind left side of dash)
• Gp4 (center of dash)
• High beam
• Hot at all times
• Hot w/ terminal 15 relay energized
• Illum
• Interior lights system
• L h/l beam sply volt
• L high beam
• L low beam
• Left headlight assembly
• Light switch
• Low beam
• Low beam sw
• Lt front fog lt
• R h/l beam sply volt
• R high beam
• R low beam
• Rear fog light
• Rear fog light sw
• Red
• Right headlight assembly
• Rt front fog lt
• Side marker light
• Side marker lt sw
• Term 15
• Turn signal
• Vehicle electrical system control unit

Headlights Wiring Diagram, with Halogen Lamps (2 of 2) for Porsche Boxster S 2010

List of elements for Headlights Wiring Diagram, with Halogen Lamps (2 of 2) for Porsche Boxster S 2010:

• (under left side of dash, at kick panel) emergency power pin
• Convertible
• Coupe
• Current distributor (behind right side of dash)
• Drl
• Exterior lights system
• Fog light
• Fuse f6 80a
• Gnd
• Gp1 (front of right front fender)
• Hot at all times
• Left front daytime running lights
• Left front fog light
• Power distribution system
• Red
• Right front daytime running lights
• Right front fog light
• Side marker lt
• Side marker rt
• W/ drl
• W/o drl

Headlights Wiring Diagram, with Xenon Lamps (1 of 2) for Porsche Boxster S 2010

List of elements for Headlights Wiring Diagram, with Xenon Lamps (1 of 2) for Porsche Boxster S 2010:

• +5v
• Additional high beams
• Automatic light
• Automatic light sw
• Batt
• Can high
• Can low
• Computer data lines system
• Current distributor (behind right side of dash)
• Exterior lights system
• Flap
• Fog light
• Front end control unit (right side of front luggage compt)
• Front fog light sw
• Fuse f3 10a
• Fuse f3 70a
• Fuse f8 70a
• Fuse f9 80a
• Fuse holder c
• Gnd
• Gp1 (front of right front fender)
• Gp2 (front of left front fender)
• Gp3 (behind left side of dash)
• Gp4 (center of dash)
• Hot at all times
• Hot w/ terminal 15 relay energized
• Illum
• Interior lights system
• L front fog lt
• L h/l beam sply v
• L high beam
• L low beam
• L step motor q11
• L step motor q12
• L step motor q21
• L step motor q22
• Left front headlight vertical aiming control sensor
• Left headlight assembly
• Lf vertical sens in
• Light switch
• Low beam
• Low beam sw
• R front fog lt
• R h/l beam sply v
• R high beam
• R low beam
• R step motor q11
• R step motor q12
• R step motor q15
• R step motor q22
• Rear fog light
• Rear fog light sw
• Red
• Right headlight assembly
• Side marker light
• Side marker lt sw
• Signal
• Stepper motor
• Term 15
• Turn signal
• Vehicle electrical system control unit
• Vertical sens +5v
• Vertical sens gnd

Headlights Wiring Diagram, with Xenon Lamps (2 of 2) for Porsche Boxster S 2010

List of elements for Headlights Wiring Diagram, with Xenon Lamps (2 of 2) for Porsche Boxster S 2010:

• (under left side of dash, at kick panel) emergency power pin
• Convertible
• Coupe
• Current distributor (behind right side of dash)
• Drl
• Exterior lights system
• Fog light
• Fuse f6 80a
• Gnd
• Gp1 (front of right front fender)
• Hot at all times
• Left front daytime running lights
• Left front fog light
• Power distribution system
• Red
• Right front daytime running lights
• Right front fog light
• Side marker lt
• Side marker rt
• W/ drl
• W/o drl

HORN

Horn Wiring Diagram for Porsche Boxster S 2010

List of elements for Horn Wiring Diagram for Porsche Boxster S 2010:

• Can high
• Can low
• Combined steering column module
• Computer data lines system
• Current distributor (behind right side of dash)
• Electronic steering wheel
• Front end control unit (right side of front luggage compt)
• Fuse f9 80a
• Gnd
• Gp1 (front of right front fender)
• Ground
• High range horn
• Horn
• Horn switch
• Hot at all times
• Left tiptronic button
• Low range two- tone horn
• Low range two-tone horn (near right headlight assembly)
• Ntc button
• Red
• Right tiptronic button
• Two-tone horn sply
• W/ msw
• W/o msw

INSTRUMENT CLUSTER

Instrument Cluster Wiring Diagram for Porsche Boxster S 2010

List of elements for Instrument Cluster Wiring Diagram for Porsche Boxster S 2010:

• (center of dash) gp4
• +12v
• Anti-lock brakes system
• Brake pad wear +
• Brake pad wear -
• Can high disp
• Can low disp
• Can wake up
• Clutch switch
• Clutch switch (clutch pedal)
• Combined steering column module
• Computer data lines system
• Conv top switch
• Dim led
• Fuel level sen gnd
• Fuel level sensor
• Fuel pump/ level sensor (under battery, in fuel tank)
• Fuse f1 15a
• Fuse f2 7.5a
• Fuse f8 7.5a
• Fuse holder b
• Fuse holder c
• Fuse holder d
• Gnd
• High
• Hot at all times
• Hot w/ mfi-di relay energized
• Instrument cluster
• Interior lights system
• Low
• Oil level gnd
• Oil level sens
• Oil level sensor
• On board computer
• Power tops system
• Selector lever sw pos
• Sig
• Term 30
• Term 31
• Transmissions system
• Washing fluid level
• Wiper/washer system

INTERIOR LIGHTS

Interior Lights Wiring Diagram (1 of 2) for Porsche Boxster S 2010

List of elements for Interior Lights Wiring Diagram (1 of 2) for Porsche Boxster S 2010:

• Ashtray light
• Automatic light
• Automatic light sw
• Bridge plug (relay support 1)
• Button module
• Can high
• Can high display
• Can low
• Can low display
• Central locking switch
• Cigar lighter
• Computer data lines system
• Convertible
• Convertible top/ glass roof switch
• Coupe
• Dim led
• Exterior lights system
• Fog light
• Front end control unit (right side of front luggage compt)
• Front luggage compartment light
• Front luggage compartment micro switch lock (front of front luggage compt)
• Frt lugg compt lt
• Frt lugg compt sw
• Fuse f3 10a
• Fuse holder c
• Gnd
• Gp1 (front of right front fender)
• Gp3 (behind left side of dash)
• Gp4 (center of dash)
• Gp5 (right side of dash)
• Gp7 (below left seat)
• Hazard warning switch
• Headlights system
• Home link led
• Home link switch 1
• Home link switch 2 (convertible)
• Homelink keypad
• Hot w/ terminal 15 relay energized
• Illum
• Instrument cluster
• Left vents lights
• Light switch
• Low beam
• Low beam sw
• Lt term
• Lt terminal
• Middle vents lights
• Rear fog light
• Rear spoiler func lt
• Red
• Right vents lights
• Side marker light
• Side marker lt sw
• Sill button module
• Sw inside lt (batt)
• Term 58d
• Terminal 15
• Vehicle electrical system control unit

Interior Lights Wiring Diagram (2 of 2) for Porsche Boxster S 2010

List of elements for Interior Lights Wiring Diagram (2 of 2) for Porsche Boxster S 2010:

• (coupe) left interior light
• (coupe) right interior light
• Can high
• Can high comfort
• Can low
• Can low comfort
• Computer data lines system
• Convertible
• Coupe
• Door lock lt
• Door lock lt gnd
• Driver's door control unit
• Driver's power window switch
• Glove box micro sw
• Glove compartment light
• Glove compartment micro switch
• Gnd
• Gp3 (behind left side of dash)
• Gp5 (right side of dash)
• Inside door handle lt
• Interior light
• Left door lock light
• Left footwell light
• Left makeup mirror light
• Left outside door handle micro switch
• Luggage compartment light
• Luggage compt lt
• Memory switch
• Mirror adjustment switch
• Operation gnd sw
• Orientation interior light
• Outside cls door handle
• Passenger's door control unit
• Passenger's power window switch
• Rear control unit (under left seat)
• Right door lock light
• Right footwell light
• Right makeup mirror light
• Right outside door handle micro switch
• Term 31
• Term 58

MEMORY SYSTEMS

Driver"s Memory Seat Wiring Diagram (1 of 2) for Porsche Boxster S 2010

List of elements for Driver"s Memory Seat Wiring Diagram (1 of 2) for Porsche Boxster S 2010:

• (in top seat back) (air chamber top) lumbar chamber distance measurement sensor
• Backrest
• Batt
• Batt (electronic)
• Bottom chamber
• Can comfort high
• Can comfort low
• Can high comfort
• Can low comfort
• Computer data lines system
• Driver's door control unit
• Fuse f1 30a
• Fuse f3 15a
• Fuse holder b
• Fuse holder e
• Gnd
• Gnd (electronic)
• Gp7 (below left seat)
• Ground
• Hall sensor +
• Hall sensor -
• Hot at all times
• Left memory seat control unit (under left seat)
• Lumbar chamber distance measurement sensor (air chamber bottom) (in bottom seat back)
• Lumbar pump motor (under left seat)
• Lumbar support curvature
• Lumbar support down
• Lumbar support height
• Lumbar support up
• Lumbar valve block (under left seat)
• Lumber pump motor
• Memory
• Memory sw
• Memory switch
• Motor seat backrest
• Off
• Position 1/2 memory sw
• Position id
• Power windows system
• Red
• Seat
• Seat width adjustment pump motor (under left seat)
• Seat width adjustment switch
• Seat width adjustment valve block (under left seat)
• Sensor ground
• Signal
• Term 31
• Term 58
• Top chamber
• U sensors
• Valve block lumber

Driver"s Memory Seat Wiring Diagram (2 of 2) for Porsche Boxster S 2010

List of elements for Driver"s Memory Seat Wiring Diagram (2 of 2) for Porsche Boxster S 2010:

• (under left front seat) front seat fore & aft adjustment
• (under left front seat) front seat height adjustment
• (under left rear seat) rear seat height adjustment
• Back motors +
• Back seat fore & aft adjustment
• Front seat height adjustment
• Hall sensor
• Hall sensor +
• Hall sensor -
• In front of motors +
• Left memory seat control unit (under left seat)
• Lumbar support down
• Lumbar support up
• Power seat switch
• Rear seat height adjustment
• Seat backrest adjustment
• Seat backrest control motor
• Seat fore & aft adjustment
• Seat lumbar 4-way switch

Memory Mirrors Wiring Diagram for Porsche Boxster S 2010

List of elements for Memory Mirrors Wiring Diagram for Porsche Boxster S 2010:

• Anti-dazzle mirror +
• Anti-dazzle mirror -
• Can high comfort
• Can low comfort
• Computer data lines system
• Driver's door control unit
• Driver's mirror adjustment switch
• Driver's mirror control unit
• Fuse f1 30a
• Fuse f4 30a
• Fuse holder a
• Hot at all times
• Memory
• Memory sw
• Memory switch
• Mirror adjustment
• Mirror adjustment x/y
• Mirror changeover sw
• Mirror heater
• Mirror heating +
• Mirror heating -
• Mirror heating gnd
• Mirror motor control y
• Mirror motor x
• Mirror motor x/y
• Mirror poti +
• Mirror poti -
• Mirror poti 5v
• Mirror poti pos x
• Mirror poti pos y
• Mirror poti term 31
• Mirror poti x
• Mirror poti y
• Mirrors system
• Motor control x
• Motor control y
• Operating sw -
• Passenger's door control unit
• Passenger's mirror control unit
• Position 1/2 memory sw
• Position id
• Power windows system
• Term 15
• Term 30 power window
• Term 31
• Term 58

Passenger"s Memory Seat Wiring Diagram (1 of 2) for Porsche Boxster S 2010

List of elements for Passenger"s Memory Seat Wiring Diagram (1 of 2) for Porsche Boxster S 2010:

• (in top seat back) (air chamber top) lumbar chamber distance measurement sensor
• Backrest
• Batt
• Batt (electronic)
• Bottom chamber
• Can comfort high
• Can comfort low
• Can high comfort
• Can low comfort
• Computer data lines system
• Driver's door control unit
• Fuse f1 30a
• Fuse f3 15a
• Fuse holder b
• Fuse holder e
• Gnd
• Gnd (electronic)
• Gp6 (below right seat)
• Ground
• Hall sensor +
• Hall sensor -
• Hot at all times
• Lumbar chamber distance measurement sensor (air chamber bottom) (in bottom seat back)
• Lumbar pump motor (under right seat)
• Lumbar support curvature
• Lumbar support down
• Lumbar support height
• Lumbar support up
• Lumbar valve block (under right seat)
• Lumber pump motor
• Memory
• Memory sw
• Memory switch
• Motor seat backrest
• Off
• Position 1/2 memory sw
• Position id
• Power windows system
• Red
• Right memory seat control unit (under right seat)
• Seat
• Seat width adjustment pump motor (under right seat)
• Seat width adjustment switch
• Seat width adjustment valve block (under right seat)
• Sensor ground
• Signal
• Term 31
• Term 58
• Top chamber
• U sensors
• Valve block lumber

Passenger"s Memory Seat Wiring Diagram (2 of 2) for Porsche Boxster S 2010

List of elements for Passenger"s Memory Seat Wiring Diagram (2 of 2) for Porsche Boxster S 2010:

• (under right front seat) front seat fore & aft adjustment
• (under right front seat) front seat height adjustment
• (under right rear seat) rear seat height adjustment
• Back motors +
• Back seat fore-and-aft adjustment
• Front seat height adjustment
• Hall sensor
• Hall sensor +
• Hall sensor -
• In front of motors +
• Lumbar support down
• Lumbar support up
• Power seat switch
• Rear seat height adjustment
• Right memory seat control unit (under right seat)
• Seat backrest adjustment
• Seat backrest control motor
• Seat fore-and-aft adjustment
• Seat lumbar 4-way switch

NAVIGATION

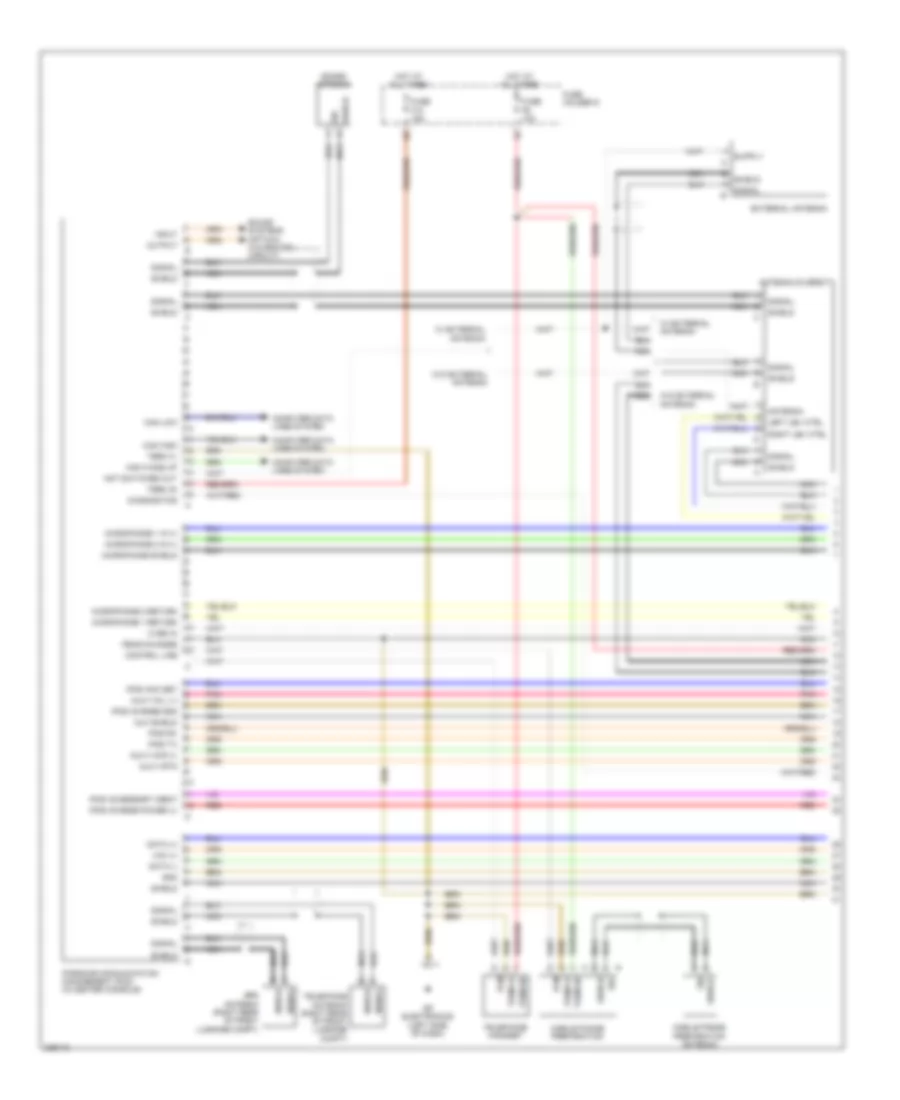

Navigation Wiring Diagram, with Bose (1 of 3) for Porsche Boxster S 2010

List of elements for Navigation Wiring Diagram, with Bose (1 of 3) for Porsche Boxster S 2010:

• Ant switched out
• Antenna
• Antenna diversity
• Aux shield
• Aux-1-in-l (+)
• Aux-1-in-r (+)
• Aux-1-rtn
• Can high
• Can low
• Can wake up
• Computer data lines system
• Control line
• Cvbs in
• Data (+)
• Data (-)
• Diagnostics
• External antenna
• Fbas-in-masse
• Fuse f10 15a
• Fuse f9 10a
• Fuse holder d
• Gnd
• Gp electronics (left side of dash)
• Gps antenna (right rear of front luggage compt)
• Hot at all times
• Input
• Ipod acc det
• Ipod accessory ident
• Ipod charge gnd
• Ipod charge power (+)
• Ipod rx
• Ipod tx
• Left ub+ ctrl
• Microphone 1 in (+)
• Microphone 1 return
• Microphone 2 in (+)
• Microphone 2 return
• Microphone shield
• Mobile phone preparation
• Mobile phone preparation antenna
• Nca
• Output
• Pcm
• Pnk
• Porsche communication management (pcm) (in center console)
• Red
• Right ub+ ctrl
• Sdars antenna
• Shield
• Sig
• Signal
• Sound systems (optical waveguide circuit)
• Telephone antenna (right rear of front luggage compt)
• Telephone handset
• Term 30
• Term 31
• Vcc (+)
• W/ external antenna
• W/o external antenna

Navigation Wiring Diagram, with Bose (2 of 3) for Porsche Boxster S 2010

List of elements for Navigation Wiring Diagram, with Bose (2 of 3) for Porsche Boxster S 2010:

• (right "a" pillar) right antenna amplifier
• (under dash, left of steering column) pas control unit
• (under top left side of dash) microphone free-handed speaking
• Alarm shield antenna
• Antenna alarm
• Aux-gnd
• Aux-l
• Aux-r
• Charger gnd
• Charger power
• Ctrl line
• Data (+)
• Data (-)
• Diagnostics
• Gnd
• Input
• Ipod detect
• Ipod ident
• Ipod rx
• Ipod tx
• Left antenna amplifier (left "a" pillar)
• Microphone hands free operation/ sound acquisition microphone
• Nca
• Output
• Pnk
• Red
• Shield
• Sig
• Sig ant 1
• Sig ant 2
• Sig ant 3
• Sig gnd
• Signal (+)
• Signal (-)
• Sound systems (optical waveguide circuit)
• Telephone +
• Telephone -
• Television tuner
• Term 30
• Term 31
• Ums
• Vcc (+)
• Video sig
• Vnc +
• Vnc -

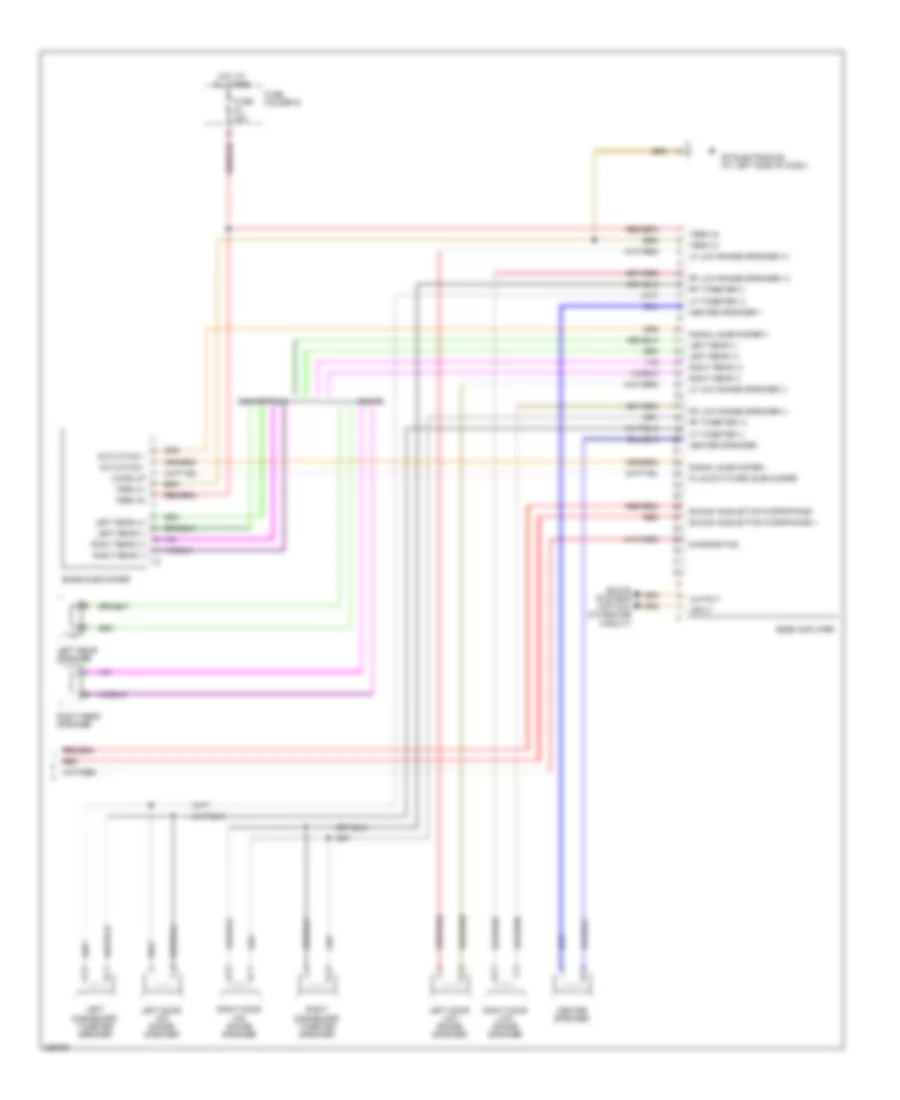

Navigation Wiring Diagram, with Bose (3 of 3) for Porsche Boxster S 2010

List of elements for Navigation Wiring Diagram, with Bose (3 of 3) for Porsche Boxster S 2010:

• Actuation +
• Actuation -
• Bose amplifier
• Bose subwoofer
• Center speaker
• Center speaker +
• Center speaker -
• Convertible
• Coupe
• Diagnostics
• Fuse f4 30a
• Fuse holder e
• Gp electronics (at left side of dash)
• Hot at all times
• Input
• Left dashboard tweeter speaker
• Left door low range speaker
• Left door mid range speaker
• Left rear (+)
• Left rear (-)
• Left rear speaker
• Lf low range speaker (+)
• Lf low range speaker (-)
• Lf tweeter (+)
• Lf tweeter (-)
• Output
• Plus switched subwoofer
• Red
• Rf low range speaker (+)
• Rf low range speaker (-)
• Rf tweeter (+)
• Rf tweeter (-)
• Right dashboard tweeter speaker
• Right door low range speaker
• Right door mid range speaker
• Right rear (+)
• Right rear (-)
• Right rear speaker
• Signal subwoofer +
• Signal subwoofer -
• Sound acquisition microphone +
• Sound acquisition microphone -
• Sound systems (optical waveguide circuit)
• Term 30
• Term 31
• Wake up

Navigation Wiring Diagram, without Bose (1 of 3) for Porsche Boxster S 2010

List of elements for Navigation Wiring Diagram, without Bose (1 of 3) for Porsche Boxster S 2010:

• Amp on
• Ant switched out
• Antenna
• Antenna diversity
• Aux shield
• Aux-1-in-l (+)
• Aux-1-in-r (+)
• Aux-1-rtn
• Can high
• Can low
• Can wake up
• Computer data lines system
• Control line
• Cvbs in
• Data (+)
• Data (-)
• Diagnostics
• External antenna
• Fbas-in-masse
• Fuse f10 15a
• Fuse f9 10a
• Fuse holder d
• Gnd
• Gp electronics (left side of dash)
• Gps antenna (right rear of front luggage compt)
• Hot at all times
• Input
• Ipod acc det
• Ipod accessory ident
• Ipod charge gnd
• Ipod charge power (+)
• Ipod rx
• Ipod tx
• Left front out (+)
• Left front out (-)
• Left rear out (+)
• Left rear out (-)
• Left ub+ ctrl
• Microphone 1 in (+)
• Microphone 1 return
• Microphone 2 in (+)
• Microphone 2 return
• Microphone shield
• Mobile phone preparation
• Mobile phone preparation antenna
• Nca
• Output
• Pcm
• Pnk
• Porsche communication management (pcm) (in center console)
• Red
• Right front out (+)
• Right front out (-)
• Right rear out (+)
• Right rear out (-)
• Right ub+ ctrl
• Sdars antenna
• Shield
• Sig
• Signal
• Sound systems (optical waveguide circuit)
• Telephone antenna (right rear of front luggage compt)
• Telephone handset
• Term 30
• Term 31
• Vcc (+)
• W/ external antenna
• W/o external antenna

Navigation Wiring Diagram, without Bose (2 of 3) for Porsche Boxster S 2010

List of elements for Navigation Wiring Diagram, without Bose (2 of 3) for Porsche Boxster S 2010:

• (right "a" pillar) right antenna amplifier
• (under top left side of dash) microphone free-handed speaking
• Antenna alarm
• Antenna alarm shield
• Aux-gnd
• Aux-l
• Aux-r
• Charger gnd
• Charger power
• Ctrl line
• Data (+)
• Data (-)
• Diagnostics
• Gnd
• Input
• Ipod detect
• Ipod ident
• Ipod rx
• Ipod tx
• Left antenna amplifier (left "a" pillar)
• Microphone hands free operation/ sound acquisition microphone
• Nca
• Output
• Pas control unit
• Pnk
• Red
• Shield
• Sig
• Sig ant 1
• Sig ant 2
• Sig ant 3
• Sig gnd
• Signal (+)
• Signal (-)
• Sound systems (optical waveguide circuit)
• Telephone +
• Telephone -
• Television tuner
• Term 30
• Term 31
• Ums
• Vcc (+)
• Video sig

Navigation Wiring Diagram, without Bose (3 of 3) for Porsche Boxster S 2010

List of elements for Navigation Wiring Diagram, without Bose (3 of 3) for Porsche Boxster S 2010:

• Ask amplifier
• Center dashboard speaker
• Center speaker +
• Center speaker -
• Fuse f4 30a
• Fuse holder e
• Gp electronics (at left side of dash)
• Hot at all times
• Left dashboard tweeter speaker
• Left door low range speaker
• Left door mid range speaker
• Left front in (+)
• Left front in (-)
• Left rear (+)
• Left rear (-)
• Left rear in (+)
• Left rear in (-)
• Left rear wide band speaker
• Lf dashboard (+)
• Lf dashboard (-)
• Lf+ instrument panel
• Lf- instrument panel
• Red
• Rf dashboard (+)
• Rf dashboard (-)
• Rf door speaker (+)
• Rf door speaker (-)
• Right dashboard tweeter speaker
• Right door low range speaker
• Right door mid range speaker
• Right front in (+)
• Right front in (-)
• Right rear (+)
• Right rear (-)
• Right rear in (+)
• Right rear in (-)
• Right rear wide band speaker
• Switched plus
• Term 30
• Term 31

Parking Assistant Wiring Diagram for Porsche Boxster S 2010

List of elements for Parking Assistant Wiring Diagram for Porsche Boxster S 2010:

• Can high
• Can low
• Computer data lines system
• Fuse f7 7.5a
• Fuse holder b
• Gp7 (below left seat)
• Ground
• Hot at all times
• Left rear inside pdc sensor
• Left rear outside pdc sensor
• Parking assistant control unit (under driver's seat)
• Right rear inside pdc sensor
• Right rear outside pdc sensor
• Sens
• Sig
• Signal 1
• Signal 2
• Signal 3
• Signal 4
• Term 30
• Term 31
• Wake up

POWER DISTRIBUTION

Power Distribution Wiring Diagram (1 of 5) for Porsche Boxster S 2010

List of elements for Power Distribution Wiring Diagram (1 of 5) for Porsche Boxster S 2010:

• (not used)
• Ask amplifier
• Battery
• Bose amplifier
• Bose subwoofer
• Bridge plug
• Cigar lighter
• Convertible top closed relay
• Convertible top open relay
• Current distributor (behind right side of dash)
• Driver door control unit
• Front end control unit
• Fuse f1 30a
• Fuse f1 80a
• Fuse f10 15a
• Fuse f2 15a
• Fuse f2 30a
• Fuse f3 (convertible) 30a
• Fuse f3 15a
• Fuse f3 70a
• Fuse f4 150a
• Fuse f4 30a
• Fuse f5 15a
• Fuse f5 50a
• Fuse f6 15a
• Fuse f7 15a
• Fuse f8 7.5a
• Fuse f8 70a
• Fuse f9 25a
• Fuse holder a
• Fuse holder e
• Gp4 (center of dash)
• Interior lights system
• Left memory seat
• Left seat adjustment control unit
• Package tray plug socket
• Passenger door control unit
• Plug socket
• Psm control unit
• Rear control unit
• Rear window heating relay
• Red
• Relay support 1 (under left side of dash, in footwell)
• Right electric seat adjustment
• Right memory seat
• To fuse f1 fuse holder d (diagram 4 of 5)
• To fuse f6 (diagram 2 of 5)
• To fuse f9 current distributor (diagram 2 of 5)
• To fuse f9 fuse holder d (diagram 4 of 5)
• Vehicle electrical system control unit

Power Distribution Wiring Diagram (2 of 5) for Porsche Boxster S 2010

List of elements for Power Distribution Wiring Diagram (2 of 5) for Porsche Boxster S 2010:

• (not used)
• 80a
• Alarm siren
• B+ plug socket (right side of transmission)
• Climatronic control unit
• Combined steering wheel module
• Cooling water fan control unit
• Current distributor (behind right side of dash)
• Diagnosis plug socket
• Engine compartment fan high relay
• From fuse f4 fuse holder e (diagram 1 of 5)
• From fuse f5 (diagram 1 of 4)
• Front end control unit
• Fuse f1 10a
• Fuse f1 15a
• Fuse f10 30a
• Fuse f2
• Fuse f2 7.5a
• Fuse f2 80a
• Fuse f3
• Fuse f3 15a
• Fuse f4 25a
• Fuse f5 7.5a
• Fuse f6 7.5a
• Fuse f6 80a
• Fuse f7 7.5a
• Fuse f7 80a
• Fuse f8 7.5a
• Fuse f9 7.5a
• Fuse f9 80a
• Fuse holder b
• Fuse holder f
• Generator
• Headlight washer relay
• Heater relay
• Instrument cluster
• Interior sensor
• Left memory seat control unit
• Midi fuse (exhaust)
• Park assist control unit
• Pdk control unit
• Rdk control unit
• Red
• Relay support 1 (under left side of dash, in footwell)
• Relay support 2 (left side of rear luggage compt)
• Right memory seat control unit
• Selector lever control unit
• Sport chrono
• Starter
• Tilt sensor
• To mfi-di relay (diagram 4 of 5)
• To micro relay (diagram 4 of 5)
• To terminal 15 relay (diagram 3 of 5)
• Vehicle electrical system control unit
• Weight recognition control unit

Power Distribution Wiring Diagram (3 of 5) for Porsche Boxster S 2010

List of elements for Power Distribution Wiring Diagram (3 of 5) for Porsche Boxster S 2010:

• (not used)
• A19
• A23
• Anti- dazzle interior mirror
• Brake pedal switch
• Bridge plug
• Button module
• Clutch switch
• Combined steering column module
• Corner sensitive headlights control unit
• Diagnostic plug socket
• Electronic ignition lock
• Emergency power pin (under left side of dash, at kick panel)
• From fuse 6 current distri- butor (diagram 2 of 5)
• From fuse f6 current distri- butor (diagram 2 of 5)
• Front end control unit
• Fuse f1 7.5a
• Fuse f10 25a
• Fuse f2 7.5a
• Fuse f3 10a
• Fuse f4 10a
• Fuse f5 15a
• Fuse f6 15a
• Fuse f7 7.5a
• Fuse f8 10a
• Fuse f9 15a
• Fuse holder c
• Gateway control unit
• Gp7 (below left seat)
• Home link button 1 (boxter)
• Home link button 2 (boxter)
• Home link keypad (cayman)
• Home link transmitter
• Left heated spray jet
• Left power seat assembly
• Light switch
• Nca
• Pas control unit
• Pasm control unit
• Pdk control unit
• Psm control unit
• Rate off turn
• Red
• Refrigerant pressure sensor
• Right heated spray jet
• Right power seat assembly
• Selector level control unit
• Start lock relay
• Terminal 15 relay (relay support 1)
• To dme relay (diagram 4 of 5)
• Vehicle electrical system control unit

Power Distribution Wiring Diagram (4 of 5) for Porsche Boxster S 2010

List of elements for Power Distribution Wiring Diagram (4 of 5) for Porsche Boxster S 2010:

• (2.9l)
• (3.4l)
• (not used)
• 2.9l
• 3.4l
• Ahead of catalytic converter oxygen sensor 1
• Ahead of catalytic converter oxygen sensor 2
• Ahead of catalytic converter oxygen sensor bank 1
• Ahead of catalytic converter oxygen sensor bank 2
• Air bag control unit
• Air bag off display
• Bank 1
• Bank 2
• Behind catalytic converter oxygen sensor 1
• Behind catalytic converter oxygen sensor 2
• Camshaft adjuster 1 cylinders 1-3
• Camshaft adjuster 2 cylinders 4-6
• Distribution pipe flap valve
• Dme control unit
• From fuse f4 current distri- butor (diagram 1 of 5)
• From fuse f4 fuse holder e (diagram 1 of 5)
• From fuse f7 current distri- butor (diagram 2 of 5)
• From fuse f9 fuse holder b (diagram 2 of 5)
• From fuse f9 fuse holder c (diagram 3 of 5)
• Fuel pump relay 1
• Fuse f1 25a
• Fuse f10 15a
• Fuse f2
• Fuse f3 7.5a
• Fuse f4 20a
• Fuse f5 25a
• Fuse f6 25a
• Fuse f7 15a
• Fuse f8 7.5a
• Fuse f9 10a
• Fuse holder d
• Ignition coil cylinder
• Mfi-di relay
• Micro relay
• Mobile phone preparation
• Pas control unit
• Pcm
• Red
• Relay support 1
• Resonance flap switchover valve
• Telephone handset
• Television tuner
• To dme control unit (diagram 5 of 5)
• To tank leakage diagnostics module (diagram 5 of 5)
• Valve lift control cylinder 1-3
• Valve lift control cylinder 4-6
• Weight recognition control unit

Power Distribution Wiring Diagram (5 of 5) for Porsche Boxster S 2010

List of elements for Power Distribution Wiring Diagram (5 of 5) for Porsche Boxster S 2010:

• 2.9l
• 3.4l
• Camshaft sensor 1 cylinder 1-3
• Camshaft sensor 2 cylinder 4-6
• Cooling water shut off valve
• Dme control unit
• Engine compartment fan high relay
• From fuse f3 fuse holder d (diagram 4 of 5)
• From fuse f4 fuse holder d (diagram 4 of 5)
• From fuse f8 fuse holder d (diagram 4 of 5)
• Fuel injector
• Mass air flow sensor
• Oil level sensor
• Quality control valve
• Refueling vapour recovery
• Relay support 2
• Secondary air pump relay
• Sport exhaust system valve
• Tank leakage diagnostics module
• Tank vent valve
• W/ on board w/o on board refueling vapour recovery

POWER DOOR LOCKS

Power Door Locks Wiring Diagram (1 of 2) for Porsche Boxster S 2010

List of elements for Power Door Locks Wiring Diagram (1 of 2) for Porsche Boxster S 2010:

• Battery
• Can high
• Can low
• Computer data lines system
• Driver door control unit
• Fuse f2 15a
• Fuse f5 15a
• Fuse holder a
• Gp13 (near battery)
• Hot at all times
• Left door lock
• Left outside door handle micro switch
• Passenger door control unit
• Red
• Right door lock
• Right outside door handle micro switch
• Term 30 central lock syst
• Term 31
• Zv close/open key sw
• Zv close/up key
• Zv day term 31
• Zv motor lock
• Zv motor lock safe
• Zv motor safe
• Zv outside door handle
• Zv safe motor
• Zv safe/lock status
• Zv term 31
• Zv turn case

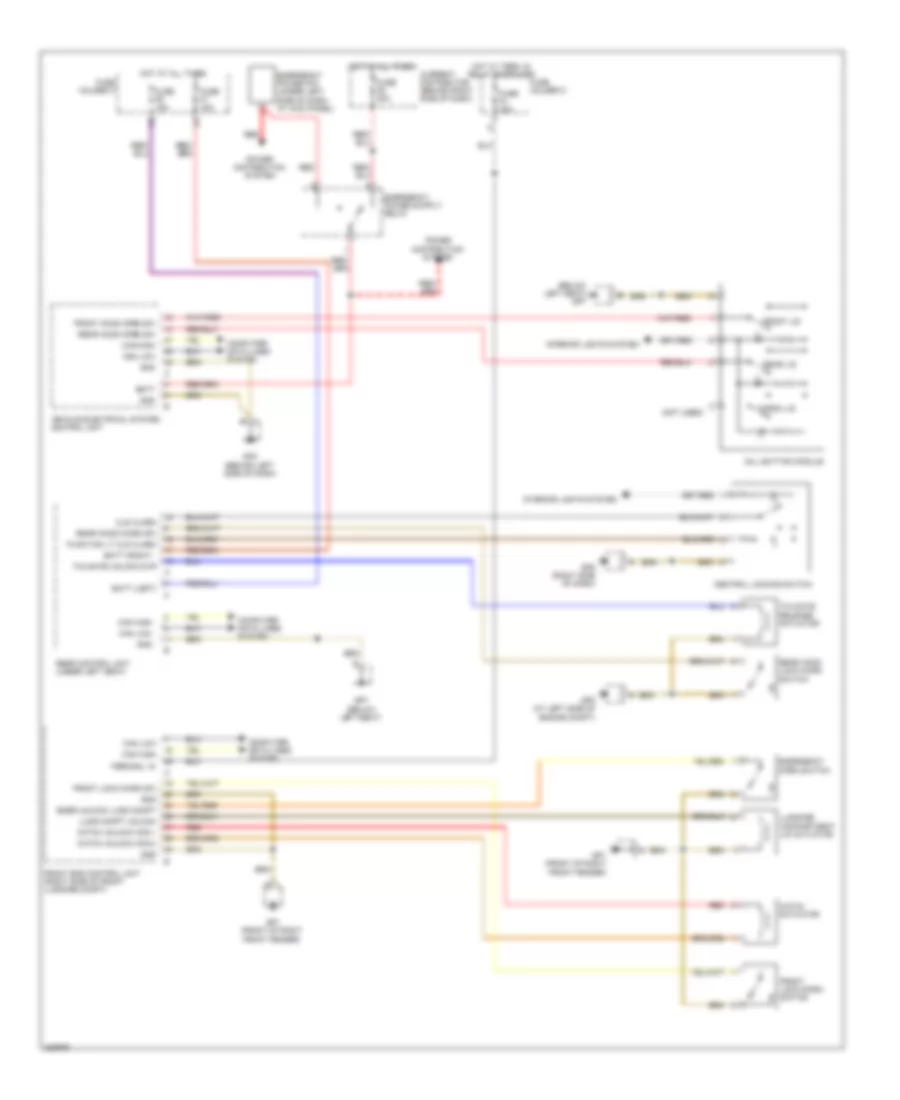

Power Door Locks Wiring Diagram (2 of 2) for Porsche Boxster S 2010

List of elements for Power Door Locks Wiring Diagram (2 of 2) for Porsche Boxster S 2010:

• (below left seat) gp7
• (not used)
• Batt
• Batt (left)
• Batt (right)
• Can high
• Can low
• Catch actuator
• Catch unlock con 1
• Catch unlock con 2
• Central locking switch
• Cls alarm
• Computer data lines system
• Current distributor (behind right side of dash)
• Emer unlock lugg compt
• Emergency open switch
• Emergency power pin (under left side of dash, at kick panel)
• Front end control unit (right side of front luggage compt)
• Front hood open sw
• Front lid
• Front lock micro sw
• Front lock micro- switch
• Function lt cls alarm
• Fuse f3 10a
• Fuse f6 15a
• Fuse f6 80a
• Fuse f7 15a
• Fuse holder a
• Fuse holder c
• Gnd
• Gp1 (front of right front fender)
• Gp3 (behind left side of dash)
• Gp5 (right side of dash)
• Gp7 (below left seat)
• Gp8 (at left side of engine compt)
• Hot at all times
• Hot w/ term 15 relay energized
• Interior lights system
• Lugg compt unlock
• Luggage compartment lid actuator
• Power distribution system
• Rear control unit (under left seat)
• Rear hood lock micro switch
• Rear hood micro sw
• Rear hood open sw
• Rear lid
• Red
• Sill button module
• Tailgate release actuator
• Tailgate unlock dvr
• Targa lid
• Terminal 15
• Vehicle electrical system control unit

POWER MIRRORS

Auto Anti-dazzling Mirror Wiring Diagram for Porsche Boxster S 2010

List of elements for Auto Anti-dazzling Mirror Wiring Diagram for Porsche Boxster S 2010:

• Actuation +
• Actuation -
• Anti-dazzle interior mirror
• Anti-dazzle mirror +
• Anti-dazzle mirror -
• Backup light
• Backup light sw
• Backup light switch (top right of transmission)
• Backup signal
• Bridge plug (relay support 1)
• Can comfort high
• Can comfort low
• Computer data lines system
• Driver's mirror control unit
• Exterior lights system
• Fuse f6 15a
• Fuse holder c
• Gp3 (behind left side of dash)
• Gp9 (left side of engine compt)
• Hot w/ terminal 15 relay energized
• Nca
• Passenger's mirror control unit
• Rain sensor orientation light
• Rear control unit
• Term 15
• Term 31
• Vehicle electrical system control unit

Power Mirror Wiring Diagram for Porsche Boxster S 2010

List of elements for Power Mirror Wiring Diagram for Porsche Boxster S 2010:

• Anti-dazzle mirror +
• Anti-dazzle mirror -
• Auto anti-dazzle mirror circuit
• Can high comfort
• Can low comfort
• Computer data lines system
• Driver's door control unit
• Driver's mirror adjustment switch
• Driver's mirror control unit
• Fuse f1 30a
• Fuse f4 30a
• Fuse holder a
• Hot at all times
• Mirror adjustment
• Mirror adjustment x
• Mirror adjustment x/y
• Mirror changeover sw
• Mirror heater
• Mirror heater +
• Mirror heating +
• Mirror heating -
• Mirror heating gnd
• Mirror motor control y
• Mirror motor x
• Mirror motor x/y
• Mirror poti +
• Mirror poti -
• Mirror poti 5v
• Mirror poti pos x
• Mirror poti pos y
• Mirror poti term 31
• Mirror poti x
• Mirror poti y
• Motor control y
• Operating sw -
• Passenger's door control unit
• Passenger's mirror control unit
• Power windows system
• Term 30 power window
• Term 31
• Term 58

POWER SEATS

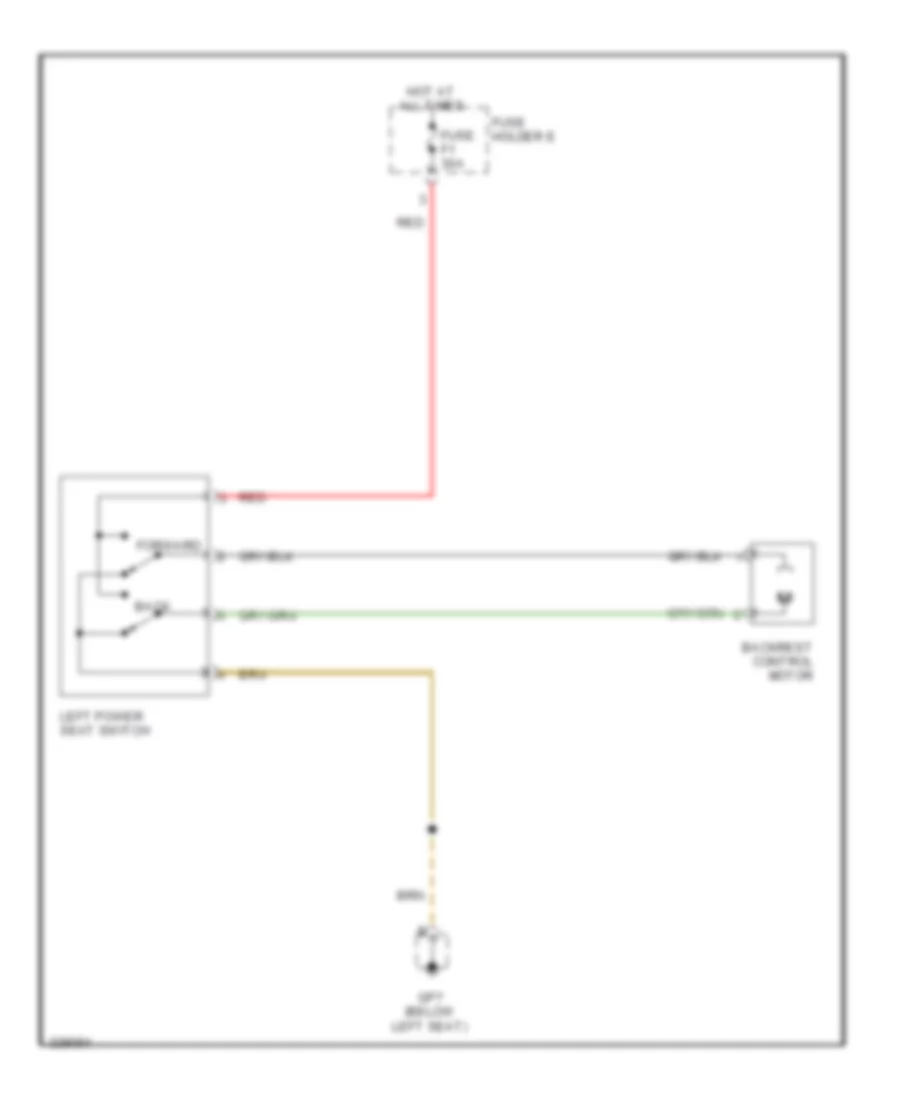

Driver Power Seat Wiring Diagram, Base for Porsche Boxster S 2010

List of elements for Driver Power Seat Wiring Diagram, Base for Porsche Boxster S 2010:

• Back
• Backrest control motor
• Forward
• Fuse f1 30a
• Fuse holder e
• Gp7 (below left seat)
• Hot at all times
• Left power seat switch
• Red

Driver Power Seat Wiring Diagram, Except Base for Porsche Boxster S 2010

List of elements for Driver Power Seat Wiring Diagram, Except Base for Porsche Boxster S 2010:

• Back
• Backrest
• Down
• Front
• Front seat cushion height control motor
• Fuse f1 30a
• Fuse holder e
• Gp7 (below left seat)
• High
• Hot at all times
• Left power seat switch
• Left seat width adjustment switch
• Lumbar pump motor (under left seat)
• Lumbar valve block (under left seat)
• Nca
• Off
• Rear seat cushion height control motor
• Red
• Seat
• Seat back forward control motor
• Seat backrest control motor
• Seat width adjustment pump motor (under left seat)
• Seat width adjustment valve block

Heated Seats Wiring Diagram for Porsche Boxster S 2010

List of elements for Heated Seats Wiring Diagram for Porsche Boxster S 2010:

• Current distributor (behind right side of dash)
• Driver side
• Fuse f2 80a
• Gp7 (below left seat)
• Hot at all times
• L seat heater sply
• Left seat heater
• Left seat side bolster heating element
• Passenger side
• R seat heater sply
• Right seat heater
• Right seat side bolster heating element
• Seat backrest heating element
• Seat cushions side heating element
• Vehicle electrical system control unit

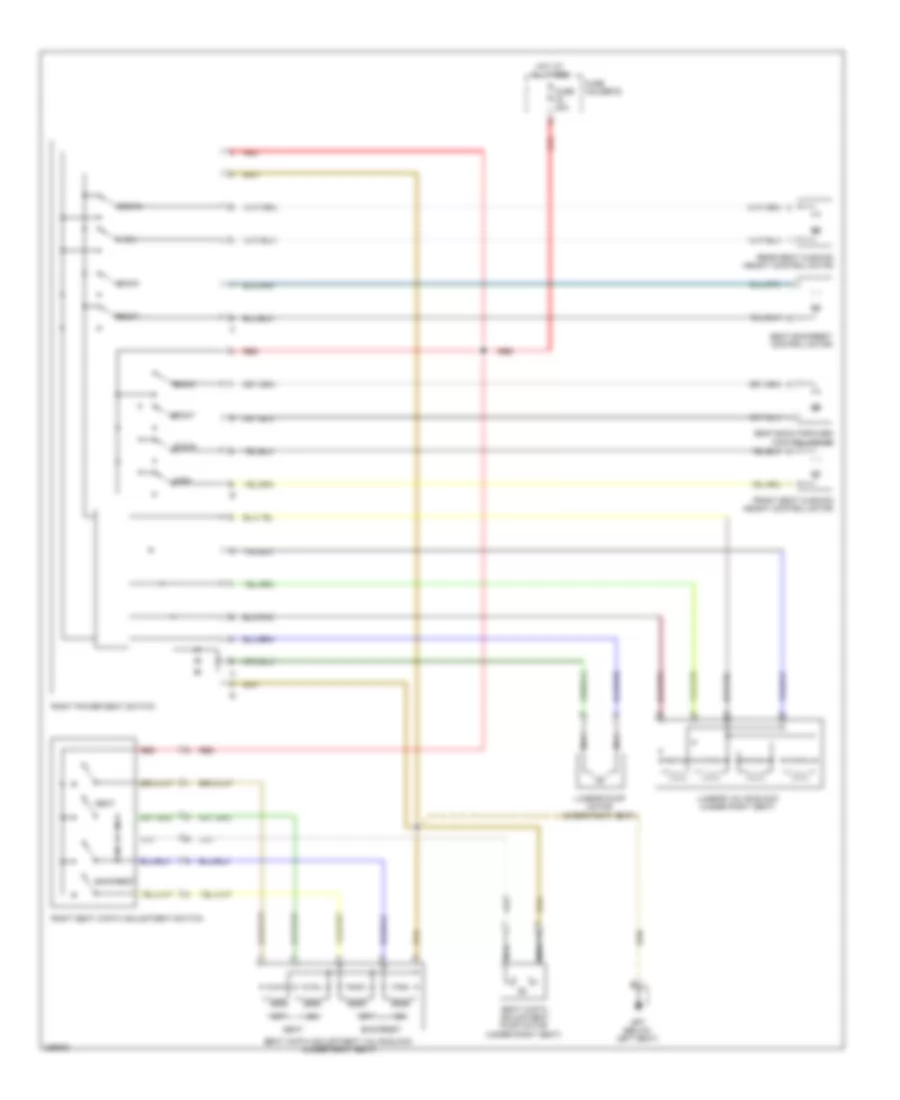

Passenger Power Seat Wiring Diagram for Porsche Boxster S 2010

List of elements for Passenger Power Seat Wiring Diagram for Porsche Boxster S 2010:

• Back
• Backrest
• Down
• Front
• Front seat cushion height control motor
• Fuse f2 30a
• Fuse holder e
• Gp7 (below left seat)
• High
• Hot at all times
• Lumbar pump motor (under right seat)
• Lumbar valve block (under right seat)
• Nca
• Off
• Rear seat cushion height control motor
• Red
• Right power seat switch
• Right seat width adjustment switch
• Seat
• Seat back forward control motor
• Seat backrest control motor
• Seat width adjustment pump motor (under right seat)
• Seat width adjustment valve block (under right seat)

POWER TOP/SUNROOF

Power Top/Sunroof Wiring Diagram for Porsche Boxster S 2010

List of elements for Power Top/Sunroof Wiring Diagram for Porsche Boxster S 2010:

• Can comfort high
• Can comfort low
• Can high display
• Can low display
• Computer data lines system
• Conv top button
• Conv top closed
• Conv top closed micro
• Conv top open c
• Conv top open micro sw
• Convertible top closed relay (relay support 1)
• Convertible top electric motor
• Convertible top open relay (relay support 1)
• Convertible top transmission
• Convertible top/ glass roof button
• Fuse f3 30a
• Fuse holder e
• Gp3 (behind left side of dash)
• Gp4 (center of dash)
• Gp7 (below left seat)
• Hot at all times
• Instrument cluster
• Interior lights system
• Rear control unit (under left seat)

POWER WINDOWS

Power Windows Wiring Diagram for Porsche Boxster S 2010

List of elements for Power Windows Wiring Diagram for Porsche Boxster S 2010:

• Battery
• Button
• Can high
• Can low
• Changeover switch
• Computer data lines system
• Convertible
• Driver door control unit
• Driver power window switch
• Driver pw sw
• Front function light
• Front/rear
• Fuse f4 30a
• Fuse f5 15a
• Fuse holder a
• Gp13 (near battery)
• Hot at all times
• Inside door handle light
• Inside dr handle micro sw
• Interior lights system
• Light
• Local
• Lowering door windows
• Operation gnd sw
• Passenger
• Passenger door control unit
• Passenger power window switch
• Passenger pw sw
• Power windows
• Pw changeover sw
• Rear function light
• Red
• Term 30
• Term 30 power window
• Term 31
• Terminal 31

RADIO

Base Radio Wiring Diagram for Porsche Boxster S 2010

List of elements for Base Radio Wiring Diagram for Porsche Boxster S 2010:

• Antenna
• Aux-gnd
• Aux-l
• Aux-r
• Aux-shield
• Basic antenna
• Can high
• Can low
• Can wake-up
• Cd radio
• Computer data lines system
• Diversity antenna
• External antenna
• Fuse f10 15a
• Fuse holder d
• Gp electronics (left side of dash)
• Hot at all times
• Left dashboard 2-way speaker
• Left door low range speaker
• Left front out (+)
• Left front out (-)
• Nca
• Pnk
• Right dashboard 2-way speaker
• Right door low range speaker
• Right front +
• Right front -
• Terminal 30
• Terminal 31
• Ums cdr
• W/ external antenna
• W/o external antenna

Optical WaveGuide Wiring Diagram for Porsche Boxster S 2010

List of elements for Optical WaveGuide Wiring Diagram for Porsche Boxster S 2010:

• Bose amplifier (under right front seat)
• Input
• Output
• Porsche communication management (pcm) (behind center of dash)
• Television tuner
• W/ bose amplifier
• W/ bose amplifier & television tuner
• W/ television tuner

Premium Radio Wiring Diagram, with Bose (1 of 3) for Porsche Boxster S 2010

List of elements for Premium Radio Wiring Diagram, with Bose (1 of 3) for Porsche Boxster S 2010:

• Ant switched out
• Antenna
• Antenna diversity
• Aux shield
• Aux-1-in-l (+)
• Aux-1-in-r (+)
• Aux-1-rtn
• Can high
• Can low
• Can wake up
• Computer data lines system
• Control line
• Cvbs in
• Data (+)
• Data (-)
• Diagnostics
• External antenna
• Fbas-in-masse
• Fuse f10 15a
• Fuse f9 10a
• Fuse holder d
• Gnd
• Gp electronics (left side of dash)
• Gps antenna (right rear of front luggage compt)
• Hot at all times
• Input
• Ipod acc det
• Ipod accessory ident
• Ipod charge gnd
• Ipod charge power (+)
• Ipod rx
• Ipod tx
• Left ub+ ctrl
• Microphone 1 in (+)
• Microphone 1 return
• Microphone 2 in (+)
• Microphone 2 return
• Microphone shield
• Mobile phone preparation
• Mobile phone preparation antenna
• Nca
• Output
• Pcm
• Pnk
• Porsche communication management (pcm) (in center console)
• Red
• Right ub+ ctrl
• Sdars antenna
• Shield
• Sig
• Signal
• Sound systems (optical waveguide circuit)
• Telephone antenna (right rear of front luggage compt)
• Telephone handset
• Term 30
• Term 31
• Vcc (+)
• W/ external antenna
• W/o external antenna

Premium Radio Wiring Diagram, with Bose (2 of 3) for Porsche Boxster S 2010

List of elements for Premium Radio Wiring Diagram, with Bose (2 of 3) for Porsche Boxster S 2010:

• (right "a" pillar) right antenna amplifier
• (under dash, left of steering column) pas control unit
• (under top left side of dash) microphone free-handed speaking
• Alarm shield antenna
• Antenna alarm
• Aux-gnd
• Aux-l
• Aux-r
• Charger gnd
• Charger power
• Ctrl line
• Data (+)
• Data (-)
• Diagnostics
• Gnd
• Input
• Ipod detect
• Ipod ident
• Ipod rx
• Ipod tx
• Left antenna amplifier (left "a" pillar)
• Microphone hands free operation/ sound acquisition microphone
• Nca
• Output
• Pnk
• Red
• Shield
• Sig
• Sig ant 1
• Sig ant 2
• Sig ant 3
• Sig gnd
• Signal (+)
• Signal (-)
• Sound systems (optical waveguide circuit)
• Telephone +
• Telephone -
• Television tuner
• Term 30
• Term 31
• Ums
• Vcc (+)
• Video sig
• Vnc +
• Vnc -

Premium Radio Wiring Diagram, with Bose (3 of 3) for Porsche Boxster S 2010

List of elements for Premium Radio Wiring Diagram, with Bose (3 of 3) for Porsche Boxster S 2010:

• Actuation +
• Actuation -
• Bose amplifier
• Bose subwoofer
• Center speaker
• Center speaker +
• Center speaker -
• Convertible
• Coupe
• Diagnostics
• Fuse f4 30a
• Fuse holder e
• Gp electronics (at left side of dash)
• Hot at all times
• Input
• Left dashboard tweeter speaker
• Left door low range speaker
• Left door mid range speaker
• Left rear (+)
• Left rear (-)
• Left rear speaker
• Lf low range speaker (+)
• Lf low range speaker (-)
• Lf tweeter (+)
• Lf tweeter (-)
• Output
• Plus switched subwoofer
• Red
• Rf low range speaker (+)
• Rf low range speaker (-)
• Rf tweeter (+)
• Rf tweeter (-)
• Right dashboard tweeter speaker
• Right door low range speaker
• Right door mid range speaker
• Right rear (+)
• Right rear (-)
• Right rear speaker
• Signal subwoofer +
• Signal subwoofer -
• Sound acquisition microphone +
• Sound acquisition microphone -
• Sound systems (optical waveguide circuit)
• Term 30
• Term 31
• Wake up

Premium Radio Wiring Diagram, without Bose (1 of 3) for Porsche Boxster S 2010

List of elements for Premium Radio Wiring Diagram, without Bose (1 of 3) for Porsche Boxster S 2010:

• Amp on
• Ant switched out
• Antenna
• Antenna diversity
• Aux shield
• Aux-1-in-l (+)
• Aux-1-in-r (+)
• Aux-1-rtn
• Can high
• Can low
• Can wake up
• Computer data lines system
• Control line
• Cvbs in
• Data (+)
• Data (-)
• Diagnostics
• External antenna
• Fbas-in-masse
• Fuse f10 15a
• Fuse f9 10a
• Fuse holder d
• Gnd
• Gp electronics (left side of dash)
• Gps antenna (right rear of front luggage compt)
• Hot at all times
• Input
• Ipod acc det
• Ipod accessory ident
• Ipod charge gnd
• Ipod charge power (+)
• Ipod rx
• Ipod tx
• Left front out (+)
• Left front out (-)
• Left rear out (+)
• Left rear out (-)
• Left ub+ ctrl
• Microphone 1 in (+)
• Microphone 1 return
• Microphone 2 in (+)
• Microphone 2 return
• Microphone shield
• Mobile phone preparation
• Mobile phone preparation antenna
• Nca
• Output
• Pcm
• Pnk
• Porsche communication management (pcm) (in center console)
• Red
• Right front out (+)
• Right front out (-)
• Right rear out (+)
• Right rear out (-)
• Right ub+ ctrl
• Sdars antenna
• Shield
• Sig
• Signal
• Sound systems (optical waveguide circuit)
• Telephone antenna (right rear of front luggage compt)
• Telephone handset
• Term 30
• Term 31
• Vcc (+)
• W/ external antenna
• W/o external antenna

Premium Radio Wiring Diagram, without Bose (2 of 3) for Porsche Boxster S 2010

List of elements for Premium Radio Wiring Diagram, without Bose (2 of 3) for Porsche Boxster S 2010:

• (right "a" pillar) right antenna amplifier
• (under top left side of dash) microphone free-handed speaking
• Antenna alarm
• Antenna alarm shield
• Aux-gnd
• Aux-l
• Aux-r
• Charger gnd
• Charger power
• Ctrl line
• Data (+)
• Data (-)
• Diagnostics
• Gnd
• Input
• Ipod detect
• Ipod ident
• Ipod rx
• Ipod tx
• Left antenna amplifier (left "a" pillar)
• Microphone hands free operation/ sound acquisition microphone
• Nca
• Output
• Pas control unit
• Pnk
• Red
• Shield
• Sig
• Sig ant 1
• Sig ant 2
• Sig ant 3
• Sig gnd
• Signal (+)
• Signal (-)
• Sound systems (optical waveguide circuit)
• Telephone +
• Telephone -
• Television tuner
• Term 30
• Term 31
• Ums
• Vcc (+)
• Video sig

Premium Radio Wiring Diagram, without Bose (3 of 3) for Porsche Boxster S 2010

List of elements for Premium Radio Wiring Diagram, without Bose (3 of 3) for Porsche Boxster S 2010:

• Ask amplifier
• Center dashboard speaker
• Center speaker +
• Center speaker -
• Fuse f4 30a
• Fuse holder e
• Gp electronics (at left side of dash)
• Hot at all times
• Left dashboard tweeter speaker
• Left door low range speaker
• Left door mid range speaker
• Left front in (+)
• Left front in (-)
• Left rear (+)
• Left rear (-)
• Left rear in (+)
• Left rear in (-)
• Left rear wide band speaker
• Lf dashboard (+)
• Lf dashboard (-)
• Lf+ instrument panel
• Lf- instrument panel
• Red
• Rf dashboard (+)
• Rf dashboard (-)
• Rf door speaker (+)
• Rf door speaker (-)
• Right dashboard tweeter speaker
• Right door low range speaker
• Right door mid range speaker
• Right front in (+)
• Right front in (-)
• Right rear (+)
• Right rear (-)
• Right rear in (+)
• Right rear in (-)
• Right rear wide band speaker
• Switched plus
• Term 30
• Term 31

SHIFT INTERLOCK

Shift Interlock Wiring Diagram for Porsche Boxster S 2010

List of elements for Shift Interlock Wiring Diagram for Porsche Boxster S 2010:

• Anti-lock brakes system
• Brake pedal switch
• Can high
• Can low
• Computer data lines system
• Data
• Dme control unit
• Exterior lights system
• Fuse f4 10a
• Fuse f5 15a
• Fuse f9 7.5a
• Fuse holder b
• Fuse holder c
• Gp7 (below left seat)
• Hot w/ terminal 15 relay energized
• Hot w/ terminal 86s relay energized
• Instrument cluster
• Interlock
• Key lock
• Pas control unit (behind left side of dash)
• Pdk control unit
• Rear control unit (under left seat)
• Selector & locked
• Selector lever control unit
• Shift lock
• Shift lock+
• Shift lock-
• St interlock
• Stop light sw
• Term 15
• Terminal 15
• Terminal 31
• Terminal 86s

STARTING/CHARGING

Charging Wiring Diagram for Porsche Boxster S 2010

List of elements for Charging Wiring Diagram for Porsche Boxster S 2010:

• 80a
• B+ plug socket (right side of transmission) a
• Battery
• Cooling water fan control unit
• Current distributor (behind right side of dash)
• Dme control module
• Generator
• Generator pwm
• Gp13 (near battery)
• Ground distribution system
• Midi fuse (exhaust)
• Power distribution system
• Red
• Starter
• Vehicle electrical system control unit

Starting Wiring Diagram for Porsche Boxster S 2010

List of elements for Starting Wiring Diagram for Porsche Boxster S 2010:

• 2.9l
• 3.4l
• B+ plug socket (right side of transmission)
• Battery
• Can comfort high
• Can comfort low
• Can drive high
• Can drive low
• Clock immobilizer
• Computer data lines system
• Current distributor (behind right side of dash)
• Data immobilizer
• Data line clock
• Data line data
• Dme control unit
• Electronics ignition lock
• Fuse f6 80a
• Generator
• Gp13 (near battery)
• Ground distribution system
• Ignition lock contact 1
• Ignition lock contact 2
• Ignition lock contact 3
• Ignition lock contact 4
• Ignition lock contact 5
• Ignition lock contact 6
• Ignition lock contact 7
• Power distribution system
• Red
• Release
• Sg pas (porsche access system) (behind left side of dash)
• Start lock relay (relay support 1)
• Starter
• Switch 1
• Switch 2
• Switch 3
• Switch 4
• Switch 5
• Switch 6
• Switch 7
• Term 15 actuation low
• Term 50 actuation high
• Term 50 diagnosis
• Terminal 15 relay (relay support 1)

SUPPLEMENTAL RESTRAINTS

Supplemental Restraints Wiring Diagram (1 of 2) for Porsche Boxster S 2010

List of elements for Supplemental Restraints Wiring Diagram (1 of 2) for Porsche Boxster S 2010:

• (behind right side of dash) passenger's air bag stage 1
• (behind right side of dash) passenger's air bag stage 2
• (left door) driver head air bag
• (left seat) driver thorax air bag
• (right door) passenger head air bag
• (right seat) passenger thorax air bag
• Air bag
• Air bag 1 +
• Air bag 1 -
• Air bag 2 +
• Air bag 2 -
• Air bag control unit (under center console)
• Can high
• Can low
• Computer data lines system
• Crash out
• Driver belt lock switch (driver seat belt buckle)
• Driver's side air bag sensor (left "b" pillar)
• Drvr belt tens +
• Drvr belt tens -
• Drvr buckle
• Drvr front sensor
• Drvr head ab +
• Drvr head ab -
• Drvr it stg 2 +
• Drvr it stg 2 -
• Drvr side ab sensor
• Drvr side stg 1 +
• Drvr side stg 1 -
• Drvr thorax ab +
• Drvr thorax ab -
• Gp air bag (under center console)
• Left front air bag sensor
• Lin-bus
• Out +
• Out -
• Pass ab off light
• Pass buckle
• Pass front sensor
• Pass head ab +
• Pass head ab -
• Pass it stg 1 +
• Pass it stg 1 -
• Pass it stg 2 +
• Pass it stg 2 -
• Pass seat belt pret +
• Pass seat belt pret -
• Pass side ab sensor
• Pass thorax ab +
• Pass thorax ab -
• Passenger belt lock switch (passenger seat belt buckle)
• Passenger's side air bag sensor (right "b" pillar)
• Right front air bag sensor
• Signal
• Steering column combined module
• Term 31
• Term 86s

Supplemental Restraints Wiring Diagram (2 of 2) for Porsche Boxster S 2010

List of elements for Supplemental Restraints Wiring Diagram (2 of 2) for Porsche Boxster S 2010:

• (left "b" pillar) driver seat belt pretensioner
• (right "b" pillar) passenger seat belt pretensioner
• +12v
• 2.9l
• 3.4l
• Can h
• Can high
• Can l
• Can low
• Computer data lines system
• Current distributor (behind right side of dash)
• Dme control unit
• Extent cable pre- installation seat
• Fuse f1 15a
• Fuse f7 80a
• Fuse holder b
• Gnd
• Hot at all times
• Instrument cluster (ic)
• Left front weight sensor
• Left rear weight sensor
• Lin
• Lin-bus
• Micro relay
• Out +
• Out -
• Passenger's air bag off display
• Porsche access system (pas) control unit (behind left side of dash)
• Power distribution system
• Red
• Right front weight sensor
• Right rear weight sensor
• S0 sens +
• S0 sens -
• S1 sens +
• S1 sens -
• S2 sens +
• S2 sens -
• S3 sens +
• S3 sens -
• Term 30
• Term 31
• Term 86s
• Weight recognition control unit (under passenger seat)

TRANSMISSION

A/T Wiring Diagram for Porsche Boxster S 2010

List of elements for A/T Wiring Diagram for Porsche Boxster S 2010:

• (not
• Combined steering column module
• Comfort hi
• Comfort lo
• Computer data lines system
• Data
• Data (l)
• Data (r)
• Direction rotation (l)
• Direction rotation (r)
• Drive hi
• Drive lo
• Electronic steering wheel
• Fuse f3 15a
• Fuses holder b
• Gnd
• Gnd (l)
• Gnd (r)
• Gp4 (center of dash)
• Horns system
• Hot at all times
• Left tiptronic (steering column w/ multi-function)
• Left tiptronic button
• Nca
• Ntc/button
• Red
• Right tiptronic (steering column w/ multi-function)
• Right tiptronic button
• Rotation speed (l)
• Rotation speed (r)
• Sens/button
• Term 15
• Term 30
• Term 31
• Term 58d
• Term 58d (l)
• Term 58d (r)
• Tiptronic (l)
• Tiptronic (r)
• Trem 15
• Tt pdk dwn
• Used)
• W/ msw

PDK Wiring Diagram for Porsche Boxster S 2010

List of elements for PDK Wiring Diagram for Porsche Boxster S 2010:

• Can drive hi
• Can drive lo
• Computer data lines system
• Data
• Distance sens 1
• Distance sens 2
• Distance sens 3
• Distance sens 4
• Engine controls system
• Fuse f1 15a
• Fuse f5 15a
• Fuse f9 7.5a
• Fuse holder b
• Fuse holder c
• Gp7 (below left seat)
• Gp9 (at left side of engine compt)
• Hot at all times
• Hot w/ micro relay energized
• Hot w/ terminal 15 relay energized
• Instrument cluster
• Keylock
• Oil temp
• Pas control unit (under dash, left of steering column)
• Pdk control unit
• Press regulator 1
• Press regulator 2
• Press regulator 3
• Press regulator 4
• Press regulator 5
• Press regulator 6
• Press sens 1
• Press sens 2
• Red
• Rpm sens 1
• Rpm sens 2
• Selector level control unit
• Sens gnd
• Sens gnd 2
• Shift interlock
• Shift lock
• Shift lock +
• Shift lock -
• Sol valve 1
• Sol valve 2
• Speed
• Starter interlock
• Term 15
• Term 30
• Term 31
• Term 86s
• Transmission dp 1
• Transmission dp 2

TRUNK, TAILGATE, FUEL DOOR

Tailgate & Fuel Door Release Wiring Diagram for Porsche Boxster S 2010

List of elements for Tailgate & Fuel Door Release Wiring Diagram for Porsche Boxster S 2010:

• (not used)
• Can comfort high
• Can comfort low
• Computer data lines system
• Emergency open button (left side of front luggage compt)
• Emergency unlck lugg compt
• Filler flap conn 1
• Filler flap conn 2
• Front
• Front end control unit (right side of front luggage compt)
• Front lid
• Front lid open sw
• Front lock micro sw lugg compt unlock
• Front lock micro switch
• Fuse f6 7.5a
• Fuse holder b
• Gp1 (front of right front fender)
• Gp4 (center of dash)
• Gp7 (below left seat)
• Gp8 (at left side of engine compt)
• Hot at all times
• Interior lights system
• Luggage compartment lid actuator
• Rear
• Rear control unit (under left seat)
• Rear lid
• Rear lid micro sw
• Rear lid open sw
• Sill button module
• Tailgate release actuator
• Tailgate switch
• Tailgate unlocking
• Tank cover -
• Tank cover drive
• Tank cover term 30
• Targa
• Targa lid
• Vehicle electrical system control unit

WARNING SYSTEMS

Warning Systems Wiring Diagram for Porsche Boxster S 2010

List of elements for Warning Systems Wiring Diagram for Porsche Boxster S 2010:

• Bridge plug 1 (relay support 1)
• Can high comfort
• Can low comfort
• Computer data lines system
• Digital rdk antenna (except convertible)
• Fl antenna lin bus data
• Fl antenna lin bus gnd
• Fr antenna lin bus data
• Fr antenna lin bus gnd
• Fuse f3 15a
• Fuse holder b
• Gp4 (center of dash)
• Hot at all times
• Left front rdk antenna (left front whellwell)
• Left rear rdk antenna (left rear whellwell)
• Lin data
• Lin gnd
• Lin sply+
• Right front rdk antenna (right front whellwell)
• Right rear rdk antenna (right rear whellwell)
• Rl antenna lin bus data
• Rl antenna lin bus gnd
• Rr antenna lin bus data
• Rr antenna lin bus gnd
• Sply
• Term 30
• Term 31 gnd
• Tire pressure control unit (left side of front luggage compt)

WIPER/WASHER

Front Wiper/Washer Wiring Diagram, with Rain Sensor for Porsche Boxster S 2010

List of elements for Front Wiper/Washer Wiring Diagram, with Rain Sensor for Porsche Boxster S 2010:

• (not used)
• (washer fluid reservoir)
• 131b
• 253a
• 553b
• 80a
• Actuation +
• Actuation -
• Anti-dazzle interior mirror
• Back up signal
• Bridge plug (relay support 1)
• Can comfort high
• Can comfort low
• Combined steering column module
• Computer data lines system
• Fuse f2 7.5a
• Fuse f4 25a
• Fuse f6 15a
• Fuse holder b
• Fuse holder c
• Gp3 (behind left side of dash)
• Gp3 (left side of support frame)
• Gp4 (center of dash)
• Gp5 (right side of dash)
• Headlight cleaner pump relay b
• Headlight washing fluid pump
• Headlight washing relay (relay support 1)
• Hot at all times
• Hot w/ terminal 15 relay energized
• Instrument cluster
• Left heated spray jets
• Midi fuse (exhaust)
• Mirrors system
• Nca
• Orientation light
• Rain sensor
• Rain sensor +
• Rain sensor -
• Rain sensor orientation light
• Rain sensor signal
• Red
• Right heated spray jets
• Term 15
• Term 31
• Vehicle electrical system control unit
• Washer fluid level switch (washer fluid reservoir)
• Washer fluid lvl can high display can low display
• Washing fluid pump
• Washing fluid pump +
• Windshield washing fluid pump (left side of front luggage compartment, in washer fluid reservoir)
• Windshield wiper motor (left rear corner of front luggage compt)
• Windshield wiper motor a
• Wiper motor +
• Wiper motor stage 1 b
• Wiper motor stage 2
• Wiper switch

Front Wiper/Washer Wiring Diagram, without Rain Sensor for Porsche Boxster S 2010

List of elements for Front Wiper/Washer Wiring Diagram, without Rain Sensor for Porsche Boxster S 2010:

• (washer fluid reservoir)
• 131b
• 253a
• 553b
• 80a
• Can comfort high
• Can comfort low
• Combined steering column module
• Computer data lines system
• Fuse f2 7.5a
• Fuse f4 25a
• Fuse holder b
• Fuse holder c
• Gp3 (behind left side of dash)
• Gp4 (center of dash)
• Gp5 (right side of dash)
• Headlight washer relay (relay support 1)
• Headlight washing fluid pump
• Headlt cleaner pump relay b
• Hot at all times
• Hot w/ terminal 15 relay energized
• Instrument cluster
• Left heated spray jets
• Midi fuse (exhaust)
• Red
• Right heated spray jets
• Vehicle electrical system control unit
• Washer fluid level switch (washing fluid reservoir)
• Washer fluid lvl can high display can low display
• Washing fluid pump
• Washing fluid pump +
• Windshield washing fluid pump (left side of front luggage compartment, in washer fluid reservoir)
• Windshield wiper motor (left rear corner of front luggage compartment)
• Windshield wiper motor a
• Wiper motor +
• Wiper motor stage 1 b
• Wiper motor stage 2
• Wiper switch
