Электросхемы БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ Mercury Grand Marquis LS 2007

БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ

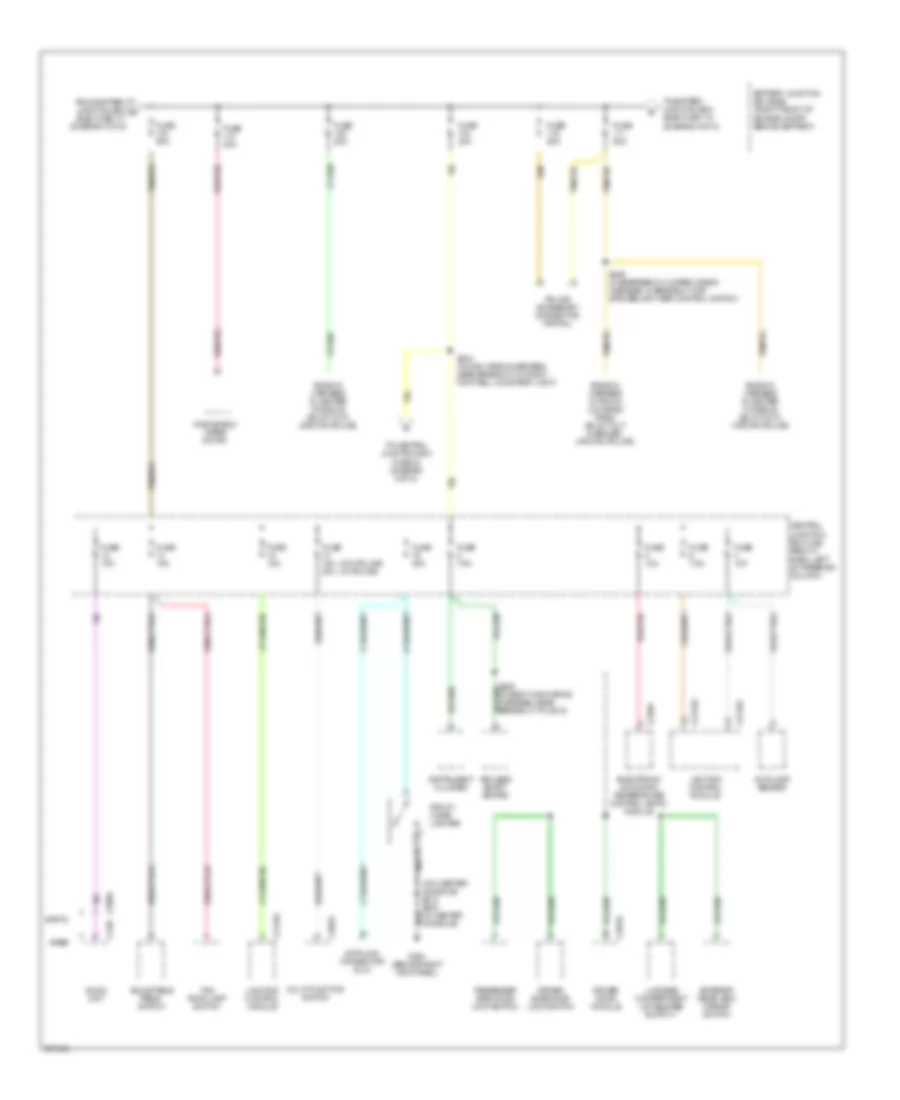

Электросхема блока предохранителей и реле (1 из 5) для Mercury Grand Marquis LS 2007

Электросхема блока предохранителей и реле (1 из 5) для Mercury Grand Marquis LS 2007 - Список элементов:

• (in body main wiring harness, near breakout to c248) s242
• (in body main wiring harness, near breakout to c919) s224
• (in body main wiring harness, near breakout to g212) s234
• (in interior lamps wiring harness, near breakout to roof opening panel unit) s905
• (right front of engine compartment, behind battery) battery junction box (bjb)
• Abs control module
• Acc
• Air suspension module
• Automatic a/c
• Battery
• Battery junction box (bjb) (right front of engine compartment, behind battery)
• Blower motor relay
• Brake shift interlock (w/ center console)
• C175b
• C202a
• C2131a
• C2145a
• C228a
• C294a
• C3281a
• C9013a
• Central junction box (cjb) (below dash, left of steering column)
• Circuit breaker f601 20a
• Driver side front heated seat module
• Driver side front seat adjust switch
• Driver side lumbar adjust switch
• Electronic automatic temperature control (eatc) module (automatic a/c)
• Engine cooling fan module
• Evap canister vent control solenoid
• Fire suppression manual switch
• Fire suppression module
• Function selector switch assembly
• Function selector switch assembly (manual a/c)
• Fuse 10a
• Fuse 15a
• Fuse 20a
• Fuse 30a
• Fuse 40a
• Fuse 50a
• Fuse 5a
• Generator
• Grand marquis
• Ignition switch
• Instrument cluster
• Key-in ignition switch
• Left side spot lamp (taxi & police)
• Lighting control module
• Lock
• Luggage compartment lid release switch 2
• Multi-function switch
• Off
• Overhead console
• Passenger side front heated seat module
• Passenger side front seat adjust switch
• Passenger side lumbar adjust switch
• Powertrain control module (pcm)
• Red
• Right side spot lamp (police)
• Roof opening panel unit
• Run
• S137
• S160
• S162
• S200 (in main wiring harness, in breakout to c260)
• S215
• Start
• Starter motor
• Temperature blend door actuator
• To central junction box fuse 1 (diagram 2 of 5)
• To central junction box fuse 22 (diagram 2 of 5)
• To central junction box fuse 5 (diagram 5 of 5)
• To fuse 8 (diagram 2 of 5)
• W/ fire suppression

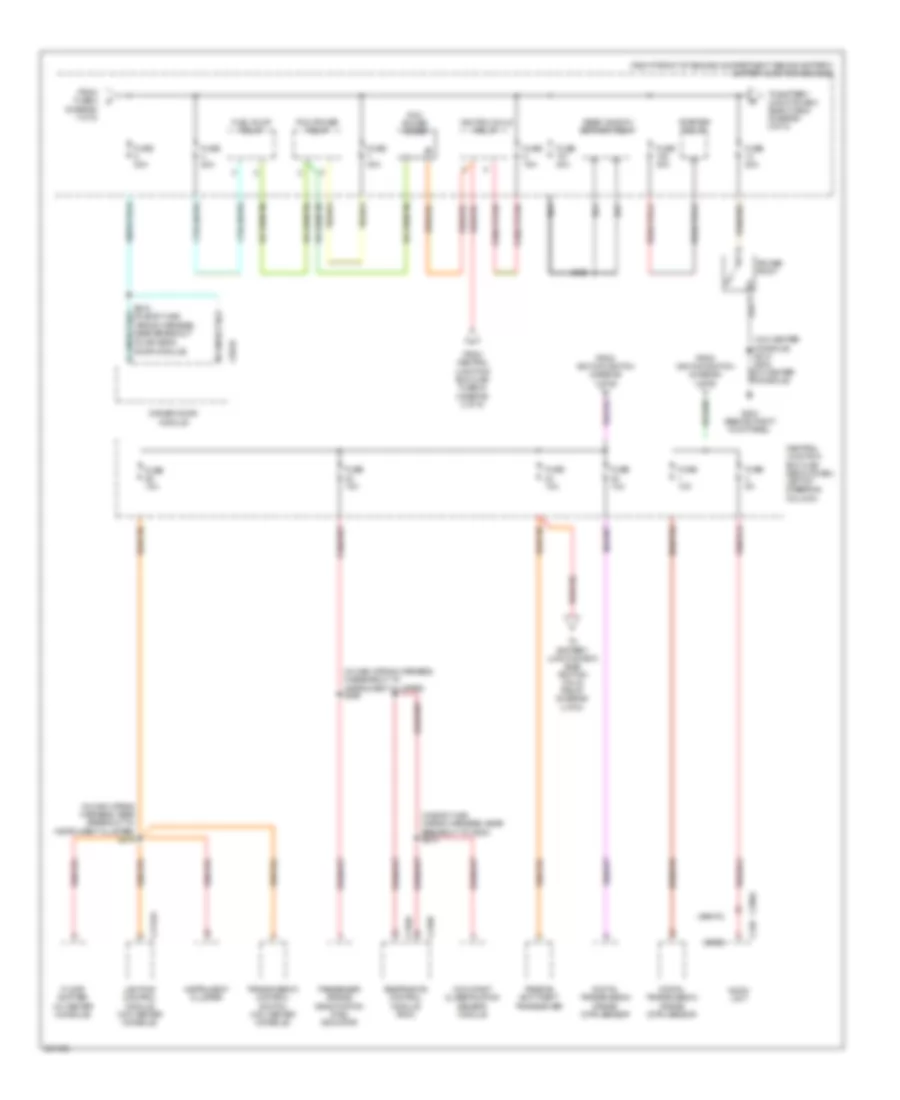

Электросхема блока предохранителей и реле (2 из 5) для Mercury Grand Marquis LS 2007

Электросхема блока предохранителей и реле (2 из 5) для Mercury Grand Marquis LS 2007 - Список элементов:

• (base)
• (in body main wiring harness, near breakout to g200) s213
• (in main wiring harness, in breakout to instrument cluster) s239
• (in main wiring harness, near breakout to instrument cluster) s276
• (right front of engine compartment, behind battery) battery junction box (bjb)
• (sanyo)
• Audio unit
• C2145a
• C240
• C290a
• C310a
• C310b
• C501b
• Central junction box (cjb) (below dash, left of steering column)
• Console)
• Digital transmission range (dtr) sensor
• Driver door module
• Floor shifter (w/ center console)
• From central junction box (cjb) fuse 24 (diagram 2 of 5)
• From fuse 2 (diagram 1 of 5)
• From ignition switch (diagram 1 of 5)
• Fuel pump relay
• Fuse 10a
• Fuse 15a
• Fuse 20a
• Fuse 30a
• Fuse 40a
• Fuse 5a
• G204 (behind right kick panel)
• Ignition coils relay
• Instrument cluster
• Lighting control module (w/o center console)
• Occupant classification sensor module
• Passenger air bag deactivation (pad) indicator
• Passive anti-theft transceiver
• Pcm power diode
• Pcm power relay
• Power point
• Rear window defrost relay
• Restraints control module (rcm)
• S190
• S515 (in body main wiring harness, near breakout
• Starter relay
• To battery junction box (bjb) fuse 5 (diagram 3 of 5)
• To battery junction box (bjb) ignition coils relay (diagram 2 of 5)
• To driver's door module)
• Transmission control switch (w/o center console)

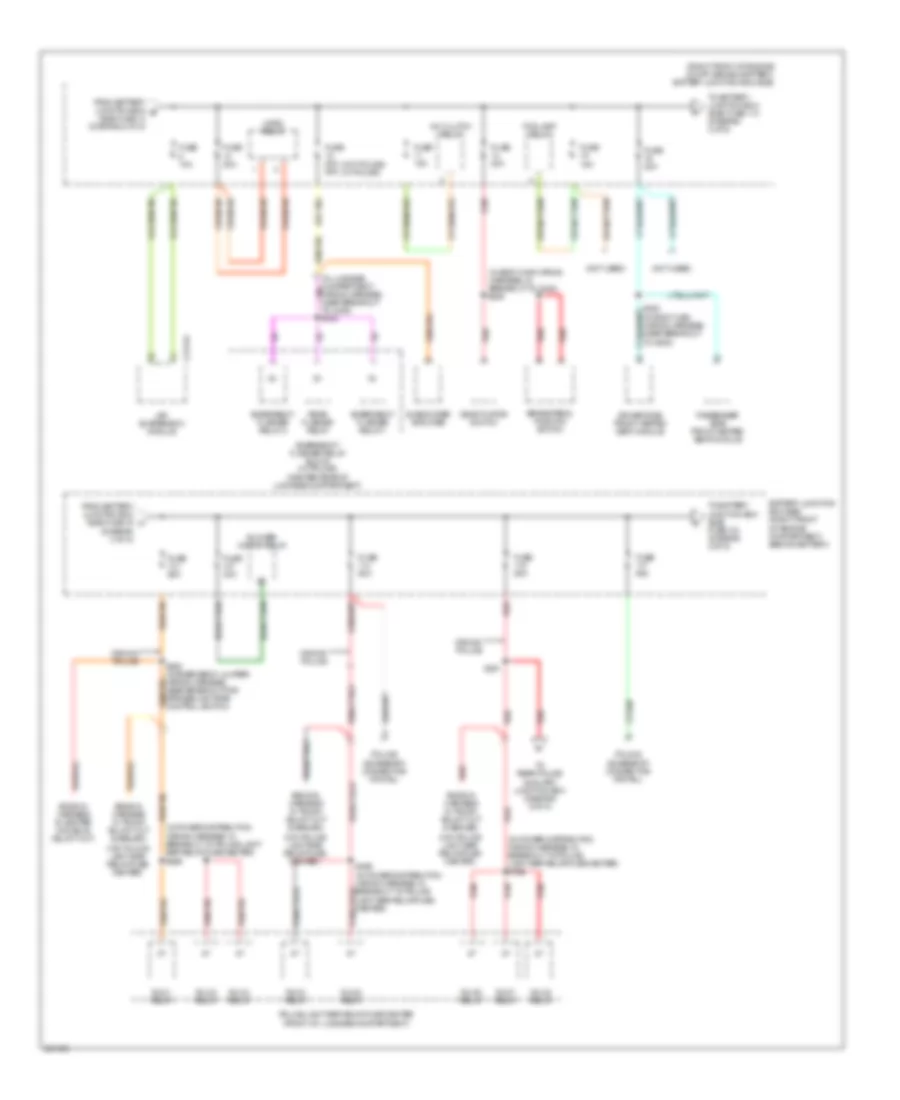

Электросхема блока предохранителей и реле (3 из 5) для Mercury Grand Marquis LS 2007

Электросхема блока предохранителей и реле (3 из 5) для Mercury Grand Marquis LS 2007 - Список элементов:

• (diagram 3 of 5)
• (in body main wiring harness, in breakout to c248) s246
• (in luggage compartment wiring harness, near breakout to c405) s433
• (in power distribution wiring harness, in breakout to police light bar relay/fuse center) s462
• (not used)
• (right front of engine compt, behind battery) battery junction box (bjb)
• (w/o police light bar relay/fuse center)
• (w/o police) (w/ police)
• A/c clutch relay
• Air suspension module
• Battery junction box (bjb) (right front of engine compartment, behind battery)
• Blower motor relay
• Brake pedal position switch
• C2131a
• Crown police
• Deactivator switch
• Driver side front heated seat module
• Emergency flasher relay 1
• Emergency flasher relay 2
• Emergency flasher relay block (w/ police) (center rear of luggage compartment)
• Fog lamp relay
• From battery junction box (bjb) fuse 16 c
• From battery junction box b (bjb) fuse 13 (diagram 2 of 5)
• Fuse 10a
• Fuse 15a
• Fuse 20a
• Fuse 20a 25a
• Fuse 40a
• Fuse 50a
• Horn relay
• Near breakout for strobe/light bar control switch)
• Passenger side front heated seat module
• Police accessory connector (pigtail)
• Police light bar relay/fuse center (front of luggage compartment)
• R4.c1 relay
• R4.c2 relay
• R4.c3 relay
• R4.c4 relay
• R4.c5 relay
• R4.c6 relay
• R4.c7 relay
• R4.c8 relay
• Rear flasher relay
• Red
• S220 (in body main wiring harness, near breakout to g200)
• S281
• S469 (in power distribution wiring harness, in breakout to police light bar relay/fuse center)
• Subwoofer amplifier
• To battery junction box (bjb) fuse 103 (diagram 4 of 5)
• To battery junction box (bjb) fuse 113 (diagram 3 of 5)
• To rear police auxiliary junction box (diagram 5 of 5)

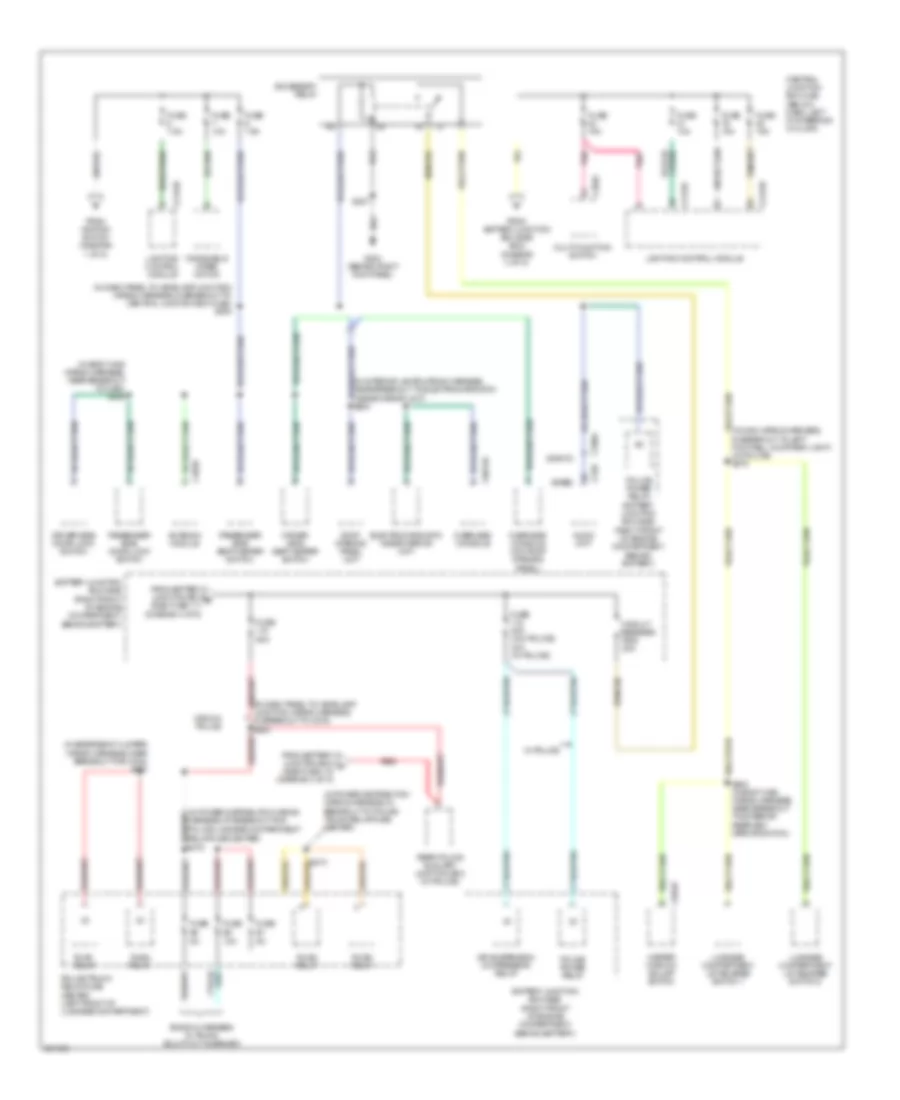

Электросхема блока предохранителей и реле (4 из 5) для Mercury Grand Marquis LS 2007

Электросхема блока предохранителей и реле (4 из 5) для Mercury Grand Marquis LS 2007 - Список элементов:

• (w/o police) (w/ police)
• Adjustable pedal switch
• Audio unit
• Autolamp sensor
• Base
• Battery junction box (bjb) (right front of engine compt, behind battery)
• C202a
• C2145a
• C2145c
• C228a
• C240
• C290a
• C501b
• Central junction box (cjb) (below dash, left of steering column)
• Console)
• Data link connector (dlc)
• Driver door module
• Driver side door lock switch
• Electronic automatic temperature control (eatc) module
• Exterior rear view mirror switch
• From battery junction box d (bjb) fuse 117 (diagram 3 of 5)
• Front cigar lighter
• Fuse 10a
• Fuse 15a
• Fuse 15a 20a
• Fuse 20a
• Fuse 30a
• Fuse 40a
• Fuse 50a
• Fuse 7.5a
• G204 (behind right kick panel)
• Instrument cluster
• Keyless entry keypad
• Lighting control module
• Luggage compartment lid release switch 1
• Multi-function switch
• Passenger side door lock switch
• Police accessory connector (pigtail)
• S244 (in main wiring harness, near breakout to right footwell courtesy light)
• S254 (in body main wiring harness, near breakout to g212)
• S426 (in emergency jumper wiring harness, in breakout for strobe/light bar control switch)
• Sanyo
• Tan
• Taxi roof lamp switch
• To battery junction box (bjb) fuse 118 (diagram 5 of 5)
• To central junction box fuse 23 (diagram 5 of 5)
• Windshield wiper motor

Электросхема блока предохранителей и реле (5 из 5) для Mercury Grand Marquis LS 2007

Электросхема блока предохранителей и реле (5 из 5) для Mercury Grand Marquis LS 2007 - Список элементов:

• (base)
• (in body main wiring harness, near breakout to c248) s229
• (in dash panel to headlamp junction wiring harness, in breakout to c275) s282
• (in dash panel to headlamp junction wiring harness, in breakout to central junction box (cjb)) s279
• (in emergency jumper wiring harness, near breakout for c422) s470
• (in power distribution wiring harness, at breakout for police luggage compartment
• (in power distribution wiring harness, in breakout to police trunk relay/fuse center)
• (sanyo)
• 10a
• Accessory relay
• Air suspension compressor relay
• Antenna module
• Audio unit
• Battery junction box (bjb) (right front of engine compartment, behind battery)
• C202c
• C2145b
• C2145c
• C2145d
• C240
• C290a
• C402b
• C504b
• C9013a
• Central junction box (cjb) (below dash, left of steering column)
• Circuit breaker f602 20a
• Crown police
• Driver side door lock switch
• Driver side seat heater switch
• Electrochromatic inside mirror unit
• From battery junction box (bjb) s244 (diagram 4 of 5)
• From battery junction box e (bjb) fuse 111 (diagram 4 of 5)
• From battery junction box n (bjb) fuse 115 (diagram 3 of 5)
• From ignition switch (diagram 1 of 5)
• Fuse 10a
• Fuse 15a
• Fuse 30a (w/o police) 40a (w/ police)
• Fuse 50a
• Fuse 7.5a
• Fuse b1
• Fuse b2
• Fuse b3
• G203 (behind right kick panel)
• Lighting control module
• Luggage compartment lid release switch 1
• Luggage compartment lid release switch 2
• Master window adjust switch
• Multi-function switch
• Overhead console
• Overhead console (w/o roof opening panel)
• Passenger side door lock switch
• Passenger side seat heater switch
• Pnk
• Police power relay
• Police trunk relay/fuse center (left front of luggage compartment)
• R4.b1 relay
• R4.b2 relay
• R4.b4 relay
• R4.b5 relay
• Rear police auxiliary junction box (w/ police)
• Red
• Relay/fuse center)
• Roof opening panel unit
• S207
• S474
• W/ police
• Windshield wiper motor
