Электросхемы ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG Dodge Colt 1994

ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG

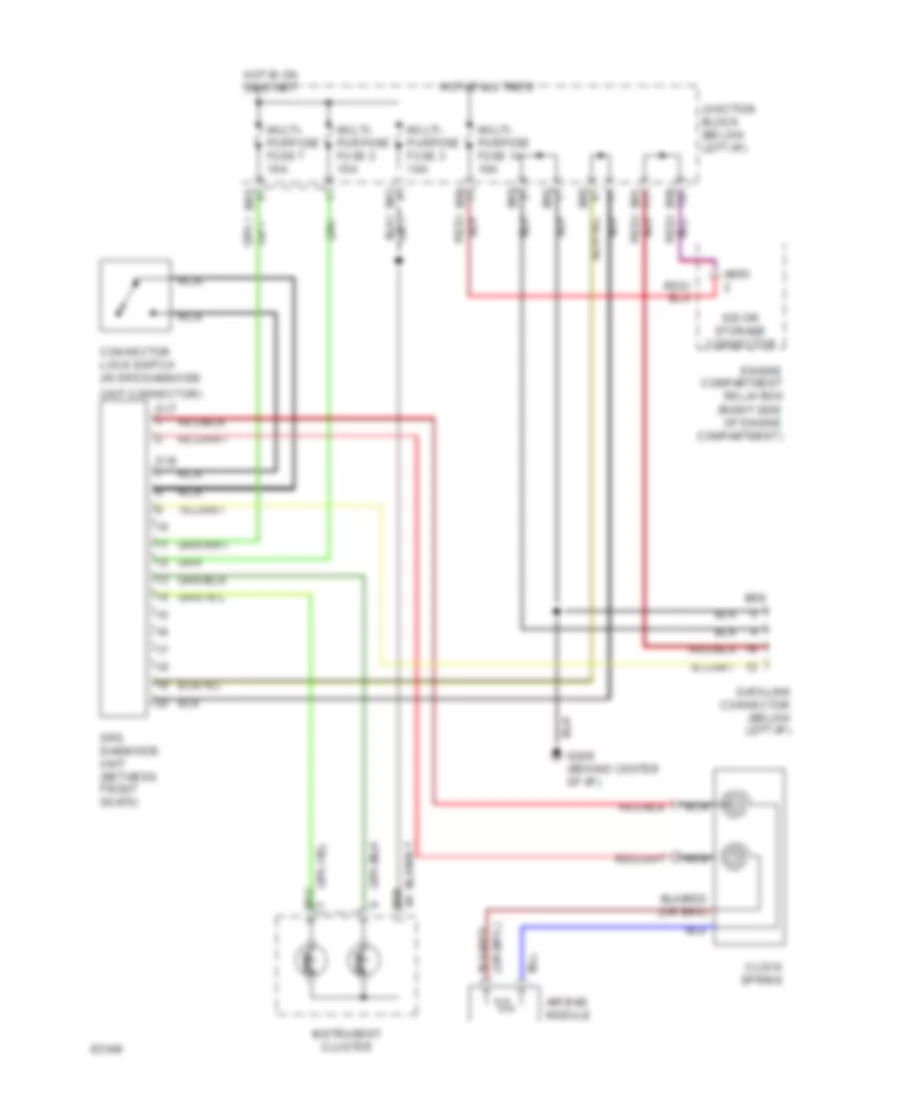

Электросхема подушек безопасности SRS AirBag для Dodge Colt 1994

https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO

Obtenha acesso a todos os diagramas de fiação do carro

Электросхема подушек безопасности SRS AirBag для Dodge Colt 1994 - Список элементов:

• A06x
• Air bag module
• B09
• B12
• B56
• B61
• B62
• B63
• B65
• B69
• Clock spring
• Connector lock switch (in srs diagnosis
• D17
• D18
• Data link connector (below left i/p)
• Engine compartment relay box (right side of engine compartment)
• G206 (behind center of i/p)
• Hot at all times
• Hot in on or start
• Instrument cluster
• Iod or storage connector
• Junction block (below left i/p)
• Multi- purpose fuse 14 10a
• Multi- purpose fuse 2 10a
• Multi- purpose fuse 3 10a
• Multi- purpose fuse 7 10a
• Nca
• Srb
• Srs diagnosis unit (between front seats)
• Unit connector)
