AIR CONDITIONING

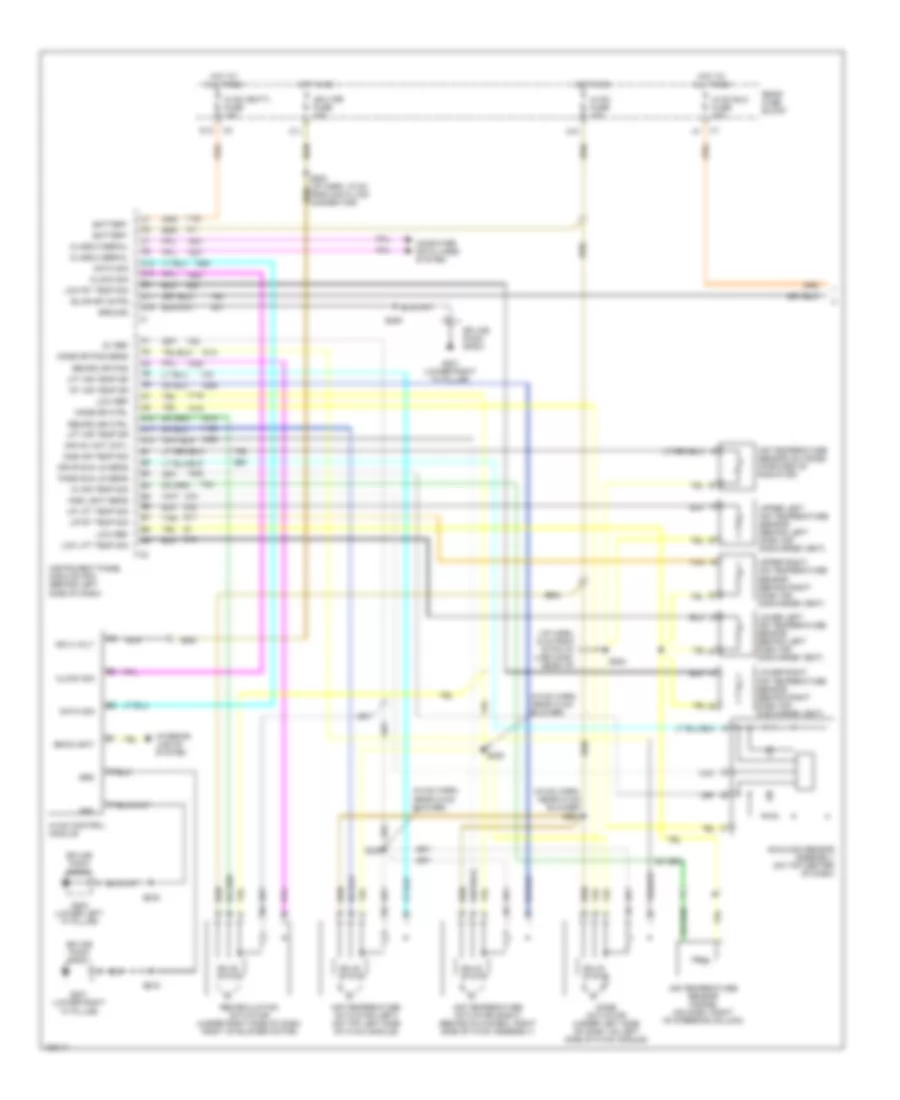

Automatic A/C Wiring Diagram (1 of 2) for Pontiac Bonneville SE 2002

List of elements for Automatic A/C Wiring Diagram (1 of 2) for Pontiac Bonneville SE 2002:

(hvac harn, near hvac blower)
(hvac harn, near hvac blower) s221
(i/p harn, 6 cm from 30 pin in- line conn, near i/p)
5v ref
A10
A11
A12
Air mix act cntl
Air temperature actuator (left) (on top left side of hvac module)
Air temperature actuator (right) (behind glove box, right side of hvac assembly)
Air temperature sensor (inside) (on dash, right of steering column)
Air temperature sensor (outside) (forward of radiator)
Amb air temp sig
Amb light sens
Backlight
Battery
Blwr sp cntrl
C1 a1
C11
C12
C13
Class 2 serial
Clock sig
Computer data lines system
D11
D12
D16
Data sig
Drvr sun ld sens
G200 (lower left "a" pillar)
G201 (lower right "a" pillar)
Grd
Ground
Hot at all times
Hot in on
Hvac (batt) fuse 15a
Hvac blo fuse 30a
Hvac control module
Hvac fuse 10a
Ign 3 rr fuse 10a
Ign 3 volt
In air temp sig
Instrument panel module (ipm) (behind left side of dash)
Interior lights system
Lft air temp dr
Low lft temp sig
Low ref
Low rt temp sig
Lower left air temperature sensor (behind left dash air discharge vent)
Lower right air temperature sensor (behind right dash air discharge vent)
Mode actuator (under left side of dash, on left side of hvac module)
Mode dr ctrl
Mode dr pos sens
Nca
Pass sun ld sens
Rear fuse block
Recirc dr ctrl
Recirc dr pos
Recirculation actuator (under right side of dash, right of blower motor)
Rt air temp dr
S203
S204
S205
S222
S253
Solid state
Splice pack sp200
Splice pack sp201
Sunload sensor assembly (on top center of dash)
Tan
Up lft temp sig
Up rt temp sig
Upper left air temperature sensor (behind left dash air discharge vent)
Upper right air temperature sensor (behind right dash air discharge vent)

Automatic A/C Wiring Diagram (2 of 2) for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Automatic A/C Wiring Diagram (2 of 2) for Pontiac Bonneville SE 2002:

(engine harn, 6.5 cm from iac valve breakout)
5v ref
A/c clu fuse 15a
A/c clu relay
A/c compressor clutch
A/c compressor clutch diode
A/c pressure sensor (behind a/c compressor, on a/c line)
B10
Bat pos volt
Blower control processor (under right side of dash, above blower motor)
Blower motor (under right side of dash, above sound insulator)
Blwr mtr grd
Blwr volt
Class 2 serial
Clutch rly ctrl
Computer data lines system
Cool fan 1 fuse 30a
Cool fan 2 fuse 30a
Coolfan 1 relay
Coolfan 2 relay
Coolfan s/p relay
Cooling fan (left)
Cooling fan (right)
D10
E10
Ect sens sig
Engine controls system
Engine coolant temperature (ect) sensor (on rear of
Engine, near thermostat housing)
F11
G100 (on top of transmission)
G103 (mounted to inner body panel, forward of underhood fuse block)
G201 (lower right "a" pillar)
Grd
High spd fan cntrl
Hot at all times
Hot in on
Low ref
Low spd fan cntrl
Mtr ctrl
Mtr spd ctrl
Powertrain control module (pcm) (in air cleaner housing)
S106
S108
Sensor signal
Splice pack sp100
Splice pack sp103
Splice pack sp201
Underhood fuse block (right front side of engine compartment)

Compressor Wiring Diagram for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Compressor Wiring Diagram for Pontiac Bonneville SE 2002:

(engine harn, 6.5 cm from iac valve breakout)
5v ref
A/c clu fuse 15a
A/c clu relay
A/c compressor clutch
A/c compressor clutch diode (near a/c compressor)
A/c refrigerant pressure sensor (behind a/c compressor, on a/c line)
Class 2 serial
Clutch rly ctrl
Computer data lines system
Engine controls system
G100 (on top of transmission)
Hot at all times
Hot in on
Low ref
Powertrain control module (pcm) (in air cleaner housing)
S106
S108
Sensor signal
Splice pack sp100
Underhood fuse block (right front side of engine compartment)

Manual A/C Wiring Diagram (1 of 2) for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Manual A/C Wiring Diagram (1 of 2) for Pontiac Bonneville SE 2002:

(hvac harn, near hvac blower)
(hvac harn, near hvac blower) s221
5v ref
A10
A11
A12
A13
A14
A15
A16
Air temperature actuator (left front side of blower motor)
Amb lgt sens sig
Anti-lock brakes system
B10
B11
B12
B13
B14
B15
B16
Bat pos voltage
Battery
Blower control processor (under right side of dash, above blower motor)
Blower motor (under right side of dash, above sound insulator)
Blwr mtr grd
Blwr sp cntrl
Blwr sp input
Blwr volt
C1 a10
Class 2 data
Computer data lines system
Crtsy lamp sw out
D12
Dimmer sw sig
Fog lp switch
G200 (lower left "a" pillar)
G201 (lower right "a" pillar)
Grd
Headlights system
Hot at all times
Hot in on
Hvac batt fuse 10a
Hvac blo fuse 30a
Hvac control module
Hvac fuse 10a
Ign 3 voltage
Interior lights system
Key cyl lp ctrl
Key in ign sw
Lamps ctrl
Lft temp dr ctrl
Low ref
Mode actuator (under left side of dash, on left side of hvac module)
Mode dr ctrl
Rear fuse block (under left rear seat)
Recirc dr ctrl
Recirculation actuator (under right side of dash, to right of blower motor)
S203
S222
S253
Solid state
Speed cntl
Splice pack sp200
Splice pack sp201
Trac cntrl sw
Trunk release sw
Trunk, tailgate, fuel doors system
Twilight sentinel
Warnings system

Manual A/C Wiring Diagram (2 of 2) for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Manual A/C Wiring Diagram (2 of 2) for Pontiac Bonneville SE 2002:

(engine harn, 6.5 cm from iac valve breakout)
5 volt ref
A/c clu fuse 15a
A/c clu relay
A/c clutch ctrl
A/c compressor clutch
A/c compressor clutch diode (near a/c compressor)
A/c refrigerant pressure sensor (behind a/c compressor, on a/c line)
A/c sensor signal
B10
Class 2 serial
Computer data lines system
Cool fan 1 fuse 30a
Cool fan 2 fuse 30a
Coolfan 1 relay
Coolfan 2 relay
Coolfan s/p relay
Cooling fan (left)
Cooling fan (right)
D10
E10
Ect sens sig
Engine controls system
Engine coolant temperature sensor (ect) (on rear of
Engine, near thermostat housing)
F11
G100 (on top of transmission)
G103 (mounted to inner body panel, forward of underhood fuse block)
High spd fan ctrl
Hot at all times
Hot in on
Low ref
Low spd fan ctrl
Powertrain control module (pcm) (in air cleaner housing)
S106
S108
Splice pack sp100
Splice pack sp103
Underhood fuse block (right front side of engine compartment)

ANTI-LOCK BRAKES

Anti-lock Brake Wiring Diagrams for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Anti-lock Brake Wiring Diagrams for Pontiac Bonneville SE 2002:

(engine harn, near lf wheel speed sensor breakout)
(engine harn, near rf wheel speed sensor breakout)
(on top of transmission)
(under left front seat) splice pack sp304
(under left front seat, below carpet)
A1 c2
Abs fuse 10a
Abs fuse 50a
Abs ind lamp
Antilock indicator
Auto a/c
B c4
Battery
Brake pressure modulator valve
C1 a
C1 c8
C11
C12 c1
C3 f1
Computer data lines system
Delivered torque output
Electronic brake control module (ebcm) (on left front of engine compartment)
G104
G201 (on lower right front "a" pillar)
Ground-module
Ground-pump motor
Hot at all times
Hot in run
Hvac control module
Ignition
Instrument panel cluster
Instrument panel integration module (ipm)
Lateral accelerometer
Lateral accelerometer sensor (under left rear seat)
Left front wheel speed sensor
Left rear wheel speed sensor
Lf wheel spd sens-ret
Lf wheel spd sens-sig
Low trac indicator
Lr wheel spd sens-ret
Lr wheel spd sens-sig
Manual a/c
Nca
Power distribution system
Powertrain control module (pcm) (in air cleaner housing)
Pump motor
Rear fuse block (under left rear seat)
Red
Requested torque input
Rf wheel spd sens-ret
Rf wheel spd sens-sig
Right front wheel speed sensor
Right rear wheel speed sensor
Rr wheel spd sens-ret
Rr wheel spd sens-sig
S101
S102
S103
S104
S205
S303
S305
Sens feed-5v
Sensor ret
Serial data class 2
Splice pack sp201
Steering wheel pos
Steering wheel position sensor (swps) (on base of steering column)
Stop lamp switch (on brake pedal bracket)
Stop lp fuse 15a
Stoplight sw
Tan
Torque delivered
Torque desired
Trac ctrl sw
Trac off indicator
Traction control switch
Underhood fuse block (right front side of engine compt)
Var effort steering
Variable effort steering actuator (on left side of power steering gear)
Vent tube
Yaw rate sens
Yaw rate sensor (under rear shelf)

ANTI-THEFT

Forced Entry Wiring Diagram for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Forced Entry Wiring Diagram for Pontiac Bonneville SE 2002:

A11
A12
B12
Class 2
Class 2 data line
Computer
Computer data lines system
Dash integration module (behind right side of dash, under sound insulator)
Data
Data lines
Door open input
Driver door lock actuator
Driver door lock cylinder switch
Driver door module
Drv mdl fuse 10a
Exterior lights system
Front passenger door lock actuator
Front passenger door module
Ground
Horn ctrl
Horns system
Hot at all times
Left rear door lock actuator
Left rear door module
Lf door ajar in
Lf door open in
Lights ctrl
Pass mdl fuse 10a
Pwr door serial data
Rear fuse block
Rear integration module (rim) (behind upper left rear seat cushion)
Rf door open input
Right rear door lock actuator
Right rear door module
Rrdr mdl fuse 10a
S302 (body harn, near left power seat breakout)
Serial
Serial data class 2
System
Tan

Pass-Key Wiring Diagram for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Pass-Key Wiring Diagram for Pontiac Bonneville SE 2002:

A11
A12
B12
Class 2
Computer data lines system
Dash integration module (behind right side of dash, under sound insulator)
E9 c1
G201 (on lower right front "a" pillar)
Gnd
Headlight system & exterior lights system
Horn ctrl
Horns system
Hot at all times
Ign
Ign sw fuse 15a
Ignition switch
Instrument cluster
Key data
Lights ctrl
Pcm batt fuse 10a
Powertrain control module (in air cleaner housing)
Rear fuse block
Rear integration module (rim) (behind upper left rear seat cushion)
Return
S205
S208
Serial data
Serial data class 2
Splice pack sp201
Theft deterrent control module (on right side of steering column, behind shroud at ignition switch)
Theft deterrent exciter module (right side of steering column)
Underhood fuse block

BODY COMPUTER

Dash Integration Module Wiring Diagram for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Dash Integration Module Wiring Diagram for Pontiac Bonneville SE 2002:

(under right rear seat, right of battery on floor pan) g305
A10
A11
A12
Acc
Accessory voltage
B10
B11
B12
Backup light control
Battery
Battery positive voltage
Class 2 serial data
Computer data lines system
Control power ctrl
Dash integration module (dim) (behind right side of dash, under sound insulator)
Dim fuse 10a
Drl rly ctrl
E11
Exterior lights system
Flash to pass in
Front fog lamp rly ctrl
G200 (at lower left front "a" pillar)
Ground
Headlamp on sig
Headlamps/wipers sig
Headlights system
High beam rly ctrl
Horn rly ctrl
Horns system
Hot at all times
I/p lamp fuse sup voltage
Ign sw fuse 15a
Ignition 3 voltage
Ignition switch
Interior lights system
Lock
Low beam rly ctrl
Off/run/crank voltage
Park lamp rly ctrl
Parklamp sw on sig
Pnk
Power distribution system
Rear fuse block (under left rear seat)
Remote radio ctrl head
Run
Run/crank voltage
S208
S311
Sound systems
Splice pack sp200
Start
Steering wheel ctrl sig
Underhood fuse block
Unlock
Wiper/washer system

Instrument Panel Integration Module Wiring Diagram for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Instrument Panel Integration Module Wiring Diagram for Pontiac Bonneville SE 2002:

5 volt feed
5 volt ref
A10
A11
A12
Air conditioning system
Air inlet actuator ctrl
Air inlet sensor sig
Ambient airtemp sens sig
Ambient light in
Anti-lock brakes system
B10
B11
B12
C10
C11
C12
C13
C14
C15
C16
Computer data lines system
D10
D11
D12
D13
D14
D15
D16
Front fog lamp sw in
G201 (on lower right front "a" pillar)
G302 (under left side of rear seat)
Grd
Headlights system
Hot at all times
Hot in on
Hvac batt fuse 10a
Hvac fuse 10a
Ign-3 relay
Ignition positive voltage
Inside air temp sens sig
Instrument panel integration module (ipm) (behind left side of dash)
Interior lamps on sw in
Interior lights system
Ip dimmer sw in
Kdd clock
Kdd data
Key cylinder lamp out
Key in ignition in
Left temp actuator ctrl
Left temp sensor sig
Lt a/c temp sens sig
Lt heater temp sens sig
Lt sun load temp sens sig
Mode actuator ctrl
Mode sensor sig
Motor grd
Pwm blower speed ctrl
Rear fuse block (under left rear seat)
Right htr temp sensor sig
Right temp actuator ctrl
Right temp sensor sig
Rt a/c temp sens sig
Rt sun load temp sens sig
S205
Sensor grd
Serial data signal class 2
Splice pack sp201
Splice pack sp302
Tan
Traction ctrl disable in
Trunk lid release sw in
Trunk, tailgate, fuel doors system
Twilight delay in
Warnings system

Rear Integration Module Wiring Diagram for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Rear Integration Module Wiring Diagram for Pontiac Bonneville SE 2002:

A10
A11
A12
Acc inflator sw in
Alc exhaust sol ctrl
Alc position sensor 5v ref
Alc position sensor low ref
Alc position sensor sig
Alc rly coil suply voltage
B10
B11
B12
B4 trunk release rly ctrl
Battery positive voltage
Cigar lighter rly ctrl
Class 2 serial data
Computer data lines system
Courtesy lamp ctrl
Defogger system
Electronic suspension system
Exterior lights system
Fuel door lock rly ctrl
Fuel door release rly ctrl
G302 (under left rear seat)
G402 (on lower left corner of trunk, forward of tail lamp)
Grd
Heated seat enable sig
Heated seat status sig
Hot at all times
Hot in run or start
Ign sw fuse 15a
Ign-1 fuse 10a
Ign-1 relay
Ignition 1 voltage
Inadvertant power input
Inadvertent power rly ctrl
Interior lights system
Overhead courtesy lamp
Park brake rly ctrl
Pnk
Power distribution system
Power distribution system (cigar lighter)
Power distribution system (rap)
Rap rly ctrl
Rear defogger rly ctrl
Rear fuse block (under left rear seat)
Rear integration module (rim) (behind upper left rear seat cushion)
Reverse lamp rly ctrl
Seats system
Shift interlock system
Splice pack sp302
Splice pack sp402
Tan
Trunk ajar sw sig
Trunk, tailgate, fuel doors system

COMPUTER DATA LINES

Computer Data Lines for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Computer Data Lines for Pontiac Bonneville SE 2002:

(dash harn, 6 cm from instrument panel integration module breakout)
A11
A12
Aldl fuse 10a
B12
Cd changer-remote playback device
D14
D15
Dash integration module (dim) (behind right side of dash)
Data class 2
Data link connector (under lower left side of dash)
Driver door module (inside left front door)
Electronic brake control module (on left front of engine compt)
G201 (on lower right front "a" pillar)
Head up display
Hot at all times
Hvac control module
Inflatable restraint sensing & diagnostic module (under rear of center console)
Instrument cluster
Instrument panel integration module (behind left side of dash)
Memory seat module (under driver's seat)
Powertrain control module (in air cleaner housing)
Radio
Rear fuse block
Rear integration module (rim) (behind upper left rear seat cushion)
Remote control door lock receiver (rcdlr) (behind rear package shell)
S202
S203
S205
S217 (body harn, left side of vehicle, 24 cm from pass through)
S308
S317 (left seat harn, under left front seat)
Theft deterrent control module (behind shroud at ignition switch)
Vehicle interface unit (viu) (2001) (behind right rear seat back)
W/ automatic temperature controls
W/ cd changer
W/ head up display
W/ manual temperature controls
W/ memory seats
W/ theft deterrent system
W/ theft deterrent,
W/ theft deterrent, w/ memory seats
W/ theft deterrent, w/o memory seats
W/ vehicle interface unit
W/o vehicle interface unit
W/o cd changer
W/o head up display
W/o memory seats
W/o theft deterrent system

COOLING FAN

Cooling Fan Wiring Diagram for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Cooling Fan Wiring Diagram for Pontiac Bonneville SE 2002:

B10
Cool fan 1 fuse 30a
Cool fan 2 fuse 30a
Coolfan 1 relay
Coolfan 2 relay
Coolfan s/p relay
Cooling fan (left)
Cooling fan (right)
D10
E10
Ect sens sig
Engine coolant temperature sensor (ect) (on rear of
Engine, near thermostat housing)
F11
G103 (mounted to inner body panel, forward of underhood fuse block)
Hi fan ctrl
Hot at all times
Low fan ctrl
Low ref
Powertrain control module (pcm) (left front side of engine compt, in air cleaner cleaner housing)
Splice pack sp103
Underhood fuse block (right front side of engine compartment)

CRUISE CONTROL

Cruise Control Wiring Diagram for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Cruise Control Wiring Diagram for Pontiac Bonneville SE 2002:

All times
Cancel input
Cr cont fuse 10a
Cruise control module (on left strut tower)
Cruise control switch
Cruise inhibit
Cruise on/off
Cruise set/coast
Engage ouput
Engaged input
G106 (near left strut tower, on frame rail)
Ground
Heads up display
Hot at
Hot in
Ign 1 fuse 10a
Ignition
Inhibit output
Instrument panel cluster
Nca
On & start
On/off
Pnk
Powertrain control module (pcm) (in air cleaner housing)
Rear fuse block (under rear seat)
Resume/accel
S201 (i/p harness, left side of dash)
S215 (body harness, left side of vehicle)
S216
Set/coast
Splice pack sp106
Splice pack sp304 (under driver's seat)
Stop lp fuse 15a
Stoplamp switch (on brake pedal bracket)
Stp lp sig input
Tcc/ cruise release switch
Underhood fuse block (right front side of engine compartment)
Vehicle speed input
Vehicle speed out
Vehicle speed sensor (vss) (on right front of transaxle, below power steering pump)
Vss high
Vss low

DEFOGGERS

Defogger Wiring Diagram, with Auto A/C for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Defogger Wiring Diagram, with Auto A/C for Pontiac Bonneville SE 2002:

(left "c" pillar) g310
(right "c" pillar) g404
A12
C1 a4
C1 c8
C13
C2 b12
C4 h
Class 2 data
Clock sig
Computer data lines system
Data sig
Door locks system
Driver door module (ddm) (in left front door)
Driver outside rearview mirror
Feed
Front passenger door module (fpdm) (in right front door)
Hot at all times
Hot in on & start
Hvac control module
Instrument panel integration module (ipm) (behind left side of dash)
Kdd data
Nca
Passenger outside rearview mirror
Rear defog control
Rear fuse block (under left rear seat)
Rear integration module (rim) (behind upper left rear seat cushion)
Rear window defogger
Return
Rr defog fuse 40a
Rr defog relay
Simple bus interface
Tan/

Defogger Wiring Diagram, with Manual A/C for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Defogger Wiring Diagram, with Manual A/C for Pontiac Bonneville SE 2002:

(left "c" pillar) g310
(right "c" pillar) g404
A12
C2 b12
Class 2 data
Computer data lines system
Defogger switch
Hot at all times
Hot in on & start
Instrument panel integration module (ipm) (left side of dash)
Nca
Rear defog control
Rear fuse block (under left rear seat)
Rear integration module (rim) (behind upper left rear seat cushion)
Rear window defogger
Rr defog fuse 40a
Rr defog relay
Solid state

ELECTRONIC POWER STEERING

Electronic Power Steering Wiring Diagram for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Electronic Power Steering Wiring Diagram for Pontiac Bonneville SE 2002:

Abs fuse 10a
Abs fuse 50a
Battery
C12
Computer data lines system
Electronic brake control module (ebcm) (on left front of engine compt)
G104 (on top of transmission)
Ground-module
Ground-pump
Hot at all times
Hot in run
Ignition
Nca
Rear fuse block (under left rear seat)
Red
Serial data
Underhood fuse block (right front side of engine compt)
Var effort str
Variable effort steering actuator (on left side of power steering gear)

ELECTRONIC SUSPENSION

Electronic Suspension Wiring Diagram for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Electronic Suspension Wiring Diagram for Pontiac Bonneville SE 2002:

(on lower right corner of trunk, forward of taillamp)
5 volt reference
Alc accessory inflator switch (bonneville only) inside rear luggage compt)
Alc relay control
Automatic level control (alc) compressor (under rear of vehicle, near suspension carrier)
Automatic level control (alc) sensor (under rear of vehicle, near rear suspension)
B10
C10
C11
Compressor motor
Elc
Elc fuse 30a
Exhaust solenoid control
G401
G401 (on lower right corner of trunk, forward of taillamp)
Hot at all times
Hot in run
Ign
Low reference
Rear fuse block (under left rear seat)
Rear integration module (rim) (behind upper left rear seat cushion)
Red
Relay
Signal
Solenoid valve

ENGINE PERFORMANCE

3.8L

3.8L VIN 1, Engine Performance Wiring Diagrams (1 of 4) for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for 3.8L VIN 1, Engine Performance Wiring Diagrams (1 of 4) for Pontiac Bonneville SE 2002:

(le sabre) (bonneville)
(not used)
(on lower front of eng block, near starter) bank 1 knock sensor
18x ref
18x reference
3x ref
3x reference
A/t iss low
A/t speed sensor high
Acc
All times
Anti-lock brake system
B c
Bank 2 knock sensor (on lower rear of eng block, near oil filter)
Battery
Bonneville le sabre
Bypass
Ckp 18x sig
Ckp sync sig
Cmp input
Cmp output
Cmp signal
Compiuter data lines system
Cooling fan system
Cruise control system
Cruise disable/inhibit
Desired torque input
Dis fuse 10a 20a
E e
Ect sensor ground
Egr control ground
Egr pos sens ground
Evap purge valve
Evaporative emissions (evap) canister purge valve (top of engine)
Fuel inj 1 control
Fuel inj 2 control
Fuel inj 4 control
Fuel inj 5 control
Fuel inj 6 control
G102 (lower front of engine)
G105 (front of engine)
Ground
Hi speed cool fan
Ho2s 1 low
Ho2s 2 low
Hot at
Hot at all times
Hot in run & start
Iac coil b high
Iat sensor ground
Ign control
Ign voltage
Ignition
Ignition control
Ignition control (ic) module (on top left front of eng)
Ignition switch (pigtailed for le sabre)
Instrument cluster system (vehicle speed)
Ks1 input
Ks2 input
Lo speed cool fan
Lock
Maf sensor input
Map sensor +5 v
Map sensor ground
Mass airflow sensor (top of throttle body)
Not used
Off
Pcm batt fuse 10a
Pcm ground
Pnk
Pnk a
Powertrain control module (pcm) (in air cleaner housing)
Ref low
Reference low
Run
S212 (or s208)
Sensor return
Sensor return (eop)
Serial data (class 2)
Shift sol a control
Shift sol b control
Start
Tan
Tcc switch input
Tp sensor ground
Trans fuse 10a
Trans press sw a
Trans range sw b
Under- hood fuse block
Vacuum valve control
Vehicle speed sensor (vss) (right front of transaxle)
Vss high
Vss low
Vss output

3.8L VIN 1, Engine Performance Wiring Diagrams (2 of 4) for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for 3.8L VIN 1, Engine Performance Wiring Diagrams (2 of 4) for Pontiac Bonneville SE 2002:

(front of engine)
(ign module harn, near icm)
(or
1-2 shift sol
2-3 shift sol
A6 (or pnk)
Automatic transaxle
Automatic transaxle fluid pressure manual valve position switch
Automatic transaxle fluid temperature sensor
Automatic transaxle input shaft speed sensor
Automatic transaxle internal mode switch
B9 (or pnk)
Camshaft position sensor (cmp) (front of eng, below water pump)
Crankshaft position sensor (ckp) (front of eng, behind crank pulley)
Cruise control system
D4 (or pnk)
Fuel injec- tors
G105
Hot in run & start
Ign 1 fuse 10a
Injr 1 fuse 10a
Injr 2 fuse 10a
Pnk
Pressure control sol
Rear fuse block
Red
Rev
S135
S136
S216
Tan
Tcc pwm sol
Tcc rel
Tcc/ cruise switch (near brake pedal)
Under- hood fuse block

3.8L VIN 1, Engine Performance Wiring Diagrams (3 of 4) for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for 3.8L VIN 1, Engine Performance Wiring Diagrams (3 of 4) for Pontiac Bonneville SE 2002:

(eng harn, 6.5 cm from iac)
A/c pressure sensor (behind a/c comp, on a/c line)
Bonneville
D3 pnk
Engine oil level switch (in left side of eng oil pan)
Engine oil pressure sensor (front of engine)
Exhaust gas recirculation (egr) valve (top rear of engine)
F/pmp fuse 20a
Fuel pump
Fuel pump relay
Fuel tank pressure sensor (top of fuel tank)
Fuel tank unit
G105 (front of engine)
G200 (left kick panel)
G302 (under left rear seat)
G4012 (right rear of trunk)
Hot at all times
Hot in run & start
Ign-1 fuse 10a
Ign1 fuse 10a
Instrument cluster
Intake air temperature (iat) sensor (left side of engine compt, in the air intake duct)
Le sabre
Malfunction indicator lamp (led for bonneville)
Manifold absolute pressure (map) sensor (top front of engine)
Pnk
Rear fuse block
Red
S105 (engine harn, 9.5 cm from pcm connector)
S106
S216
S401
Stoplight/ auto trans shift lock control switch
Tach input
Tan
Throttle position (tp) sensor (on throttle body assembly)

3.8L VIN 1, Engine Performance Wiring Diagrams (4 of 4) for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for 3.8L VIN 1, Engine Performance Wiring Diagrams (4 of 4) for Pontiac Bonneville SE 2002:

(top of trans- mission)
(under left rear of car, in front of fuel tank, behind evap canister) evaporative emissions (evap) canister vent valve
5 volt reference a
5 volt reference b
A/c comp relay control
A/c ref pressure
A/c system
A/t fluid temp input
Air pump fuse 30a
Air pump relay
Air relay coil ctrl
Anti-lock brake system
Boost control solenoid (bonneville) (top left rear of eng, near oil fill)
Boost solenoid control
Brake pedal sw out
Cruise control system
Cruise status
Delivered torque control
Ect sensor input
Egr pintle position input
Egr valve control
Eng oil level sw input
Engine coolant temperature (ect) sensor (on rear of eng, near thermostat housing)
Evap solenoid control
Fuel inj 3 control
Fuel level input
Fuel pump relay control
Fuel tank press sensor
Fuel tank sender
G100
G100 (top of transmission)
Gen term f monitor
Gen term l control
Heated oxygen sensor 1 (in right exhaust manifold)
Heated oxygen sensor 2 (near front of catalytic converter)
Ho2s 1 input
Ho2s 2 input
Hot at all times
Hot in run & start
Hot in run and start
Iac coil a high
Iac coil a low
Iac coil b low
Iat sensor input
Idle air control (iac) valve (on throttle body assembly)
Ign 1 fuse 10a
Ignition
Ignition 1
Map sensor input
Mil control
Nca
Oil pressure signal
Oxy sen fuse 10a
Pcm ign fuse 10a
Pnk
Powertrain control module (pcm) (in air cleaner housing)
Press sol high control
Press sol low control
Rear fuse block
Red
Secondary air injection by-pass valve solenoid (top right of engine)
Secondary air pump motor
Sensor ground
Starter relay output
Starting/charging system
Tach signal
Tan
Tcc pwm sol control
Tp sensor input
Trans range b input
Trans range c input
Trans range p
Trans range sw a input
Trans range sw c input
Trans tcc release sw in
Under- hood fuse block
Vent sol fuse 10a

3.8L VIN K, Engine Performance Wiring Diagrams (1 of 4) for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for 3.8L VIN K, Engine Performance Wiring Diagrams (1 of 4) for Pontiac Bonneville SE 2002:

(le sabre) (bonneville)
(not used)
(on lower front of eng block, near starter) bank 1 knock sensor
18x ref
18x reference
3x ref
3x reference
A/t iss low
A/t speed sensor high
Acc
All times
Anti-lock brake system
B c
Bank 2 knock sensor (on lower rear of eng block, near oil filter)
Battery
Bonneville le sabre
Bypass
Ckp 18x sig
Ckp sync sig
Cmp input
Cmp output
Cmp signal
Compiuter data lines system
Cooling fan system
Cruise control system
Cruise disable/inhibit
Desired torque input
Dis fuse 10a 20a
E e
Ect sensor ground
Egr control ground
Egr pos sens ground
Evap purge valve
Evaporative emissions (evap) canister purge valve (top of engine)
Fuel inj 1 control
Fuel inj 2 control
Fuel inj 4 control
Fuel inj 5 control
Fuel inj 6 control
G102 (lower front of engine)
G105 (front of engine)
Ground
Hi speed cool fan
Ho2s 1 low
Ho2s 2 low
Hot at
Hot at all times
Hot in run & start
Iac coil b high
Iat sensor ground
Ign control
Ign voltage
Ignition
Ignition control
Ignition control (ic) module (on top left front of eng)
Ignition switch (pigtailed for le sabre)
Instrument cluster system (vehicle speed)
Ks1 input
Ks2 input
Lo speed cool fan
Lock
Maf sensor input
Map sensor +5 v
Map sensor ground
Mass airflow sensor (top of throttle body)
Not used
Off
Pcm batt fuse 10a
Pcm ground
Pnk
Pnk a
Powertrain control module (pcm) (in air cleaner housing)
Ref low
Reference low
Run
S212 (or s208)
Sensor return
Sensor return (eop)
Serial data (class 2)
Shift sol a control
Shift sol b control
Start
Tan
Tcc switch input
Tp sensor ground
Trans fuse 10a
Trans press sw a
Trans range sw b
Under- hood fuse block
Vacuum valve control
Vehicle speed sensor (vss) (right front of transaxle)
Vss high
Vss low
Vss output

3.8L VIN K, Engine Performance Wiring Diagrams (2 of 4) for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for 3.8L VIN K, Engine Performance Wiring Diagrams (2 of 4) for Pontiac Bonneville SE 2002:

(front of engine)
(ign module harn, near icm)
(or
1-2 shift sol
2-3 shift sol
A6 (or pnk)
Automatic transaxle
Automatic transaxle fluid pressure manual valve position switch
Automatic transaxle fluid temperature sensor
Automatic transaxle input shaft speed sensor
Automatic transaxle internal mode switch
B9 (or pnk)
Camshaft position sensor (cmp) (front of eng, below water pump)
Crankshaft position sensor (ckp) (front of eng, behind crank pulley)
Cruise control system
D4 (or pnk)
Fuel injec- tors
G105
Hot in run & start
Ign 1 fuse 10a
Injr 1 fuse 10a
Injr 2 fuse 10a
Pnk
Pressure control sol
Rear fuse block
Red
Rev
S135
S136
S216
Tan
Tcc pwm sol
Tcc rel
Tcc/ cruise switch (near brake pedal)
Under- hood fuse block

3.8L VIN K, Engine Performance Wiring Diagrams (3 of 4) for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for 3.8L VIN K, Engine Performance Wiring Diagrams (3 of 4) for Pontiac Bonneville SE 2002:

(eng harn, 6.5 cm from iac)
A/c pressure sensor (behind a/c comp, on a/c line)
Bonneville
D3 pnk
Engine oil level switch (in left side of eng oil pan)
Engine oil pressure sensor (front of engine)
Exhaust gas recirculation (egr) valve (top rear of engine)
F/pmp fuse 20a
Fuel pump
Fuel pump relay
Fuel tank pressure sensor (top of fuel tank)
Fuel tank unit
G105 (front of engine)
G200 (left kick panel)
G302 (under left rear seat)
G4012 (right rear of trunk)
Hot at all times
Hot in run & start
Ign-1 fuse 10a
Ign1 fuse 10a
Instrument cluster
Intake air temperature (iat) sensor (left side of engine compt, in the air intake duct)
Le sabre
Malfunction indicator lamp (led for bonneville)
Manifold absolute pressure (map) sensor (top front of engine)
Pnk
Rear fuse block
Red
S105 (engine harn, 9.5 cm from pcm connector)
S106
S216
S401
Stoplight/ auto trans shift lock control switch
Tach input
Tan
Throttle position (tp) sensor (on throttle body assembly)

3.8L VIN K, Engine Performance Wiring Diagrams (4 of 4) for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for 3.8L VIN K, Engine Performance Wiring Diagrams (4 of 4) for Pontiac Bonneville SE 2002:

(top of trans- mission)
(under left rear of car, in front of fuel tank, behind evap canister) evaporative emissions (evap) canister vent valve
5 volt reference a
5 volt reference b
A/c comp relay control
A/c ref pressure
A/c system
A/t fluid temp input
Air pump fuse 30a
Air pump relay
Air relay coil ctrl
Anti-lock brake system
Boost control solenoid (bonneville) (top left rear of eng, near oil fill)
Boost solenoid control
Brake pedal sw out
Cruise control system
Cruise status
Delivered torque control
Ect sensor input
Egr pintle position input
Egr valve control
Eng oil level sw input
Engine coolant temperature (ect) sensor (on rear of eng, near thermostat housing)
Evap solenoid control
Fuel inj 3 control
Fuel level input
Fuel pump relay control
Fuel tank press sensor
Fuel tank sender
G100
G100 (top of transmission)
Gen term f monitor
Gen term l control
Heated oxygen sensor 1 (in right exhaust manifold)
Heated oxygen sensor 2 (near front of catalytic converter)
Ho2s 1 input
Ho2s 2 input
Hot at all times
Hot in run & start
Hot in run and start
Iac coil a high
Iac coil a low
Iac coil b low
Iat sensor input
Idle air control (iac) valve (on throttle body assembly)
Ign 1 fuse 10a
Ignition
Ignition 1
Map sensor input
Mil control
Nca
Oil pressure signal
Oxy sen fuse 10a
Pcm ign fuse 10a
Pnk
Powertrain control module (pcm) (in air cleaner housing)
Press sol high control
Press sol low control
Rear fuse block
Red
Secondary air injection by-pass valve solenoid (top right of engine)
Secondary air pump motor
Sensor ground
Starter relay output
Starting/charging system
Tach signal
Tan
Tcc pwm sol control
Tp sensor input
Trans range b input
Trans range c input
Trans range p
Trans range sw a input
Trans range sw c input
Trans tcc release sw in
Under- hood fuse block
Vent sol fuse 10a

EXTERIOR LIGHTS

Backup Lamps Wiring Diagram for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Backup Lamps Wiring Diagram for Pontiac Bonneville SE 2002:

(behind upper left rear cushion) rear integration module
A12
Automatic day/night mirror
Automatic transaxle
B12
Computer data lines system
G105
G401 (on lower right corner of trunk, forward of tail lamp)
G402 (on lower left corner of trunk, forward of tail lamp)
Hot at all times
Left back- up lamp
Nsbu fuse 10a
Powertrain control module (in air cleaner housing)
Rear fuse block (under left rear seat)
Reverse lamp relay
Reverse lp rly ctrl
Right back- up lamp
S408
S409
Serial data
Splice pack sp105 (front of engine, below ignition control module)
Splice pack sp401
Splice pack sp402
Tr sw a
Tr sw b
Transmission internal mode switch (ims)

Exterior Lamps Wiring Diagram for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Exterior Lamps Wiring Diagram for Pontiac Bonneville SE 2002:

(behind right side of dash) dash integrated module
(body harn, right side of vehicle, near breakout to rear fuse block)
(i/p wiring harn, near instrument cluster breakout)
(left taillamp harn, near breakout to grommet at left rear taillamp assembly)
(not used)
(rear compt lid harn, near grommet at license plate lamps)
(right taillamp harn, near breakout to grommet at right rear taillamp assembly)
Batt
C1 a1
C1 a5
C1 b4
C1 b5
C1 b7
C1 b9
C2 b5
C2 e6
C2 e7
C2 f9
Center high mounted stop lamp
Dimr fuse 10a
F12
G103 (mounted to inner body panel, forward of underhood fuse block)
G200 (on lower right front "a" pillar)
G201 (on lower
G401 (on lower right corner of trunk, forward of tail lamp)
G402 (on lower left corner of trunk, forward of tail lamp)
Head-up display module (on top left side of dash)
Headlamp dimmer switch
Headlamp sw
Headlamp sw sign
Hot at all times
Hot in run & start
Ign-1 fuse 10a
Instrument panel cluster
Interior lights system
L turn input
L turn/hazard
Left front park/ turn signal lamp
Left license plate lamp
Left rear side marker lamp
Left rear turn signal lamp
Left tail/ stop lamp
Left turn
Left turn ind
Lh park lp fuse 10a
Nca
Park lamp sw sign
Park lp relay
Pk lp on input
Pk lp sw
Pnk
Prk lp rly ctrl
R turn input
R turn/hazard
Rear fuse block (under left rear of seat)
Rh park lp fuse 10a
Right front "a" pillar)
Right front park/ turn signal lamp
Right license plate lamp
Right rear side marker lamp
Right rear turn signal lamp
Right tail/ stop lamp
Right turn
Right turn ind
S203
S216 pnk
S250
S251
S309
S406
S407
S408
S409
S410
S411
Splice pack sp103
Splice pack sp200
Splice pack sp201
Splice pack sp304 (under left front seat)
Splice pack sp401
Splice pack sp402
Stop lp fuse 15a
Stoplamp switch (on brake pedal support)
Tsig/ haz fuse 15a
Turn signal switch
Turn signal/hazard flasher module (under left side of dash)
Under- hood fuse block

GROUND DISTRIBUTION

Ground Distribution Wiring Diagram (1 of 5) for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Ground Distribution Wiring Diagram (1 of 5) for Pontiac Bonneville SE 2002:

A/c compressor clutch
A/c compressor clutch diode
Accy relay
Automatic transaxle
Brake fluid level switch
California
Coil
Cool fan s/p relay (series/ parallel)
Cruise control module
Drl relay
Electronic brake control module (ebcm)
Engine oil level switch
F11
G100 (rear of engine, on top of transmission)
G101 (lower left front of engine, near starter motor)
G102 (front of engine, below ignition control module (icm))
G103 (mounted to inner body panel, forward of underhood fuse block)
G104 (rear of engine, on top of transmission)
G105 (front of engine, below ignition control module (icm))
G106 (near left strut tower, on frame rail)
G107 (on top of frame rail, in front of underhood fuse block)
Heated oxygen sensor (ho2s) bank 1 sensor 1
Heated oxygen sensor (ho2s) bank 1 sensor 2
Horn assembly
Ign-1 relay
Ignition control module (icm)
Internal mode switch
Left cooling fan
Left front park/turn signal lamp
Left low beam headlamp
Mass air- flow (maf) sensor
Nca
Powertrain control module (pcm)
Right front park/turn signal lamp
S108 (in engine harness 18 cm (7.0 in) from a/c clutch connector breakout)
Secondary air injection (air) pump
Splice pack sp100
Splice pack sp103
Splice pack sp105
Splice pack sp106
Underhood fuse block (right front side of engine compartment)
Windshield washer fluid level switch
Windshield washer fluid pump
Windshield wiper motor

Ground Distribution Wiring Diagram (2 of 5) for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Ground Distribution Wiring Diagram (2 of 5) for Pontiac Bonneville SE 2002:

(auto a/c
(if equipped) front passenger heated seat module
(if equipped) front passenger seat lumbar switch
(manual a/c)
(not used)
6 way power seats
8 way power seats
A/t shift lock control solenoid
A18
B14
Dash integration module (dim)
Driver heated seat module
Driver seat adjuster switch
Driver seat recline switch
Driver's door module (ddm)
Except w/2 way power seats
Front passenger seat adjuster switch
G200 (on lower left front "a" pillar)
G301 (under right front seat, on forward crossmember)
G303 (under right front seat, on forward crossmember)
Hvac control module
Inflatable restraint sensing & diagnostic module (sdm)
Inflatable restraint steering wheel module coil
Instrument panel cluster (ipc)
Left steering wheel controls
Memory seat module (msm)
Nca
Passenger seat recline switch
Right rear door module (rrdm)
Right steering wheel controls
S225 (in steering column harness)
S226 (in steering column harness)
S253
S315 (in left seat harness, under left front seat 6.5 cm (2.5 in) from left heated seat module connector breakout)
S316 (in right seat harness under right front seat, 6.5 cm (2.5 in) from right heated seat module connector breakout)
S321 (in left seat harness, under left front seat, 9.5 cm (3.7 in) from left seat harness clip)
S322 (in right seat harness, under right front seat, 9.5 cm (3.7 in) from right seat harness clip)
Splice pack sp200
Splice pack sp301
Splice pack sp303
Stoplamp switch
Turn signal multifunction switch
W/2 way power seats
W/6 & 8 way power seats
W/6 way power seats
W/heated seats
W/heated seats & lumbar
W/luxury front bucket seats
W/luxury front bucket seats, memory seats/ mirrors
W/o heated seats
W/o heated seats & lumbar
W/o luxury front bucket seats, memory seats/ mirrors

Ground Distribution Wiring Diagram (3 of 5) for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Ground Distribution Wiring Diagram (3 of 5) for Pontiac Bonneville SE 2002:

(auto a/c) (man a/c)
A/t shift lock control solenoid
A16
A5 b3
Audio amplifier
B16
Blower motor control processor
Cigar lighter
D16
Data link connector (dlc)
Driver heated seat switch
Drivers information center (dic) switch
Fog lamp switch
Front passenger door module (fpdm)
Front passenger heated seat switch
G201 (on lower right front "a" pillar)
G300 (under left front seat, on forward crossmember)
Head up display (hud)
Head-up display (hud) switch
Hvac control module
I/p compartment lamp & switch
Ignition switch
Instrument panel cluster (ipc)
Instrument panel integration module (ipm)
Radio
Rear accessory power outlet
Rear compartment lid release switch
Remote playback device/ cd changer
S203 (in instrument panel harness, 6.5 cm (2.5 in) from instrument panel module breakout)
S205 (dash harn, near instrument cluster breakout)
S228 (center console harness, approximately 10 cm (4 in) from auxiliary power outlet harness breakout, towards instrument panel harness)
Shift indicator lamp
Splice pack sp201
Splice pack sp300
Theft deterrent control module
Traction control switch
Turn signal hazard flasher module
W/auto a/c
W/floor console front compartment
W/traction control

Ground Distribution Wiring Diagram (4 of 5) for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Ground Distribution Wiring Diagram (4 of 5) for Pontiac Bonneville SE 2002:

(not used)
(under left rear seat) rear fuse block
(under right rear seat, right of battery on floor pan) g305
A11
B12
Battery
Cellular antenna
Coil
Compass
Contacts
Dash integration module (dim)
Except u50
F/pmp relay
F/tnkdr relay
F/tnkdrlock relay
G302 (under left rear seat)
G310 (right "c" pillar)
G402 (on lower left corner of trunk forward of tail lamp)
G404 (left "c" pillar)
Garage door opener
If equipped
Ign 1 relay
Ign 3 relay
Inside rear view mirror
Interior lamp switch
Left back-up lamp
Left reading/ courtesy lamp
Left rear door module (lrdm)
Left tail/stop lamps
Left turn signal lamp
Left vanity mirror
Marker lamp
Nca
Reading/ courtesy lamps
Rear integration module (rim)
Rear window defogger
Remote control door lock receiver (rcdlr)
Right reading/ courtesy lamp
Right vanity mirror
S329 (in headliner harness 15.6 cm (6.1 in) from 18 cavity in line connector, behind left "c" pillar)
S334 (in headliner harness, approx 13.5 cm (5.5 in) from garage door breakout, towards auxiliary power outlet conn breakout)
S409 (left taillamp jumper harness, approx 23 cm (9 in) from 6 cavity in-line connector, behind left rear tail lamp assembly)
Splice pack sp302
Splice pack sp402
U50
Universal garage door opener
Vehicle communication unit (vcu)
W/light sensitive inside rear view mirror
W/o light sensitive inside rear view mirror

Ground Distribution Wiring Diagram (5 of 5) for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Ground Distribution Wiring Diagram (5 of 5) for Pontiac Bonneville SE 2002:

2.6
Accessory inflator switch
Automatic level control compressor
Center high mounted stop lamp (chmsl)
Fuel pump & sender assembly
G401 (on lower right corner of trunk, forward of tail lamp)
Left fog lamp
Left license lamp
Pnk
Power sunroof module
Rear compartment lid release actuator
Right back-up lamp
Right fog lamp
Right high beam headlamp
Right license lamp
Right low beam headlamp
Right rear marker lamp
Right rear turn signal lamp
Right tail/stop lamps
S100 (in forward lamp harness 4.0 cm (1.6 in) from g101 breakout)
S360 (onstar harn, behind rear seat back)
S408 (right tail lamp jumper harness, approx 23 cm (9 in) from 6 cavity in line connector, behind right rear taillight assembly)
S410 (rear compartment occupant sensor jumper harn, near middle of rear shelf)
Splice pack sp401
Vehicle communication interface module (vcim)
Vehicle interface unit (viu)

HEADLIGHTS

Headlight Wiring Diagram, with Auto A/C for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Headlight Wiring Diagram, with Auto A/C for Pontiac Bonneville SE 2002:

(top center of dash) sunload sensor assembly
A11
A12
B10
B11
B12
C1 f11
C10
C11
Computer data lines system
Dash integration module (dim) (right side of dash)
Dimmer switch
Drl relay
E11
Flash- to-pass switch
Fog lamp switch
Fog lp relay
Fog/ drl fuse 15a
G103 (forward of underhood fuse block)
G200 (on lower left front "a" pillar)
G201 (on lower right front "a" pillar)
G401 (on lower right corner of trunk, forward of taillamp)
Hdhi- bml fuse 10a
Hdhi- bmr fuse 10a
Hdlo- bml fuse 15a
Hdlo- bmr fuse 15a
Hdlp hi bm relay
Hdlp lo bm relay
Headlamp beam switch
Headlamp switch
Headlamp switch off
High beam indicator
Hot at all times
Hot in on & start
Instrument panel cluster (ipc)
Instrument panel integration module
Left front fog lamp
Left high beam head- lamp
Left low beam head- lamp
Nca
Off
Pk lp switch
Pnk
Prk lp relay
Rear fuse block (under left rear seat)
Right front fog lamp
Right high beam head- lamp
Right low beam head- lamp
S100
S203
S204 (i/p harn, upper left side of dash)
S226
Splice pack sp103
Splice pack sp200
Splice pack sp201
Splice pack sp401
Twilight delay sw
Underhood fuse block (right front side of engine compt)
Wiper/ washer system

Headlight Wiring Diagram, with Manual A/C for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Headlight Wiring Diagram, with Manual A/C for Pontiac Bonneville SE 2002:

(top center of dash) sunload sensor assembly
A11
A12
B10
B11
C1 f11
C10
C11
Computer data lines system
Dash integration module (dim)
Dimmer switch
Drl relay
E11
Flash- to-pass switch
Fog lamp switch
Fog lp relay
Fog/ drl fuse 15a
G103 (forward of underhood fuse block)
G200 (on lower left front "a" pillar)
G201 (on lower right front "a" pillar)
G401 (on lower right corner of trunk, forward of taillamp)
Hdhi- bml fuse 10a
Hdhi- bmr fuse 10a
Hdlo- bml fuse 10a
Hdlo- bmr fuse 10a
Hdlp hi bm relay
Hdlp lo bm relay
Headlamp switch
Headlamp switch off
Hi/low headlamp beam switch
High beam indicator
Hot at all times
Hot in on & start
Hvac control module
Instrument panel cluster (ipc)
Left front fog lamp
Left high beam head- lamp
Left low beam head- lamp
Nca
Off
Pk lp switch
Pnk
Prk lp relay
Rear fuse block (under left rear seat)
Right front fog lamp
Right high beam head- lamp
Right low beam head- lamp
S100
S203
S226
Splice pack sp103
Splice pack sp200
Splice pack sp201
Splice pack sp401
Twilight delay sw
Underhood fuse block (right front side of engine compt)
Wiper/ washer system

HORN

Horn Wiring Diagram for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Horn Wiring Diagram for Pontiac Bonneville SE 2002:

1995 vftc c
A12
B12
C202
D10
Dash integration module (behind right side of dash)
Dual horn assembly (behind left front fascia)
G103
Horn fuse 15a
Horn relay
Horn switch
Hot at all times
Inflatable restraint steering wheel module
Inflatable restraint steering wheel module coil
Nca
Sp103 (forward of underhood fuse block)
Underhood fuse block

INSTRUMENT CLUSTER

Head-Up Display Wiring Diagram for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Head-Up Display Wiring Diagram for Pontiac Bonneville SE 2002:

Battery
C11
Computer data lines system
Cruise control system
Data lines
Dimming
Dimming signal
Exterior lights system
G201 (on lower right front "a" pillar)
Ground
Head-up display (hud) dimmer switch
Head-up display module (hud) (on top left side of dash)
Hot at all times
Hot in run or start
Ign 3 rr fuse 10a
Ignition
Image down
Image up
Instrument cluster circuit
Interior lights system
Ip fuse 10a
Lf turn signal
Motor down feed
Motor up feed
Powertrain control module (pcm) (in air cleaner housing)
Rear fuse block (under left rear seat)
Rf turn signal
S200
S201 (dash harn, 10 cm from hup breakout)
S203
S205
S206
S215 (body harn, left side of vehicle)
Vehicle speed signal
Vehicle speed signal c1

Instrument Cluster Wiring Diagram (1 of 2) for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Instrument Cluster Wiring Diagram (1 of 2) for Pontiac Bonneville SE 2002:

(w/u2f)
(w/u50)
1379 (or 1055)
Abs ind
Antilock ind control
Battery
Brake ind
Brk fluid in
C11
C2 r defog
Check oil level ind
Clock sig
Compass clk
Compass data
Computer data lines system
Data lines
Data sig
Electronic compass module (under left side of rear shelf)
Eng/met sig
Engine coolant temperature gauge
Engine oil pressure gauge
Exterior lights system
Fuel gauge
G103 (mounted to inner body panel, forward of underhood fuse block)
G200 (on lower left front "a" pillar)
G302 (under left rear seat)
Ground
High beam ind
Hot at all times
Hot in run
Hot in run or start
Ign 1 fuse 10a
Ign 3 rr fuse 10a
Ign 3 voltage
Ignition
Illumination
Instrument cluster (ipc)
Interior lights system
Ip fuse 10a
Left turn ind
Low trac ind
Lt turn sig
Malfunction ind lamp
Mode sig
Not used
Pnk
Prk brk in
R defog
Rear fuse block (under left rear seat)
Rear integration module (rim) (behind upper left rear seat cushion)
Reset sig
Right turn ind
Rt turn sig
S206
S216
S307
S414
Security ind
Select sig
Speedometer
Tachometer
Tachometer signal
Theft led control
Tire inflate
Trac off ind
Trac ready ind control
Trip reset sig
Under- hood fuse block
Vehicle speed signal
Volt gauge (w/u50) boost gauge (w/u2f)
Washer fluid ind
Washer level sw signal
Wind- shield washer fluid level switch

Instrument Cluster Wiring Diagram (2 of 2) for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Instrument Cluster Wiring Diagram (2 of 2) for Pontiac Bonneville SE 2002:

Abs ind ctrl
Airbag ind
Anti-lock brakes system
Battery charge ind
Brake fluid level switch (in master cylinder reservoir)
Check gauges ind
Cruise conrol system
Door ajar ind
Driver information center (dic) switch (w/u2f)
Driver information center (dic) switch (w/u50)
Electronic brake control module (ebcm) (on left front of engine compt)
Eng/ met
Fasten seat belt ind
Fog lamp switch
G106 (near left strut tower, on framerail)
G201 (on lower right front "a" pillar)
Head up display circuit
Instrument cluster (ipc)
Interior lights system
Mil control
Mode
Park brake switch (on top of park brake pedal assembly)
Pnk
Powertrain control module (pcm) (in air cleaner housing)
Reset
S201 (dash harn, 10 cm from hup breakout)
S203
S215 (body harn, left side of vehicle)
Select
Service vehicle soon ind
Tach signal
Theft led
Tire press ind
Tire reset
Traction control switch
Trip reset
Trunk ajar ind
Vss signal
W/u2f
W/u50

INTERIOR LIGHTS

Courtesy Lamps Wiring Diagram (1 of 2) for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Courtesy Lamps Wiring Diagram (1 of 2) for Pontiac Bonneville SE 2002:

(man a/c) (auto a/c)
A1 c7
A12
A16 d13
A2 c8
B12
Class 2 serial data line
Computer data lines system
D12
Driver door lock actuator
Driver door module (upper right corner of door, behind trim panel)
Driver door switch assembly (ddsa)
E11
E12
Front passenger door lock actuator
Front passenger door module (upper right corner of door, behind trim panel)
G401 (lower right corner of trunk, forward of tail lamp)
Ground
Hot at all times
Hvac control module (man a/c) (behind center of dash)
I/p fuse 10a
Ignition key cylinder lamp
Ignition key cylinder lamp control
Instrument panel integration module (auto a/c) (behind center of dash)
Int lp fuse 10a
Int lp relay
Interior lamp relay control
Left front door open input
Left front foot well courtesy lamp
Left rear door lock actuator
Left rear door module (in left rear door)
Left rear door open input
Nca
Rear compartment courtesy lamp
Rear compartment lid release actuator
Rear compartment occupant sensor
Rear fuse block (under rear seat)
Rear integration module (rim) (behind upper left rear seat cushion)
Red/
Right front door open input
Right rear door lock actuator
Right rear door module (in right rear door, behind trim panel)
Right rear door open input
S206
S302
Simple bus interface (sbi)
Sp306 (in body harn splicesaver, 8 cm from rear fuse block breakout)
Splice pack sp401
Tan
Tan/
To s209 (diagram 2 of 2)
To s333 (diagaram 2 of 2)
To sp310 (diagaram 2 of 2)
Trunk lid open input
Underhood fuse block (right front side of eng compt)

Courtesy Lamps Wiring Diagram (2 of 2) for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Courtesy Lamps Wiring Diagram (2 of 2) for Pontiac Bonneville SE 2002:

(in headliner, approx 35.5 cm from overhead console connector breakout) s333
A10
B10
Courtesy lamp ground
From left foot well courtesy lamp (diagram 1 of 2)
From rear fuse block (diagram 1 of 2)
From sp306 (diagram 1 of 2)
G201 (on lower right "a" pillar)
G402 (on lower left corner of trunk, forward of tail lamp)
I/p compartment switch/ lamp
Inadvertent power input
Interior lamp switch
Left reading courtesy lamp
Left vanity mirror
Rear integration module (rim) (behind upper left rear seat cushion)
Right foot well courtesy lamp
Right reading courtesy lamp
Right vanity mirror
S203
S209 (dash harn, behind dash)
S329
S332 (in headliner, approx 42 cm from overhead console connector breakout)
Sp306 (in body harn splicesaver, 8 cm from rear fuse block breakout)
Sp310 (in body harn splicesaver, 18 cm from rear fuse block breakout)
Splice pack sp201
Splice pack sp402

Instrument Illumination Wiring Diagram (1 of 2) for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Instrument Illumination Wiring Diagram (1 of 2) for Pontiac Bonneville SE 2002:

(auto hvac) a1
(auto hvac) b1
(in steering column harness) s227
(manual hvac) b14
(manual hvac) b2
Ashtray lamp
C1 a4
C1 d4
C3 b8
Control power
Dash integration module (dim) (behind instrument panel, above right dash sound insulator)
Dimr fuse 10a
Drivers information center switch
Fog lamp switch
G200 (on lower left front "a" pillar)
G201 (on lower right front "a" pillar)
Heads up display switch
Heater & a/c control
Hot at all times
Incadescent dimming output
Inflatable restraint steering wheel module coil
Instrument cluster
Left steering wheel controls
Nca
Nca b
Nca d
Park lamp input
Park lamp relay control
Prk lp relay
Radio
Rear fuse block (under rear seat)
Right steering wheel controls
S203
S205
S225
S228 (in steering column harness)
S229
S253
Shift indicator
Sp301 (in body harness splicesaver, left side)
Splice pack
Steering column fuse holder
Switch fuse 2a
Traction control switch
Turn signal/ hazard flasher switch

Instrument Illumination Wiring Diagram (2 of 2) for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Instrument Illumination Wiring Diagram (2 of 2) for Pontiac Bonneville SE 2002:

(auto a/c) (manual a/c)
(left front door trim harn, between door & door trim panel)
(man a/c) (auto a/c)
(right front door trim harn, between door & door trim panel)
5v ref
A1 c7
A11
A12
A2 c8
B11 a4
B12 b5
B8 b6
C1 a4
C1 a5
C1 a6
C2 a12
C2 b12
C6 a11
Class 2 serial data line
Computer data lines system
Dash integration module (dim) (behind instrument panel, above right dash sound insulator)
Driver door lock switch
Driver door module (upper right corner of door, behind trim panel)
Driver window switch
Fog lamp switch
Front passenger door module (rfdm) (upper right corner of door, behind trim panel)
Front passenger power door lock switch
Front passenger power window switch
G201 (on lower right front "a" pillar)
Ground
Hvac control module (man a/c) (behind left side of dash)
I/p dimmer switch
I/p dimmer switch input
Incadescent dimming output
Instrument cluster (ipc)
Instrument panel integration module (auto a/c) (behind left side of dash)
Interior lamp switch
Interior lamp switch input
Off
Radio
Rear integration module (rim) (behind upper left rear seat cushion)
S203
S204 (i/p harn, approx 8 cm from inst cluster breakout)
S302
S500 (left front door trim harn, between door & door trim panel)
S501
S604 (right front door trim harn, between door & door trim panel)
Seat adjuster switch
Sensor return
Simple bus interface (sbi)
Splice pack sp201

MEMORY SYSTEMS

Memory Mirrors Wiring Diagram for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Memory Mirrors Wiring Diagram for Pontiac Bonneville SE 2002:

(in left front door) s500
(lesabre)
A up/down motor position input
B left/right motor position input
Batt(+)
Battery
Driver
Driver 1 input
Driver 2 input
Driver door module (inside driver's door)
Driver door switch assembly
Driver outside rearview mirror
Drv mdl fuse 10a
E postion sensors return
Exit
G200 (on lower left "a) pillar)
G201
Gnd
Heating element feed
Heating element return
Hot at all times
Interior lights system
J left/right motor control
K up/down motor control
Left/ right motor
Left/ right motor position sensor
Left/right motor control
M postion sensors feed
Memory personalization function switch
Mirror heating element
Motor control
Nca
Pass mdl fuse 10a
Passenger door module (inside passenger's door)
Passenger outside rearview mirror
Rear fuse block
S302
S602
Serial data
Splice pack sp200
Splice pack sp201 (on lower right "a" pillar)
Up/ down motor
Up/ down motor position sensor
Up/down l

Memory Seat Wiring Diagram for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Memory Seat Wiring Diagram for Pontiac Bonneville SE 2002:

(in left front door) s500
(in left front seat harn, below left front seat)
(lumbar harn, in left front seat back)
Batt
Battery
C10
C11
C12
C13
C14
C15
C16
Class 2 data
Computer data lines system
D10
D11
D12
D13
D14
D15
D16
Driver
Driver 1 input
Driver 2 input
Driver door module (inside driver's door)
Driver door switch assembly
Driver seat adjuster switch
Driver seat front vertical motor
Driver seat front vertical position sensor
Driver seat horizontal motor
Driver seat horizontal position sensor
Driver seat lumbar horizontal motor
Driver seat lumbar horizontal position sensor
Driver seat lumbar switch
Driver seat lumbar vertical motor
Driver seat lumbar vertical position sensor
Driver seat rear vertical motor
Driver seat rear vertical position sensor
Driver seat recline motor
Driver seat recliner position sensor
E12
Exit
Frnt hgt mtr sens in
Front
Front height sw input
Frt vert dn ctrl
Frt vert up ctrl
Fwd
Fwd-bk mtr sens in
Fwd/bk sw input
G301 (under right front seat)
Ground
Horiz backward ctrl
Horiz forward ctrl
Hot at all times
Interior lights system
Lumbar down ctrl
Lumbar down in
Lumbar forward ctrl
Lumbar in input
Lumbar in/out sens in
Lumbar out in
Lumbar rearward ctrl
Lumbar up ctrl
Lumbar up in
Lumbar up/dn sens in
Mem fuse 10a
Memory personalization funciton switch
Memory seat module (under driver's seat)
Nca
Out
Pnk
Pnk a
Position sensors feed
Pwr seat circuit breaker 30a
Rear
Rear fuse block
Rear height sw input
Rear hgt mtr sens in
Rear vert up ctrl
Recline
Recline back ctrl
Recline forward ctrl
Recline mtr sens in
Recliner sw input
Red
S317
S317 (left seat harn, under left front seat)
S319
S320
S321 (w/ heated seats)
S330
S331
Serial data
Solid state
Splice pack sp301
Tan

POWER DISTRIBUTION

Power Distribution Wiring Diagram (1 of 4) for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Power Distribution Wiring Diagram (1 of 4) for Pontiac Bonneville SE 2002:

A/c clu fuse 15a
A/c clutch relay
Abs fuse 50a
Accy fuse 15a
Accy relay
Air fuse 30a
Air pump relay
Automatic trans- axle
Aux pwr fuse 20a
B12
Battery
C/ltr fuse
Cigar lighter
Cool fan 1 fuse 30a
Cool fan 1 relay (low speed)
Cool fan 2 fuse 30a
Cool fan 2 relay (high) speed)
Cool fan s/p relay
Cr cont fuse 10a
Cruise control module
D12
Dis fuse 20a
Drl relay
E12
Electronic brake control module
Evaporative emissions canister purge solenoid
Fog lp relay
Fog/ drl fuse 15a
From fog/ b drl fuse (diagram 1 of 4)
From pcm c batt fuse (diagram 1 of 4)
Front auxiliary power outlet
Fuel injector
G103 (front of right front fender)
G201 (upper right side of dash)
G402 (lower left corner of trunk)
Generator
Hdhi bml fuse 10a
Hdhi bmr fuse 10a
Hdlo bml fuse 10a
Hdlo bmr fuse 10a
Hdlp lo bm relay
Hdlp hi bm relay
Heated oxygen sensor bank 1 sensor 1
Heated oxygen sensor bank 1 sensor 2
Horn fuse 15a
Horn relay
Ign 1 fuse 10a
Ign-1 relay
Ignition control module
Injr 1 fuse 10a
Injr 2 fuse 10a
Left high beam headlamp
Left low beam headlamp
Mass airflow sensor
Oxy sen fuse 10a
Pcm batt fuse 10a
Pcm ign fuse 10a
Pnk
Power- train control module
Powertrain control module
Rear auxiliary power outlet
Red
Right high beam headlamp
Right low beam headlamp
S228
S329
Secondary air injection (air) solenoid
Splice pack sp103
Splice pack sp201
Splice pack sp402
Start 1 relay
Start circuit breaker 30a
Start relay
Starter solenoid
Super- charger boost control solenoid
Theft deterrent controller module
To body fuse (diagram 2 of 4)
To cigar relay (diagram 2 of 4)
To hdlp lo bm relay (diagram 1 of 4)
To ign-1 relay (diagram 1 of 4)
To underhood fuse block (diagram 4 of 4)
Trans fuse 10a
Underhood fuse block
Wind- shield wiper motor
Wind- shield wiper switch
Wsw fuse 30a

Power Distribution Wiring Diagram (2 of 4) for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Power Distribution Wiring Diagram (2 of 4) for Pontiac Bonneville SE 2002:

(2.6)
(body harn, left side of dash) s216
(body harn, near rear fuse block breakout) s308
(body harn, near rear fuse block breakout) s309
(f1)
(in trunk lid) s411
A10
A11
A12
A14
Aldl fuse 10a
Audio fuse 10a
B12
Body fuse 15a
Cd fuse 10a
Cigar fuse 40a
Cigar relay
D10
D11
D12
Dash integration module
Data link connector
Dim fuse 10a
Dimr fuse 10a
Driver heated seat module
Driver's seat lumbar switch
Driver's seat switch (w/ memory)
E11
E16
Evaporative emissions canister vent solenoid
F/ pmp relay
F/ tnkdr rel relay
F/ trnkdr lock relay
F/pmp fuse 20a
F/tnkdr rel relay
F/trnkdr lock relay
F16
From aux/pwr fuse (diagram 1 of 4)
From battery a (diagram 1 of 4)
From e cigar fuse (diagram 2 of 4)
From f aldl fuse (diagram 2 of 4)
Front passenger's heated seat module
G302 (under left side of rear seat)
Garage door opener
Generator
Htdst lf fuse 10a
Htdst rf fuse 10a
Hvac batt fuse 10a
Hvac control module
Ign-1 fuse 10a
Ign-1 relay
Inflatable restraint sensing & diagnostic module
Instrument panel cluster
Instrument panel integration module
Int lamp relay
Int lp fuse 10a
Left front turn signal/ park lamp
Left license plate lamp
Left rear side marker lamp
Left tail/ stop lamp
Lp pkl fuse 10a
Lp pkr fuse 10a
Mem fuse 10a
Memory seat module
Nca
On star harn) s361
Park lp relay
Park relay
Pnk
Power sun roof module
Prk/rev fuse 10a
Radio
Rap fuse 20a
Rap relay
Rear fuse block
Rear integration module
Remote playback device-cd changer
Reverse relay
Right front turn signal/ park lamp
Right license plate lamp
Right rear side marker lamp
Right tail/ stop lamp
Rr defog fuse 40a
Rr defog relay
S406
Sir fuse 15a
Splice pack sp302
Stop- lamp switch
To drv mdl fuse (diagram 3 of 4)
To ign-1 relay (diagram 2 of 4)
To park lt relay (diagram 2 of 4)
To rear fuse block (diagram 4 of 4)
Trk/ rel relay
Turn signal multi- function switch
Under- hood fuse block
Vehicle communication interface module
Vehicle interface unit
Vent sol fuse 10a
W/ electronic a/c
W/o electronic a/c

Power Distribution Wiring Diagram (3 of 4) for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Power Distribution Wiring Diagram (3 of 4) for Pontiac Bonneville SE 2002:

(behind left center of dash) s206
(inst panel harn, near data link connector) s200
(under left side of rear seat) g302
A h
A10
A11
Abs fuse 15a
Air temp- erature actuator
Audio amp fuse 20a
Audio amplifier
Automatic level control compressor
B10
Blower motor control processor
C11
C12
Dash inte- gration module
Driver door module
Driver seat adjuster switch
Driver's heated seat module
Drv mdl fuse 10a
E10
E12
Elc fuse 30a
Elc relay
Electronic brake control module
Electronic compass module
F h
F12
From audio i amp fuse (diagram 3 of 4)
From hvac g batt fuse (diagram 2 of 4)
From stop h lp fuse (diagram 3 of 4
Front passenger door module
Front passenger heated seat module
Front passenger seat lumbar switch
Front passenger seat recline switch
Front passenger's seat switch
Head up display
Head up display switch
Hvac blo fuse 30a
Hvac control module
Hvac fuse 10a
Ign sw fuse 15a
Ign-3 relay
Ign-3 rr fuse 10a
Ignition key cylinder lamp
Instrument panel cluster
Instrument panel integration module
Ip fuse 10a
Left air temp- erature actuator
Left rear door module
Memory seat module
Mode actuator
Pass mdl fuse 10a
Pwr seat circuit breaker 30a
Pwr wdo circuit breaker 30a
Rear fuse block
Rear inte- gration module
Recir- culation actuator
Recirc- ulation actuator
Red
Remote control door lock receiver
Right air temp- erature actuator
Right rear door module
Rrdrmdl fuse 10a
S221
S304 (body harn, near g300 breakout)
S307 (body harn, near rear fuse block breakout)
Splice pack sp302
Stop lp fuse 15a
Stoplamp switch
To ign sw fuse (diagram 3 of 4)
To ign-3 3 relay (diagram 3 of 4)
To ignition switch (diagram 4 of 4)
To rear fuse block (diagram 4 of 4)
Tsig/haz fuse 15a
Turn signal/ hazard flasher module
Underhood fuse block
W/ 6 way seat
W/ electronic a/c
W/ memory seat
W/ recline seat w/o recline seat
W/o 6 way seat
W/o electronic a/c
W/o memory seat

Power Distribution Wiring Diagram (4 of 4) for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Power Distribution Wiring Diagram (4 of 4) for Pontiac Bonneville SE 2002:

(body harn, right side of vehicle, forward of crosscar breakout)
(dash harn, near ipm breakout) s208
A/c clutch relay
A11
Acc
Dash integration module
E10
Elc relay
Fog lamp relay
From accy relay (diagram 1 of 4)
From ign sw fuse (diagram 3 of 4)
From ign-1 relay (diagram 1 of 4)
From ign-1 relay (diagram 2 of 4)
From ign-3 relay (diagram 3 of 4)
Ignition switch
Lock
Park relay
Pnk
Powertrain control module
Rear defog relay
Rear fuse block
Run
S311
Start
Theft deterrent control module
Underhood fuse block
Unlock

POWER DOOR LOCKS

Power Door Lock Wiring Diagram for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Power Door Lock Wiring Diagram for Pontiac Bonneville SE 2002:

(in left front door)
(in right front door)
(lower right "a" pillar) g201
(under left rear seat) g302
Actuator dr
Air conditioning systems
Ajar
Battery
Class 2 data
Computer data lines system
Door ajar
Door open
Driver door door module
Driver door lock actuator
Driver door lock cylinder switch
Driver door lock switch
Driver door switch assembly
Drvmdl fuse 10a
E10
Front passenger door lock actuator
Front passenger door module
G200 (lower left "a" pillar)
G301 (under right front seat)
Grd
Ground
Hot at all times
Ign sw fuse 20 15a
Interior lights system
Key cyl in
Left rear door lock actuator
Left rear door module
Lock
Open
Pass mdl fuse 10a
Passenger door lock switch
Pwr wdo circuit breaker 30a
Rear fuse block
Remote function actuator module (below rear shelf)
Right rear door lock actuator
Right rear door module
Rrdr mdl fuse 10a
S302
S500
S602
S604
Sbi
Seats system
Serial data
Sib
Sp200
Sp201
Sp301
Sp302
Tan
Unlock
Unlock'

POWER MIRRORS

Power Mirror Wiring Diagram for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Power Mirror Wiring Diagram for Pontiac Bonneville SE 2002:

(body harn left side of vehicle, near left power seat breakout)
(except pontiac)
(left front door trim harn, in left front door) s500
(on lower left corner of trunk, forward of tail lamp)
(on lower left front "a" pillar)
(on lower right front "a" pillar)
A7 c3
Automatic day
B1 c3
Battery (b+)
Battery b+
Bus interface
Computer data lines system
D3 c3
Defogger system (heated mirror)
Down ctrl
Driver door lock switch
Driver door module (ddm)
Driver door switch asembly
Drv mdl fuse 10a
E2 c3
Ec feed
Ec rerurn
Ec return
Exterior lights system
F2 c3
Front passenger door module (fpdm)
G200
G201
G402
Gnd
Ground
Heating element
Horizontal motor
Hot at all times
Hot in on
Ign 3 rr fuse 10a
Ign 3 voltage
Inside rear view mirror
Interior lights system
Keypad led
Keypad pwr
Keypad signal
L mirror input
Left
Left ctrl
Left mirror
Left rear door module
Mirror dn input
Mirror l input
Mirror r input
Mirror up input
Nca
Night input sig
Pass mdl fuse 10a
Pnk
Pwr wdo circuit breaker 30a
R mirror input
Rear fuse block (under left rear seat)
Reverse lamp relay
Reverse sig
Right
Right ctrl
Right mirror
Right rear door module
S302
S344
Serial data
Up ctrl
Vehicle interface unit (viu) (2001 only)
Vertical motor

POWER SEATS

6-Way & Recliner Power Seat Wiring Diagram for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for 6-Way & Recliner Power Seat Wiring Diagram for Pontiac Bonneville SE 2002:

(bonneville) (le sabre)
Driver seat adjuster switch
Driver seat front vertical motor
Driver seat horizontal motor
Driver seat rear vertical motor
Driver seat recline motor
E12
Entire seat backward
Entire seat forward
F12
Front passenger seat adjuster switch
Front passenger seat front vertical motor
Front passenger seat horizontal motor
Front passenger seat rear vertical motor
Front passenger seat recline motor
Front vertical down
Front vertical up
G301 (under right front seat, on forward crossmember)
Hot at all times
Nca
Pwr seat circuit breaker 30a
Rear fuse block
Rear vertical down
Rear vertical up
Recline backward
Recline forward
S321 s324 (w/ heated seats)
S322 (w/ heated seats)
S323 (bonneville)
Slice pack sp301
Tan

6-Way Power Seat Wiring Diagram for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for 6-Way Power Seat Wiring Diagram for Pontiac Bonneville SE 2002:

Driver seat adjuster switch
Driver seat front vertical motor
Driver seat horizontal motor
Driver seat rear vertical motor
E12
Entire seat backward
Entire seat forward
F12
Front passenger seat adjuster switch
Front passenger seat front vertical motor
Front passenger seat rear horizontal motor
Front passenger seat rear vertical motor
Front vertical down
Front vertical up
G301 (under right front seat, on forward crossmember)
Hot at all times
Pwr seat circuit breaker 30a
Rear fuse block
Rear vertical down
Rear vertical up
S322 (le sabre w/ heated seats)
S323 (bonneville)
S324 (le sabre w/ heated seats)
Splice pack sp301
Tan

Heated Seats Wiring Diagram for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Heated Seats Wiring Diagram for Pontiac Bonneville SE 2002:

C11
Cntrld gnd
Driver heated seat back
Driver heated seat cushion
Driver heated seat module
Driver heated seat switch
Front passenger heated seat back
Front passenger heated seat cushion
Front passenger heated seat module
Front passenger heated seat switch
G201 (on lower right front "a" pillar)
G301 (under right front seat, on forward crossmember)
Gnd
Heater cntrl
Heating element
Hi indicator
Hi/lo
Hi/lo input
Hot at all times
Hot in on
Htd seat staus
Htdstlf fuse 10a
Htdstrf fuse 10a
Ign
Ign 3 rr fuse 10a
Inhibit cntrl
Inhibit sig
Interior lights system
Lo indicator
Nca
Off
Off input
Pnk
Rear fuse block
Rear integration module (rim) (behind upper left rear seat cushion)
Red
S228
S304
S321
S322
Splice pack sp201
Splice pack sp301
Status output
Temp sense
Thermistor

Lumbar Wiring Diagram for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Lumbar Wiring Diagram for Pontiac Bonneville SE 2002:

Down
Driver seat lumbar horizontal motor
Driver seat lumbar switch
Driver seat lumbar vertical motor
E12
F12
Front passenger seat lumbar horizontal motor
Front passenger seat lumbar switch
Front passenger seat lumbar vertical motor
G301 (under right front seat, on forward crossmember)
Hot at all times
Out
Pnk
Pwr seat circuit breaker 30a
Rear fuse block
S322
S323
S324
Splice pack sp301
Tan

Recliner Wiring Diagram for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Recliner Wiring Diagram for Pontiac Bonneville SE 2002:

Back
Driver seat recline motor
Driver seat recline switch
E12
F12
Forward
Front passenger recline motor
Front passenger seat recline switch
G301 (under right front seat, on forward crossmember)
Hot at all times
Nca
Pwr seat circuit breaker 30a
Rear fuse block
S315
S316
Splice pack g301

POWER TOP/SUNROOF

Power Top/Sunroof Wiring Diagrams for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Power Top/Sunroof Wiring Diagrams for Pontiac Bonneville SE 2002:

A buick
Close
Control
D10
Express
Express inp
G401 (lower right corner of trunk)
Ground
Hot at all times
Limit sw
Limit switch
Motor ctrl
Open
Pontiac b
Rap
Rap fuse 20a
Rap relay
Rear fuse block (under left rear seat)
Rear integration module (behind upper left rear seat cushion)
Red
Slide input
Sun roof module (rear of glass assembly, above headliner)
Sun roof motor (rear of glass assembly, above headliner)
Sun roof switch (in overhead console)
Vent input

POWER WINDOWS

Power Window Wiring Diagram for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Power Window Wiring Diagram for Pontiac Bonneville SE 2002:

(in body harness, left side of vehicle 14.5 cm (5.7 in) from left power seat breakout) s302
(in left door trim harness, in left front door, 19 cm (7.4 in) from 18 cavity black in-line connector between left front door & trim panel) s500
Battery
Data
Door lock system
Door locks system
Down
Down input
Down signal
Driver door module (ddm) (in left front door behind trim panel, in upper right corner of door)
Driver door switch assembly (ddsa)
Driver window motor (in left front door)
Drvmdl fuse 10a
Express down
Express input
Front passenger door module (fpdm) (in right front door behind trim panel, in upper left corner of door)
Front passenger window motor (in right front door)
Front passenger window switch
G200 (on lower left front "a" pillar)
G201 (on lower right front "a" pillar)
G301 (under right front seat, on forward crossmember)
G302 (under left rear seat)
Ground
Hot at all times
Illum
Interior lights system
Left front window
Left rear door module (lrdm) (in left rear door)
Left rear window
Left rear window motor (in left rear door)
Left rear window switch
Lockout input
Memory systems
Motor down
Motor up
Pass mdl fuse 10a
Pwr wdo circuit breaker 30a
Rear fuse block (under left rear seat)
Right front window
Right rear door module (rrdm) (in right rear door)
Right rear window
Right rear window motor (in right rear door)
Right rear window switch
Rrdr mdl fuse 10a
S602 (in right front door harness 10 cm (4 in) from door module connector breakout)
S604 (right front door harn, 21cm 8.2in from c603 breakout)
Serial data
Splice pack sp200
Splice pack sp201
Splice pack sp301
Splice pack sp302
Up input
Up signal
Window lockout
Window switches

RADIO

Radio Wiring Diagrams, with Amplifier (1 of 2) for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Radio Wiring Diagrams, with Amplifier (1 of 2) for Pontiac Bonneville SE 2002:

(on lower right front "a" pillar)
(under left front seat, forward of crossmember)
14 v ref
A pnk
A10
A11
A12
A13
A14
A15
A16
Amp pres sig
Amp sns
Antenna
Audio amplifier (behind left rear seat back)
B10
B11
B12
B13
B14
B15
B16
Batt
C200
C216
Com audio in
Computer data lines system
Dash integration module
Data
Enable
Fm comp sig
G201
G300
Gnd
Ground
Ill
Inflatable restraint steering wheel module coil
Interior lights system
L audio in
Left side steering wheel controls
Left sub +
Left sub -
Lf aud sig +
Lf aud sig -
Lf mid out +
Lf mid out -
Lf spkr
Lf tweeter +
Lf tweeter -
Lr aud sig +
Lr aud sig -
Lr spkr
Lr spkr +
Lr spkr -
Nca
Pnk
R audio in
R sub out +
R sub out -
Radio
Radio on sig
Red
Rf aud sig +
Rf aud sig _
Rf mid out +
Rf mid out -
Rf spkr
Rf tweeter +
Rf tweeter -
Right side steering wheel controls
Rr aud sig +
Rr aud sig -
Rr spkr
Rr spkr +
Rr spkr -
S203
Shield gnd
Steering column fuse holder
Sw1
Sw2
Sw3
Sw4
Sw5
Sw6
Sw7
Sw8
Switch fuse 2a
Switched pwr
Tan

Radio Wiring Diagrams, with Amplifier (2 of 2) for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Radio Wiring Diagrams, with Amplifier (2 of 2) for Pontiac Bonneville SE 2002:

(under left front seat, forward of crossmember)
Antenna
Audio amp fuse 20a
Audio comm
Audio fuse 10a
B10
Batt
Case gnd
Cd changer-remote playback device
Cd fuse 10a
Computer data lines system
Enable
Fm comp sig
Front glass antenna
G300
G300 (under left front seat, forward of crossmember)
Grd
Hot at all times
L audio out
Left front door speaker
Left rear door speaker
Left rear sub woofer
Nca
R audio out
Radio antenna module (on center rear of headliner)
Rear ant in
Rear fuse block
Rear glass antenna
Red
Right front door speaker
Right front door speaker (tweeter)
Right rear door speaker
Right rear sub woofer
Serial data
Shield grd

Radio Wiring Diagrams, without Amplifier for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Radio Wiring Diagrams, without Amplifier for Pontiac Bonneville SE 2002:

(on lower right front "a" pillar)
(under left front seat, forward of crossmember)
A pnk
A10
A11
A12
A13
A14
A15
A16
A2 not used
Antenna
Audio comm
Audio fuse 10a
B10
B11
B12
B13
B14
B15
B16
Batt
Case gnd
Cd changer-remote playback device
Cd fuse 10a
Com audio in
Computer data lines system
Dash integration module
Data
Enable
Fm comp sig
Front glass antenna
G201
G300
Gnd
Grd
Hot at all times
Ill
Inflatable restraint steering wheel module coil
Interior lights system
L audio in
L audio out
Left front door speaker
Left front tweeter
Left rear speaker
Left side steering wheel controls
Lf spkr
Lr spkr
Nca
Pnk
R audio in
R audio out
Radio
Radio antenna module (on center rear of headliner)
Rear fuse block
Rear glass antenna
Rf spkr
Right front door speaker
Right front tweeter
Right rear speaker
Right side steering wheel controls
Rr spkr
S203
Serial data
Shield grd
Steering column fuse holder
Sw1
Sw2
Sw3
Sw4
Sw5
Sw6
Sw7
Sw8
Switch fuse 2a
Tan

SHIFT INTERLOCKS

Shift Interlock Wiring Diagram for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Shift Interlock Wiring Diagram for Pontiac Bonneville SE 2002:

(pontiac) (buick)
A/t shif tlock control solenoid
A/t shift lock control solenoid
A12
Automatic transaxle
Automatic transaxle internal mode switch
B12
C100
C2 b b
C2 c1
Computer data lines
Data line
G105 (front of engine)
G200 (on left front door pillar)
G201 (on right front door pillar)
Hot at all times
Hot in on
Park relay
Park relay control
Pontiac w/center console
Pontiac w/o center console/ buick
Powertrain control module (in air cleaner housing)
Prk/rev fuse 10a
Rear fuse block (under left rear seat)
Rear integration module (behind upper left rear seat cushion)
S225
S228
Splice pack sp105
Splice pack sp200
Splice pack sp201
Stoplamp switch (on brake pedal bracket) (buick)
Stoplight switch (on brake pedal bracket) (pontiac)

STARTING/CHARGING

Charging Wiring Diagram for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Charging Wiring Diagram for Pontiac Bonneville SE 2002:

(not used) a
(under right rear seat, right of battery on floor pan) g305
A11
A12
B12
Battery
Battery indicator
Battery volts high
Battery volts low
Check charge system
Dash integration module (dim) (behind right side of dash, under sound insulator)
Dim fuse 10a
Driver's information center
E11
Flat wire
Gen term f mon
Gen term l ctrl
Generator l
Hot at all times
Instrument panel cluster
Instrument panel integration module (ipm) (behind left side of dash)
Nca
Powertrain control module (pcm) (in air cleaner housing)
Rear fuse block (under left rear seat)
Red
S217 (in body harness, left side of vehicle 24.0 cm (6.7 in) from pass through grommet lower left corner of passenger compartment)
Serial data class 2
Starter solenoid
System voltage measurement
Underhood fuse block (right front side of engine compartment)

Starting Wiring Diagram for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Starting Wiring Diagram for Pontiac Bonneville SE 2002:

Acc
Battery
Computer data lines system
G305 (under right rear seat, right of battery on floor pan)
Ground distribution system (dash integration module (dim))
Hold in coil
Hot in run & start
Ign crank sense
Ign sw fuse 15a
Ignition swtch
Lock
Note: refer to power distribution system: ign-1 relay
Pcm ign fuse 10a
Power distribution system
Powertrain control module (pcm) (in air cleaner housing)
Pull in coil
Rear fuse block (under left rear seat)
Run
Serial data class 2
Start
Start 1 relay
Start circuit breaker 30a
Starter ctrl
Starter motor
Starter solenoid
Starting/ charging system (charging circuit)
Underhood fuse block (right front side of engine compartment)
Unlock

SUPPLEMENTAL RESTRAINTS

Supplemental Restraint Wiring Diagram for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Supplemental Restraint Wiring Diagram for Pontiac Bonneville SE 2002:

A10
A11
A12
A13
A14
A15
A16
A17
A18
Air bag indicator
Case ground
Class 2 serial data
Computer data lines system
Dash integration module (dim) (behind right side of dash, under sound insulator)
Data link connector (dlc) (partial) (under lower left side of dash)
Driver inflatable restraint side impact sensor (sis) (at base of left "b" pillar, behind trim panel)
G303 (near right body harness, under right front seat on forward crossmember)
Ground
High control
Hot in on & start
Ignition
Inflatable restraint front end discriminating sensor
Inflatable restraint i/p module
Inflatable restraint sensing & diagnostic module (sdm) (under rear of center console, mounted to floor pan)
Inflatable restraint side impact module- left front
Inflatable restraint side impact module- right front
Inflatable restraint steering wheel module
Inflatable restraint steering wheel module coil
Instrument panel cluster (ipc)
Left front seat belt switch (closed w/seat belt unbuckled) (in seat belt assembly, near floor)
Low control
Nca
Passenger inflatable restraint side impact sensor (sis) (at base of right "b" pillar, behind trim panel)
Pnk
Rear fuse block (under left rear seat)
Seat belt sw input
Seat belt sw return
Sensor low reference
Sensor signal
Shorting bar
Signal
Sir fuse 15a
Solid state
Tan
Voltage
W/ heads-up display
W/o heads-up display

TRANSMISSION

3.8L

3.8L VIN 1, A/T Wiring Diagram for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for 3.8L VIN 1, A/T Wiring Diagram for Pontiac Bonneville SE 2002:

internal mode switch automatic transaxle
(rear of engine, near thermostat housing) engine coolant temperature (ect) sensor
(right front of transaxle, below power steering pump) vehicle speed sensor (vss)
1-2 shift sol
2-3 shift sol
5 volt ref
A/t fluid temp
A/t iss low
A/t speed sens
Acc
Automatic transaxle
Automatic transaxle (4t40-e/ 4t45-e)
Automatic transaxle fluid pressure manual valve position switch
Automatic transaxle fluid temperature sensor
Automatic transaxle input shaft speed sensor
B c
Battery
Bonneville
Bonneville le sabre
Compiuter data lines system
Cruise control system
E e
Ect sensor gnd
Ect sensor in
G105 (rear of engine)
Head up display, ignition key cyl lamp
Hot at all times
Hot in run or start
Ign 1 fuse 10a
Ignition
Ignition 1
Ignition switch (pigtailed for le sabre)
Instrument cluster
Instrument cluster, turn siganl switch
Ip fuse 10a
Lesabre
Lock
Malfunction indicator lamp
Mil control
Off
Pcm batt fuse 10a
Pcm ground
Pcm ign fuse 10a
Pnk
Powertrain control module (pcm) (near air cleaner housing)
Press sol high
Press sol low
Press sw a
Pressure control sol
Rear fuse block (under left rear seat)
Red
Rev
Run
S206
S208
S216
Sensor return
Serial data
Shift sol a
Shift sol b
Start
Stop lamp switch (near brake pedal)
Tan
Tcc pwm sol
Tcc rel
Tcc release sw
Tcc sw
Tcc/ cruise switch
Throttle position (tp) sensor (on throttle body assembly)
Tp sensor gnd
Tp sensor in
Trans fuse 10a
Trans range b
Trans range c
Trans sw a
Trans sw b
Trans sw c
Trans sw p
Underhood fuse block (right front side of engine compt)
Vss hi (signal)
Vss lo (ground)

3.8L VIN K, A/T Wiring Diagram for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for 3.8L VIN K, A/T Wiring Diagram for Pontiac Bonneville SE 2002:

internal mode switch automatic transaxle
(rear of engine, near thermostat housing) engine coolant temperature (ect) sensor
(right front of transaxle, below power steering pump) vehicle speed sensor (vss)
1-2 shift sol
2-3 shift sol
5 volt ref
A/t fluid temp
A/t iss low
A/t speed sens
Acc
Automatic transaxle
Automatic transaxle (4t40-e/ 4t45-e)
Automatic transaxle fluid pressure manual valve position switch
Automatic transaxle fluid temperature sensor
Automatic transaxle input shaft speed sensor
B c
Battery
Bonneville
Bonneville le sabre
Compiuter data lines system
Cruise control system
E e
Ect sensor gnd
Ect sensor in
G105 (rear of engine)
Head up display, ignition key cyl lamp
Hot at all times
Hot in run or start
Ign 1 fuse 10a
Ignition
Ignition 1
Ignition switch (pigtailed for le sabre)
Instrument cluster
Instrument cluster, turn siganl switch
Ip fuse 10a
Lesabre
Lock
Malfunction indicator lamp
Mil control
Off
Pcm batt fuse 10a
Pcm ground
Pcm ign fuse 10a
Pnk
Powertrain control module (pcm) (near air cleaner housing)
Press sol high
Press sol low
Press sw a
Pressure control sol
Rear fuse block (under left rear seat)
Red
Rev
Run
S206
S208
S216
Sensor return
Serial data
Shift sol a
Shift sol b
Start
Stop lamp switch (near brake pedal)
Tan
Tcc pwm sol
Tcc rel
Tcc release sw
Tcc sw
Tcc/ cruise switch
Throttle position (tp) sensor (on throttle body assembly)
Tp sensor gnd
Tp sensor in
Trans fuse 10a
Trans range b
Trans range c
Trans sw a
Trans sw b
Trans sw c
Trans sw p
Underhood fuse block (right front side of engine compt)
Vss hi (signal)
Vss lo (ground)

TRUNK, TAILGATE, FUEL DOOR

Trunk Release Wiring Diagram for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Trunk Release Wiring Diagram for Pontiac Bonneville SE 2002:

A9 c2
Auto a/c
B10
B12
Body fuse 15a
Class 2 serial data
Computer data lines system
G201
G401
Hot at all times
Hvac control module (behind left side of dash)
Instrument panel integration module (behind left side of dash)
Manual a/c
Rear compartment lid release actuator (on center rear of lugggage compt)
Rear compartment lid release switch
Rear fuse block (under left rear seat)
Rear integration module (rim) (behind upper left rear seat cushion)
Rr compt lid release actuator control
S205
Sp201 (on lower right front "a" pillar)
Sp401 (lower right corner of trunk, forward of tail lamp)
Sw input
Trk/ rel relay

WARNING SYSTEMS

Warning System Wiring Diagrams for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Warning System Wiring Diagrams for Pontiac Bonneville SE 2002:

(under left side of dash)
A11
A12
A15
A16
B11
Belt sw input
Belt sw ret
Class 2 data
Computer data lines system
Dash integration module (behind right side of dash, under sound insulator)
Dr ajar input
Dr open input
Driver door lock actuator c1 (in door)
Driver door module (inside driver door)
E c1
Flasher module
G200 (on lower left "a" pillar)
G201 (on lower right front "a" pillar)
Ground
Head
Head sw input
Headlamp switch
Ignition switch
Inflatable restraint sensing & diagnostic module (under rear of center console, mounted to floor pan)
Instrument panel cluster (ipc)
Instrument panel integration module (behind left side of dash)
Key in signal
Key-in ignition switch
Left turn in
Nca
Park
Park sw input
Powertrain control module (in air cleaner housing)
Radio
Right turn in
S205
S226
S250
S251
Seat belt switch (closed w/belt unbuckled)
Splice pack sp200
Splice pack sp201
Tan
Turn signal/hazard
W/auto a/c
W/manual a/c

WIPER/WASHER

Wiper/Washer Wiring Diagram for Pontiac Bonneville SE 2002

Obtenha acesso a todos os diagramas de fiação do carro

List of elements for Wiper/Washer Wiring Diagram for Pontiac Bonneville SE 2002:

(not used) a
(not used) f
150k
24,000 ohms
270k
39k
680k
82k
Acc fuse 15a
C112
Dash integration module (dim) (behind right side of dash, under sound insulator)
G103 (mounted to inner body panel, forward of underhood fuse block)
G106 (near left strut tower, on frame rail)
Ground
Headlamps on w/wipers input
High
High speed input
Hot in run & accessory
Ignition
Low
Low min
Max
Min
Mist
Nca
Off
Off max
Red
Splice pack sp103
Splice pack sp106
Underhood fuse block (right front side of engine compartment)
Wash
Washer switch
Windshield washer fluid pump (in bottom of windshield washer reservoir)
Windshield wiper motor (behind left front strut tower)
Windshield wiper/washer switch
Wiper fuse 30a
Wiper speed signal
Wiper switch
