COOLING FAN

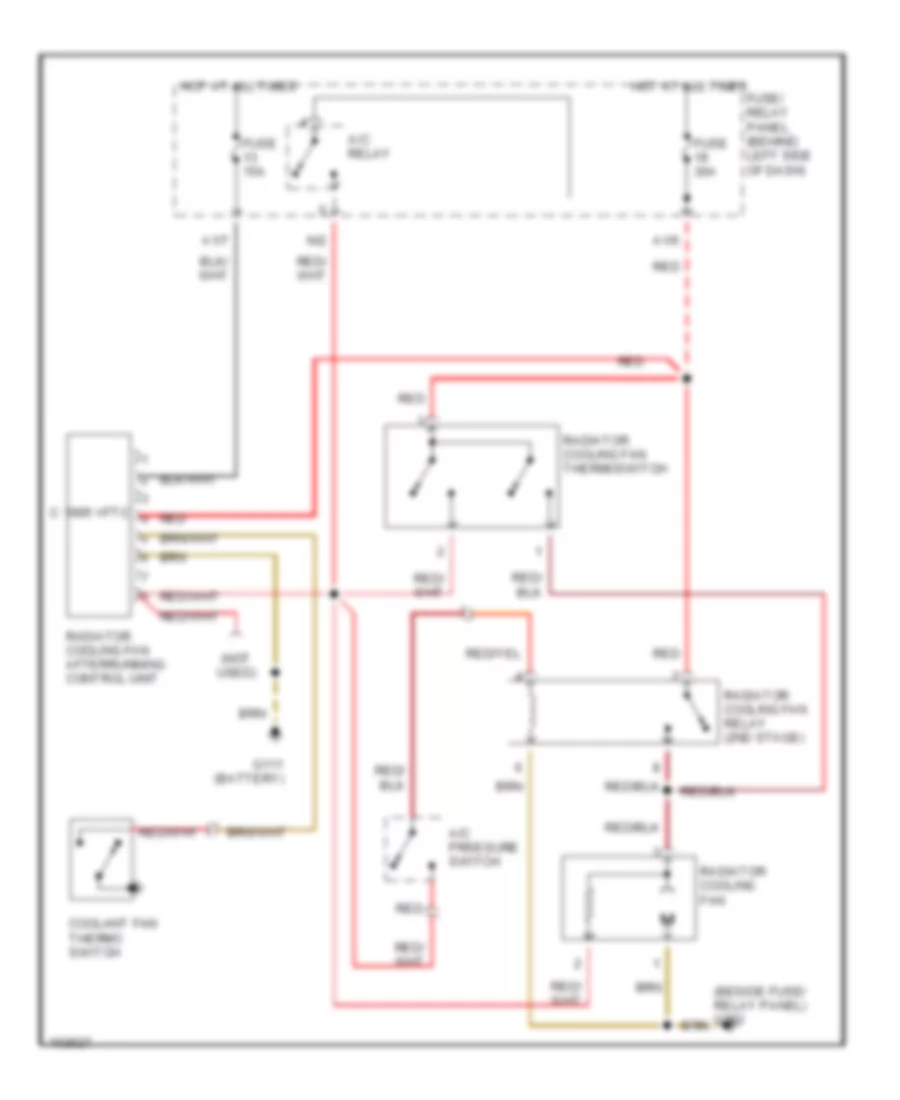

Cooling Fan Wiring Diagram, with A/C for Volkswagen Passat CL 1992
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO
List of elements for Cooling Fan Wiring Diagram, with A/C for Volkswagen Passat CL 1992:
- (not used)
- 1995 vftc c
- A/c prsesure switch
- A/c relay
- A1/5
- A1/7
- Coolant fan thermo switch
- Fuse 15a
- Fuse 30a
- Fuse/ relay panel (behind left side of dash)
- G111 (battery)
- Hot at all times
- N/2
- Radiator cooling fan
- Radiator cooling fan afterrunning control unit
- Radiator cooling fan relay (2nd stage)
- Radiator cooling fan thermoswitch
- Red
Cooling Fan Wiring Diagram, without A/C for Volkswagen Passat CL 1992
List of elements for Cooling Fan Wiring Diagram, without A/C for Volkswagen Passat CL 1992:
- (not used)
- 1995 vftc c
- A1/5
- A1/7
- Coolant fan thermo switch
- Fuse 15a
- Fuse 30a
- Fuse/ relay panel (behind left side of dash)
- G111 (battery)
- Hot at all times
- Radiator cooling fan
- Radiator cooling fan afterrunning control unit
- Radiator cooling fan thermoswitch
- Red
DEFOGGERS
Defogger Wiring Diagram for Volkswagen Passat CL 1992
List of elements for Defogger Wiring Diagram for Volkswagen Passat CL 1992:
- 1995 vftc c
- Fuse 20a
- Fuse/ relay panel (behind left side of dash)
- G404 (1991-93) (left luggage compt)
- G405 (1990) (right luggage compt)
- Hot in on
- Interior lights system
- K/12
- Left heated outside mirror
- Nca
- P/2
- P/3
- P/5
- Rear window defogger switch
- Rear window heater element
- Right heated outside mirror
- W/ heated mirrors
HORN
Horn Wiring Diagram for Volkswagen Passat CL 1992
List of elements for Horn Wiring Diagram for Volkswagen Passat CL 1992:
- A1/7
- A1/8
- Dual horn relay
- Dual horns
- Fuse 10a (1990-91, 1994)
- Fuse 15a (1992-93)
- Fuse/ relay panel (behind left side of dash)
- H1/6
- H2/1
- Horn switch
- Hot in on or start
- Multifunction switch a
- T4d
POWER DOOR LOCKS
Power Door Lock Wiring Diagram for Volkswagen Passat CL 1992
List of elements for Power Door Lock Wiring Diagram for Volkswagen Passat CL 1992:
- (left side of luggage compartment)
- (right rear luggage compartment)
- * *
- * sedan ** wagon
- 81a
- Anti-theft system
- Central locking system pump and control module
- Driver's door central locking system switch
- Fuse 10a
- Fuse 15a
- Fuse/ relay panel (behind left side of dash)
- G404 (left side of luggage compartment)
- Hot at all times
- Hot in on or start
- L/7
- Left front central locking system door switch
- M/5
- Passenger's door central locking system switch
- Power windows system
- Pump motor
- Red
POWER MIRRORS
Power Mirror Wiring Diagram for Volkswagen Passat CL 1992
List of elements for Power Mirror Wiring Diagram for Volkswagen Passat CL 1992:
- (1991,1994) (1992-93)
- D/11
- Defogger system
- Driver's mirror adjusting magnetic clutch
- Driver's side remote control mirror motor
- Fuse 10a 15a
- Fuse/ relay panel (behind left side of dash)
- Hot in on or start
- K/11
- Left heated outer mirror
- Mirror adjustment switch
- Mirror selector switch
- Nca
- Passenger's outer mirror magnetic clutch
- Passenger's side remote control mirror motor
- Right heated outer mirror
- T 46 junction connector (1992-93) (behind fuse/ relay panel)
- Z/2
POWER SEATS
Power Seat Wiring Diagrams for Volkswagen Passat CL 1992
List of elements for Power Seat Wiring Diagrams for Volkswagen Passat CL 1992:
- (1990) (1992-93)
- D/9
- Driver's seat heater control unit (below driver's seat)
- Driver's seat heater regulating switch
- Driver's seat heater temperature sensor
- Fuse 10a
- Fuse/ relay panel (behind left side of dash)
- G202 (beside fuse/ relay panel)
- Heat regulating switch
- Heated driver's seat
- Heated driver's seat backrest
- Heated passenger's seat
- Heated passenger's seat backrest
- Hot in on or start
- Illumination lamp
- Interior lights system
- J/c tv5 (1992-93) (above fuse/ relay panel)
- Nca
- Passenger's seat heater control unit (below passenger's seat)
- Passenger's seat heater regulating switch
- Passenger's seat heater temperature sensor
- Red
POWER WINDOWS
Power Window Wiring Diagram for Volkswagen Passat CL 1992
List of elements for Power Window Wiring Diagram for Volkswagen Passat CL 1992:
- (below right rear seat) g303
- D/9
- Door locks system
- Front front front front power power power power window window window window switch switch switch switch
- Fuse 10a
- Fuse 20a (above fuse/relay panel)
- Fuse/ relay panel (behind left side of dash)
- G303 (below right rear seat)
- Hot at all times
- Hot in or start
- Illum
- Interior lights system
- Left front door contact switch
- Left front door window motor
- Left rear door window motor
- Left rear window switch
- Left window
- Power window control module
- Rear power windows console switch rear power windows console switch rear power windows console switch rear power windows console switch
- Red
- Right front door contact switch
- Right front door window motor
- Right front window switch
- Right rear door window motor
- Right rear window switch
- Right window
- T8a
- T8b
- T8c
- Tv 5 junction connector (behind fuse/relay panel)
- Window window window window lockout lockout lockout lockout switch switch switch switch
- Y/1
RADIO
Radio Wiring Diagrams, with 6 Amplified Speakers for Volkswagen Passat CL 1992
List of elements for Radio Wiring Diagrams, with 6 Amplified Speakers for Volkswagen Passat CL 1992:
- 1991-92
- 1995 vftc c 1995 vftc c
- Antenna
- Antenna booster
- Bass speaker
- Fuse 10a
- Fuse/ relay panel
- G901 (lower right "a" pillar)
- Hot at all times
- Ignition/ start switch
- Instrument cluster system
- Interior lights system
- J/b t43 (behind fuse/ relay panel)
- Left amplified bass speaker
- Left front high frequency speaker
- Left rear speaker
- Lock
- Nca
- Radio
- Red
- Right amplified bass speaker
- Right front high frequency speaker
- Right rear speaker
- Start
- T10
- U2/2
- W/1
Radio Wiring Diagrams, with 6 Passive Speakers for Volkswagen Passat CL 1992
List of elements for Radio Wiring Diagrams, with 6 Passive Speakers for Volkswagen Passat CL 1992:
- (not used)
- Antenna booster
- Fuse 10a
- Fuse/ relay panel
- Hot at all times
- Ignition/ start switch
- Interior lights system
- Left front tweeter
- Left front woofer
- Left rear speaker
- Lock
- Nca
- Radio
- Red
- Right front tweeter
- Right front woofer
- Right rear speaker
- Start
- T8a
STARTING/CHARGING
Charging Wiring Diagram for Volkswagen Passat CL 1992
List of elements for Charging Wiring Diagram for Volkswagen Passat CL 1992:
- Acc
- B+ generator
- Battery
- D/8
- Display unit control module
- E/2
- F/3
- Fuse/ relay panel (under left side of dash)
- Generator warning indicator
- H1/2
- H1/4
- Ignition switch
- Instrument cluster
- J/c (behind fuse/ relay panel)
- Lock
- Nca
- Red
- Start
- Starter
- U2/1
- U2/12
- Y/3
Starting Wiring Diagram for Volkswagen Passat CL 1992
List of elements for Starting Wiring Diagram for Volkswagen Passat CL 1992:
- (under left side of dash) g202
- A/t
- Acc
- Alarm system control module
- Battery
- Engine controls system
- F/1
- Fuse/ relay panel (under left side of dash)
- Generator
- H1/1
- H1/2
- Ignition switch
- M/t
- Multi- function switch
- Nca
- Off
- Park/ neutral position relay (fuse/ relay panel)
- Red
- Start
- Starter
- T6/5
- T6/6
- Transmission control module
- W/ anti-theft
- Warning system
- Y/3
- Y/4
WIPER/WASHER
Headlamp Washer Wiring Diagram for Volkswagen Passat CL 1992
List of elements for Headlamp Washer Wiring Diagram for Volkswagen Passat CL 1992:
- 53a
- B/1
- B/2
- B/3
- B/4
- B/5
- B/6
- Battery
- D/4
- Fuse 15a
- Fuse/ relay panel
- G202 (beside fuse/ relay panel)
- H1/8
- Headlight washer pump
- Headlight washer system relay
- Hot at all times
- Hot in head
- Hot in run
- J/7
- Red
- Solid state
- T4b
- T5c
- Washer/ wiper intermittent switch
- Windshield wiper intermittent/ horn switch
Wiper/Washer Wiring Diagram for Volkswagen Passat CL 1992
List of elements for Wiper/Washer Wiring Diagram for Volkswagen Passat CL 1992:
- (left side of luggage compartment) g404
- 53a
- 53b
- 53b 53e
- 53e
- 53m
- 53s
- Battery
- C/2
- C/7
- Fuse 15a
- Fuse/ relay panel (under left side of dash)
- H1/6
- H1/8
- H1/9
- Hot in run
- J/10
- J/5
- J/6
- J/7
- J/9
- K/6
- K/9
- Rear window wiper motor (wagon)
- Rear window wiper/washer relay (wagon)
- S/1
- S/2
- S/3
- S/4
- S/5
- T4b
- T5c
- Washer/ wiper intermittent switch
- Washer/wiper intermittent relay
- Windshield and rear window washer pump
- Windshield wiper intermittent/ horn switch
- Windshield wiper motor
- Z/2
