Электросхемы БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ Hyundai Santa Fe 2001

БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ

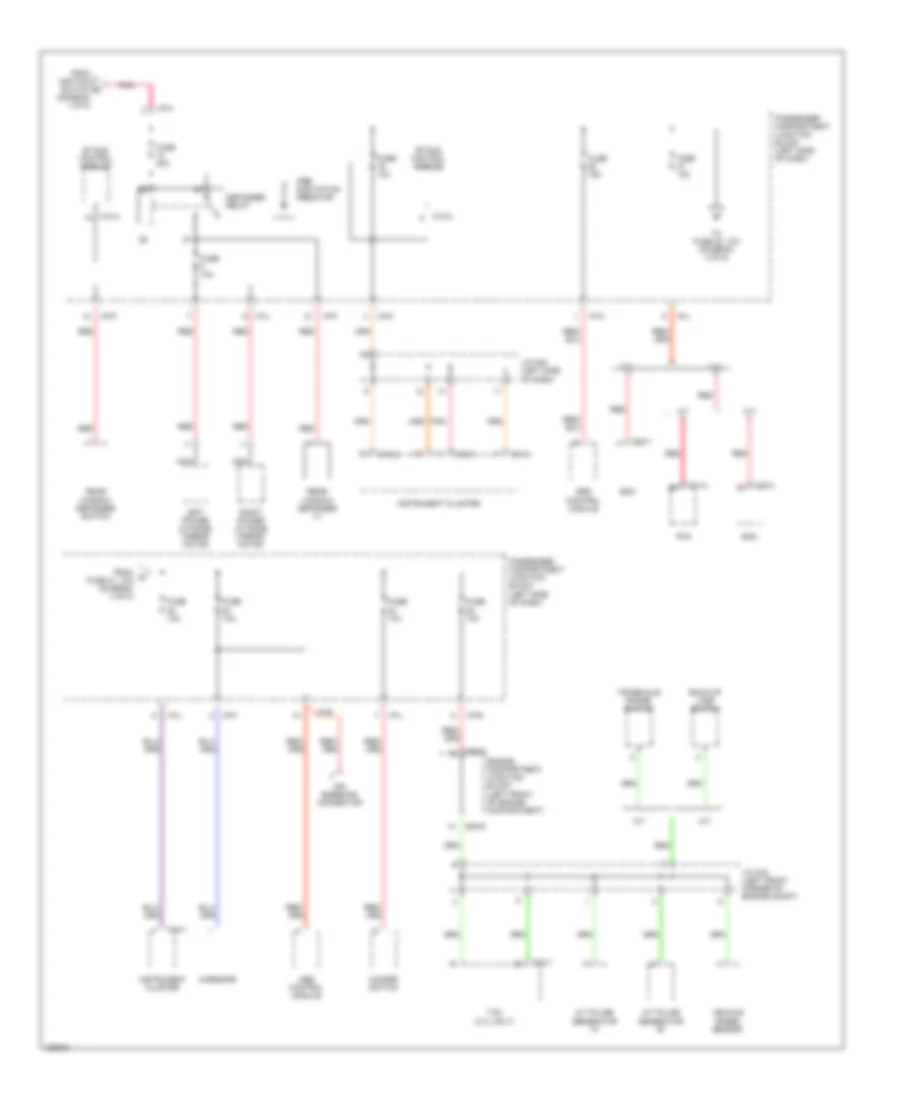

Электросхема блока предохранителей и реле (1 из 5) для Hyundai Santa Fe 2001

Электросхема блока предохранителей и реле (1 из 5) для Hyundai Santa Fe 2001 - Список элементов:

• (left front of engine compartment) engine compartment junction block
• A/c fuse 10a
• A/c relay
• A/c switch
• A/t
• Abs control module
• Acc
• Air bleeding connector
• Ashtray illumination
• Audio
• Battery
• Battery ground
• Blower relay
• Body ground
• Burglar alarm relay
• C21-2
• Cigarette lighter & power outlet
• Clock
• Cruise control module
• E/r-a
• E/r-b
• E/r-d
• E/r-e
• Engine compartment junction block (left front of engine compartment)
• Etacs control module
• Fuse 1 20a
• Fuse 2 10a
• Fuse 3 15a
• Fusible link (abs 1) 30a
• Fusible link (abs 2) 30a
• Fusible link (alt) 120a
• Fusible link (b+) 50a
• Fusible link (blr) 40a
• G203 (right kick panel)
• G402 (left rear wheel well)
• Generator
• I/p-d
• I/p-f
• I/p-h
• I/p-j
• I/p-l
• I/p-p
• Ignition switch
• Interior lights system
• J/c m46 (beneath driver's seat)
• Lock
• M/t
• M13-2
• Nca
• Overhead console lamp
• Passenger compartment junction block (left side of dash)
• Pcm (2.4l only)
• Pnk
• Power outside mirror switch
• Rear power outlet
• Red
• St sig fuse 10a
• Start
• Start motor
• Start relay
• Start solenoid
• Starter relay
• To fusible link (p/w) 30a (diagram 2 of 5)
• To passenger compartment junction block (fuse 18, 30a) (diagram 4 of 5)
• To passenger compartment junction block (fuse 7, 10a) (diagram 3 of 5)
• To passenger compartment junction block (power connector) (diagram 5 of 5)
• Transaxle range switch
• W/o b/alarm
• With b/alarm

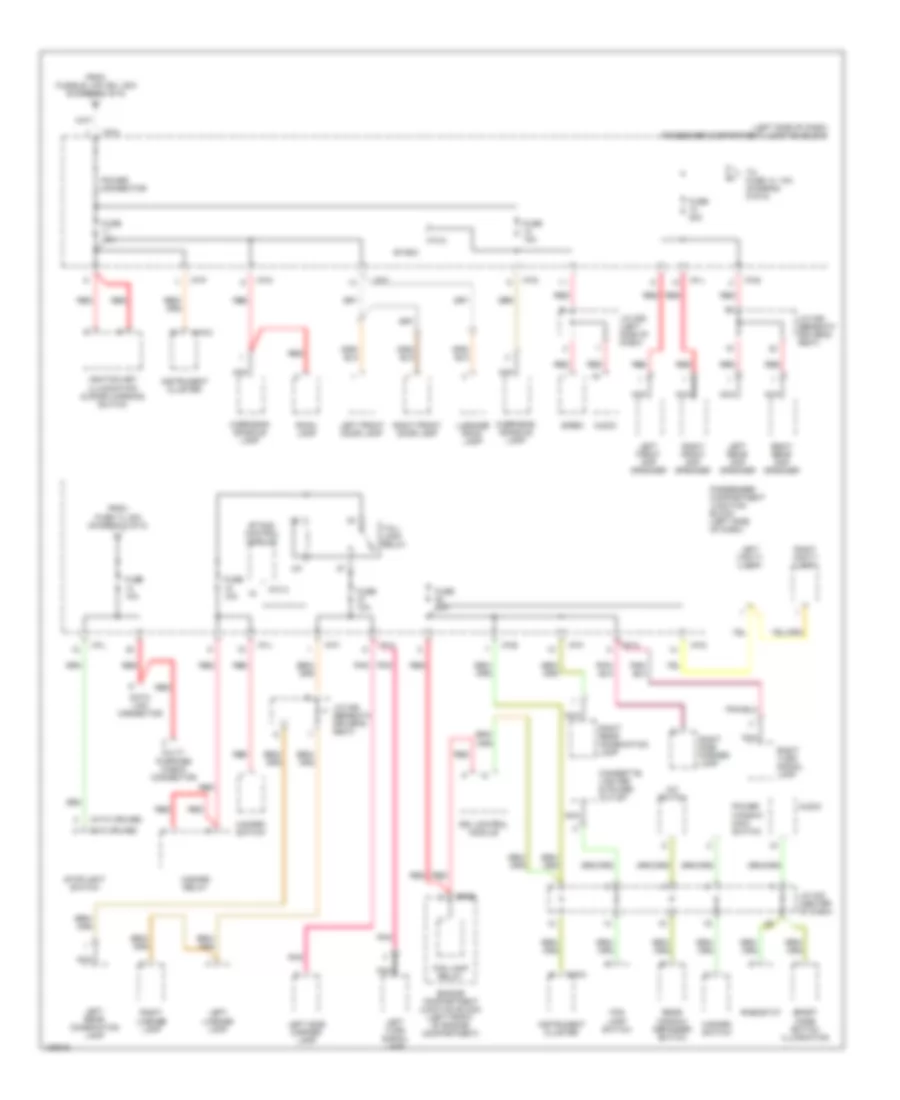

Электросхема блока предохранителей и реле (2 из 5) для Hyundai Santa Fe 2001

Электросхема блока предохранителей и реле (2 из 5) для Hyundai Santa Fe 2001 - Список элементов:

• (2.4l)
• (2.7l)
• (left front of engine compartment) engine compartment junction block
• 2.4l
• 2.7l
• A/c relay
• A/t
• Atm control relay
• Atm fuse 20a
• C21-2
• C22-2
• C22-4
• C23-1
• C23-2
• C24-2
• C37-1
• C37-2
• C37-3
• C37-4
• C37-5
• C37-6
• C50-1
• C50-2
• C50-3
• C50-4
• Condenser fan relay 1
• Door lock relay
• Door unlock relay
• Drl control module
• E/r-b
• E/r-d
• E/r-e
• E/r-f
• E/r-g
• E/r-h
• E/r-j
• E/tcm
• Ecm
• Ecm (2.7l only)
• Ecu (b+) fuse 15a
• Ecu 2 fuse 20a
• Engine control relay
• Fog lamp relay
• From ecu (b+) fuse, e 15a (diagram 2 of 5)
• From fusible link a (alt) 120a (diagram 1 of 5)
• Front fog lamp fuse 15a
• Fuel pump relay
• Fusible link (condenser fan) 20a
• Fusible link (ecu) 40a
• Fusible link (p/w) 30a
• Fusible link (radiator fan) 30a
• Generator
• Headlamp fuse (left) 10a
• Headlamp fuse (right) 10a
• Horn fuse 10a
• Horn relay
• I/p-a
• Injector
• Injector (2.7l)
• Injector fuse 15a
• Instrument cluster
• Left headlamp
• M/t
• M15-2
• Nca
• Oxygen sensor (bank 1/ sensor 2) (2.7l)
• Oxygen sensor (bank 2/ sensor 2) (2.7l)
• Passenger compartment junction block (left side of dash)
• Pcm
• Pnk
• Power window relay
• Radiator fan relay
• Red
• Right headlamp
• Tcm (2.7l only)
• To engine compartment junction block (ecu 1 fuse, 20a) (diagram 3 of 5)
• To fusible link (ecu) 40a (diagram 2 of 5)
• W/o drl
• With drl

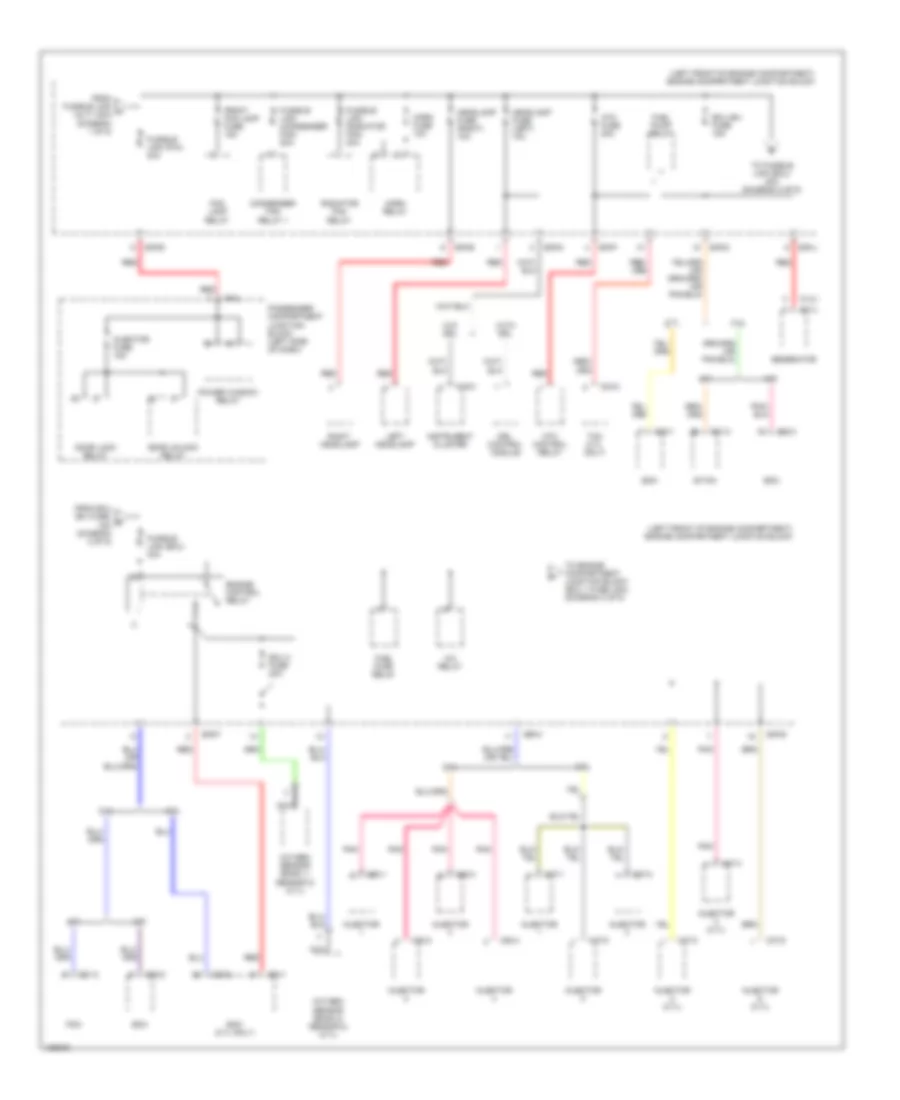

Электросхема блока предохранителей и реле (3 из 5) для Hyundai Santa Fe 2001

Электросхема блока предохранителей и реле (3 из 5) для Hyundai Santa Fe 2001 - Список элементов:

• (2.4l)
• (2.7l)
• (a/t)
• (left front of engine compartment) engine compartment junction block
• (m/t)
• 2.4l
• 2.7l
• A/c switch
• A/t
• Blower relay
• C21-2
• C22-1
• C23-1
• Camshaft position sensor
• Canister close valve (2.7l)
• Condenser fan relay 1
• Condenser fan relay 2
• Crankshaft position sensor
• Cruise control module
• Cruise remote control switch
• E/r-c
• E/r-e
• E/r-f
• E/r-g
• E/r-h
• E/tcm
• Ecm
• Ecu 1 fuse 20a
• Ecu 3 fuse 10a
• Electronic time & alarm control module (etacm)
• Engine compartment junction block (left front of engine compartment)
• From engine compartment f junction block (a/c relay) (diagram 2 of 5)
• From ignition switch (diagram 1 of 5)
• Front wiper motor
• Fuse 10a
• Fuse 20a
• Headlamp relay
• I/p-a
• I/p-b
• I/p-e
• I/p-h
• I/p-j
• I/p-l
• Idle speed control actuator
• Ignition coil
• Ignition failure sensor
• Instrument cluster (2.7l)
• J/c c33 (left front corner of engine compt)
• J/c m04 (left side of dash)
• M/t
• M13-3
• M15-1
• M20-3
• Mass air flow sensor (2.7l)
• Mode actuator
• Multi- function switch
• Nca
• Oxygen sensor
• Oxygen sensor (bank 1/ sensor 1)
• Oxygen sensor (bank 2/ sensor 1) (2.7l)
• Passenger compartment junction block (left side of dash)
• Pcm
• Pnk
• Purge control solenoid valve
• Radiator fan relay
• Rear wiper motor control module
• Red
• Stoplight switch (cruise control)
• Temperature switch
• Washer motor
• Wiper relay

Электросхема блока предохранителей и реле (4 из 5) для Hyundai Santa Fe 2001

Электросхема блока предохранителей и реле (4 из 5) для Hyundai Santa Fe 2001 - Список элементов:

• (diagram 1 of 5)
• 2.4l
• 2.7l
• A/t
• A/t pulse generator "a"
• A/t pulse generator "b"
• Abs control module
• Air bleeding connector
• Back-up lamp switch
• C21-2
• C22-4
• C23-1
• C24-1
• Defogger relay
• E/r-d
• E/r-g
• Ecm
• Engine compartment junction block (left front of engine compartment)
• Etacs control module
• From g fuse 21, 10a (diagram 4 of 5)
• From ignition switch c
• Fuse 10a
• Fuse 15a
• Fuse 30a
• G-sensor
• Hazard switch
• I/p-b
• I/p-f
• I/p-h
• I/p-j
• I/p-k
• I/p-l
• I/p-m
• I/p-p
• Instrument cluster
• J/c c33 (left front corner of engine compt)
• J/c m05 (left side of dash)
• Left power outside mirror motor
• M/t
• M13-3
• M15-1
• M15-2
• M15-3
• Nca
• Passenger compartment junction block (left side of dash)
• Pcm
• Pnk
• Pre- excitation resistor
• Rear window defogger (+)
• Rear window defogger switch
• Red
• Right power outside mirror motor
• Srs control module
• Tcm (2.7l only)
• To fuse 22, 10a (diagram 4 of 5)
• Transaxle range switch
• Vehicle speed sensor

Электросхема блока предохранителей и реле (5 из 5) для Hyundai Santa Fe 2001

Электросхема блока предохранителей и реле (5 из 5) для Hyundai Santa Fe 2001 - Список элементов:

• (left side of dash) passenger compartment junction block
• (w/o cruise)
• (with cruise)
• A/c switch
• Audio
• Cigarette lighter & power outlet
• Data link connector
• Drl control module
• E/r-e
• Engine compartment junction block (left front of engine compartment)
• Etacm
• Etacs control module
• Fog lamp relay
• Fog lamp switch
• From fuse 13, 20a (diagram 5 of 5)
• From fusible link (b+), 50a (diagram 1 of 5)
• Fuse 10a
• Fuse 20a
• Hazard relay
• Hazard switch
• I/p-a
• I/p-b
• I/p-c
• I/p-d
• I/p-e
• I/p-f
• I/p-j
• I/p-l
• I/p-p
• Ignition key illumination & door warning switch
• Instrument cluster
• J/c m05 (left side of dash)
• J/c m40 (center of dash)
• J/c m46 (beneath driver's seat)
• Left front amp speaker
• Left front door lamp
• Left license lamp
• Left rear amp speaker
• Left rear combination lamp
• Left side marker lamp
• Left turn signal lamp
• Left vanity lamp
• Luggage room lamp
• M13-3
• M15-2
• Multi- purpose check connector
• Nca
• Overhead console lamp
• Passenger compartment junction block (left side of dash)
• Pnk
• Power connector
• Power window main switch
• Rear window defogger switch
• Red
• Rheostat
• Right front amp speaker
• Right front door lamp
• Right license lamp
• Right rear amp speaker
• Right rear combination lamp
• Right side marker lamp
• Right turn signal lamp
• Right vanity lamp
• Room lamp
• Siren
• Sport mode switch illumination
• Stoplight switch
• Tail- lamp relay
• To fuse 14, 10a (diagram 5 of 5)
