Электросхемы ПРЕДУПРЕЖДАЮЩИЕ СИСТЕМЫ Chrysler Town amp; Country Touring 2011

ПРЕДУПРЕЖДАЮЩИЕ СИСТЕМЫ

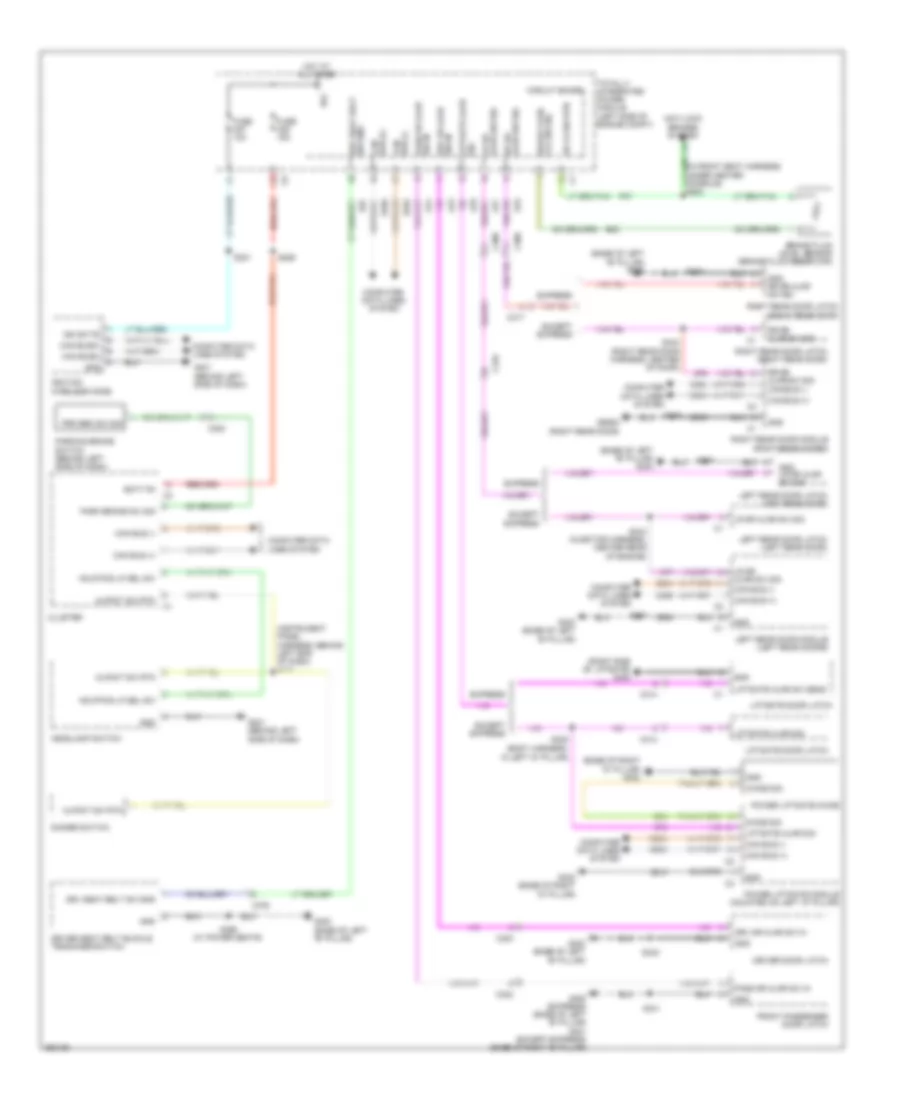

Электросхема сигнала для Chrysler Town amp; Country Touring 2011

Электросхема сигнала для Chrysler Town amp; Country Touring 2011 - Список элементов:

• (base of left "b" pillar) g300
• (base of right "d" pillar) g302
• (body harness, in left "d" pillar)
• (in front seat harness, under center console) s202
• (instrument panel harness, behind left end of dash) s222
• (right side of liftgate) g305
• Anti-lock brakes system
• B(+)
• Batt fd
• Brake fluid level sensor (brake fluid reservoir)
• Brake fluid lvl sw sig
• C200
• C300
• C302
• C308
• C309
• C314
• C316
• C317
• C376
• Can bus (+)
• Can bus (-)
• Can bus2+
• Can bus2-
• Chime sig
• Circuit board
• Cluster
• Computer data
• Computer data lines system
• D264
• D265
• Dimmer switch
• Dr lk sw rtn
• Driver door latch
• Driver seat belt buckle tensioner/switch
• Drv dr ajar sw in
• Drv seat belt sw sns
• Except express
• Express
• Front passenger door latch
• Fuse m20 15a
• Fuse m27 10a
• G201 (behind left side of dash)
• G300 (base of left "b" pillar)
• G300 (express) (base of left "b" pillar) g301 (except express) (base of right "b" pillar)
• G302 (base of right "d" pillar)
• G74
• G75
• G76
• G77
• G78
• G909a (right rear door)
• Gnd
• Gnd lr dr ajar sw sig
• Gnd rr dr ajar sw sig
• Hdlp/fog lp sel sw
• Headlamp switch
• Hot at all times
• Ign sw fd
• Ignition wireless node
• Left rear door latch (left rear door)
• Left rear door module (left rear doors)
• Liftgate ajar sig
• Liftgate ajar sw sens
• Liftgate door latch
• Lines system
• Lr dr ajar sw sig
• Mlfnct sw rtn
• Park brake sw sig
• Parking brake switch (behind left side of dash)
• Pass dr ajar sw in
• Power liftgate chime
• Power liftgate module (mounted on left "d" pillar)
• Prk brk sw sig
• Q94
• R57
• Right rear door latch (right rear door)
• Right rear door module (right rear doors)
• Rr dr ajar sw sig
• S226
• S301
• S328
• S341
• S342
• S343 (right rear door harness, center of door)
• S344 (injector harness, center rear of engine)
• S346
• S347
• S465 (w/ power seats)
• Sw sns drv seat belt
• Totally integrated power module (left side of engine compt)
• Z908
• Z909
• Z910

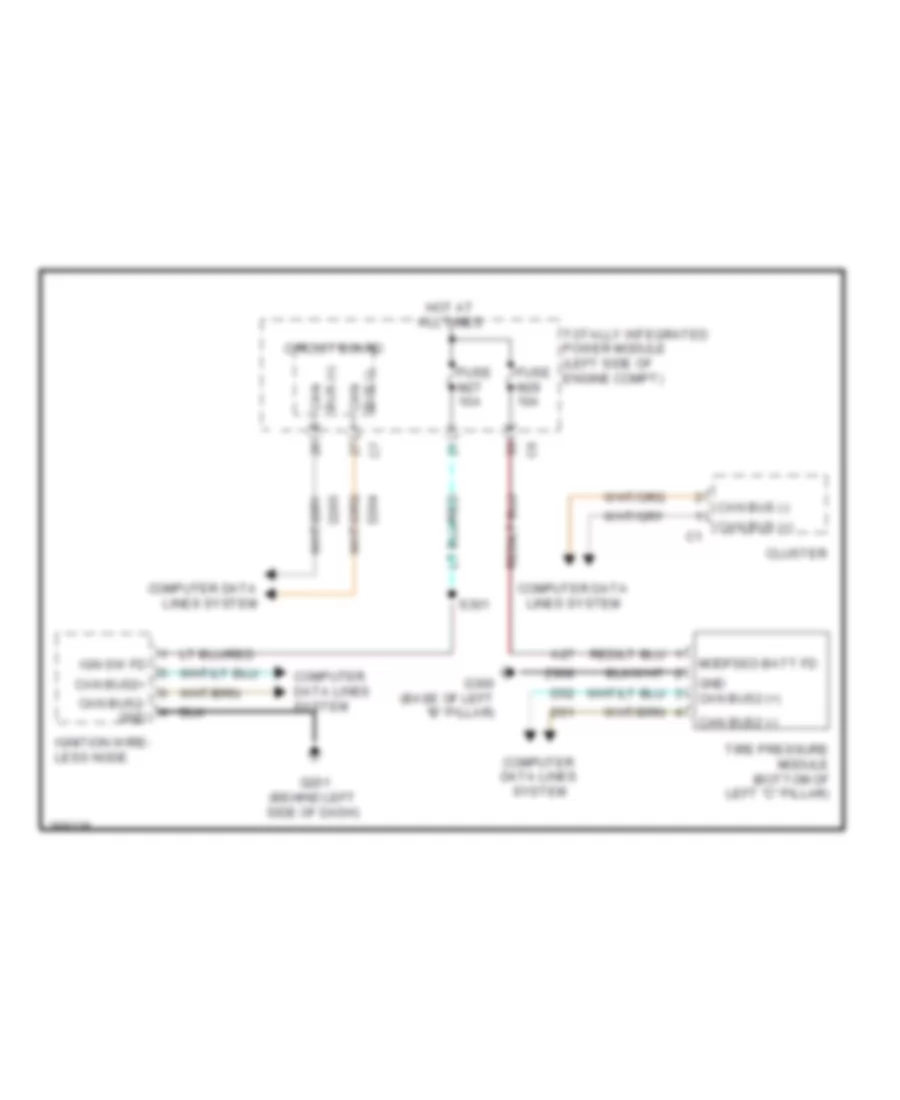

Электросхема системы контроля давления в шинах для Chrysler Town amp; Country Touring 2011

Электросхема системы контроля давления в шинах для Chrysler Town amp; Country Touring 2011 - Список элементов:

• A27
• Bus (-) can
• Can bus (+)
• Can bus (-)
• Can bus2 (-)
• Can bus2+
• Can bus2- gnd
• Circuit board
• Cluster
• Computer data lines system
• D264
• D265
• D51
• D52
• Fuse m27 10a
• Fuse m29 10a
• G201 (behind left side of dash)
• G300 (base of left "b" pillar)
• Gnd can bus2 (+)
• Hot at all times
• Ign sw fd
• Ignition wire- less node
• Modfsed batt fd
• S301
• Tire pressure module (bottom of left "c" pillar)
• Totally integrated power module (left side of engine compt)
• Z908
