ПРЕДУПРЕЖДАЮЩИЕ СИСТЕМЫ

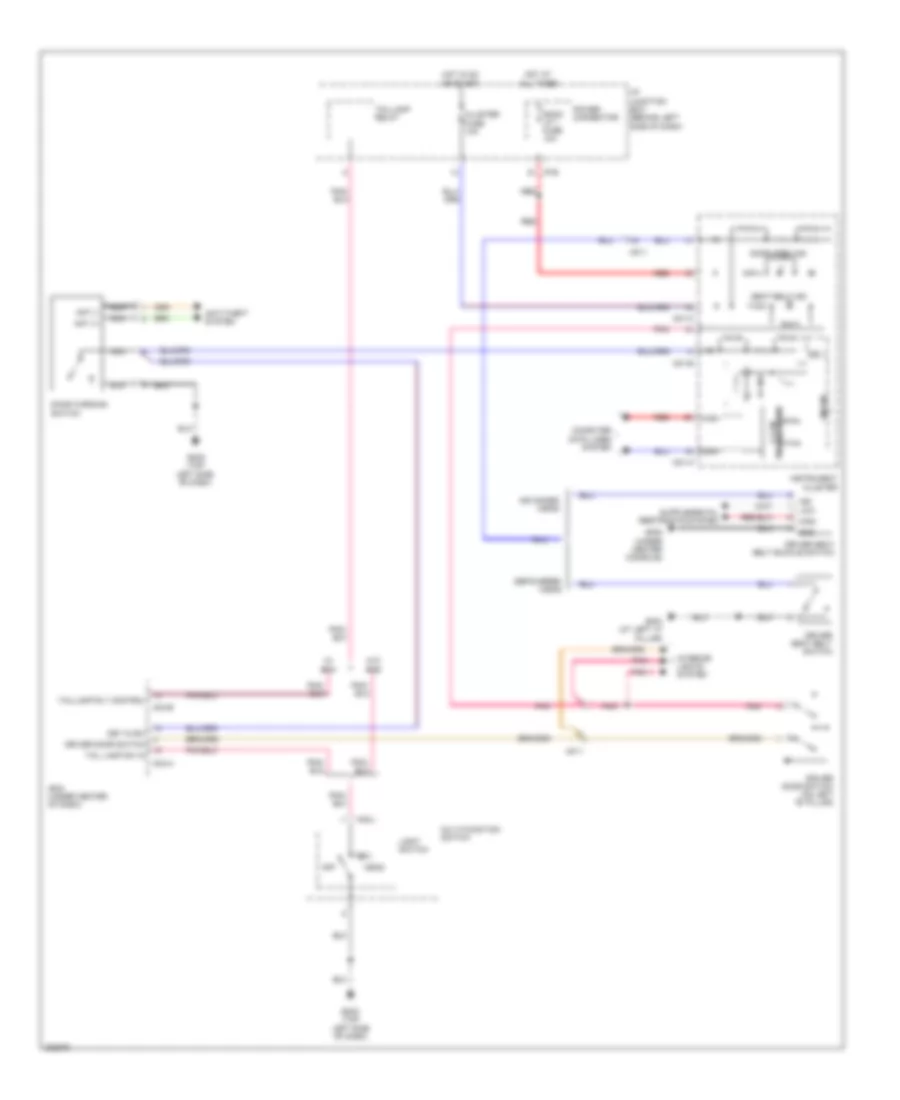

Электросхема сигнала для Hyundai Accent GS 2013
Электросхема сигнала для Hyundai Accent GS 2013 - Список элементов:
- (top left side of dash)
- Advanced a/bag
- Ant (+)
- Ant (-)
- Anti-theft system
- Bcm (under center of dash)
- C-can transceiver
- Cluster fuse 10a
- Computer data lines system
- Depowered a/bag
- Door open ind
- Door warning switch
- Driver door switch
- Driver door switch (on left "b" pillar)
- Driver seat belt buckle switch
- Driver seat belt switch
- Gf03 (at left "a" pillar)
- Gf05 (under center console)
- Gm03
- Gm03 (top left side of dash)
- Gnd
- Head
- High
- Hot at all times
- Hot in on or start
- I/p junction box (behind left side of dash)
- I/p-b
- Ind
- Instrument cluster
- Interior lights system
- Key in sw
- Light switch
- Low
- M01-a
- M01-b
- M01-c
- M02-l
- M04-a
- M04-b
- Mf11
- Micom
- Multi-function switch
- Nca
- Off
- Pnk
- Power connector
- Red
- Room lp 1 fuse 10a
- Seat belt ind
- Tail
- Tail lamp sw in
- Taillamp relay
- Taillamp rly control
- W/ bcm
- W/o bcm

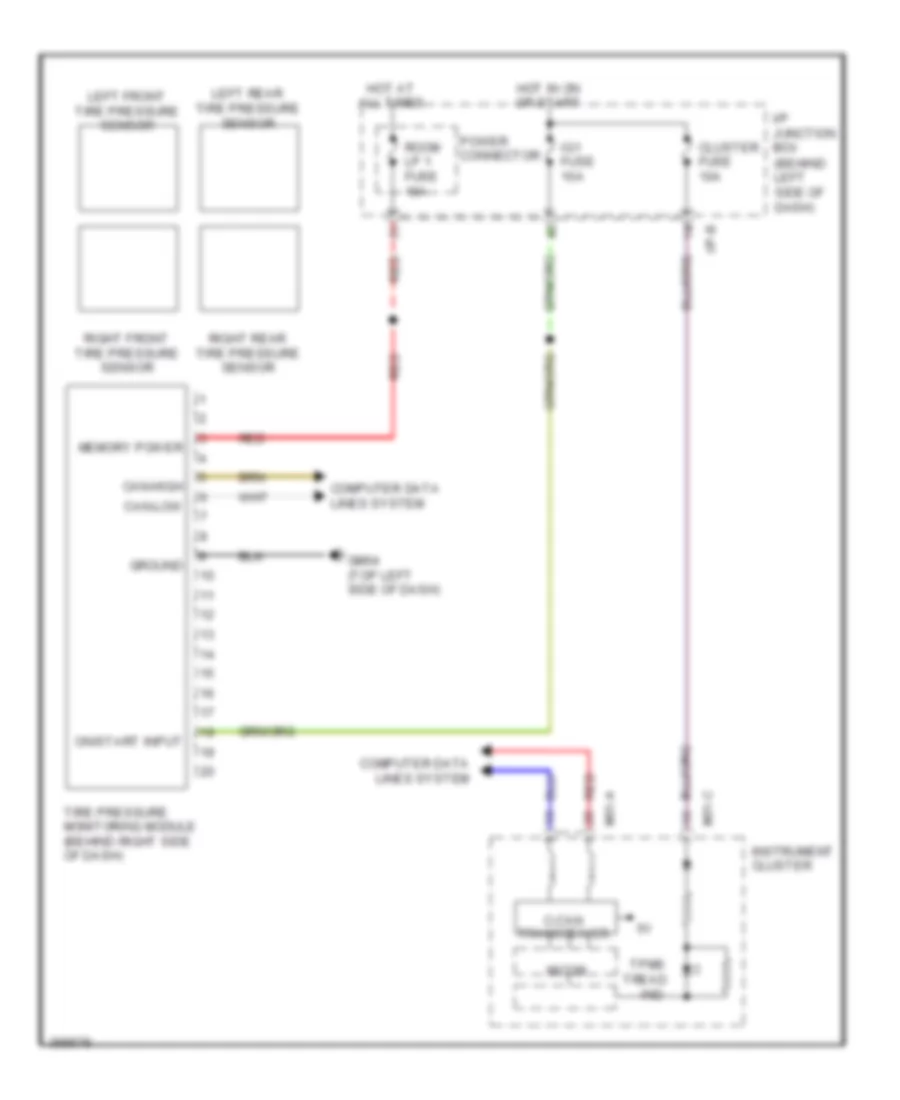

Электросхема системы контроля давления в шинах для Hyundai Accent GS 2013
Электросхема системы контроля давления в шинах для Hyundai Accent GS 2013 - Список элементов:
- (behind left side of dash)
- C-can transceiver
- Can-high
- Can-low
- Cluster fuse 10a
- Computer data lines system
- Gm04 (top left side of dash)
- Ground
- Hot at all times
- Hot in on or start
- I/p junction box
- I/p-b
- Ig1 fuse 10a
- Ind
- Instrument cluster
- Left front tire pressure sensor
- Left rear tire pressure sensor
- M01-a
- M01-c
- Memory power
- Micom
- On/start input
- Power connector
- Red
- Right front tire pressure sensor
- Right rear tire pressure sensor
- Room lp 1 fuse 10a
- Tire pressure monitoring module (behind right side of dash)
- Tpms tread
