Электросхемы ПРИБОРНАЯ ПАНЕЛЬ Hyundai Tucson SE 2007

ПРИБОРНАЯ ПАНЕЛЬ

схема часов для Hyundai Tucson SE 2007

схема часов для Hyundai Tucson SE 2007 - Список элементов:

• (under right center of dash) g01
• Digital clock
• Fuse 10a
• Hot at all times
• Hot in acc or on
• I/p junction box (under left side of dash, near kick panel)
• I/p-a
• I/p-c
• Interior lights system
• J/c m09 (under left side of dash)
• Red

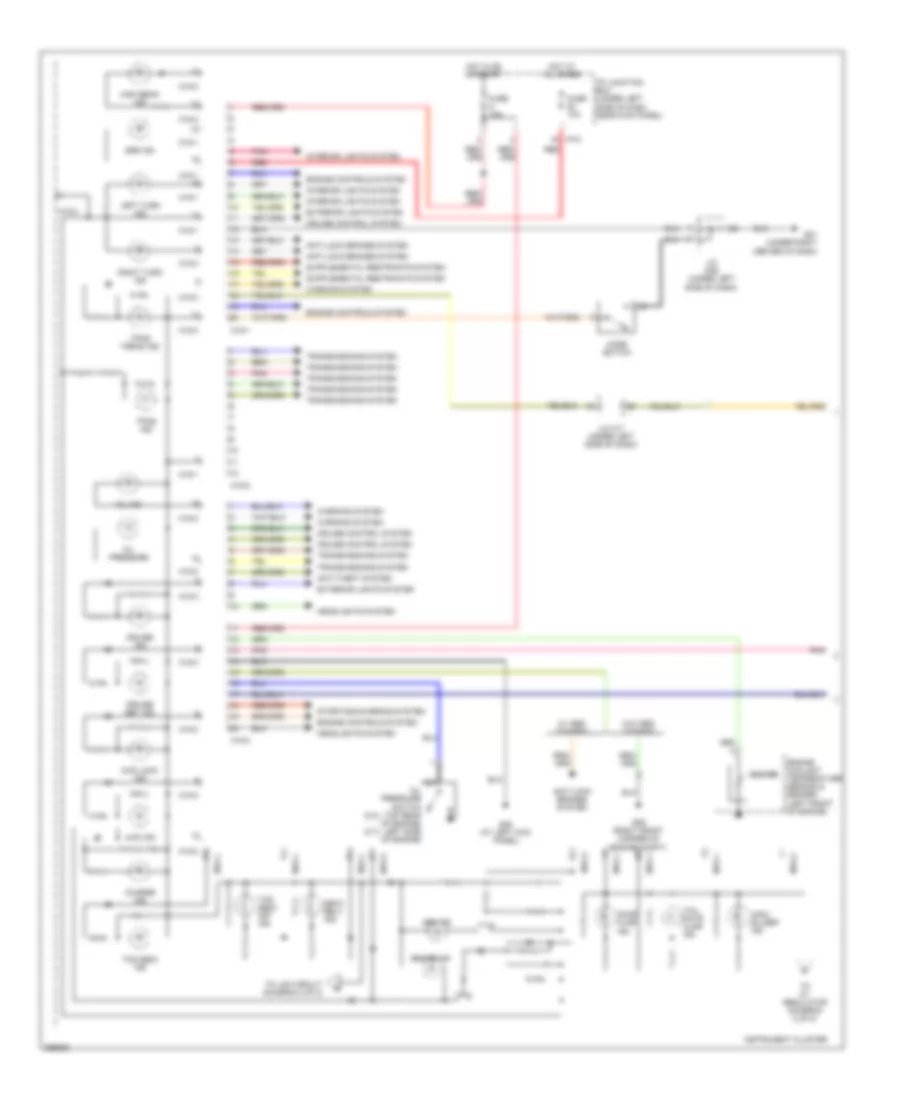

Электросхема панели приборов (1 из 2) для Hyundai Tucson SE 2007

Электросхема панели приборов (1 из 2) для Hyundai Tucson SE 2007 - Список элементов:

• 4wd ind
• 4wd lock ind
• Abs ind
• Anti-lock brakes system
• Anti-theft system
• Brake ind
• Charge ind
• Cruise control system
• Cruise ind
• Cruise set ind
• Door ajar ind
• Engine controls system
• Engine coolant temperature sensor & sender (left front of engine)
• Exterior lights system
• Fuse 10a
• G01 (under right center of dash)
• G05 (at left kick panel)
• G09 (right front corner of engine compt) m15-1
• Headlights system
• High beam ind
• Hot at all times
• Hot in on or start
• I/p junction box (under left side of dash, near kick panel)
• I/p-c
• Immo- bilizer ind
• Instrument cluster
• Interior lights system
• J/c m09 (under left side of dash)
• J/c m17 (under left side of dash)
• Left turn ind
• M15-1
• M15-2
• M15-3
• M15-3 m15-1
• Mil ind
• Mode switch
• Nca
• Oil pressure
• Oil pressure switch (2.0l: top rear of engine) (2.7l: left side of engine)
• Pnk
• Red
• Right turn ind
• Seat belt ind
• Sender
• Srs ind
• Starting/charging system
• Tail gate ajar ind
• Tcs (esc) ind
• Tcs (esc) off ind
• To 5v regulator (diagram 2 of 2)
• To lcd circuit (diagram 2 of 2)
• Tpms ind
• Tpms tread ind
• Transmissions system
• W/ abs/ tcs/esc
• W/o abs/ tcs/esc
• Warning system

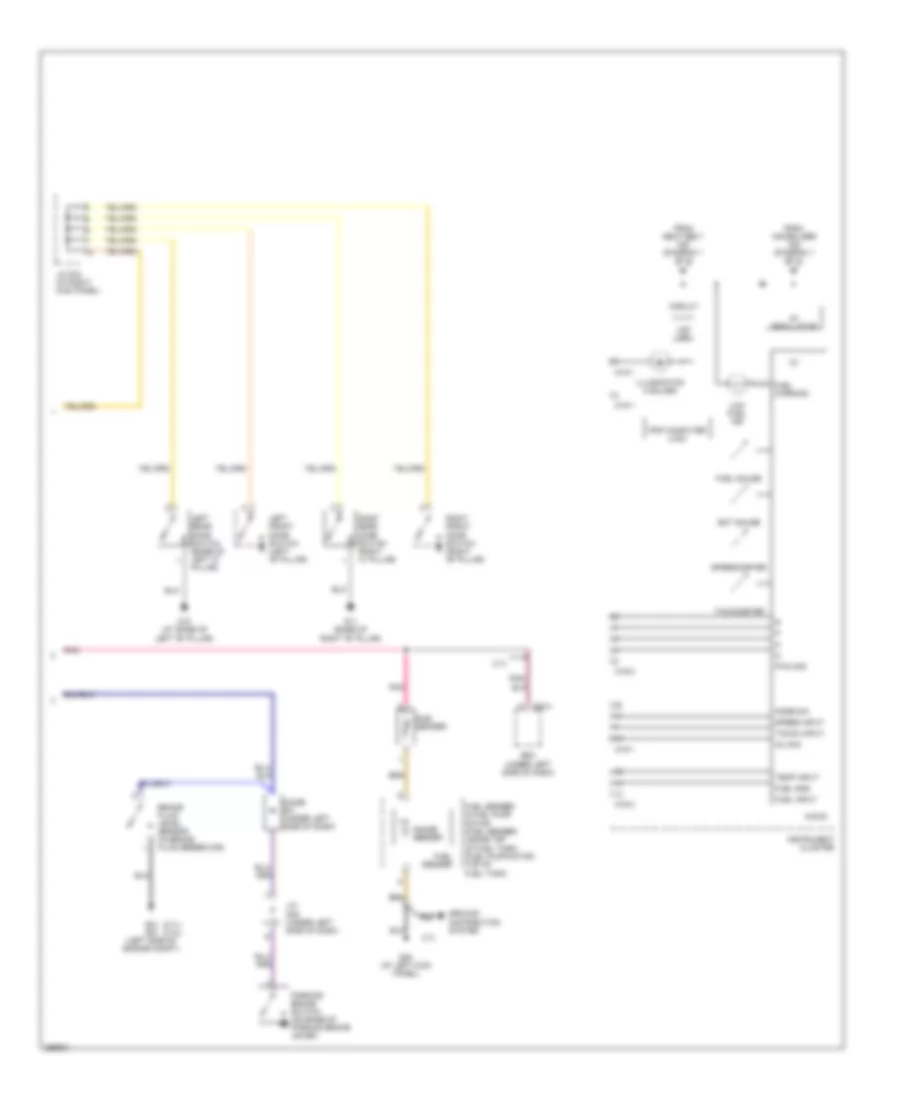

Электросхема панели приборов (2 из 2) для Hyundai Tucson SE 2007

Электросхема панели приборов (2 из 2) для Hyundai Tucson SE 2007 - Список элементов:

• (2.7l) (2.0l)
• 2.7l
• 5v regulator
• Brake fluid level sensor (in brake fluid reservoir)
• C30-4
• Circuit
• Diode z01 (under left side of dash)
• Ecm (under left side of dash)
• Ect gauge
• From immobilizer ind (diagram 1 of 2)
• From seat belt ind (diagram 1 of 2)
• Fuel gauge
• Fuel gnd
• Fuel input
• Fuel sender
• Fuel sender & fuel pump motor (fuel sender: inside top of fuel tank) (fuel pump motor: top of fuel tank)
• Fuel warning
• G05 (at left kick panel)
• G10 (at base of left "b" pillar)
• G11 (base of right "b" pillar)
• G21 g27 (left side of engine compt)
• Gauge sender
• Ground distribution system
• Illumination (4 bulbs)
• Inj sig
• Instrument cluster
• J/c f02 (at right kick panel)
• J/c m08 (under left side of dash)
• Lcd led
• Left front door switch (left "b" pillar)
• Left rear door switch (base of left "c" pillar)
• Low fuel ind
• M15-1
• M15-2
• M15-3
• Micom
• Mode sw
• Parking brake switch (on base of parking brake lever)
• Pnk
• Pwm sig
• Right front door switch (right "b" pillar)
• Right rear door switch (right "c" pillar)
• Speed input
• Speedometer
• Sub sender
• Tacho input
• Tachometer
• Temp input
• Trip computer (lcd)
