Электросхемы СИСТЕМА КОНДИЦИОНЕРА Chrysler PT Cruiser GT 2006

СИСТЕМА КОНДИЦИОНЕРА

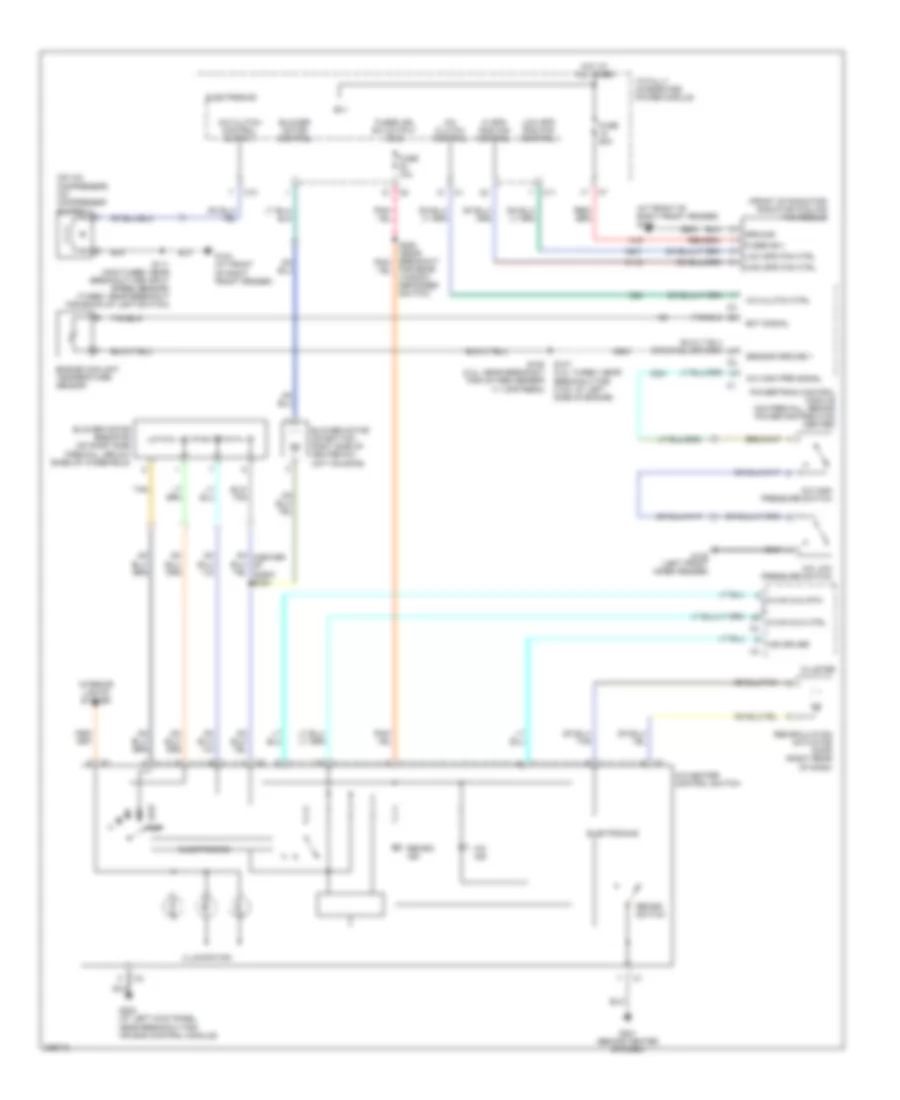

Электросхема кондиционера с ручный управлением для Chrysler PT Cruiser GT 2006

Электросхема кондиционера с ручный управлением для Chrysler PT Cruiser GT 2006 - Список элементов:

• (at front of right front fender) g104
• (front of radiator) radiator cooling fan module
• (on a/c compressor) a/c compressor clutch
• A/c clutch control
• A/c clutch control output
• A/c clutch ctrl
• A/c high pre signal
• A/c high pressure switch
• A/c ind
• A/c low pressure switch
• A/c-heater control switch
• A16
• B(+)
• Blower motor (on bottom right side of heater-a/c unit housing)
• Blower motor control
• Blower motor resistor (on right side firewall, below base of windshield)
• C10
• C11
• C221
• C28
• Cluster
• Ect signal
• Electronics
• Engine coolant temperature sensor
• For rear window defogger switch)
• Fuse 10a
• Fuse 50a
• Fused b(+)
• Fused ign sw output (run)
• G104 (at front of right front fender)
• G105 (left front inner fender)
• G201 (behind center of dash)
• G202 (at left kick panel, near breakout for air bag control module)
• Ground
• Hi spd rad fan control
• High spd fan ctrl
• Hot at all times
• Hvac mux ctrl
• Hvac mux rtn
• Illumination
• Ind driver
• Interior lights system
• K900
• Low off
• Low spd fan ctrl
• Low spd rad fan control
• N112
• N201
• Powertrain control module (on firewall, behind power distribution center)
• Recirc ind
• Recirc switch
• Recirculation actuator door (right rear of dash)
• S106 (2.4l: near breakout for oxygen sensor 1/1 upstream)
• S107 (2.4l turbo: near breakout for c103, at left side of engine)
• S111 (non-turbo: near breakout for input speed sensor) (turbo: near breakout for back-up light switch)
• Sensor ground 1
• Tan
• Totally integrated power module
• Z903
