Электросхемы СИСТЕМА КОНДИЦИОНЕРА Hyundai Accent GS 2012

СИСТЕМА КОНДИЦИОНЕРА

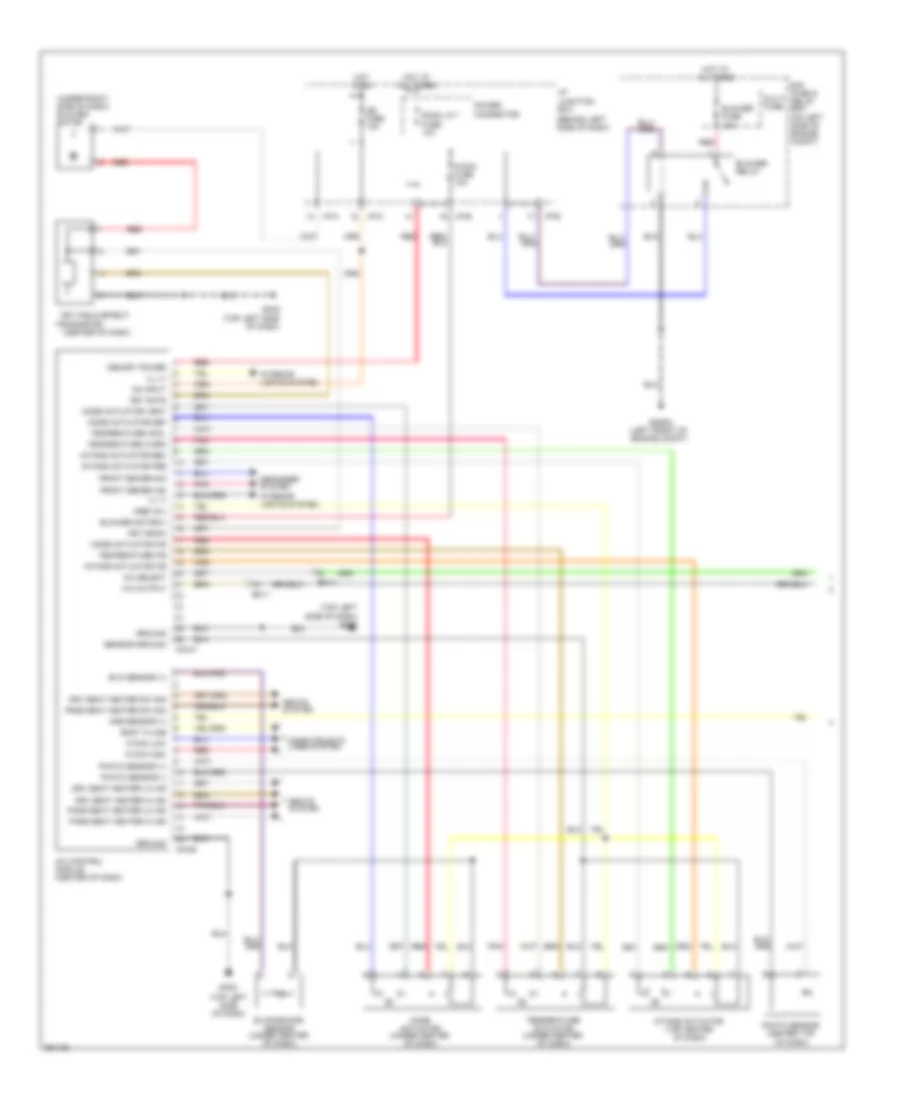

Электросхема кондиционера (1 из 2) для Hyundai Accent GS 2012

Электросхема кондиционера (1 из 2) для Hyundai Accent GS 2012 - Список элементов:

• (behind left side of dash)
• (center of dash)
• (top left side of dash)
• (top left side of dash) gm02
• (under right side of dash) blower motor
• A/c control module (center of dash)
• A/c output
• A/c select
• A/con fuse 10a
• Amb sensor (+)
• Blower fuse 40a
• Blower motor(+)
• Blower relay
• Body k-line
• C-can high
• C-can low
• Compute data lines system
• Defogger system
• Drv seat heater hi ind
• Drv seat heater lo ind
• Drv seat heater sw sig
• E/r fuse & relay box (on left side of engine compt)
• Em11
• Em14
• Eva sensor (+)
• Evaporator sensor (under center of dash)
• Fet (field effect
• Fet drain
• Fet gate
• Front deicer ind
• Front deicer sig
• Ggg02 (left front of engine compt)
• Gm02
• Gm02 (top left side of dash)
• Ground
• Hot at all times
• Hot in on
• I/p junction box
• I/p-a
• I/p-b
• I/p-c
• I/p-e
• Ig2 fuse 10a
• Ill (+)
• Ill (-)
• Intake actuator (top center of dash)
• Intake actuator f/b
• Intake actuator fre
• Intake actuator rec
• Interior lights system
• M33-a
• M33-b
• Memory power
• Mode actuator (under center of dash)
• Mode actuator def
• Mode actuator f/b
• Mode actuator vent
• Multi fuse
• On input
• Pass seat heater hi ind
• Pass seat heater lo ind
• Pass seat heater sw sig
• Photo sensor (+)
• Photo sensor (-)
• Photo sensor (center top of dash)
• Pnk
• Power connector
• Red
• Room lp 1 fuse 10a
• Seats system
• Sensor ground
• Temperature actuator (under center of dash)
• Temperature cool
• Temperature f/b
• Temperature warm
• Transistor)
• Vref (5v)

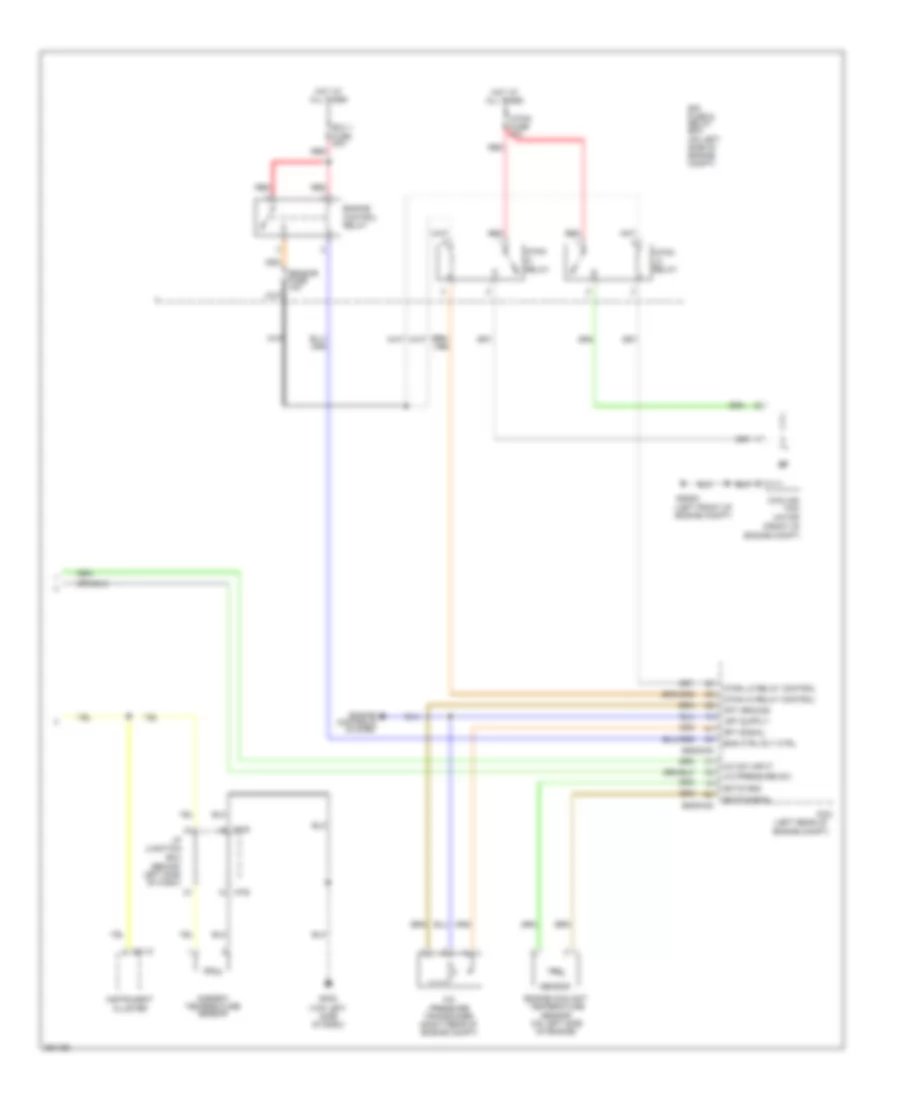

Электросхема кондиционера (2 из 2) для Hyundai Accent GS 2012

Электросхема кондиционера (2 из 2) для Hyundai Accent GS 2012 - Список элементов:

• (behind left side of dash)
• (front of engine compt)
• (left rear of engine compt)
• (top left side of dash)
• A/c pressure sw
• A/c pressure transducer (right rear of engine compt)
• A/c sw input
• Ambient temperature sensor
• Apt ground
• Apt signal
• C/fan
• C/fan fuse 40a
• C/fan hi relay control
• C/fan lo relay control
• Control relay
• Cooling fan motor
• E/r fuse & relay box (on left side of engine compt)
• Ects gnd
• Ects signal
• Ecu 1 fuse 30a
• Egga-ag
• Egga-kg
• Eng ctrl rly ctrl
• Engine
• Engine controls system
• Engine coolant temperature sensor (on left side of engine)
• Ggg02 (left front of engine compt)
• Gm02
• Hi relay
• Hot at all times
• I/p junction box
• I/p-b
• I/p-e
• Instrument cluster
• Lo relay
• M01-c
• Pcm
• Red
• Sensor
• Sensor fuse 10a

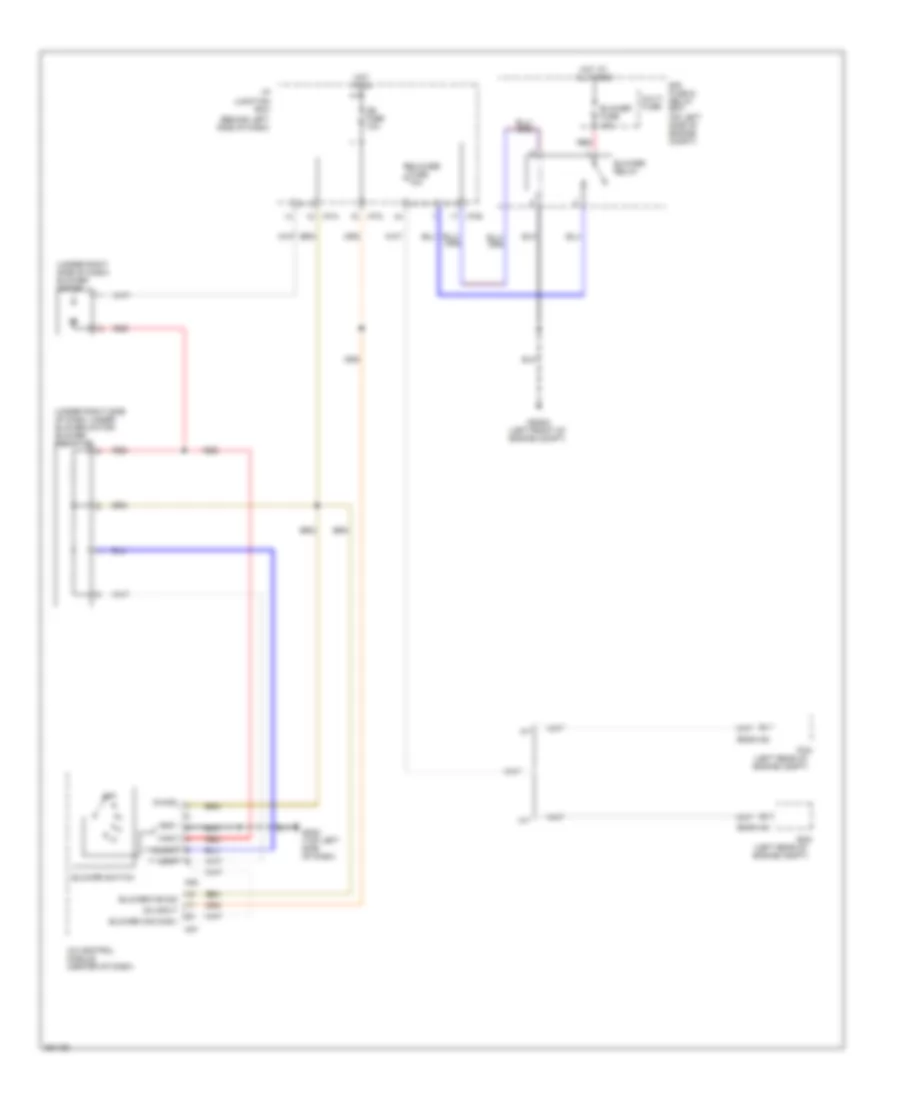

схема нагревателя для Hyundai Accent GS 2012

схема нагревателя для Hyundai Accent GS 2012 - Список элементов:

• (behind left side of dash)
• (left rear of engine compt)
• (under right side of dash) blower motor
• (under right side of dash, under blower motor) blower resistor
• A/c control module (center of dash)
• A/t
• Blower com sig(-)
• Blower f/b sig
• Blower fuse 10a
• Blower fuse 40a
• Blower relay
• Blower switch
• E/r fuse & relay box (on left side of engine compt)
• Ecm
• Egga-ag
• Eggm-ag
• Ggg02 (left front of engine compt)
• Gm02 (top left side of dash)
• Gnd
• High
• Hot at all times
• Hot in on
• I/p junction box
• I/p-a
• I/p-c
• I/p-e
• Ig2 fuse 10a
• Iii
• Iiii
• Low
• M/high
• M/low
• M/t
• M07
• M08
• Multi fuse
• Off
• On input
• Pcm
• Red

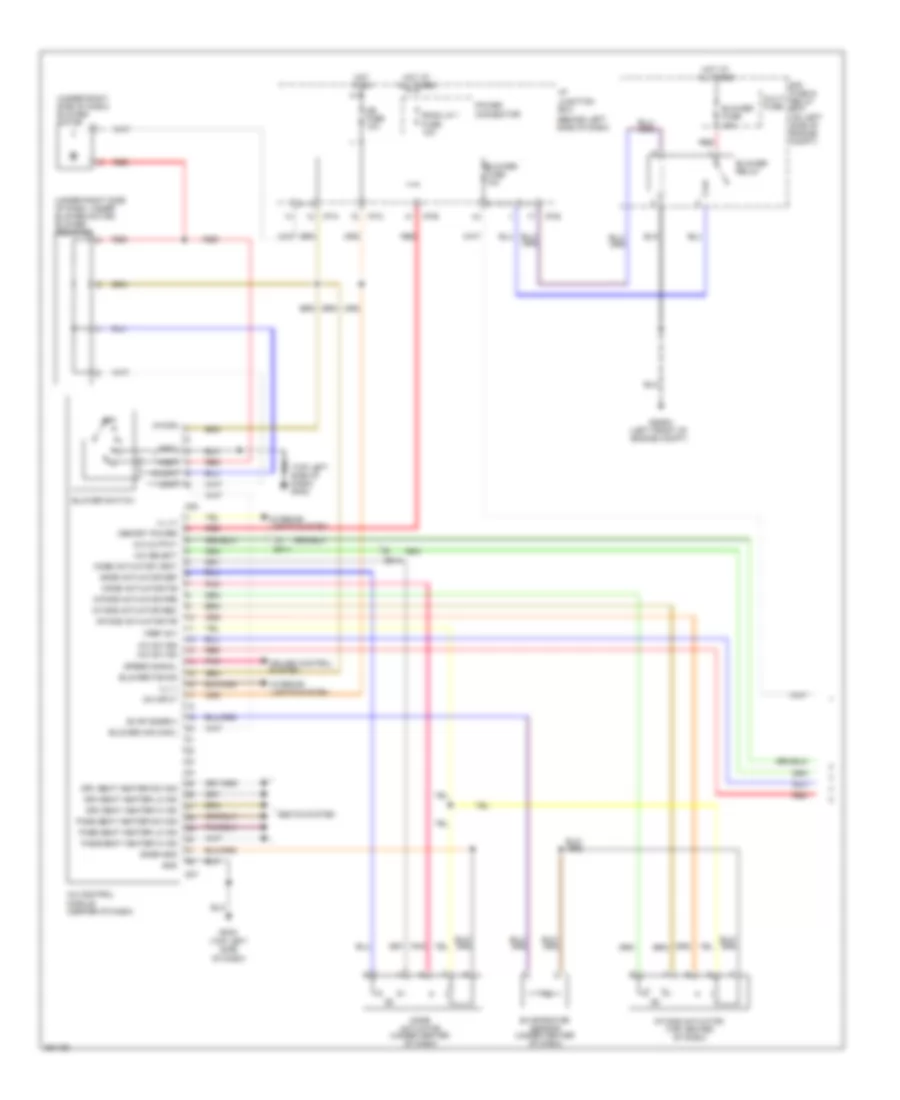

Электросхема кондиционера с ручный управлением (1 из 2) для Hyundai Accent GS 2012

Электросхема кондиционера с ручный управлением (1 из 2) для Hyundai Accent GS 2012 - Список элементов:

• (behind left side of dash)
• (top left side of dash)
• (top left side of dash) gm02
• (under right side of dash) blower motor
• (under right side of dash, under blower motor) blower resistor
• A/c control module (center of dash)
• A/c output
• A/c select
• A/c sw ind
• A/c sw sig
• Blower com sig(-)
• Blower f/b sig
• Blower fuse 10a
• Blower fuse 40a
• Blower relay
• Blower switch
• Cruise control system
• Drv seat heater hi ind
• Drv seat heater lo ind
• Drv seat heater sw sig
• E/r fuse & relay box (on left side of engine compt)
• Em11
• Em14
• Evap snsr(+)
• Evaporator sensor (under center of dash)
• Ggg02 (left front of engine compt)
• Gm02
• Gnd
• High
• Hot at all times
• Hot in on
• I/p junction box
• I/p-a
• I/p-b
• I/p-c
• I/p-e
• Ig2 fuse 10a
• Iii
• Iiii
• Ill (+)
• Ill (-)
• Intake actuator (top center of dash)
• Intake actuator f/b
• Intake actuator fre
• Intake actuator rec
• Interior lights system
• Low
• M/high
• M/low
• M07
• M08
• Memory power
• Mode actuator (under center of dash)
• Mode actuator def
• Mode actuator f/b
• Mode actuator vent
• Multi fuse
• Off
• On input
• Pass seat heater hi ind
• Pass seat heater lo ind
• Pass seat heater sw sig
• Pnk
• Power connector
• Red
• Room lp 1 fuse 10a
• Seats system
• Snsr gnd
• Speed signal
• Vref (5v)

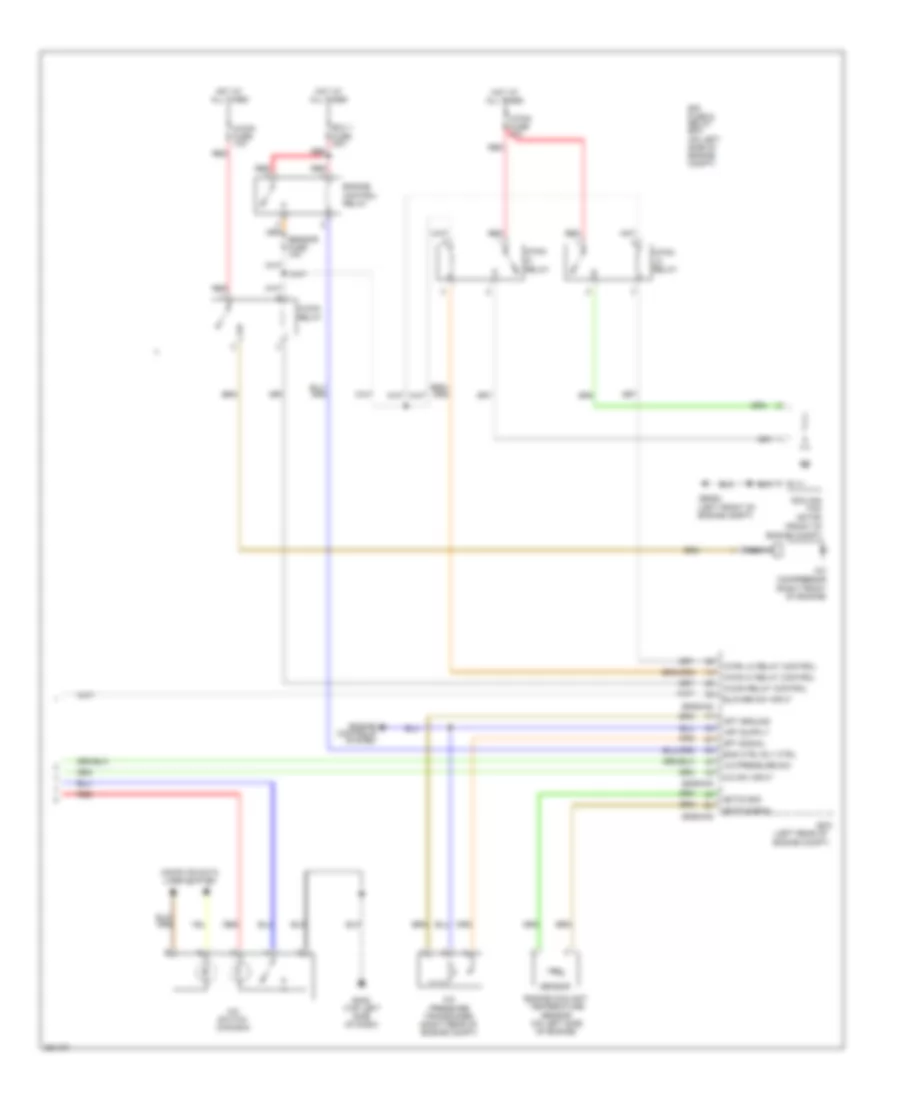

Электросхема кондиционера с ручный управлением (2 из 2) для Hyundai Accent GS 2012

Электросхема кондиционера с ручный управлением (2 из 2) для Hyundai Accent GS 2012 - Список элементов:

• (front of engine compt)
• (left rear of engine compt)
• (right front of engine)
• A/c compressor
• A/c pressure sw
• A/c pressure transducer (right rear of engine compt)
• A/c sw input
• A/c switch (canada)
• A/con
• A/con fuse 10a
• A/con relay control
• Apt ground
• Apt signal
• Blower sw input
• C/fan
• C/fan fuse 40a
• C/fan hi relay control
• C/fan lo relay control
• Compute data lines system
• Control relay
• Cooling fan motor
• E/r fuse & relay box (on left side of engine compt)
• Ecm
• Ects gnd
• Ects signal
• Ecu 1 fuse 30a
• Eggm-ag
• Eggm-kg
• Eng ctrl rly ctrl
• Engine
• Engine controls system
• Engine coolant temperature sensor (on left side of engine)
• Ggg02 (left front of engine compt)
• Gm02 (top left side of dash)
• Hi relay
• Hot at all times
• Lo relay
• Nca
• Red
• Relay
• Sensor
• Sensor fuse 10a
