Электросхемы СИСТЕМА КОНДИЦИОНЕРА Hyundai Santa Fe GLS 2010

СИСТЕМА КОНДИЦИОНЕРА

Электросхема кондиционера (1 из 2) для Hyundai Santa Fe GLS 2010

Электросхема кондиционера (1 из 2) для Hyundai Santa Fe GLS 2010 - Список элементов:

• (behind main instrument cluster) gm02
• (below right side of dash, on bottom of hvac assembly) blower motor
• (right side of dash) gm05
• A/c control module (behind center of dash)
• A/c output (hi)
• A/c select (hi)
• A/con fuse 10a
• A/con sw fuse 10a
• Amb sens in
• Ambient sensor (near center of radiator)
• Auto light & photo sensor (top of dash)
• Battery power
• Blower fuse 30a
• Blower max sw in
• Blower mtr (+)
• Blower relay
• Blr fuse 40a
• Clock fuse 15a
• Computer data lines system
• Cool temp actr
• Cruise control system
• Def ind output
• Def mode actr
• Def select sig
• Driver temperature actuator (on hvac assembly)
• Drv cool temp actr
• Drv f/b temp actr
• Drv photo sens
• Drv warm temp actr
• E/r junction box (left rear of engine compt)
• Evap sens (+)
• Evaporator sensor (on hvac assembly)
• F/b intake actr
• F/b mode actr
• F/b temp actr
• Fet (field effect transistor)
• Fet(d)
• Fet(g)
• Fre intake actr
• Gm02 (behind main instrument cluster)
• Ground
• Hi scan
• Hot at all times
• Hot in on
• I/p junction box
• I/p-a
• I/p-j
• I/p-k
• I/p-m
• Ill (+)
• Ill (-)
• Incar mtr (-)
• Incar sens (+)
• Incar sensor (right side of instrument cluster)
• Intake actuator (on hvac assembly)
• Interior lights system
• M41-a
• M41-b
• On input
• Pass photo sens
• Photo sensor
• Pnk
• Rec intake actr
• Red
• Sens ref (+5v)
• Sensor ground
• Spd sens sig
• U/h-b
• Vent mode actr
• Warm temp actr
• Wts (+)

Электросхема кондиционера (2 из 2) для Hyundai Santa Fe GLS 2010

Электросхема кондиционера (2 из 2) для Hyundai Santa Fe GLS 2010 - Список элементов:

• (behind center of dash)
• (behind right side of front bumper) ge02
• (front of engine compt) condenser fan motor
• (or pnk)
• 2.4l
• 3.5l
• A/c comp sw
• A/c compressor (lower front of engine)
• A/c pressure transducer (behind right headlamp)
• A/c request sw
• A/con fuse 10a
• A/con relay
• A/con rly ctrl
• Apt gnd
• Apt sig
• Blower max sw in
• C130-b
• C30-b
• Chg-a
• Chg-k
• Clg-a
• Clg-b
• Con fan 1 fuse 40a
• Con fan 2 fuse 50a
• Condenser fan relay (high)
• Condenser fan relay (low)
• Cooling fuse 10a
• E/r junction box (left rear of engine compt)
• Ects gnd
• Ects sig
• Ecu main fuse 40a
• Engine control relay
• Engine coolant temperature sensor & sender (on rear of left cylinder head)
• Front defroster switch
• G31 (behind main instrument cluster)
• Gm03
• Hot at all times
• Hot in on or start
• Hot w/ engine control relay energized
• Ill
• Ind
• Interior lights system
• Mode actuator (on hvac assembly)
• Nca
• Pcm (left rear of engine compt)
• Pnk
• Red
• Rly ctrl
• Rly ctrl (high)
• Rly ctrl (low)
• Sender
• Sensor
• Sensor 1 fuse 10a
• Temperature actuator (on hvac assembly)
• Transmissions system
• U/h-c
• U/h-d
• W/ immo
• W/o immo

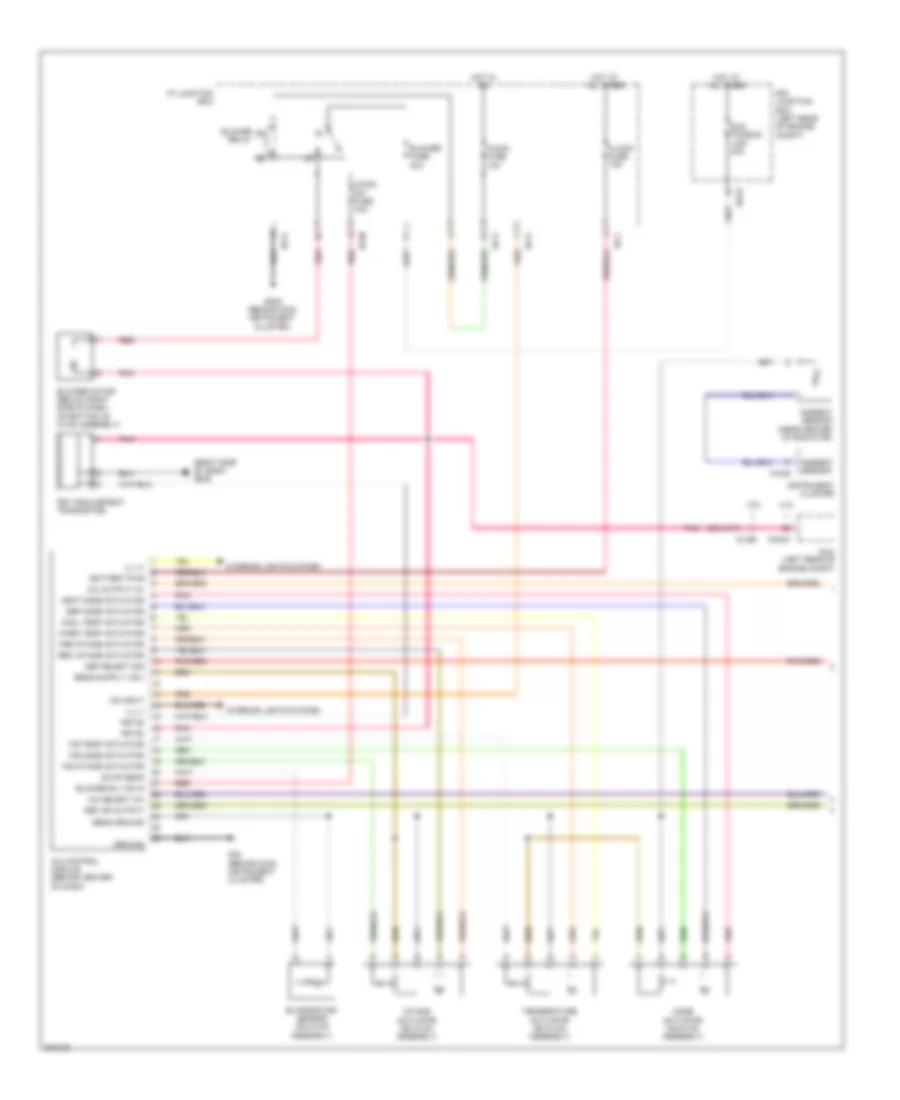

Электросхема кондиционера с ручный управлением (1 из 2) для Hyundai Santa Fe GLS 2010

Электросхема кондиционера с ручный управлением (1 из 2) для Hyundai Santa Fe GLS 2010 - Список элементов:

• (right side of dash) gm05
• 2.4l
• 3.5l
• A/c control module (behind center of dash)
• A/c output (hi)
• A/c select (hi)
• A/con fuse 10a
• A/con sw fuse 10a
• Ambient sensor
• Ambient sensor (near center of radiator)
• Battery pwr
• Blower fuse 30a
• Blower motor (below right side of dash, on bottom of hvac assembly)
• Blower relay
• Blower rly on in
• Blr fusible link 40a
• Chg-k
• Clg-b
• Clock fuse 15a
• Cool temp actuator
• Def ind output
• Def mode actuator
• Def select sig
• E/r junction box (left rear of engine compt)
• Evap sens
• Evaporator sensor (on hvac assembly)
• F/b intake actuator
• F/b mode actuator
• F/b temp actuator
• Fet (field effect transistor)
• Fet(d)
• Fet(g)
• Fre intake actuator
• G32 (behind main instrument cluster)
• Gm02 (behind main instrument cluster)
• Ground
• Hot at all times
• Hot in on
• I/p junction box
• I/p-a
• I/p-j
• I/p-k
• I/p-m
• Ill (+)
• Ill (-)
• Instrument cluster
• Intake actuator (on hvac assembly)
• Interior lights system
• M15-b
• Mode actuator (on hvac assembly)
• On input
• Pcm (left rear of engine compt)
• Pnk
• Rec intake actuator
• Red
• Sens ground
• Temperature actuator (on hvac assembly)
• U/h-b
• Vent mode actuator
• Warm temp actuator

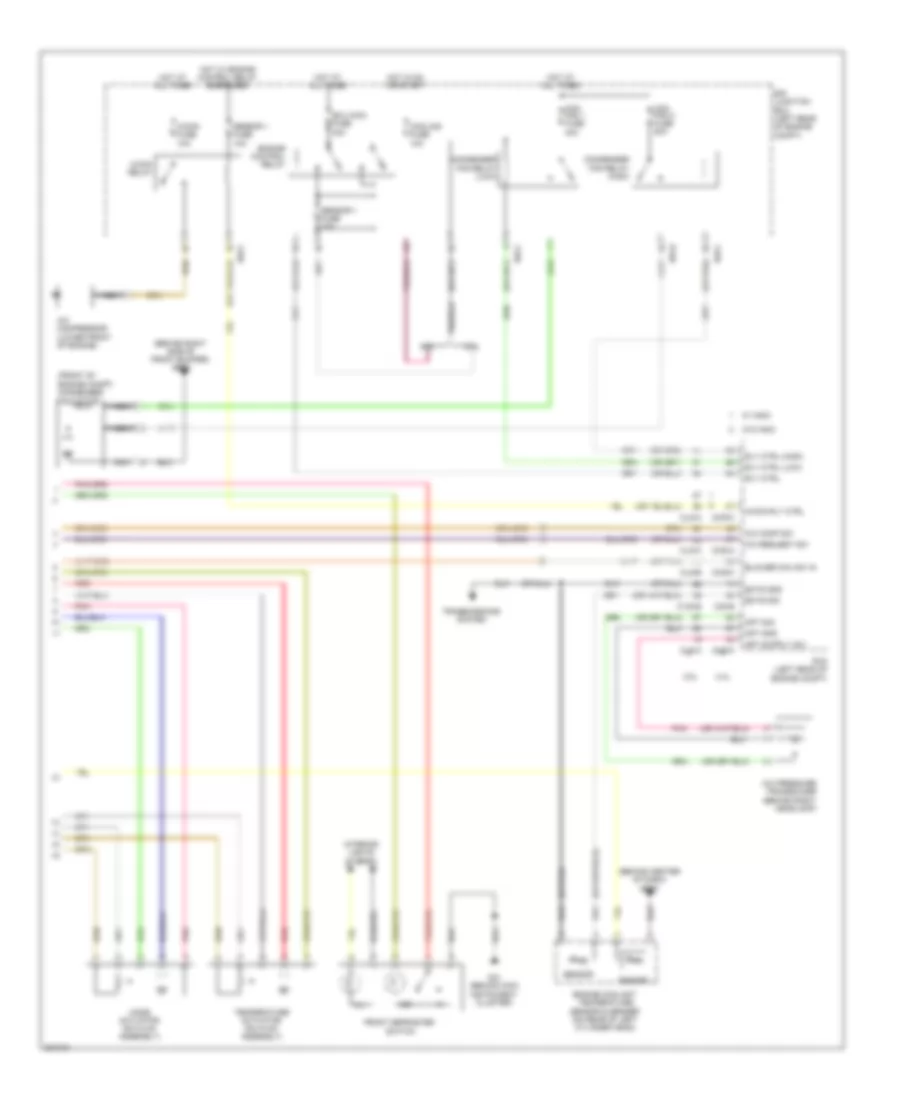

Электросхема кондиционера с ручный управлением (2 из 2) для Hyundai Santa Fe GLS 2010

Электросхема кондиционера с ручный управлением (2 из 2) для Hyundai Santa Fe GLS 2010 - Список элементов:

• (front of engine compt) condenser fan motor
• (lower front of engine) a/c compressor
• (or pnk)
• 2.4l
• 3.5l
• A/c pressure transducer (behind right headlamp)
• A/c request sw
• A/con fuse 10a
• A/con relay
• A/con rly ctrl
• Apt gnd
• Apt sig
• Chg-a
• Chg-k
• Clg-a
• Clg-b
• Con fan 1 fuse 40a
• Con fan 2 fuse 50a
• Condenser fan relay (high)
• Condenser fan relay (low)
• Cooling fuse 10a
• E/r junction box (left rear of engine compt)
• Ects gnd
• Ects sig
• Ecu main fuse 40a
• Engine control relay
• Engine coolant temperature sensor & sender (on rear of left cylinder head)
• Engine ctrl rly ctrl
• Front wiper deicer switch
• Ge02 (behind right side of front bumper)
• Gm01 (behind main instrument cluster)
• Hot at all times
• Hot in on or start
• Hot w/ engine control relay energized
• Ill
• Ind
• Interior lights system
• Nca
• Pcm (left rear of engine compt)
• Rly ctrl (high)
• Rly ctrl (low)
• Sensor
• Sensor 1 fuse 10a
• Thermo sw
• Transmissions system
• U/h-c
• U/h-d
• W/ immo
• W/o immo
