Электросхемы СИСТЕМА КОНДИЦИОНЕРА Hyundai Tucson SE 2007

СИСТЕМА КОНДИЦИОНЕРА

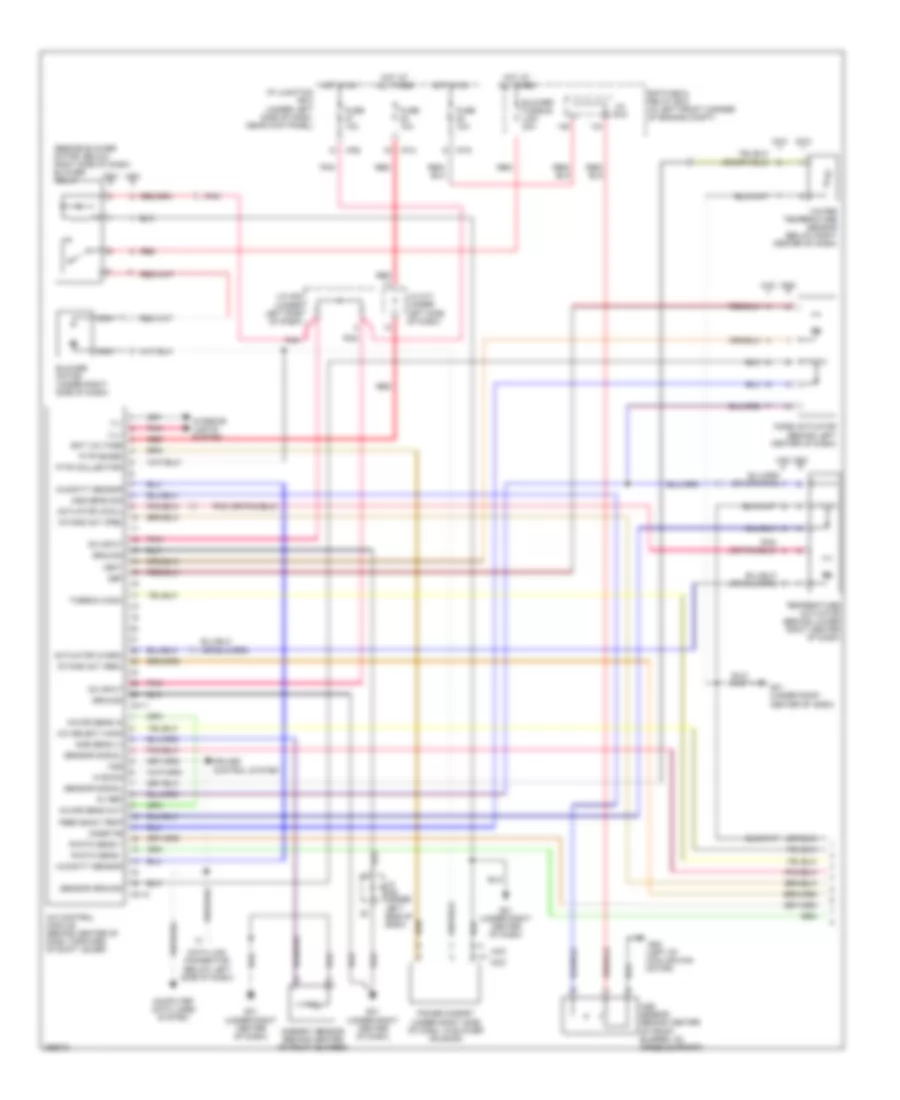

Электросхема кондиционера (1 из 2) для Hyundai Tucson SE 2007

Электросхема кондиционера (1 из 2) для Hyundai Tucson SE 2007 - Список элементов:

• (beside blower motor, below right side of dash) blower relay
• 5v ref
• A/c control module (behind center of dash, forward of shift lever)
• A/c select (high)
• Actuator (cool)
• Actuator (warm)
• Amb sens (+)
• Ambient sensor (behind center of front bumper)
• Aqs sens sig
• Aqs sensor (behind center of front bumper, on cross support)
• Bat voltage
• Blower fusible link 30a
• Blower motor (under right side of dash)
• Computer data lines system
• Cruise control system
• Data link connector (below left side of dash)
• Dcc
• Def
• E/r fuse & relay box (in left front corner of engine compt)
• Feed back temp
• Fuse 10a
• G01 (under right center of dash)
• G06 (left of cooling fan motor)
• Ground
• Hcc
• Hi-scan
• Hot at all times
• Hot in on
• Humidity sensor
• I/p junction box (under left side of dash, near kick panel)
• I/p-c
• I/p-e
• I/p-g
• Ill+
• Ill-
• In-car sens in
• In-car sens out
• Intake act (fre)
• Intake act (rec)
• Interior lights system
• J/c e18
• J/c m08 (under left side of dash)
• J/c m09 (under left side of dash)
• J/c m17 (under left side of dash)
• M41-1
• M41-2
• Mode actuator (behind left center of dash)
• Mode f/b
• Nca
• On input
• P/tr (base)
• P/tr (collector)
• Photo sens +
• Photo sens -
• Pnk
• Power mosfet (under right side of dash, in blower housing)
• Red
• Sensor ground
• Sensor signal
• Temperature actuator (behind lower right center of dash)
• Thermo (high)
• Vent
• Vss
• Water temperature sensor (below right center of dash)

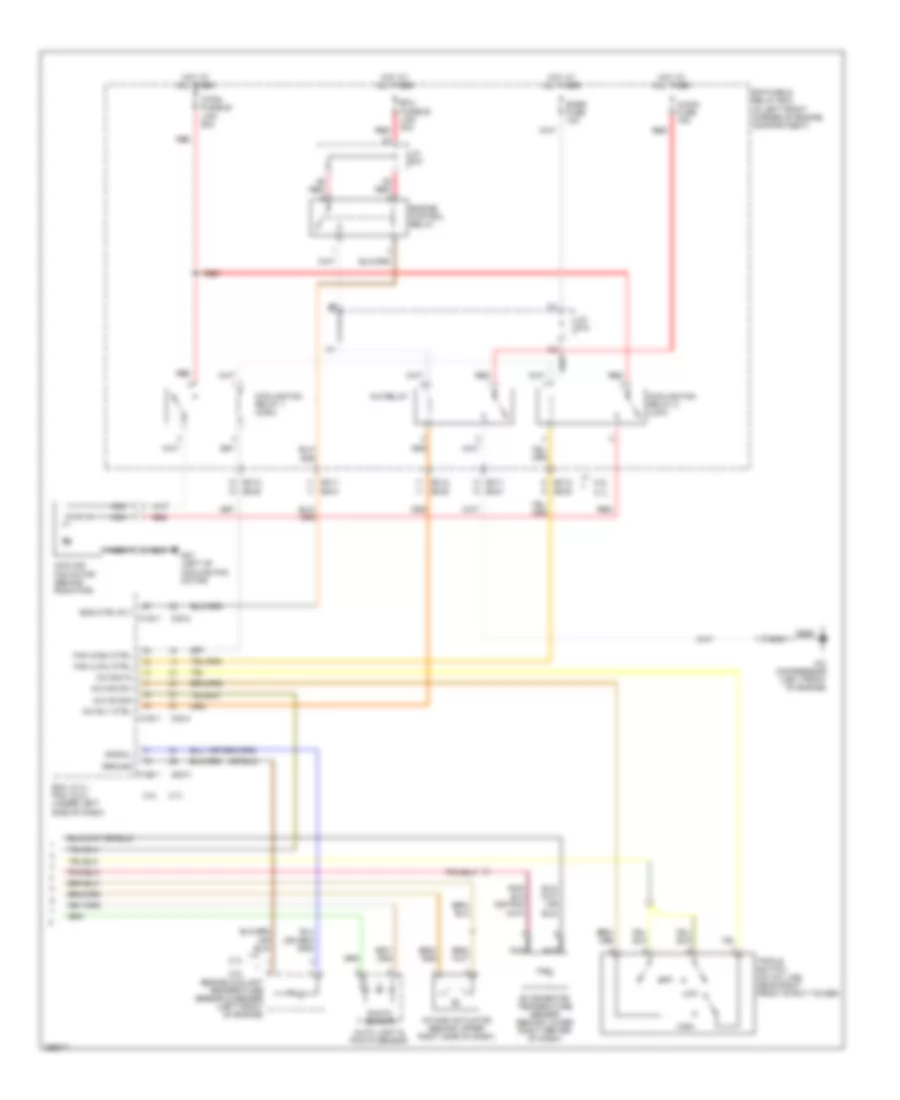

Электросхема кондиционера (2 из 2) для Hyundai Tucson SE 2007

Электросхема кондиционера (2 из 2) для Hyundai Tucson SE 2007 - Список элементов:

• (2.7l) (2.0l)
• 2.0l
• 2.7l
• A/c compressor (left front of engine)
• A/c mid sw
• A/c on sig
• A/c relay
• A/c rly ctrl
• A/c sig in
• A/con fuse 15a
• Auto light & photo sensor
• C/fan fusible link 50a
• C130-1
• C30-2
• C30-3
• C30-4
• Cooling fan motor (behind radiator)
• Cooling fan relay 1 (high)
• Cooling fan relay 2 (low)
• E/r fuse & relay box (in left front corner of engine compartment)
• Ec01
• Ec02
• Ec11
• Ec11 ec01
• Ec12
• Ec12 ec02
• Ecm pcm (under left side of dash)
• Ecu fusible link 30a
• Eng ctrl rly c130-1
• Engine control relay
• Engine coolant temperature sensor & sender (left front of engine)
• Evaporator temperature sensor (behind lower right center of dash)
• Fan (high) ctrl
• Fan (low) ctrl
• G07 (left of cooling fan motor)
• Ground
• High
• Hot at all times
• Intake actuator (behind upper right side of dash)
• J/c e18
• Low
• Mid
• Nca
• Photo sensor
• Red
• Signal
• Snsr fuse 10a
• Triple switch (on a/c line, near right front strut tower)

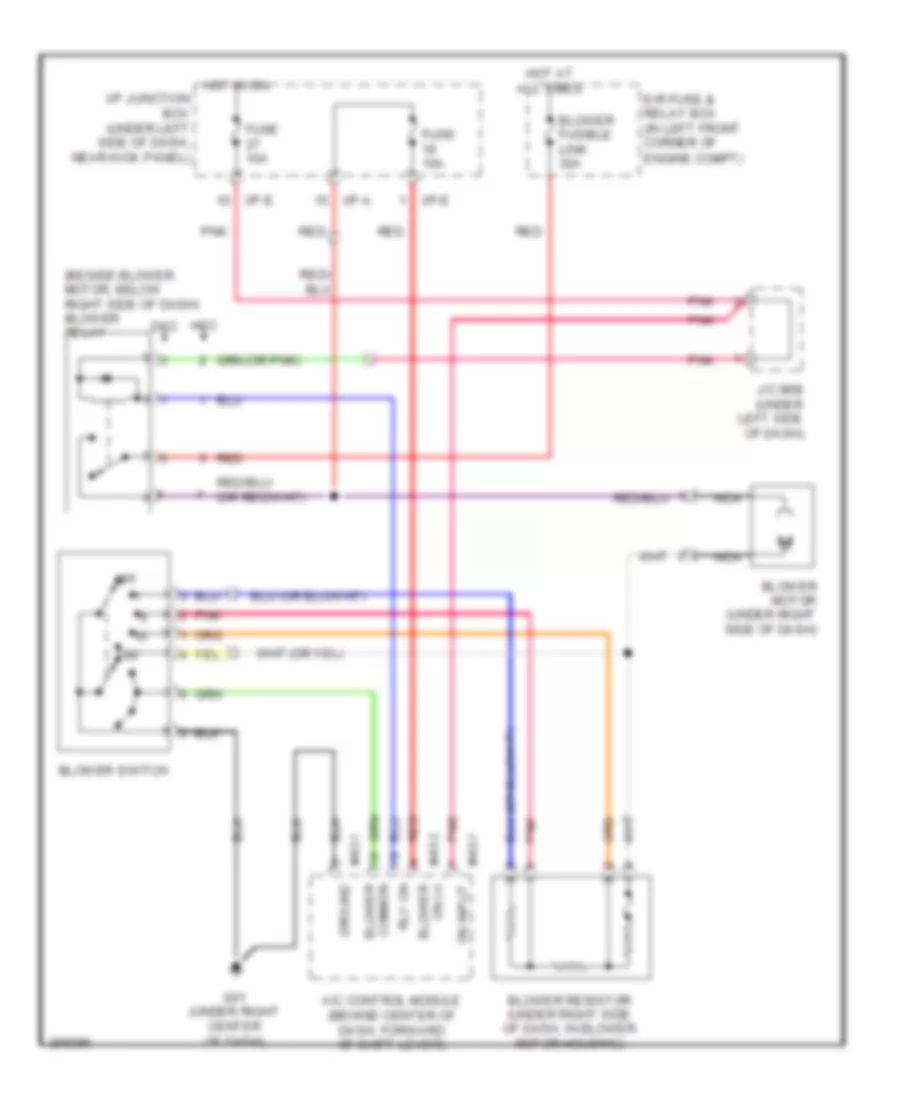

схема нагревателя для Hyundai Tucson SE 2007

схема нагревателя для Hyundai Tucson SE 2007 - Список элементов:

• (beside blower motor, below right side of dash) blower relay
• (or pnk)
• A/c control module (behind center of dash, forward of shift lever)
• Blower fusible link 30a
• Blower motor (under right side of dash)
• Blower resistor (under right side of dash, in blower motor housing)
• Blower switch
• Common blower
• Dcc
• E/r fuse & relay box (in left front corner of
• Engine compt)
• Fuse 10a
• G01 (under right center of dash)
• Ground
• Hcc
• Hot at all times
• Hot in on
• I/p junction box (under left side of dash, near kick panel)
• I/p-a
• I/p-e
• Iii
• Iiii
• J/c m08 (under left side of dash)
• M43-1
• M43-2
• Nca
• Off
• On (+) blower
• On input
• Pnk
• Red
• Rly on

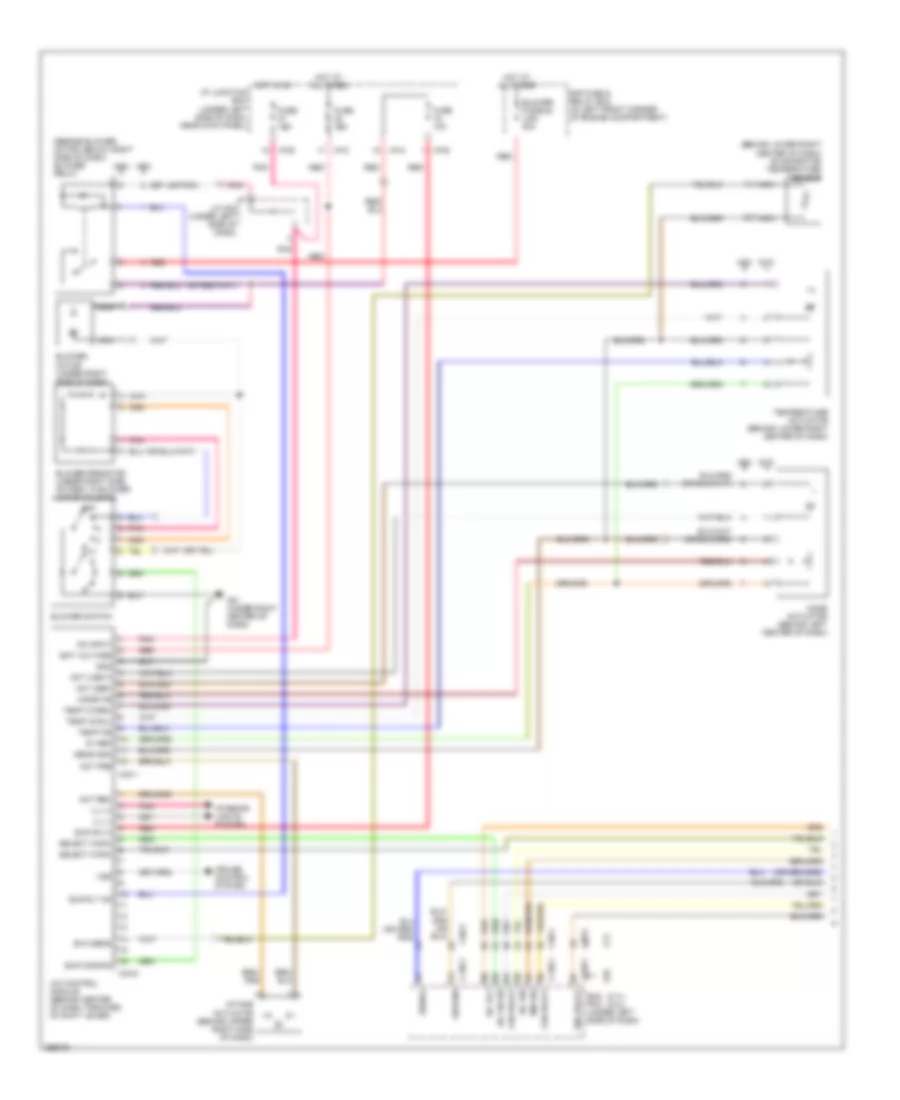

Электросхема кондиционера с ручный управлением (1 из 2) для Hyundai Tucson SE 2007

Электросхема кондиционера с ручный управлением (1 из 2) для Hyundai Tucson SE 2007 - Список элементов:

• (2.7l) (2.0l)
• (behind lower right center of dash) evaporator temperature sensor
• (beside blower motor, below right side of dash) blower relay
• (or pnk)
• 2.0l
• 2.7l
• 5v ref
• A/c control module (behind center of dash, forward of shift lever)
• A/c on sig
• A/c rly
• A/c sig
• Act (def)
• Act (vent)
• Act fre
• Act rec
• Bat voltage
• Blower fusible link 30a
• Blower motor (under right side of dash)
• Blower resistor (under right side of dash, in blower motor housing)
• Blower switch
• Blr common
• Blr on (+)
• Blr rly on
• C130-1
• C30-2
• C30-3
• C30-4
• Cruise control system
• Dcc
• E/r fuse & relay box (in left front corner of engine compartment)
• Ecm pcm (under left side of dash)
• Eng relay
• Eva sens
• Fan relay
• Fuse 10a
• G01 (under right center of dash)
• Gnd
• Ground
• Hcc
• Hot at all times
• Hot in on
• I/p junction box (under left side of dash, near kick panel)
• I/p-a
• I/p-c
• I/p-e
• Iii
• Iiii
• Ill (+)
• Ill (-)
• Intake actuator (behind upper right side of dash)
• Interior lights system
• J/c m08 (under left side of dash)
• M43-1
• M43-2
• Mid sw
• Mode actuator (behind left center of dash)
• Mode f/b
• Nca
• Off
• On input
• Pnk
• Red
• Select (high)
• Sens gnd
• Signal
• Temp (cool)
• Temp (warm)
• Temp f/b
• Temperature actuator (behind lower right center of dash)
• Vss

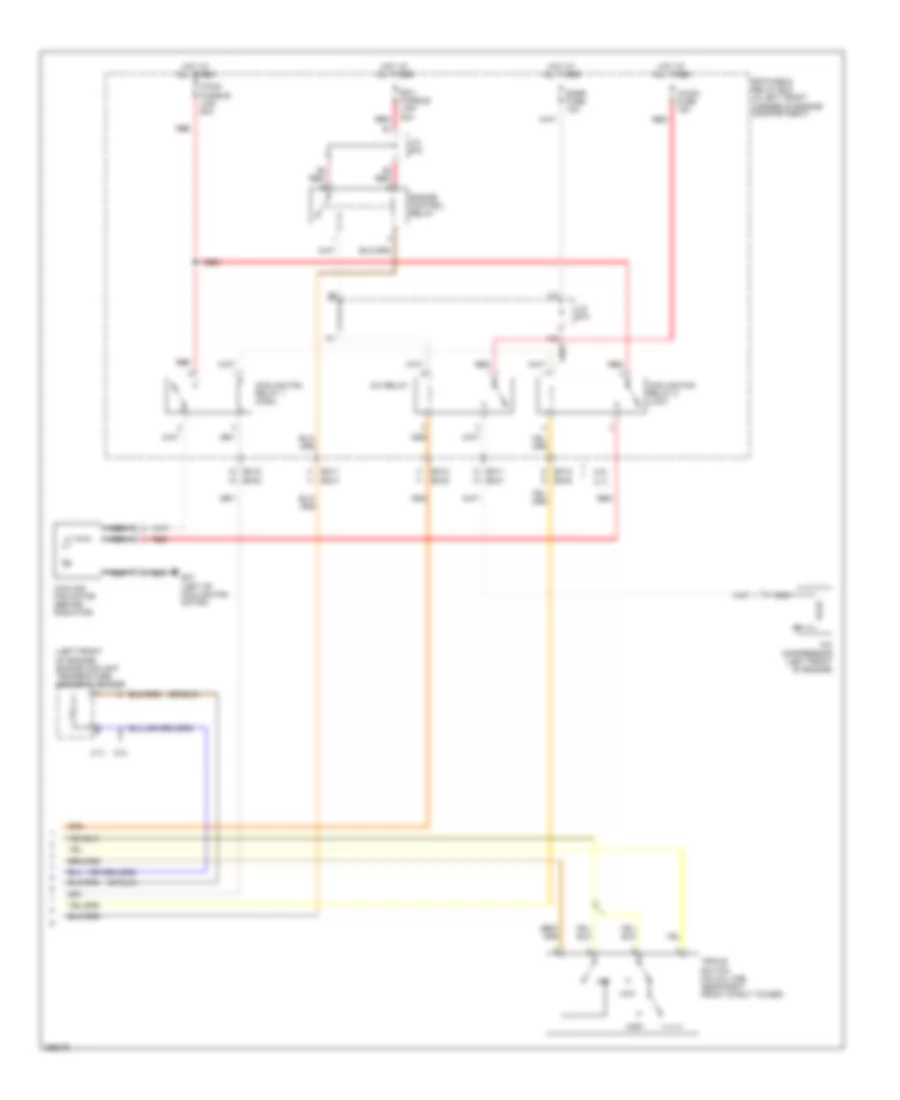

Электросхема кондиционера с ручный управлением (2 из 2) для Hyundai Tucson SE 2007

Электросхема кондиционера с ручный управлением (2 из 2) для Hyundai Tucson SE 2007 - Список элементов:

• (left front of engine) engine coolant temperature sensor & sender
• 2.0l
• 2.7l
• A/c compressor (left front of engine)
• A/c relay
• A/con fuse 15a
• C/fan fusible link 50a
• Cooling fan motor (behind radiator)
• Cooling fan relay 1 (high)
• Cooling fan relay 2 (low)
• E/r fuse & relay box (in left front corner of engine compartment)
• Ec01
• Ec02
• Ec11
• Ec11 ec01
• Ec12
• Ec12 ec02
• Ecu fusible link 30a
• Engine control relay
• G07 (left of cooling fan motor)
• High
• Hot at all times
• J/c e18
• Low
• Mid
• Nca
• Red
• Snsr fuse 10a
• Triple switch (on a/c line, near right front strut tower)
