Электросхемы СИСТЕМА КРУИЗКОНТРОЛЯ Hyundai Santa Fe GLS 2010

СИСТЕМА КРУИЗКОНТРОЛЯ

2.4L

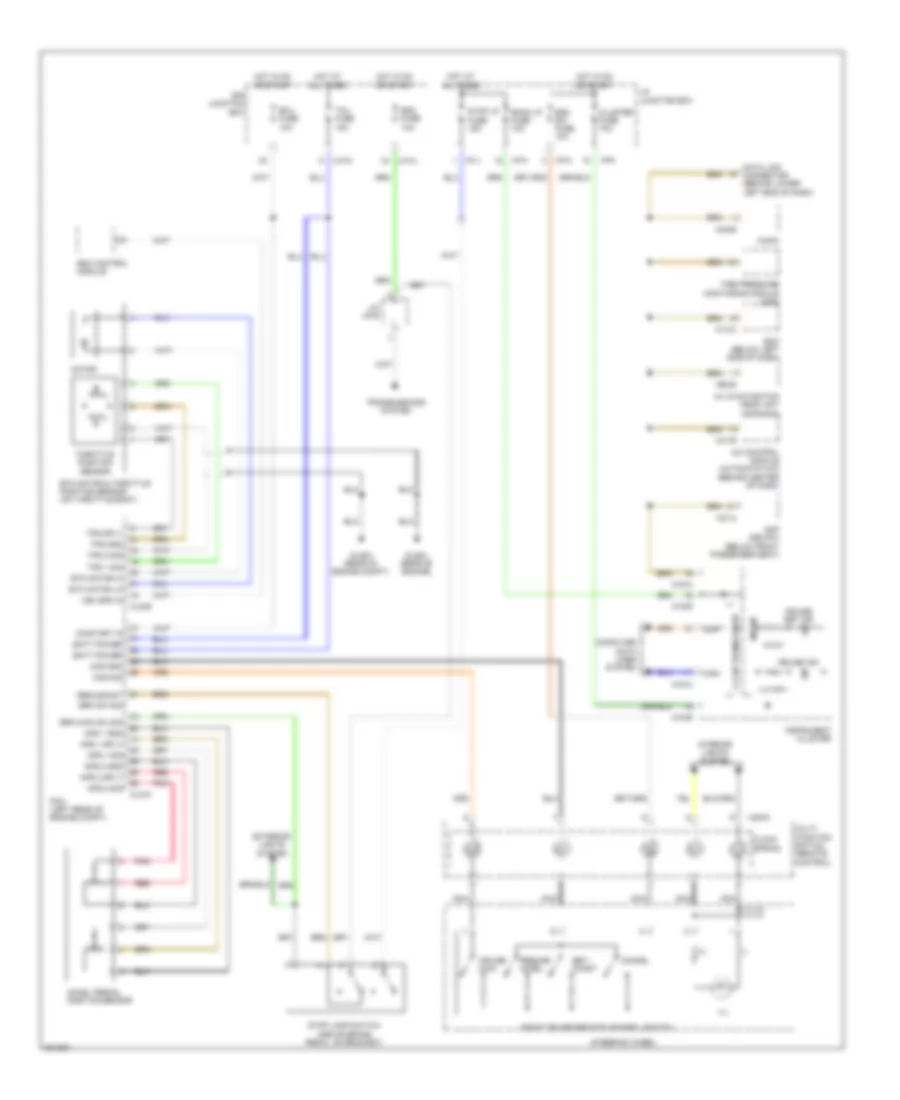

2.4L, Электросхема системы круизконтроля для Hyundai Santa Fe GLS 2010

2.4L, Электросхема системы круизконтроля для Hyundai Santa Fe GLS 2010 - Список элементов:

• (+)
• (-)
• A/c control module (automatic a/c) (behind center of dash)
• A/v & navigation head unit (with a/v)
• Accel peadal position sensor
• Amp (delphi) (below front passenger seat)
• Aps 1 gnd
• Aps 1 sig
• Aps 1 sply
• Aps 2 gnd
• Aps 2 sig
• Aps 2 sply
• Atm fuse 15a
• Audio
• Batt power
• Bcm (below left side of dash)
• Brk main sw sig
• Brk sw sig
• C-can transceiver
• Cancel
• Ccs gnd
• Ccs sig
• Chg-a
• Chg-k
• Clock spring
• Cluster fuse 10a
• Clutch sw
• Clutch switch (m/t)
• Computer data lines system
• Cruise ind
• Cruise main
• Cruise set ind
• Data link connector (behind lower left end of dash)
• E/r junction box
• Ecu fuse 10a
• Esc control module
• Esc sw fuse 10a
• Etc motor & throttle position sensor (on throttle body)
• Etc motor 1
• Etc motor 2
• Exterior lights system
• F37-a
• Ghg02 (rear of engine)
• High
• Hot at all times
• Hot in on or start
• Hot with engine control relay on
• I/p junction box
• I/p-j
• I/p-k
• I/p-m
• Ill
• Instrument cluster
• Interior lights system
• Low
• M13-c
• M15-a
• M15-b
• M20-r
• M41-b
• M45-e
• M62-e
• Micom
• Motor
• Multi- function switch (remote control)
• Nca
• On/start in
• Pcm (left rear of engine compt)
• Pnk
• Red
• Redundant
• Resume/ accel
• Right cruise remote control switch
• Room lp fuse 10a
• Sensor 1 fuse 10a
• Set/ coast
• Steering wheel
• Stop lamp switch (above brake pedal, on bracket)
• Stop lp fuse 15a
• Throttle position sensor
• Tire pressure monitoring module (usa)
• Tps 1 sig
• Tps 2 sig
• Tps gnd
• Tps sply
• U/h-c
• U/h-u
• Veh spd in

3.5L

3.5L, Электросхема системы круизконтроля для Hyundai Santa Fe GLS 2010

3.5L, Электросхема системы круизконтроля для Hyundai Santa Fe GLS 2010 - Список элементов:

• (+)
• (-)
• A/c control module (automatic a/c) (behind center of dash)
• A/v & navigation head unit (with a/v)
• Accel peadal position sensor
• Amp (delphi) (below front passenger seat)
• Aps 1 gnd
• Aps 1 sig
• Aps 1 sply
• Aps 2 gnd
• Aps 2 sig
• Aps 2 sply
• Audio
• Batt power
• Bcm (below left side of dash)
• Brk main sw sig
• Brk sw sig
• C-can transceiver
• Cancel
• Ccs gnd
• Ccs sig
• Clg-a
• Clg-b
• Clock spring
• Cluster fuse 10a
• Computer data lines system
• Cruise ind
• Cruise main
• Cruise set ind
• Data link connector (behind lower left end of dash)
• E/r junction box
• Ecu fuse 10a
• Esc control module
• Esc fuse 10a
• Esc sw fuse 10a
• Etc motor & throttle position sensor (on throttle body)
• Etc motor hi
• Etc motor lo
• Exterior lights system
• F37-a
• Glg03 (rear of engine compt)
• Glg04 (rear of engine)
• High
• Hot at all times
• Hot in on or start
• I/p junction box
• I/p-j
• I/p-k
• I/p-m
• Ill
• Instrument cluster
• Interior lights system
• J/c jc02
• Low
• M13-c
• M15-a
• M15-b
• M20-r
• M41-b
• M45-e
• M62-e
• Micom
• Motor
• Multi- function switch (remote control)
• Nca
• On/start in
• Pcm (left rear of engine compt)
• Pnk
• Red
• Redundant
• Resume/ accel
• Right cruise remote control switch
• Room lp fuse 10a
• Set/ coast
• Steering wheel
• Stop lamp switch (above brake pedal, on bracket)
• Stop lp fuse 15a
• Tcu fuse 15a
• Throttle position sensor
• Tire pressure monitoring module (usa)
• Tps 1 sig
• Tps 2 sig
• Tps gnd
• Tps sply
• Transmissions system
• U/h-c
• U/h-u
• Veh spd in
