Электросхемы СИСТЕМЫ СИДЕНИЙ Hyundai Santa Fe GLS 2010

СИСТЕМЫ СИДЕНИЙ

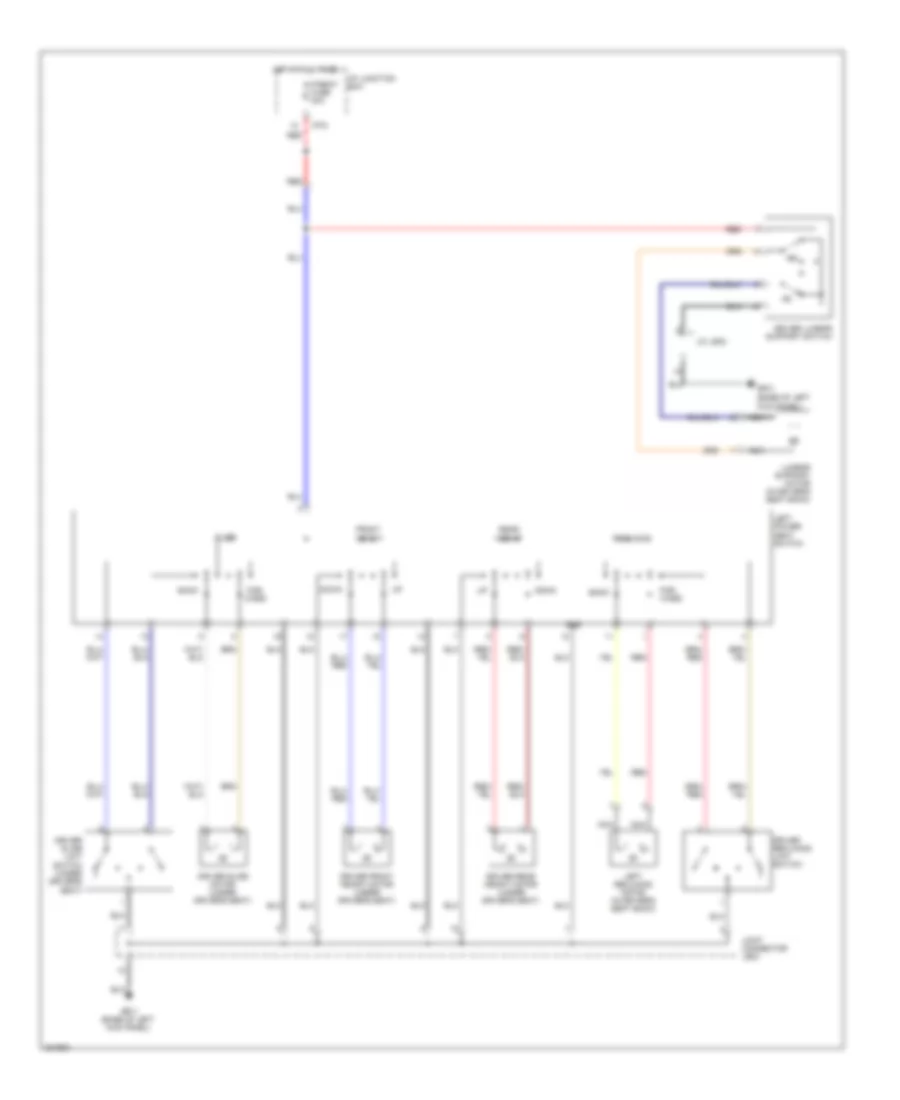

Электросхема привода водительского сиденья для Hyundai Santa Fe GLS 2010

Электросхема привода водительского сиденья для Hyundai Santa Fe GLS 2010 - Список элементов:

• Back
• Down
• Driver front height motor (under driver's seat)
• Driver lumbar support switch
• Driver rear height motor (under driver's seat)
• Driver reclining limit switch
• Driver slide limit switch (under driver's seat)
• Driver slide motor (under driver's seat)
• For- ward
• Front height
• Gf01 (base of left
• Gf01 (base of left kick panel)
• Gnd
• Hot at all times
• I/p junction box
• I/p-d
• J/c js02
• Joint connector js02
• Kick panel)
• Left power seat switch
• Left reclining motor (in driver's seat back)
• Lumbar support motor (in driver's seat back)
• Nca
• P/seat fuse 30a
• Rear height
• Reclining
• Red
• Slide

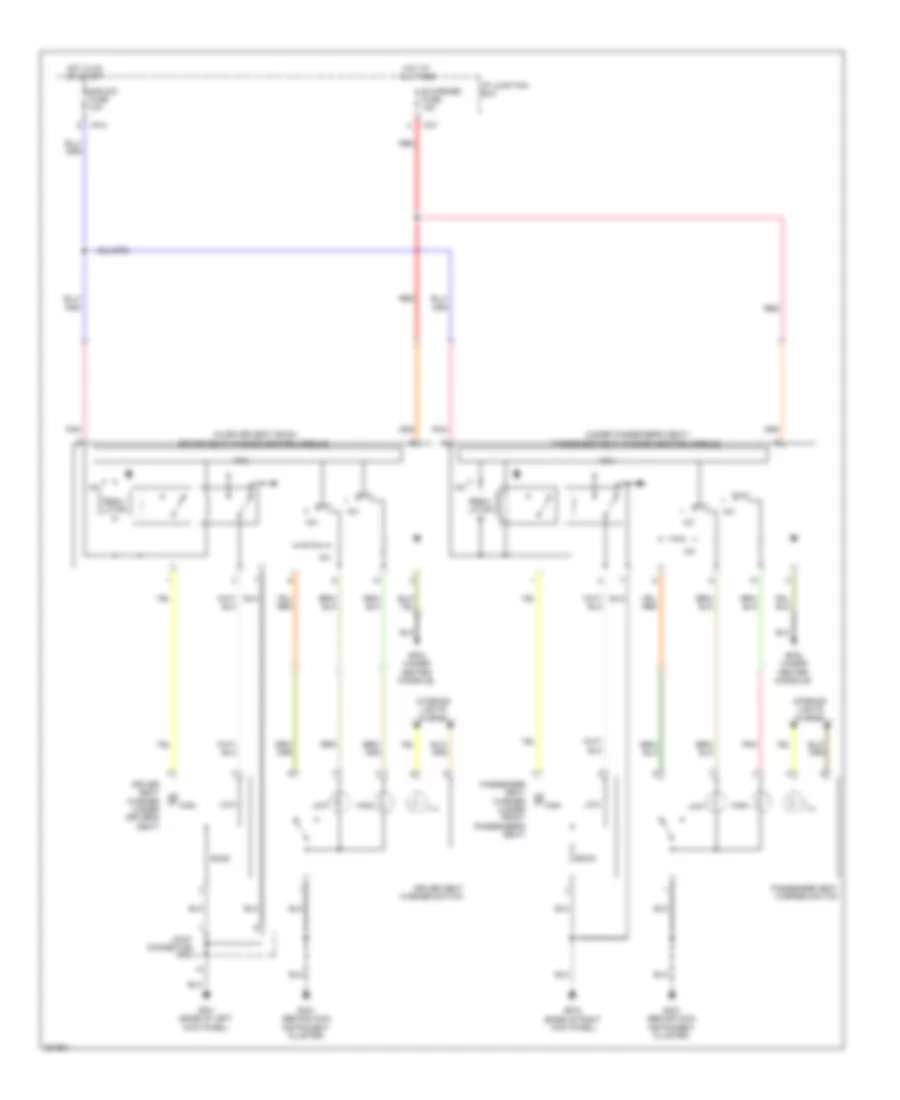

Электросхема подогрева сидений для Hyundai Santa Fe GLS 2010

Электросхема подогрева сидений для Hyundai Santa Fe GLS 2010 - Список элементов:

• (in driver seat back) driver seat warmer control module
• (under passenger's seat) passenger seat warmer control module
• +5v
• Back
• Driver seat warmer (under driver's seat)
• Driver seat warmer switch
• Ecs sw fuse 10a
• Gf01 (base of left kick panel)
• Gf02 (base of right kick panel)
• Gf03 (under center console)
• Gm01 (behind main instrument cluster)
• High
• Hot at all times
• Hot in on or start
• I/p junction box
• I/p-f
• I/p-m
• Ill
• Interior lights system
• Joint connector js02
• Low
• Mcu
• Passenger seat warmer (under front passenger's seat)
• Passenger seat warmer switch
• Pnk
• Red
• Regu- lator ic
• S/warmer fuse 15a

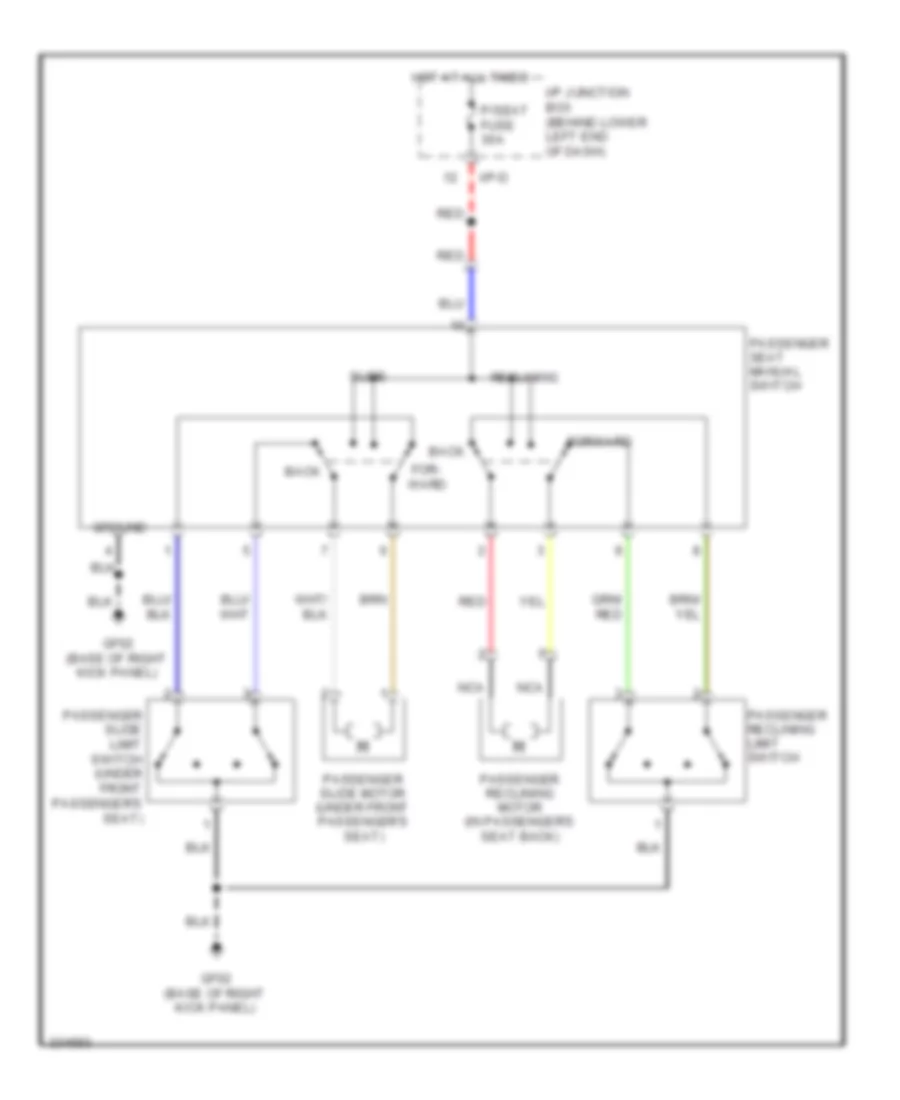

Электросхема привода пассажирского сиденья для Hyundai Santa Fe GLS 2010

Электросхема привода пассажирского сиденья для Hyundai Santa Fe GLS 2010 - Список элементов:

• Back
• For- ward
• Forward
• Gf02 (base of right kick panel)
• Ground
• Hot at all times
• I/p junction box (behind lower left end of dash)
• I/p-d
• Nca
• P/seat fuse 30a
• Passenger reclining limit switch
• Passenger reclining motor (in passenger's seat back)
• Passenger seat manual switch
• Passenger slide limit switch (under front passenger's seat)
• Passenger slide motor (under front passenger's seat)
• Reclining
• Red
• Slide
