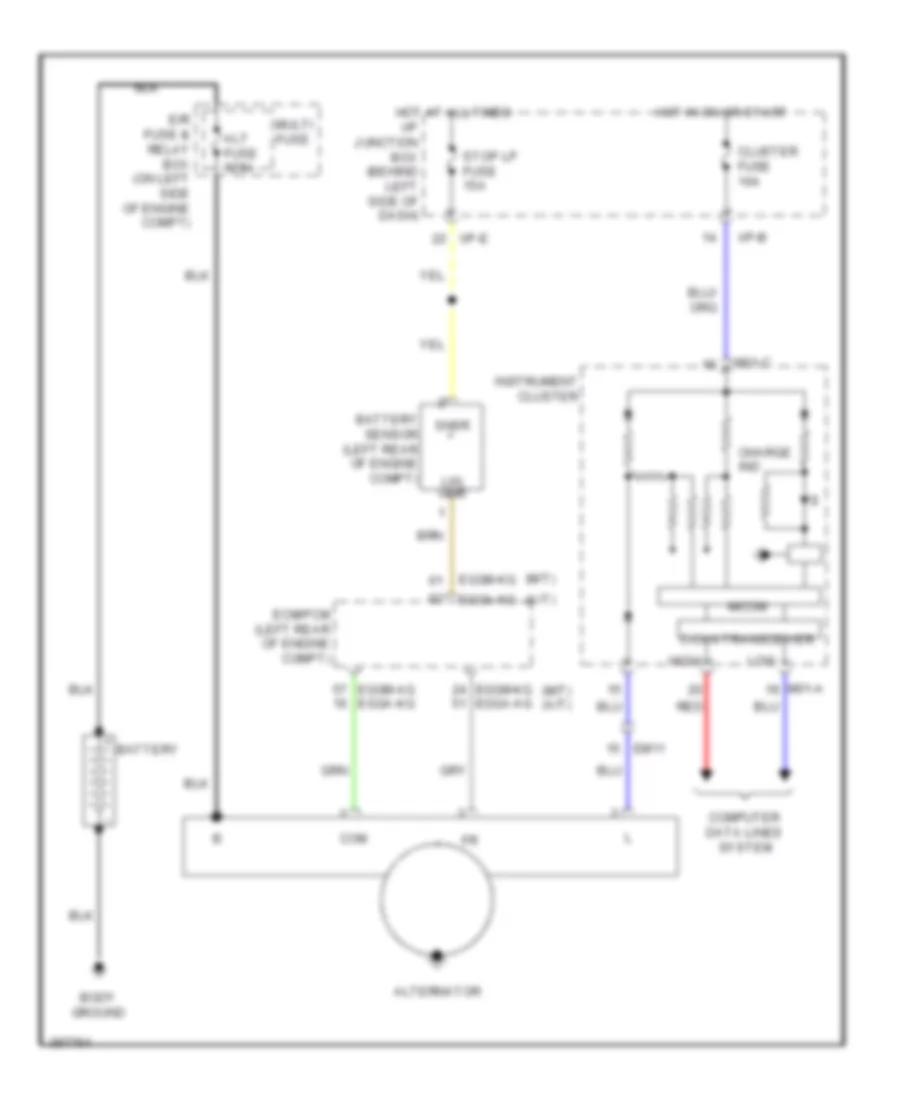

Электросхема Генератора для Hyundai Accent GS 2013
Электросхема Генератора для Hyundai Accent GS 2013 - Список элементов:
- (a/t)
- (m/t)
- (m/t) (a/t)
- Alt fuse 125a
- Alternator
- Battery
- Battery sensor (left rear of engine compt)
- Body ground
- C-can transceiver
- Charge ind
- Cluster fuse 10a
- Com
- Computer data lines system
- E/r fuse & relay box (on left side of engine compt)
- Ecm/pcm (left rear of engine compt)
- Egga-ag
- Egga-kg
- Eggm-ag egga-kg
- Eggm-kg
- Em11
- High
- Hot at all times
- Hot in on or start
- I/p junction box (behind left side of dash)
- I/p-b
- I/p-e
- Instrument cluster
- Lin line
- Low
- M01-a
- M01-c
- Micom
- Multi fuse
- Red
- Snsr
- Stop lp fuse 15a

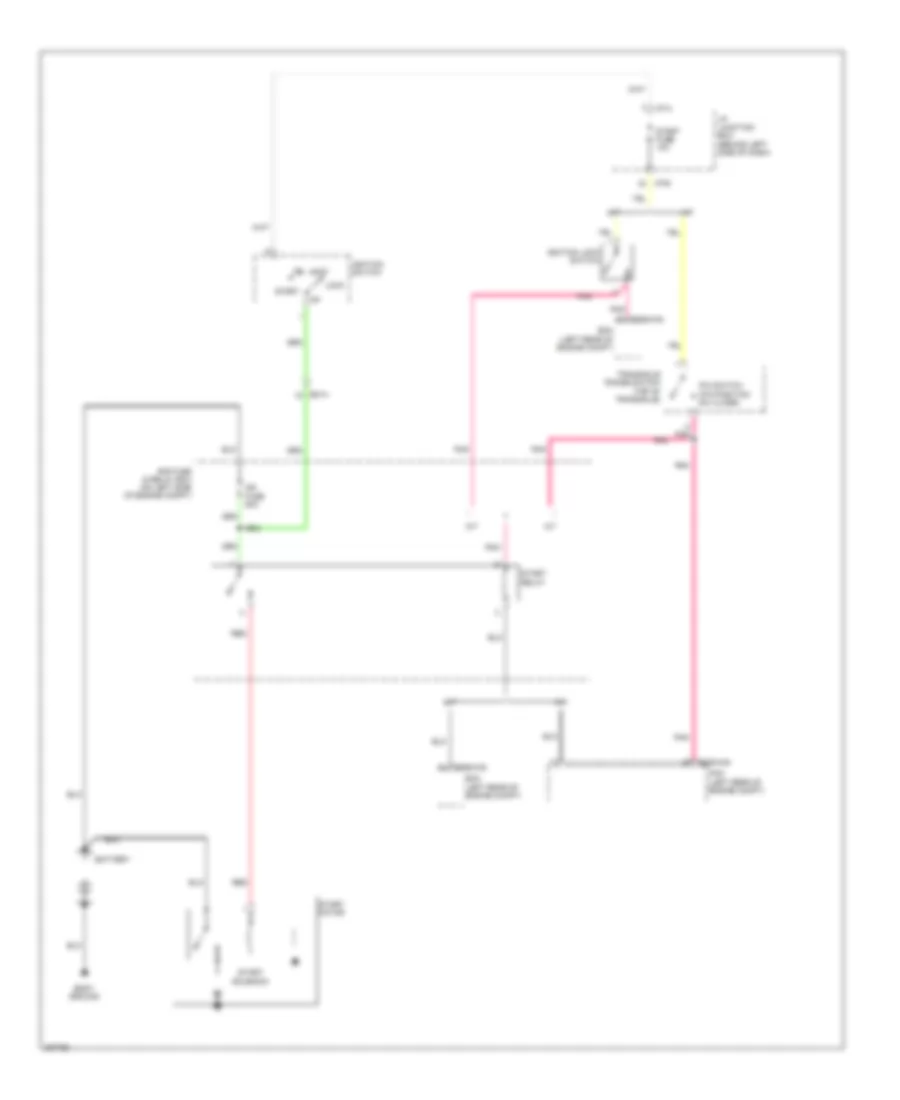

Электросхема стартера для Hyundai Accent GS 2013
Электросхема стартера для Hyundai Accent GS 2013 - Список элементов:
- A/t
- Acc
- Battery
- Body ground
- E/r fuse & relay box (on left side of engine compt)
- Ecm (left rear of engine compt)
- Egga-kg
- Eggm-kg
- Em14
- I/p junction box (behind left side of dash)
- I/p-a
- I/p-e
- Ig2 fuse 50a
- Ignition lock switch
- Ignition switch
- Lock
- M/t
- P/n switch (p/n position: sw close)
- Pcm (left rear of engine compt)
- Pnk
- Red
- Start
- Start fuse 10a
- Start motor
- Start relay
- Start solenoid
- Transaxle range switch (top of transaxle)
