Электросхемы ВНЕШНЕЕ ОСВЕЩЕНИЕ Chrysler Town amp; Country LX 1998

ВНЕШНЕЕ ОСВЕЩЕНИЕ

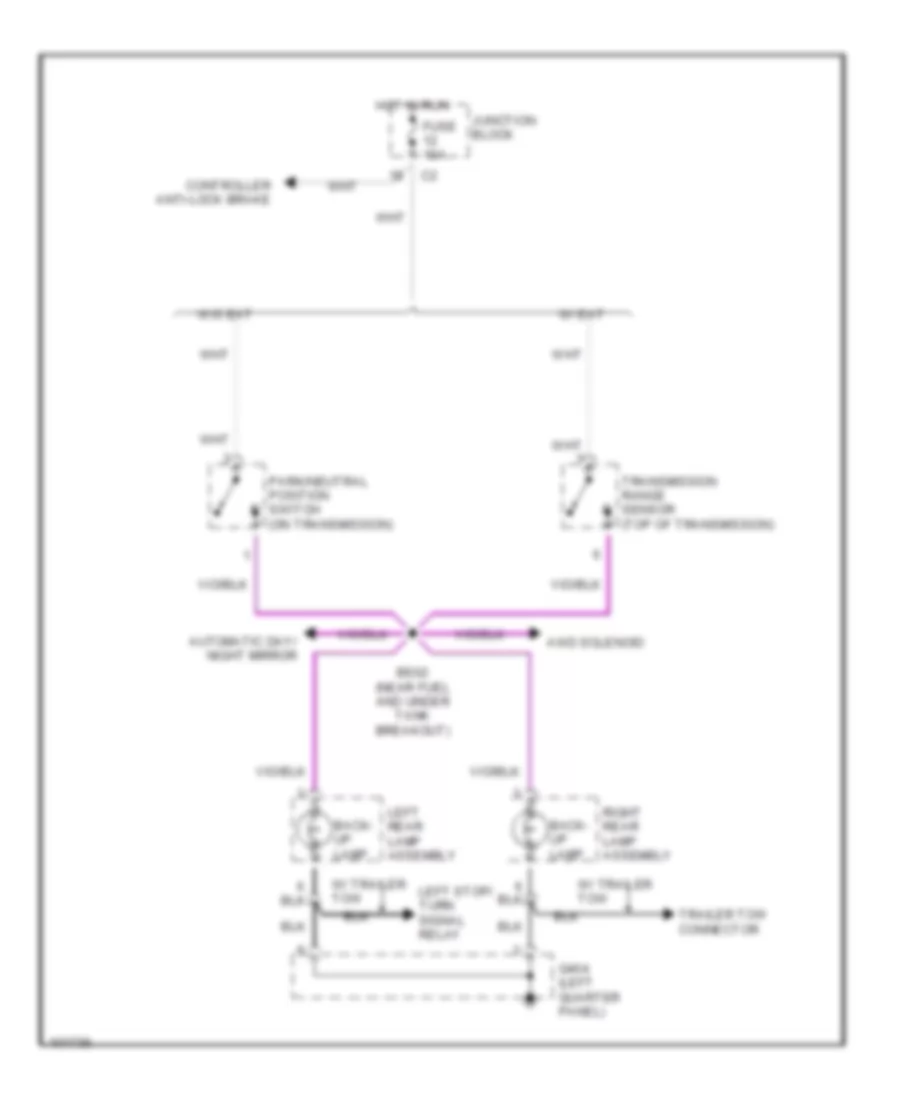

Электросхема заднего хода для Chrysler Town amp; Country LX 1998

Электросхема заднего хода для Chrysler Town amp; Country LX 1998 - Список элементов:

• Automatic day/ night mirror
• Awd solenoid
• Back- up lamp
• Bs02 (near fuel and under tank breakout)
• Controller anti-lock brake
• Fuse 10a
• G404 (left quarter panel)
• Hot in run
• Junction block
• Left rear lamp assembly
• Left stop/ turn signal relay
• Park/neutral position switch (on transmission)
• Right rear lamp assembly
• Trailer tow connector
• Transmission range sensor (top of transmission)
• W/ eat
• W/ trailer tow
• W/o eat

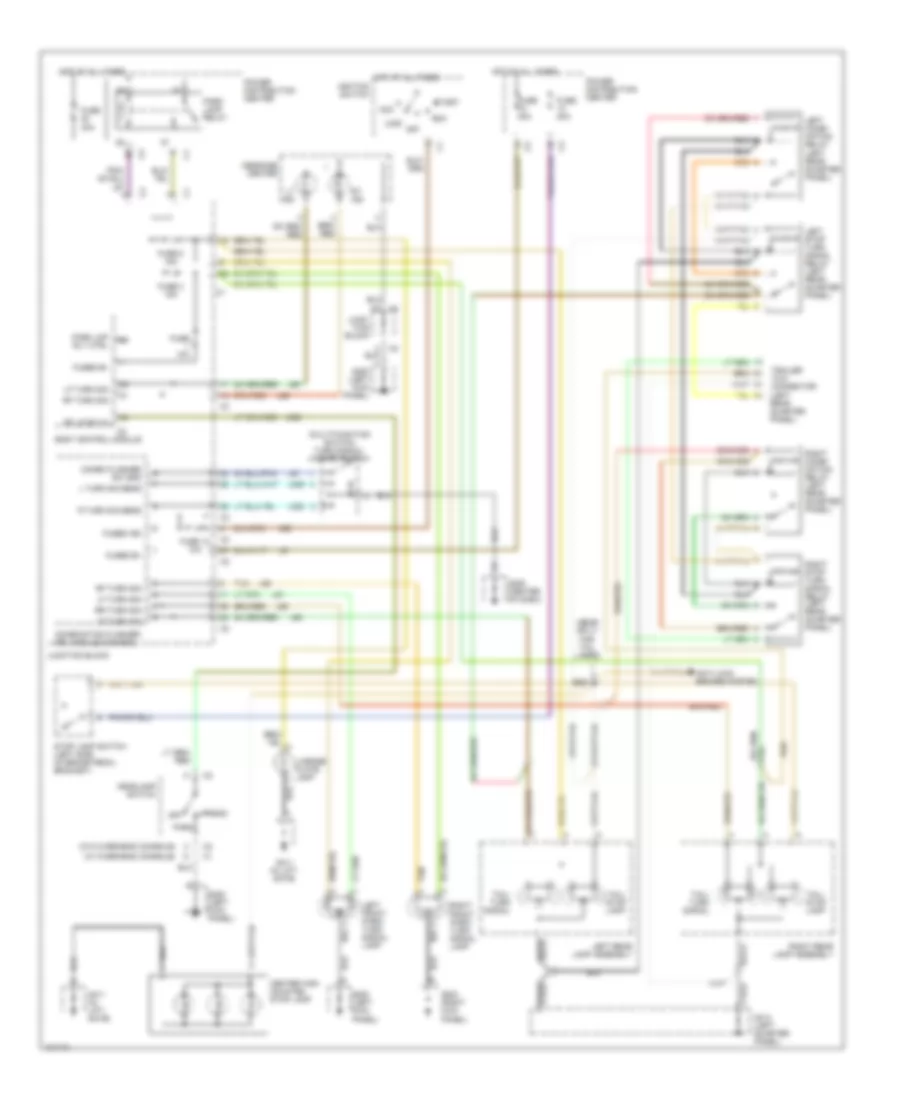

Электросхема внешнего освещения, С буксировка трейлера для Chrysler Town amp; Country LX 1998

Электросхема внешнего освещения, С буксировка трейлера для Chrysler Town amp; Country LX 1998 - Список элементов:

• (multi-function switch) turn signal/ hazard switch
• (near split for tail lamps)
• (w/ overhead console)
• (w/o overhead console)
• A22
• Acc
• Anti-lock brakes system
• Body control module
• Bs01
• Center high mounted stop lamp
• Combination flasher/ drl module (canada)
• Combo flasher sw gnd
• Fuse 10a
• Fuse 12 10a
• Fuse 20a
• Fuse 3 15a
• Fuse 40a
• Fuse 5 15a
• Fused b+
• Fused ign
• G200 (left kick panel)
• G203 (right kick panel)
• G206 (center of dash)
• G411 (in lift- gate)
• G414 (left quarter panel)
• Head
• Headlamp switch
• Hot at all times
• Ignition switch
• Junc- tion block
• Junction block
• L turn sig sens
• L302
• L305
• L308
• L60
• L61
• L62
• L63
• L91
• L97
• Left combi- nation relay (left rear quarter panel)
• Left front park/ turn signal lamp
• Left rear lamp assembly
• Left stop turn signal relay (left rear quarter panel)
• Lf turn sig
• License plate lamp
• Lock
• Lr turn sig
• Lt ind
• Message center
• Off
• Park
• Park lamp relay
• Park lmp rly ctrl
• Pk lp sw in
• Power distribution center
• R turn sig sens
• Rf turn sig
• Right combi- nation relay (left rear quarter panel)
• Right front park/ turn signal lamp
• Right rear lamp assembly
• Right stop turn signal relay (left rear quarter panel)
• Rr turn sig
• Rt ind
• Run
• Start
• Stop lamp switch (left side of brake pedal bracket)
• Tail/ stop lamp
• Tail/ turn signal
• Tan
• Trailer tow connector (left rear quarter panel)

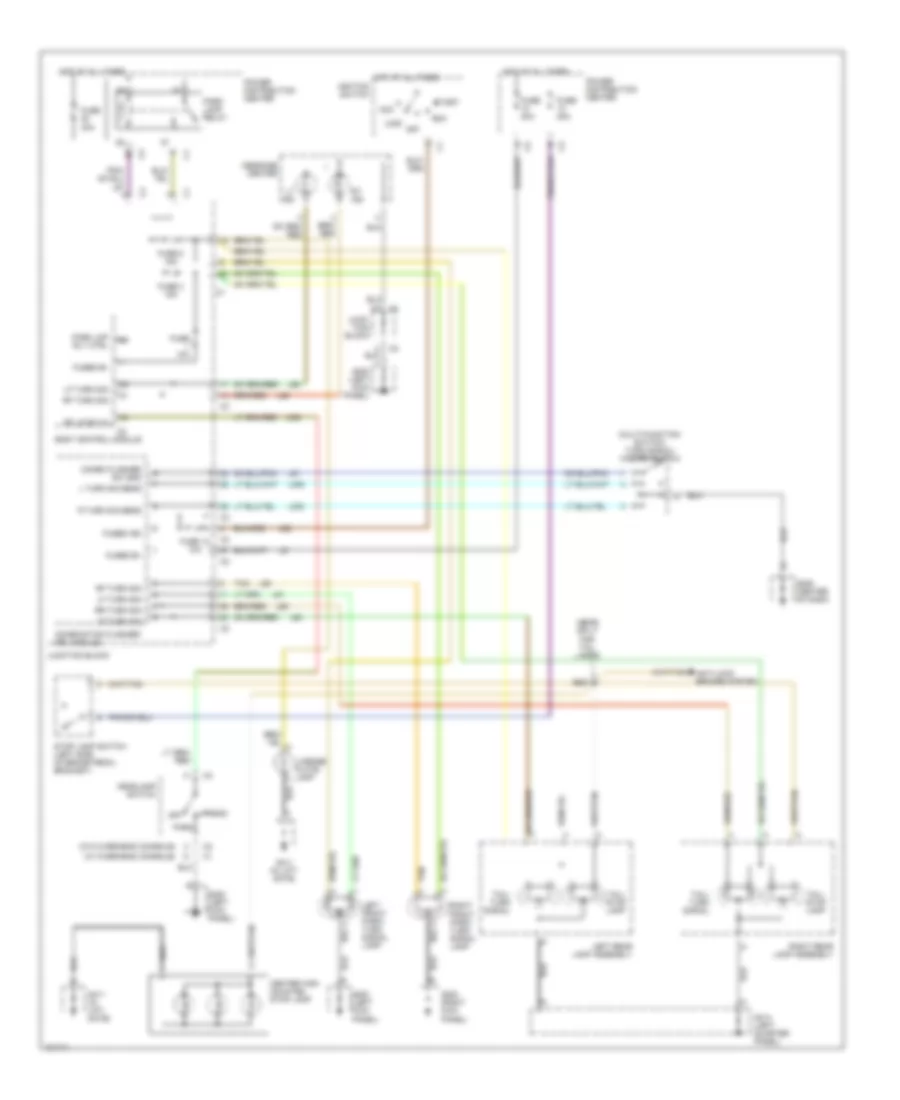

Электросхема внешнего освещения, без буксировка трейлера для Chrysler Town amp; Country LX 1998

Электросхема внешнего освещения, без буксировка трейлера для Chrysler Town amp; Country LX 1998 - Список элементов:

• (multi-function switch) turn signal/ hazard switch
• (near split for tail lamps)
• (w/ overhead console)
• (w/o overhead console)
• A22
• Acc
• Anti-lock brakes system
• Body control module
• Bs01
• Center high mounted stop lamp
• Combination flasher/ drl module
• Combo flasher sw gnd
• Fuse 10a
• Fuse 12 10a
• Fuse 20a
• Fuse 3 15a
• Fuse 40a
• Fuse 5 15a
• Fused b+
• Fused ign
• G200 (left kick panel)
• G203 (right kick panel)
• G206 (center of dash)
• G411 (in lift- gate)
• G414 (left quarter panel)
• Head
• Headlamp switch
• Hot at all times
• Ignition switch
• Junc- tion block
• Junction block
• L turn sig sens
• L302
• L305
• L308
• L60
• L61
• L62
• L63
• L91
• L97
• Left front park/ turn signal lamp
• Left rear lamp assembly
• Lf turn sig
• License plate lamp
• Lock
• Lr turn sig
• Lt ind
• Message center
• Off
• Park
• Park lamp relay
• Park lmp rly ctrl
• Pk lp sw in
• Power distribution center
• R turn sig sens
• Rf turn sig
• Right front park/ turn signal lamp
• Right rear lamp assembly
• Rr turn sig
• Rt ind
• Run
• Start
• Stop lamp switch (left side of brake pedal bracket)
• Tail/ stop lamp
• Tail/ turn signal
• Tan
