Электросхемы ВНЕШНЕЕ ОСВЕЩЕНИЕ Hyundai Santa Fe 2001

ВНЕШНЕЕ ОСВЕЩЕНИЕ

Электросхема заднего хода для Hyundai Santa Fe 2001

Электросхема заднего хода для Hyundai Santa Fe 2001 - Список элементов:

• 1/p-p
• A/t
• Back-up lamp switch (on transaxle)
• E/r-d
• E/r-g
• Engine compartment junction block
• Fuse 25 10a
• G402 (left rear wheelwell)
• G403 (right rear wheelwell)
• Hot in on or start
• I/p-b
• I/p-f
• J/c c33 (behind left headlamp)
• J/c c35 (behind center of dash)
• J/c m46 (below driver's seat)
• Left back up lamp
• Left rear combination lamp
• M/t
• Nca
• Passenger compartment junction block
• Pnk
• Right back up lamp
• Right rear combination lamp
• Transaxle range (tr) switch (on transaxle)

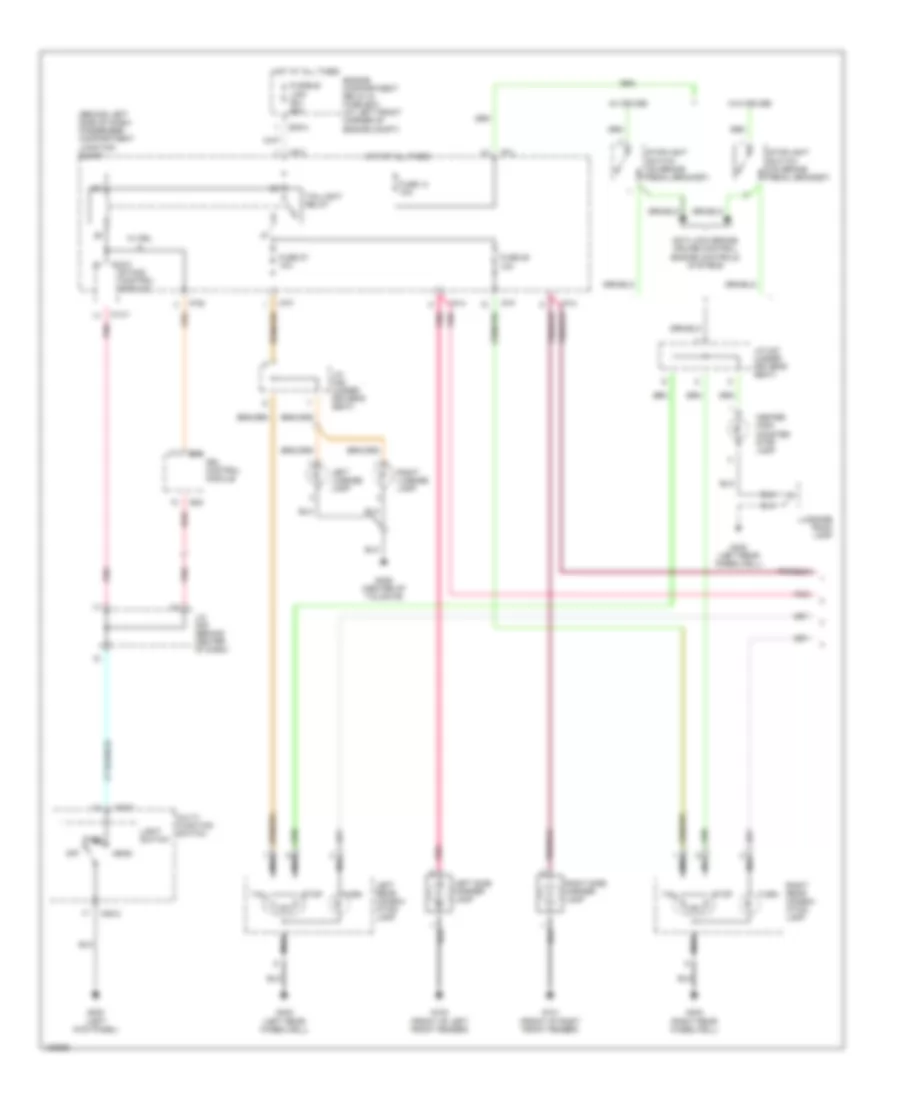

Электросхема внешнего освещения (1 из 2) для Hyundai Santa Fe 2001

Электросхема внешнего освещения (1 из 2) для Hyundai Santa Fe 2001 - Список элементов:

• (behind left side of dash) passenger compartment junction block
• Anti-lock brake, cruise control, engine controls systems
• Center high- mounted stop lamp
• Drl control module
• E/r-a
• E30
• Engine compartment relay & fuse box (at left front corner of engine compt)
• Etacs control module
• Fuse 14 10a
• Fuse 27 10a
• Fuse 28 10a
• Fusible link (b+) 50a
• G100 (front of left front fender)
• G101 (front of right front fender)
• G200 (left kick panel)
• G402 (left rear wheelwell)
• G403 (right rear wheelwell)
• G406 (center of tailgate)
• Head
• Hot at all times
• I/p-a
• I/p-b
• I/p-c
• I/p-f
• I/p-l
• J/c m05 (behind center of dash)
• J/c m46 (under driver's seat)
• J/c m47 (under driver's seat)
• Left license lamp
• Left rear combin- ation lamp
• Left side marker lamp
• Light switch
• Luggage room lamp
• M13-1
• M15-3
• M20-2
• Multi- function switch
• Nca
• Nca nca
• Off
• Park
• Pnk
• Red
• Right license lamp
• Right rear combin- ation lamp
• Right side marker lamp
• Stop
• Stoplight switch (on brake pedal bracket)
• Tail
• Taillight relay
• Turn
• W/ cruise
• W/ drl
• W/o cruise

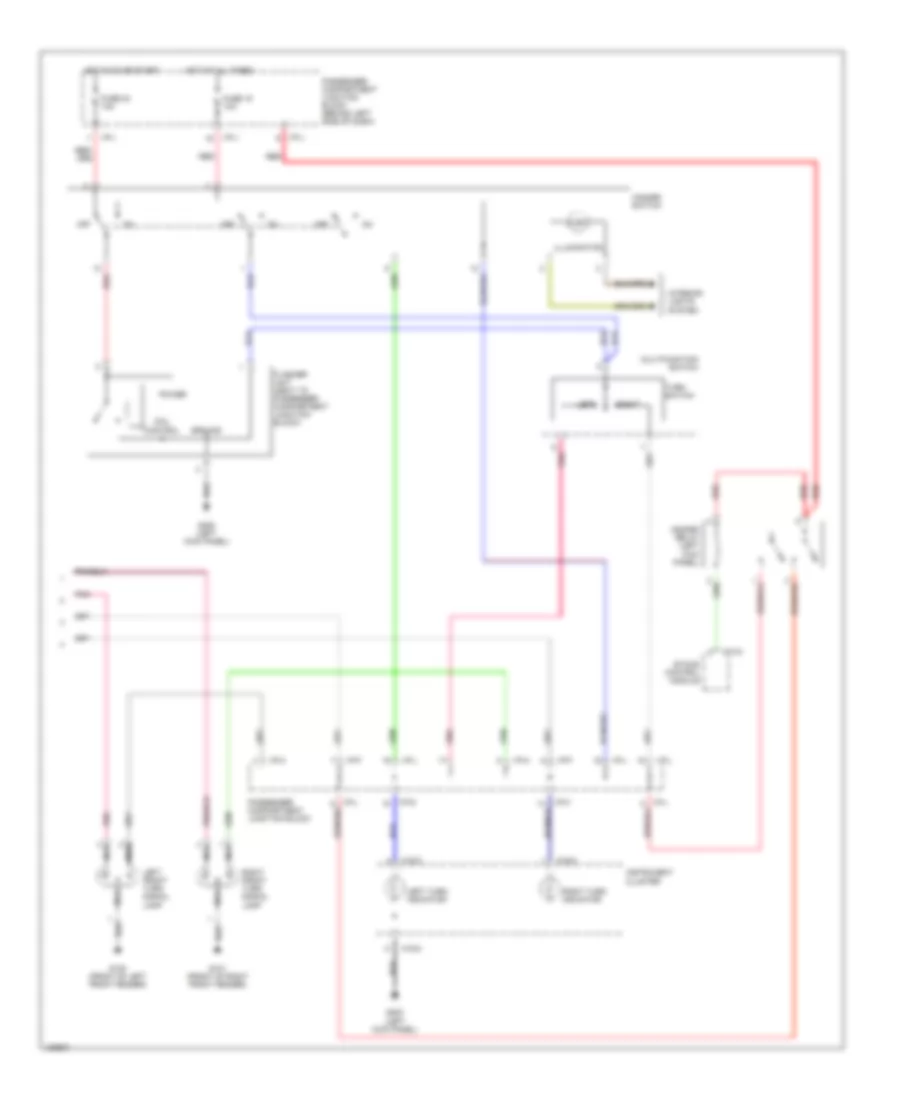

Электросхема внешнего освещения (2 из 2) для Hyundai Santa Fe 2001

Электросхема внешнего освещения (2 из 2) для Hyundai Santa Fe 2001 - Список элементов:

• Coil control
• Etacs control module
• Flasher unit (next to passenger compartment junction block)
• Fuse 15 10a
• Fuse 24 10a
• G100 (front of left front fender)
• G101 (front of right front fender)
• G200 (left kick panel)
• Ground
• Hazard relay (left kick panel)
• Hazard switch
• Hot at all times
• Hot in on or start
• I/p-a
• I/p-f
• I/p-g
• I/p-h
• I/p-j
• I/p-l
• Illumination
• Instrument cluster
• Interior lights system
• Left
• Left front turn signal lamp
• Left turn indicator
• M13-2
• M15-2
• Multifunction switch
• Nca
• Off
• Passenger compartment junction block
• Passenger compartment junction block (behind left side of dash)
• Pnk
• Power
• Red
• Right
• Right front turn signal lamp
• Right turn indicator
• Turn switch
