Электросхемы ВНЕШНЕЕ ОСВЕЩЕНИЕ Hyundai Santa Fe GLS 2009

ВНЕШНЕЕ ОСВЕЩЕНИЕ

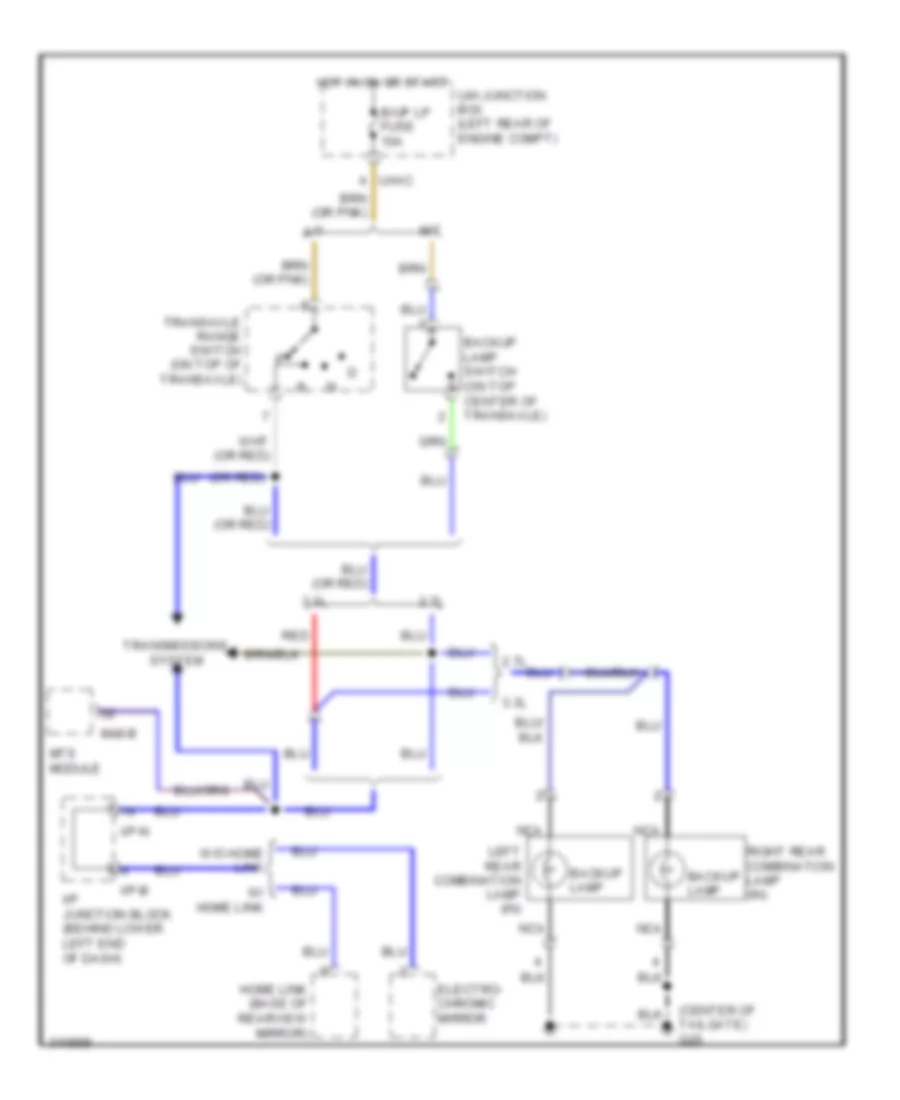

Электросхема заднего хода для Hyundai Santa Fe GLS 2009

Электросхема заднего хода для Hyundai Santa Fe GLS 2009 - Список элементов:

• (center of tailgate) g26
• (or red)
• 2.7l
• 3.3l
• A/t
• B/up lp fuse 10a
• Backup lamp
• Backup lamp switch (on top center of transaxle)
• Electro- chromic mirror
• Home link (base of rearview mirror)
• Hot in on or start
• I/p junction block (behind lower left end of dash)
• I/p-b
• I/p-n
• Left rear combination lamp (in)
• M/t
• M48-b
• Mts module
• Nca
• Red
• Right rear combination lamp (in)
• Transaxle range switch (on top of transaxle)
• Transmissions system
• U/h junction box (left rear of engine compt)
• U/h-c
• W/ home link
• W/o home link

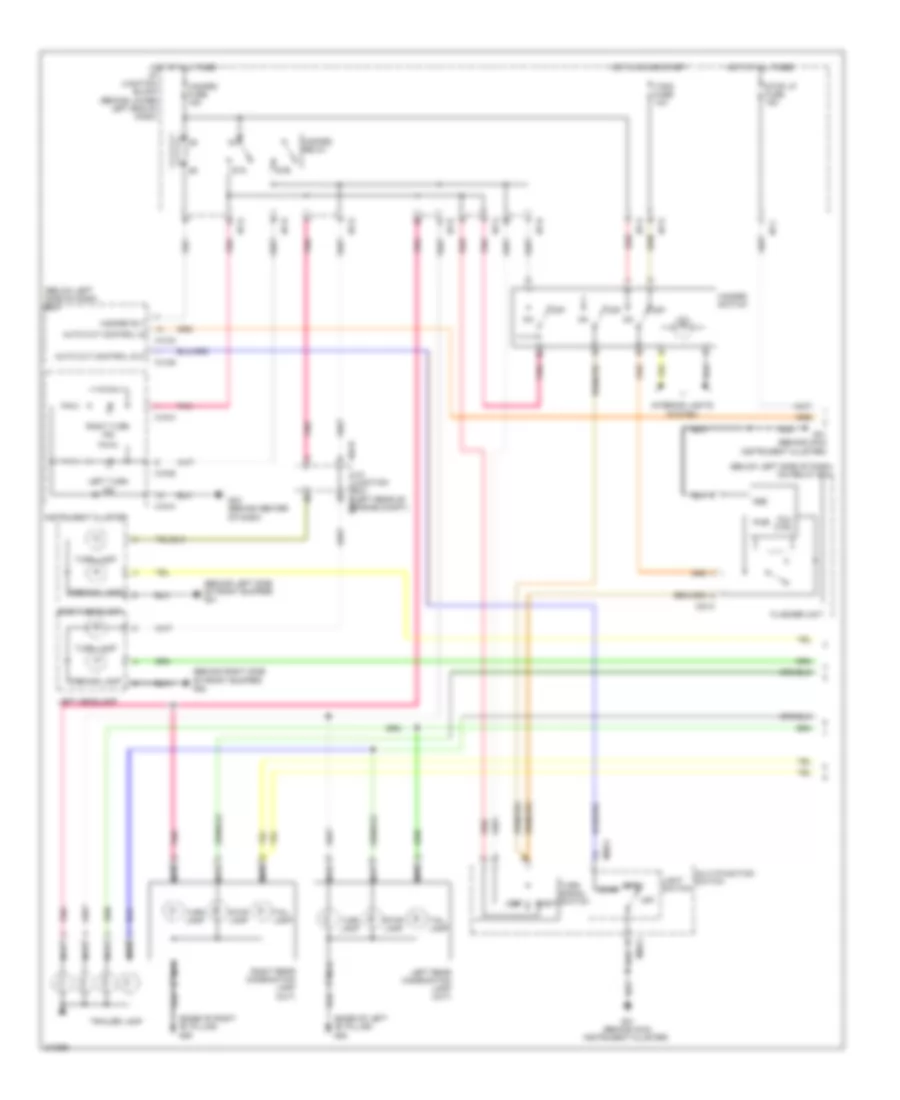

Электросхема внешнего освещения (1 из 2) для Hyundai Santa Fe GLS 2009

Электросхема внешнего освещения (1 из 2) для Hyundai Santa Fe GLS 2009 - Список элементов:

• (base of left "b" pillar) g05
• (base of right "b" pillar) g06
• (behind left side of front bumper) g21
• (behind right side of front bumper) g22
• (below left side of dash) bcm
• (below left side of dash) icm relay box
• 87a
• 87b
• Auto cut control in
• Auto cut control out
• Coil ctrl
• Flasher unit
• G31 (behind main instrument cluster)
• G33 (behind center of dash)
• Gnd
• Hazard fuse 15a
• Hazard relay
• Hazard rly
• Hazard switch
• Hot at all times
• Hot in on or start
• I/p junction block (behind lower left end of dash)
• I/p-d
• I/p-e
• I/p-g
• I/p-h
• I/p-j
• I/p-k
• Icm-a
• Ill
• Instrument cluster
• Interior lights system
• Left
• Left headlamp
• Left rear combination lamp (out)
• Left turn ind
• Light switch
• M13-b
• M13-d
• M15-a
• M15-b
• M20-2
• Multi-function switch
• Nca
• Off
• Park head
• Parking lamp
• Pnk
• Pwr
• Red
• Right
• Right headlamp
• Right rear combination lamp (out)
• Right turn ind
• Stop lamp
• Stop lp fuse 15a
• T/sig fuse 10a
• Tail lamp
• Trailer lamp
• Turn lamp
• Turn signal switch
• U/h junction box (left rear of engine compt)
• U/h-b
• U/h-d

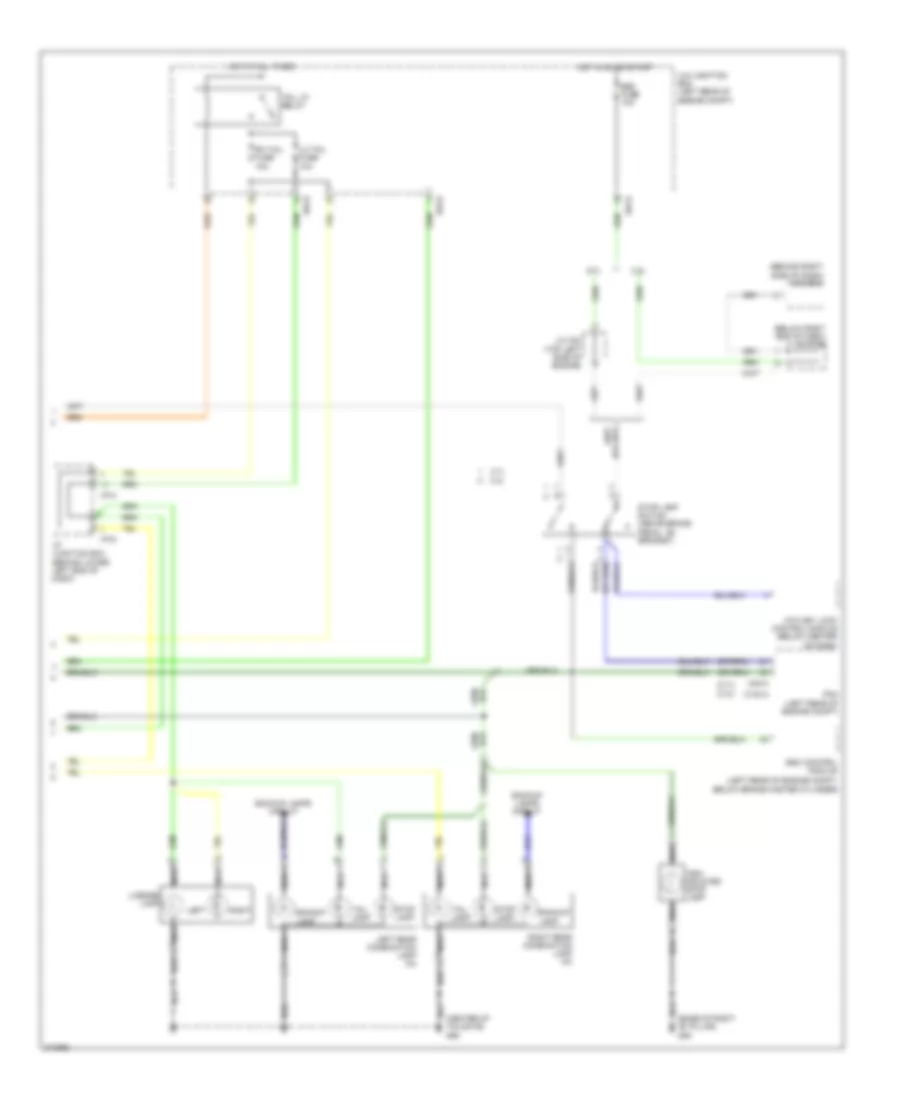

Электросхема внешнего освещения (2 из 2) для Hyundai Santa Fe GLS 2009

Электросхема внешнего освещения (2 из 2) для Hyundai Santa Fe GLS 2009 - Список элементов:

• (2.7l)
• (3.3l)
• (base of right "b" pillar) g06
• (behind right side of dash) 4wd ecm
• (below right end of dash) j/c c123
• (center of tailgate) g26
• (left rear of engine compt, below brake master cylinder)
• 2.7l
• 3.3l
• Atm key lock control module (below center of dash)
• Backup lamp
• Backup lamps circuit
• C130-a
• C30-a
• Esc control module
• Esc fuse 10a
• High mounted stop lamp
• Hot at all times
• Hot in on or start
• I/p junction box (behind lower left end of dash)
• I/p-a
• I/p-d
• J/c c23 (top left side of engine)
• Left
• Left rear combination lamp (in)
• Lh tail fuse 10a
• License lamp
• Nca
• Pcm (left rear of engine compt)
• Rh tail fuse 10a
• Right
• Right rear combination lamp (in)
• Stop lamp
• Stop lamp switch (above brake pedal, on bracket)
• Tail lamp
• Tail lp relay
• U/h junction box (left rear of engine compt)
• U/h-b
• U/h-d
• U/h-u
