Электросхемы Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала Dodge Colt 1994

Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала

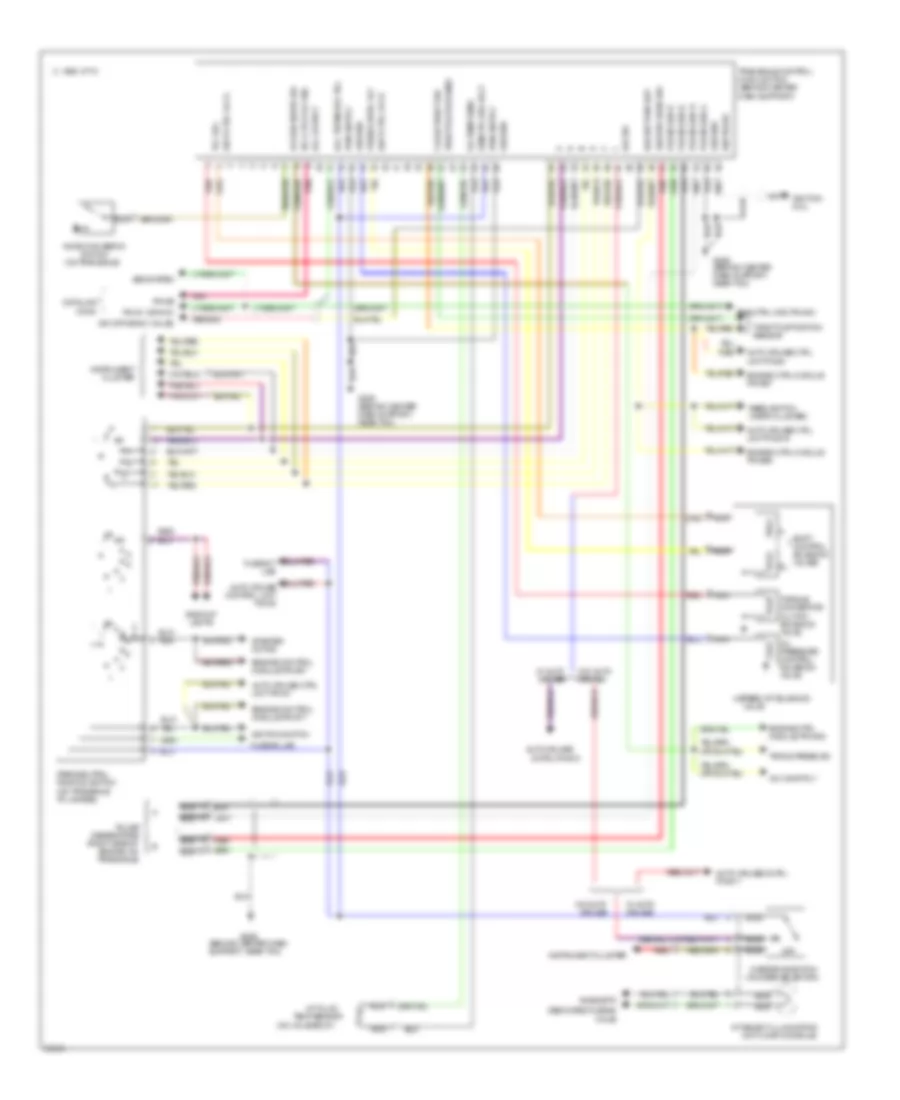

Электросхема коробки передач АКПП для Dodge Colt 1994

Электросхема коробки передач АКПП для Dodge Colt 1994 - Список элементов:

• (behind center dash support, near tcm)
• (on floor console)
• (on gear selector)
• (on transaxle)
• (on valve body)
• 1995 vftc c
• 4/speed a/t solenoid valve
• A/c cltch rly sig
• A/c comp rly
• A/t fluid
• A/t select illumination
• Abs system
• Auto cruise control unit pin #3
• Auto cruise ctrl unit pin #1
• Auto cruise ctrl unit pin #19
• Auto cruise ctrl unit pin #4
• Auto-cruise
• Auto-cruise cntrl pin #11
• Back/up lights
• Backup pwr sup
• Close throt sw
• Cntrl pin #10
• Conn
• Data link
• Dedicated fuse #2 via j/b
• Dlc output
• Dlc tst mode ctrl
• Eng ctrl mod pin #43
• Engine control module pin #51
• Engine control module pin #71
• Engine ctrl module pin #45
• Engine ctrl module pin #66
• Engine ctrl module pin #67
• Fuse #17 (j/b)
• Fuse #2 (j/b)
• G206
• G206 (behind center dash support, near tcm)
• Ground
• Ign off draw (via j/b)
• Ign pulse
• Ignition coil
• Ignition switch
• Instrument cluster
• Kickdn servo sw
• Kickdown servo
• Nca
• O/d sw
• Off
• Oil pressure control solenoid valve
• Oil temp sens
• Overdrive switch
• Park/neutral position switch (on transaxle at linkage)
• Pin #1 (or #10)
• Pin #6
• Pnk
• Press cntrl vlv
• Pulse gen b
• Pulse gen a
• Pulse gen b
• Pulse generators (right side of engine, on transaxle)
• R n
• Red
• Red/
• Reed switch (instr cluster)
• Rheostat
• Sens to grd volt
• Shft ctrl vlv a
• Shft ctrl vlv b
• Shift control solenoid valves
• Starter motor
• Switch
• Tcc sol
• Temp sensor
• Throttle pos sens
• Throttle position sensor
• Torque convertor clutch solenoid valve
• Transaxle control module (tcm) (behind center dash support)
• Triple press sw
• Veh spd reed sw
• W/ auto cruise
• W/0 auto cruise
• W/o auto cruise
