Электросхемы ПРИБОРНАЯ ПАНЕЛЬ Dodge Cab amp; Chassis R2500 1998

ПРИБОРНАЯ ПАНЕЛЬ

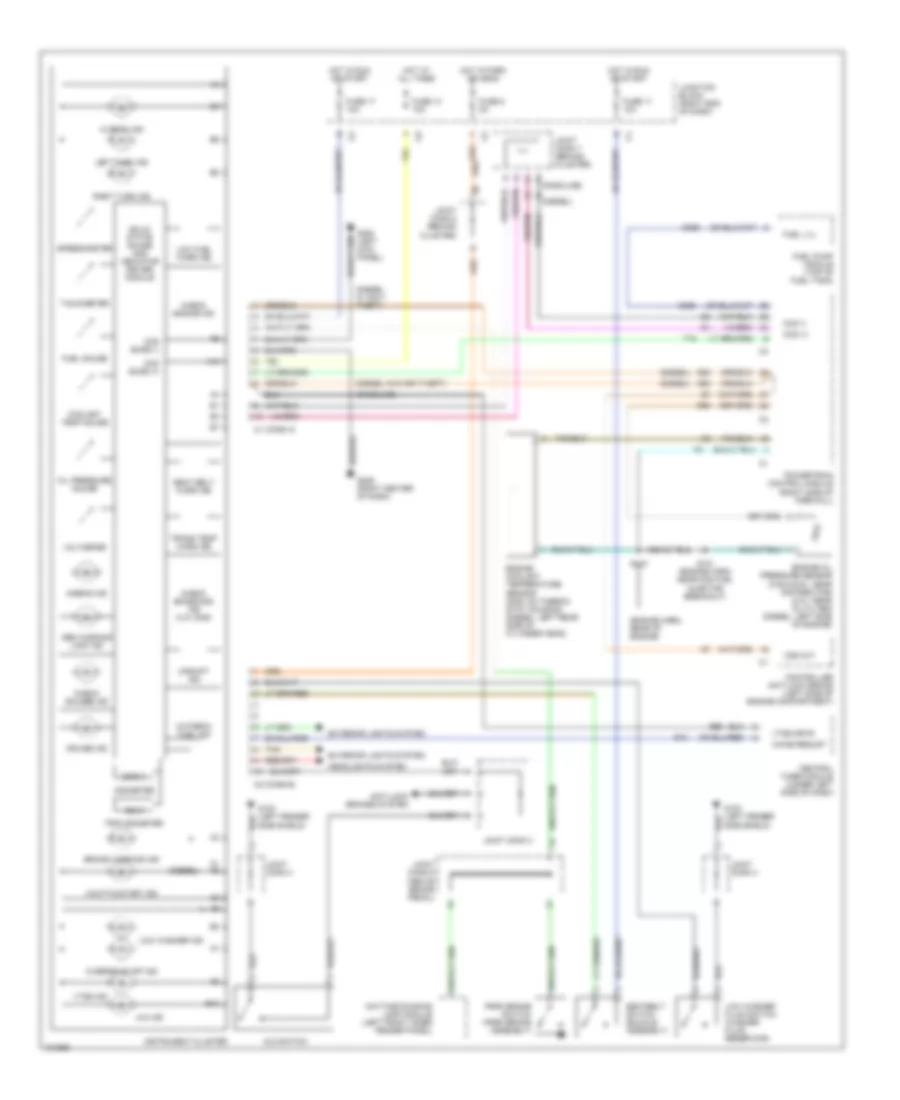

Электросхема панели приборов для Dodge Cab amp; Chassis R2500 1998

Электросхема панели приборов для Dodge Cab amp; Chassis R2500 1998 - Список элементов:

• (diesel w/ anti- theft)
• (diesel w/o anti-theft)
• (diesel)
• (engine harn, rear of engine)
• (gasoline)
• 025.6
• 4x4 ind
• 4x4 switch
• A1 a8
• A10
• Abs warning lamp ind
• Airbag ind
• Anti-lock brakes system
• B10
• Brake warning ind
• C1 (conn a)
• C2 (conn b)
• Ccd (+)
• Ccd (-)
• Ccd buss (+)
• Ccd buss (-)
• Central timer module (under left side of dash)
• Check emissions ind (h.d. gas)
• Check engine ind
• Check gauges ind
• Chime requst
• Controller anti-lock brake (left side of engine compartment)
• Coolant temp gauge
• Cruise ind
• Daytime running lamp module (left front inner fender panel)
• Engine coolant temperature sensor (gas: on thermo- stat housing) (diesel: left rear side of cylinder head)
• Engine oil pressure sensor (3.9/5.2/5.9l: near distributor) (8.0l: near oil filter) (diesel: left side of engine)
• Exterior lights system
• Fuel gauge
• Fuel lvl
• Fuel pump module (top of fuel tank)
• Fuse 11 10a
• Fuse 14 10a
• Fuse 17 10a
• Fuse 5 5a
• G100 (left fender side shield)
• G13
• G200 (left kick panel)
• G206 (right center of dash)
• G60
• G69
• G85
• Headlights system
• Hi beam ind
• Hot at all times
• Hot in park or head
• Hot in run or start
• Instrument cluster
• Joint conn 3
• Joint conn 4
• Joint conn 5 (behind cluster)
• Joint conn 6 (above brake pedal)
• Joint conn 7 (behind cluster)
• Junction block (right end of dash)
• K226
• Left turn ind
• Low fuel warn ind
• Low washer fluid switch (washer fluid reservoir)
• Low washer ind
• Odometer
• Oil pressure gauge
• Overdrive off ind
• Park brake switch (park brake assembly)
• Powertrain control module (right side of firewall)
• Right turn ind
• S118
• S121 (engine harn, near no5 fuel injector breakout)
• Seat belt warn ind
• Seatbelt switch (buckle assembly)
• Solid state gauge and indicator driver module
• Speedometer
• T18
• Tachometer
• Tan
• Trans temp warn ind
• Trip odometer
• Upshift ind
• Voltmeter
• Vss out
• Vtss drvr
• Vtss ind
• Wait-to-start ind
• Water-in fuel ind

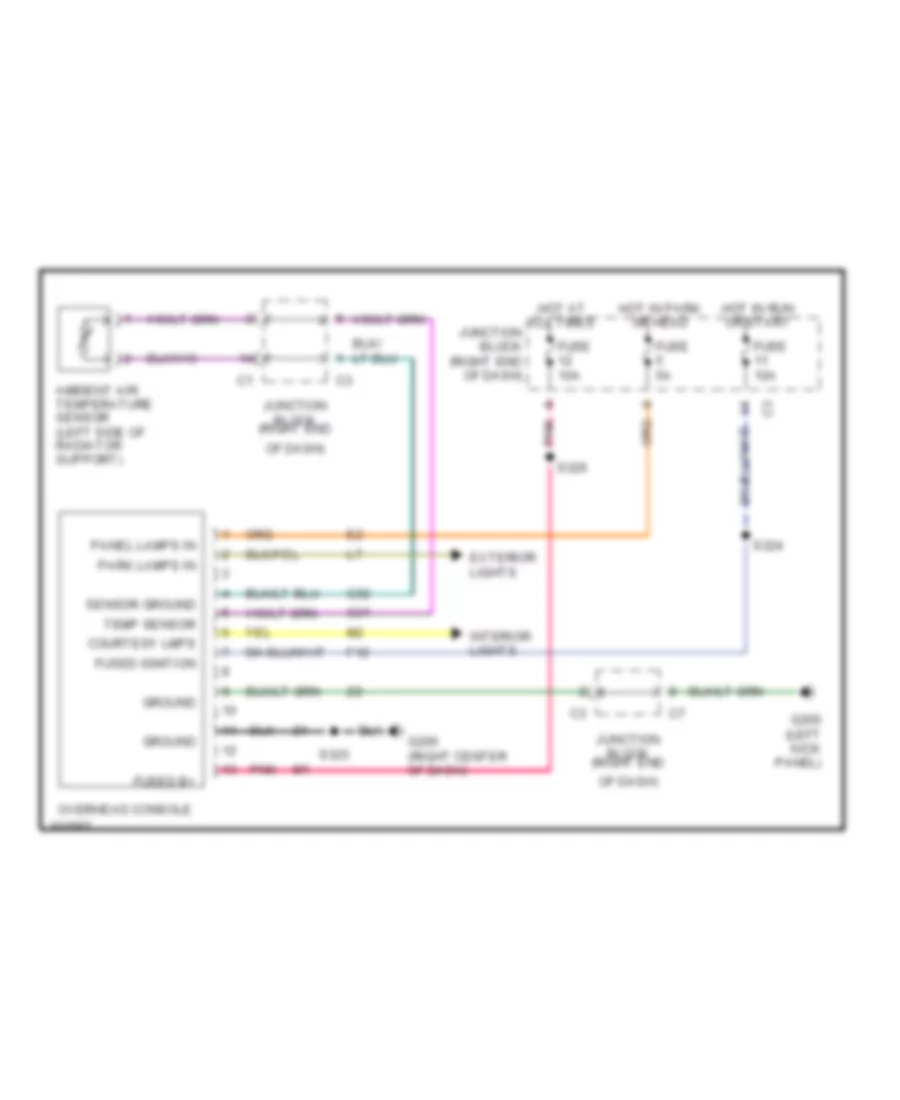

Электросхема верхней консоли управления для Dodge Cab amp; Chassis R2500 1998

Электросхема верхней консоли управления для Dodge Cab amp; Chassis R2500 1998 - Список элементов:

• Ambient air temperature sensor (left side of radiator support)
• Courtesy lmps
• Exterior lights
• F12
• Fuse 10a
• Fuse 5a
• Fused b+
• Fused ignition
• G200 (left kick panel)
• G206 (right center of dash)
• G31
• G32
• Ground
• Hot at all times
• Hot in park or head
• Hot in run or start
• Interior lights
• Junction block (right end
• Junction block (right end of dash)
• Of dash)
• Overhead console
• Panel lamps in
• Park lamps in
• Pnk
• S323
• S324
• S326
• Sensor ground
• Temp sensor
