Электросхемы ПРИБОРНАЯ ПАНЕЛЬ Dodge Cab amp; Chassis R3500 2006

ПРИБОРНАЯ ПАНЕЛЬ

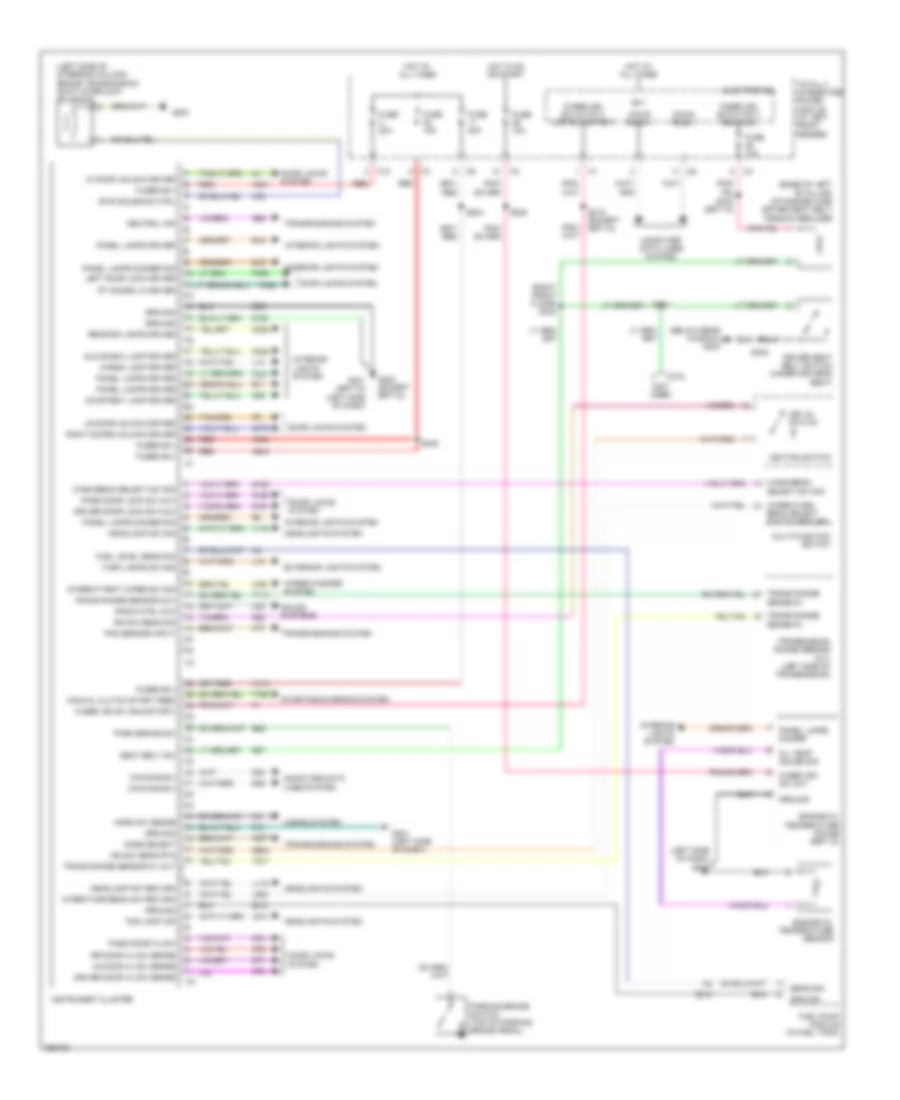

Электросхема панели приборов для Dodge Cab amp; Chassis R3500 2006

Электросхема панели приборов для Dodge Cab amp; Chassis R3500 2006 - Список элементов:

• (base of left "b" pillar) (standard cab) driver seat belt tension reducer
• (below rear window) g303
• (left side of dash) g201
• (left side of steering column) brake transmission shift interlock solenoid
• (not used)
• (right front floor) s322
• A114
• A941
• A944
• B(+)
• B25
• Btsi solenoid ctrl
• C10
• C316
• Can b bus(+)
• Can b bus(-)
• Cargo lamp driver
• Computer data lines system
• Courtesy lamp driver
• D54
• D55
• Door locks system
• Driver door aj sw sense
• Driver door lock sw mux
• Driver seat belt switch (under driver's seat)
• E11
• E16
• E19
• Electronics
• Engine oil temperature gauge (srt-10)
• Engine oil temperature sensor
• Exterior lights system
• Fog lamp ind
• Fuel level sens sig
• Fuel pump module (in fuel tank)
• Fuse 10a
• Fuse 15a
• Fuse 20a
• Fused b(+)
• Fused ign sw (run/start)
• Fused ign sw out
• Fused ign sw output (off-run-start)
• Fused ign sw output (run-acc)
• G160
• G161
• G194
• G20
• G201 (left side of dash)
• G201 (srt-10) (left side of dash)
• G203
• G203 (except srt-10)
• G74
• G75
• G76
• G77
• G778
• G900
• G95
• Glove box lamp driver
• Ground
• Headlamp sw return
• Headlamp sw sig
• Headlights system
• Horn sw sense
• Horns system
• Hot at all times
• Hot in on or start
• Ign sw sens rtn
• Ign sw sens sig
• Ignition switch
• Instrument cluster
• Interior lights system
• Intermittent wiper sw sig
• K32
• K77
• K977
• Key-in switch
• L115
• L116
• L12
• L14
• L900
• L914
• Left door lock driver
• Lf door unlock driver
• Lr door aj sw sense
• Lr door unlock driver
• M20
• M228
• M288
• Manual clutch start feed
• Mode select
• Multi-function switch
• Neutral ind
• Oil temp gauge sig
• P301
• P392
• P393
• Panel lamps dimmer
• Panel lamps dimmer sig
• Panel lamps driver
• Park brake sw
• Parking brake switch (top of parking brake pedal)
• Pass door aj sw
• Pass door lock sw mux
• Pos sensor input
• R57
• Radio ctrl mux
• Reading lamps driver
• Red
• Right doors unlock driver
• Rr door aj sw sense
• Rt doors lk driver
• S015 (except srt-10)
• S204
• S205
• S245
• S302
• S333 (srt-10)
• Seat belt sw
• Sens sig
• Sound systems
• Starting/charging system
• T117
• T753
• T917
• Totally integrated power module (at left front fender)
• Trans range sense 5v
• Trans range sensor 5v out
• Trans range sensor mux
• Transmission range sensor (a/t) (left side of transmission)
• Transmissions system
• Turn lamps sw sig
• W52
• Wash/beam select sw sig
• Wiper/turn/ beam select switch return
• Wiper/turn/beam sw return
• Wiper/washer system
• X20
• Z108
• Z18
• Z210
• Z921

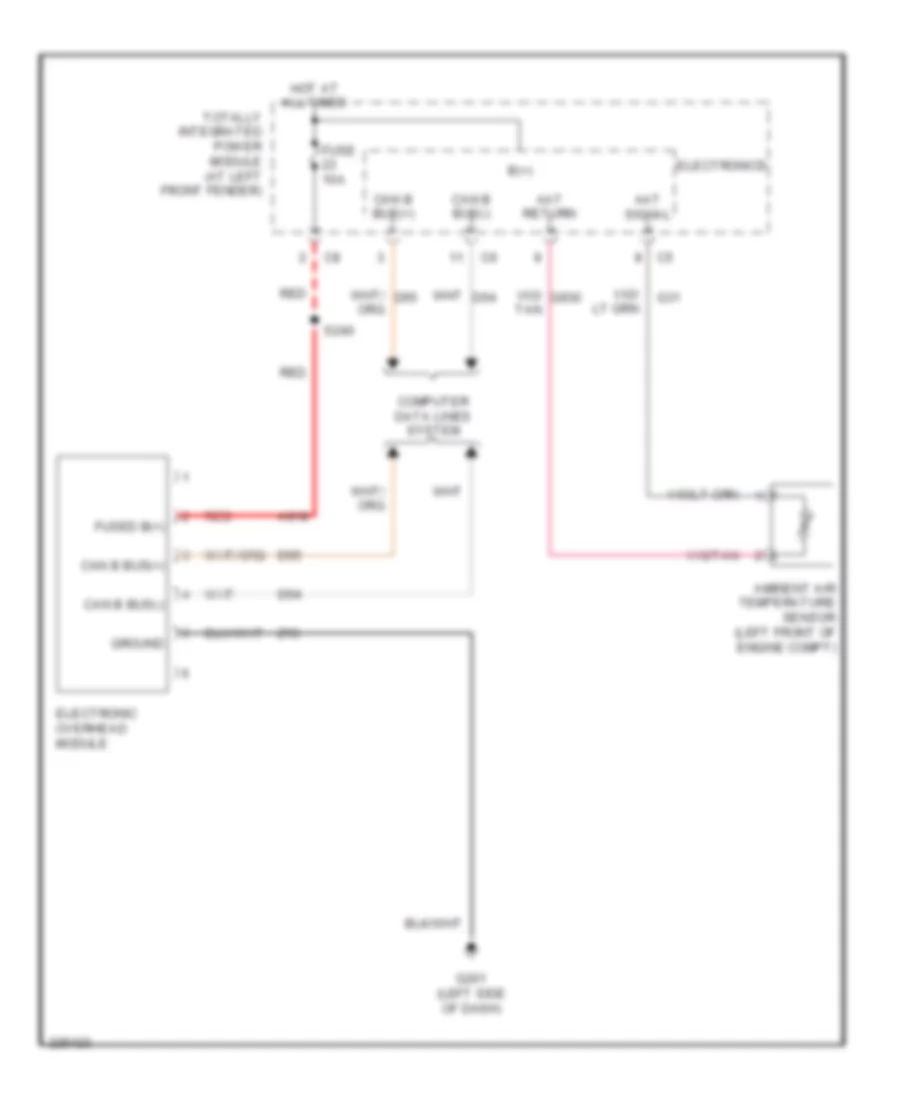

Электросхема верхней консоли управления для Dodge Cab amp; Chassis R3500 2006

Электросхема верхней консоли управления для Dodge Cab amp; Chassis R3500 2006 - Список элементов:

• A919
• Aat return
• Aat signal
• Ambient air temperature sensor (left front of engine compt)
• B(+)
• Can b bus(+)
• Can b bus(-)
• Computer data lines system
• D54
• D55
• Electronic overhead module
• Electronics
• Fuse 10a
• Fused b(+)
• G201 (left side of dash)
• G31
• Ground
• Hot at all times
• Red
• S240
• Tan
• Totally integrated power module (at left front fender)
• Z13
