Электросхемы СИСТЕМА КОНДИЦИОНЕРА Dodge Durango SXT 2014

СИСТЕМА КОНДИЦИОНЕРА

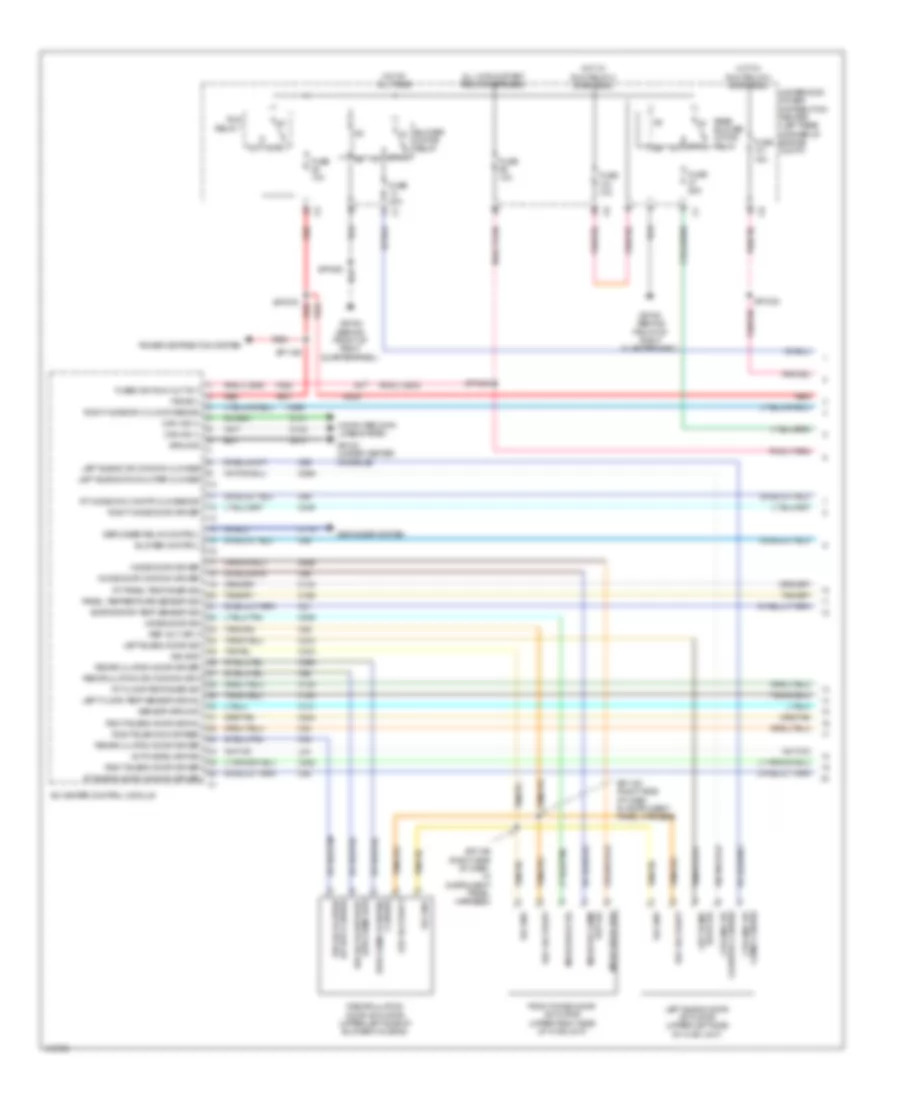

Электросхема кондиционера (1 из 4) для Dodge Durango SXT 2014

Электросхема кондиционера (1 из 4) для Dodge Durango SXT 2014 - Список элементов:

• 87a
• A/c heater control module
• A937
• All w/ run/start relay energized
• Auto headlamp sig
• Blower control
• Blower motor relay
• C115
• C130
• C131
• C134
• C162
• C164
• C21
• C224
• C233
• C235
• C24
• C245
• C252
• C255
• C26
• C265
• C268
• C32
• C333
• C52
• C55
• C56
• C65
• C66
• C68
• Can ihs (+)
• Can ihs (-)
• Clkwise driv comn counter
• Comn clkwise lt blend dr
• Computer data lines system
• Countor clkwise lt blend dr
• D101
• D102
• Defogger relay control
• Defogger system
• Door sig left blind
• Dr drv clkwise recalculation
• Driv comn driv recalculation dr
• Drv sig mode dr comn
• Evaporator temp sensor sig
• F948
• Front mode door actuator (upper right side of hvac unit)
• Fsd b(+)
• Fuse 10a
• Fuse 15a
• Fuse 25a
• Fuse 40a
• Fused ign run out put
• G266
• G912a (under center console)
• G919a (behind front of right quarterpanel)
• Ground
• Hot at all times
• Hot w/ run relay 2 energized
• I5020
• L24
• Left blend door actuator (upper left side of hvac unit)
• Left blend door sig
• Left blend dr common clkwise
• Left blend dr counter clkwise
• Left floor temp sensor signal
• Mode door common driver
• Mode door driv
• Mode door driver
• Mode door sig
• Panel temperature sensor sig
• Power distribution system
• Rear blower motor relay
• Recirculation door actuator (upper left side of blower housing)
• Recirculation door driver
• Recirculation dr common driv
• Red
• Ref volt sply
• Ref volt supy
• Right blend door driver
• Right blend door feed
• Right blend door signal
• Right mode door driver
• Right mode dr 2 clockwise sig
• Rt blend door common driver
• Rt floor temp snsr sig
• Rt mode dr 2 contr clkwise sig
• Rt panel temp snsr sig
• Run relay 1
• Sensor ground
• Sig gnd
• Sp1186
• Sp1193 (right side of dash, in instrument panel harness)
• Sp1199 (right side of dash, in instrument panel harness)
• Sp1235
• Sp1238
• Sp1575 red
• Sp1580
• Underhood power distribution center (left rear corner of engine compt)
• Z912

Электросхема кондиционера (2 из 4) для Dodge Durango SXT 2014

Электросхема кондиционера (2 из 4) для Dodge Durango SXT 2014 - Список элементов:

• (behind right quarterpanel) rear blower motor
• (lower left front of engine) a/c compressor clutch
• (near blower motor) front blower motor power module
• (right side of dash) blower motor
• (right side of dash, in instrument panel harness) sp1194
• A/c clutch ctrl output
• Blower ctrl
• Blower mtr ctrl
• Blower mtr sply
• Blower mtr sply c1
• C31
• C51
• C56
• C57
• C931
• Clkwise sig rt mode dr 2
• Contr clkwise sig rt mode dr 2
• Evap temp sens sig
• Evaporator temperature sensor (center of hvac unit)
• G909a (right rear of engine compt)
• G911a (under front of center console)
• G923a (base of left "d" pillar)
• Gnd
• I209a
• I5020
• I9030
• Left floor duct temperature sensor (right side of hvac unit, in duct)
• Left panel duct temperature sensor (front of hvac, in left air duct)
• Lt flr temp sens sig
• Mode door 2 actuator (upper right side of hvac unit)
• Mode dr drive
• Mtr rly output fsd rear blw
• Panel temp sens sig
• Rear blower motor power module
• Rear blw mtr ctrl
• Rear fan sens
• Rear fan sens rtn
• Red
• Right blend door actuator (right side of hvac unit)
• Right floor duct temperature sensor (right side of hvac unit, in duct)
• Right panel duct temperature sensor (front of hvac, in right air duct)
• Rt blend dr driver
• Rt blend dr feed
• Rt blend dr sig
• Rt flr temp snsr sig
• Rt pnl temp snsr sig
• S000
• Sens gnd
• Sns gnd
• Sp1192 (right side of dash, in instrument panel harness)
• Z134
• Z911
• Z923

Электросхема кондиционера (3 из 4) для Dodge Durango SXT 2014

Электросхема кондиционера (3 из 4) для Dodge Durango SXT 2014 - Список элементов:

• (or k175)
• 3.6l
• 5 volt sply
• 5.7l
• 87a
• A/c clutch ctrl
• A/c compressor clutch relay
• A/c press sig
• A/c pressure transducer (left front of engine compt)
• A957
• C13
• C18
• Can c (+)
• Can c (-)
• Computer data lines system
• D27
• D28
• Ect sig
• Engine controls system
• Engine coolant temperature sensor (3.6l: left rear of engine) (5.7l: top front of left cylinder head)
• Fuse 100a
• Fuse 10a
• Fuse 60a
• Fused (b+)
• G906a (right front of engine compt)
• G909b (right front of engine compt)
• Gnd
• Hig spd rad fan ctrl
• Hot at all times
• I9030
• K175
• K854
• K914
• K915
• Low spd rad fan ctrl
• N112
• N201
• N42
• N43
• Powertrain control module (right front of engine compt)
• Rad fan ctrl high speed
• Radiator cooling fan module (3.6l) (right rear of radiator)
• Radiator cooling fan module (5.7l) (right rear of radiator)
• Radiator fan ctrl
• Radiator fan high relay (3.6l)
• Radiator fan low relay (3.6l)
• Red
• Remote positive jump post (right rear of engine compt)
• Rly ctrl rad fan
• Run/ start relay
• Sens gnd
• Signal snsr gnd
• Sp1146 (right front of engine compt, in headlamp & dash harness)
• Sp1581 (3.6l) sp1582 (5.7l) (5.7l: right front of engine compt, in headlamp & dash harness)
• Sp2192 (rear of engine, in engine harness)
• Underhood power distribution center (right rear of engine compt)
• Z906
• Z909

Электросхема кондиционера (4 из 4) для Dodge Durango SXT 2014

Электросхема кондиционера (4 из 4) для Dodge Durango SXT 2014 - Список элементов:

• (behind left side of front fascia) ambient air temperature sensor
• (driver' seat cushion, in left seat heater jumper harness) s002
• (lower left center of dash) in car temperature sensor
• (right kick panel) body control module
• (top center of dash) sun sensor
• A rear panel temp
• A/c heater control module
• A937
• Aat
• Aat sig
• Auto headlamp sig
• B rear floor temp
• B rear panel temp
• C1 sens sig
• C116
• C168
• C169
• C321
• C322
• C323
• C326
• C36
• C37
• C57
• C59
• C60
• C67
• C69
• Can ihs (+)
• Can ihs (+) c6
• Can ihs (-)
• Common driv rear blend door
• Common driv rear mode door
• Computer data lines system
• D145
• D146
• D311
• D312
• Door feed rear blend
• Dr sig rear blend
• Driv rear blend door
• Driver rear mode
• F948
• Fsd ign r/st ctrl output
• Fsd ign run ctrl output
• Fused (b+)
• G139
• G31
• G39
• G911a (under front of center console)
• G923a (base of left "d" pillar)
• G931
• G939
• Gnd
• Gnd sens
• Ground
• Hood ajar switch
• I200a
• I209a
• I8120
• In car temp sig
• In car temp sig rtn
• Rear a/c heater control module
• Rear air temperature sensor (left side of dash)
• Rear blend door actuator (on rear hvac unit)
• Rear blend door feed
• Rear blend door sig rtn
• Rear blend door signal
• Rear blend dr commn driv
• Rear blend dr driv
• Rear blw mtr ctrl
• Rear floor temp sns sig
• Rear mode common driv
• Rear mode door actuator (on rear hvac unit)
• Rear mode door sig
• Rear mode driv
• Rear pnel temp snsr sig
• Rear temp snsr rtn
• Red
• S001 (driver' seat cushion, in left seat heater jumper harness)
• S3a
• S3a (top of left "b" pillar, in headliner harness)
• Sens gnd
• Sens gnd c4
• Sens in car temp rtn
• Sens in car temp sig
• Sens return
• Sens rtn rear floor temp
• Sens sig
• Sensor ground
• Sig rtn rear blend door
• Signal rear mode door
• Sp1249 (behind right side of front fascia, in front end module harness)
• Sun sensor sig 1
• Sun sensor sig 2
• Sun sensor signal 1
• Sun sensor signal 2
• Tan
• Washer fluid level switch
• Z923
