Электросхемы СИСТЕМЫ СИДЕНИЙ Dodge Avenger SXT 2013

СИСТЕМЫ СИДЕНИЙ

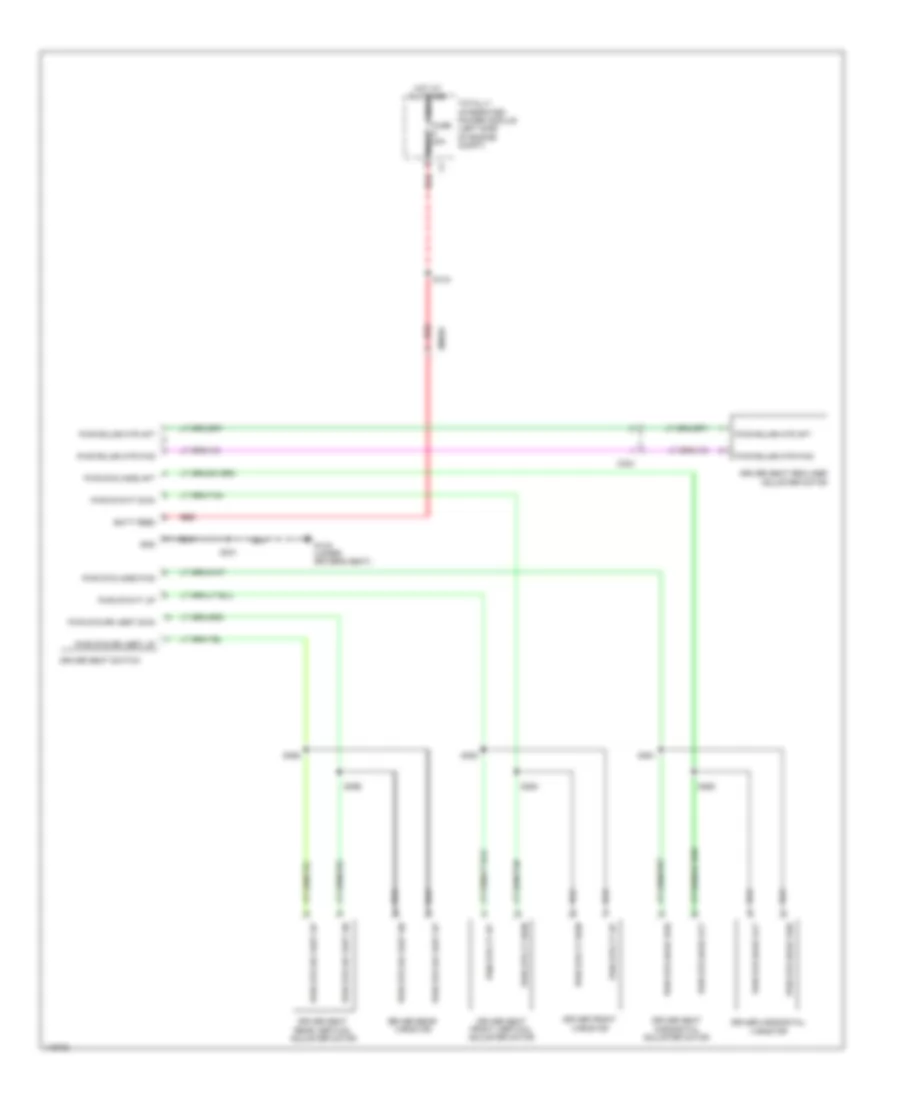

Электросхема привода водительского сиденья для Dodge Avenger SXT 2013

Электросхема привода водительского сиденья для Dodge Avenger SXT 2013 - Список элементов:

• Batt feed
• C324
• Driver front varistor
• Driver horizontal varistor
• Driver rear varistor
• Driver seat front vertical adjuster motor
• Driver seat horizontal adjuster motor
• Driver seat rear vertical adjuster motor
• Driver seat recliner adjuster motor
• Driver seat switch
• Fuse 40a
• G14a (under driver's seat)
• Gnd
• Hot at all times nca
• I9003a
• Nca
• Pwr rclnr mtr aft
• Pwr rclnr mtr fwd
• Pwr sts ft dwn
• Pwr sts ft up
• Pwr sts horz aft
• Pwr sts horz fwd
• Pwr sts rr vert dn
• Pwr sts rr vert dwn
• Pwr sts rr vert up
• Red
• S134
• S331
• S361
• S362
• S363
• S364
• S365
• S366
• Totally integrated power module (left side of engine compt)

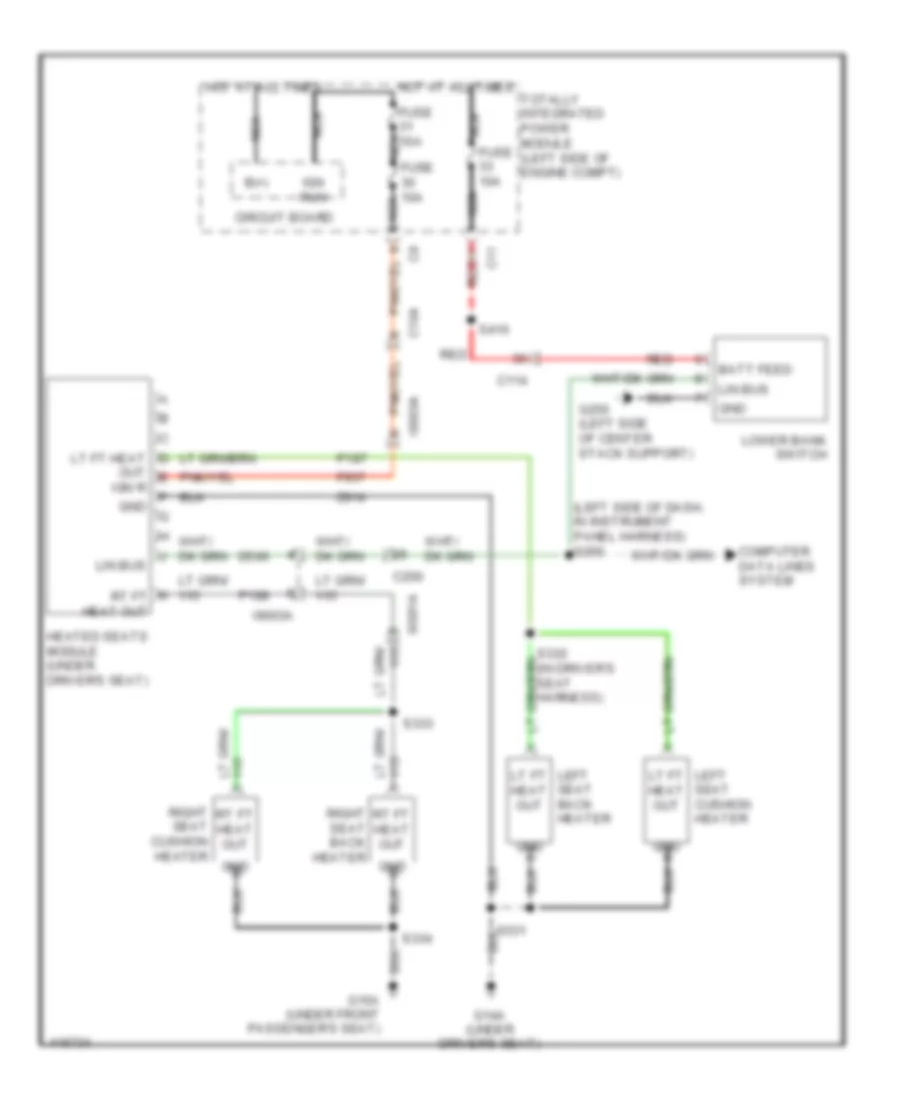

Электросхема подогрева сидений для Dodge Avenger SXT 2013

Электросхема подогрева сидений для Dodge Avenger SXT 2013 - Список элементов:

• (left side of dash, in instrument panel harness) s260
• B(+)
• Batt feed
• C104
• C11
• C114
• C200
• Circuit board
• Computer data lines system
• D506
• F937
• Fuse 10a
• Fuse 10a nca
• G14a (under driver's seat)
• G15a (under front passenger's seat)
• G250 (left side of center stack support)
• Gnd
• Heated seats module (under driver's seat)
• Hot at all times
• I9001a
• I9003a
• Ign r
• Ign run
• K rt ft heat out
• Left seat back heater
• Left seat cushion heater
• Lin bus
• Lower bank switch
• Lt ft heat d
• Lt ft heat out
• Nca
• Out e
• P187
• P188
• Red
• Right seat back heater
• Right seat cushion heater
• Rt ft heat out
• S332 (in driver's seat harness)
• S333
• S334
• S410
• Totally integrated power module (left side of engine compt)
• Z914
