СИСТЕМЫ СИДЕНИЙ

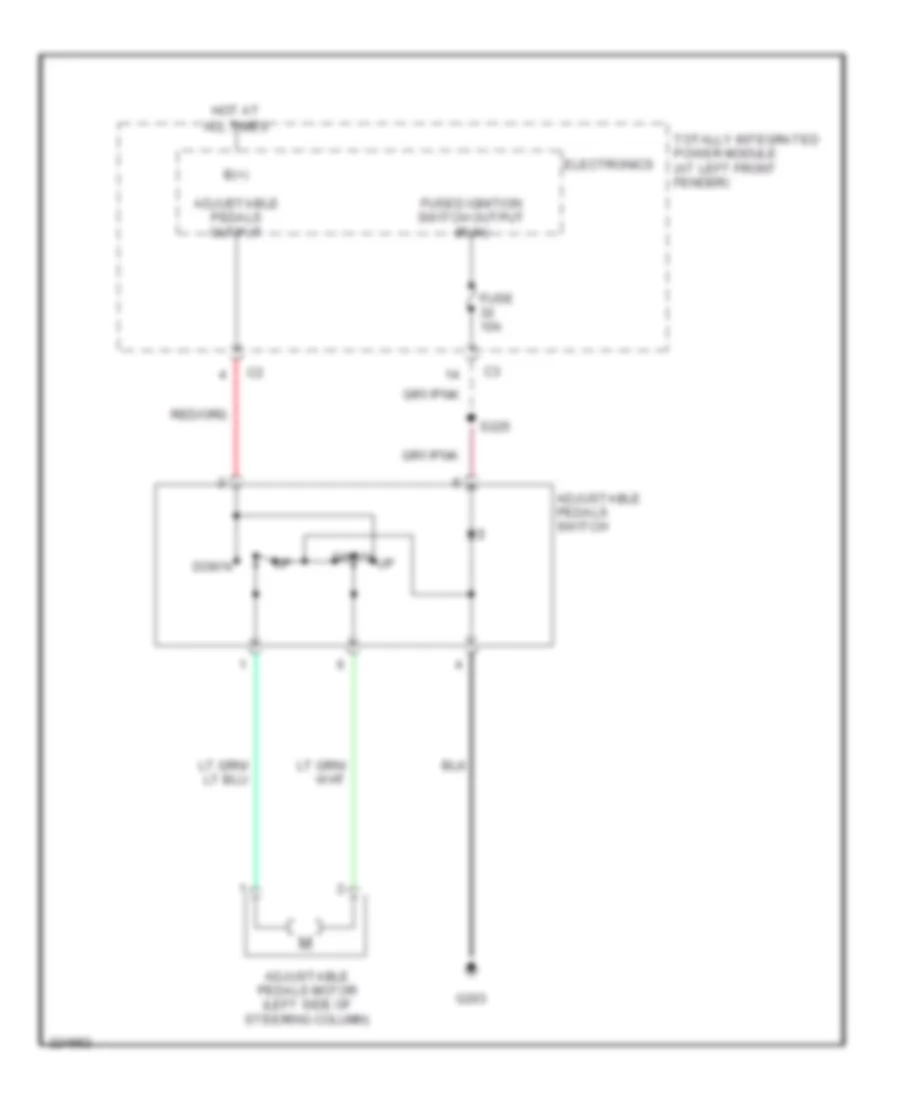

Электросхема регулировки положения педалей для Dodge Cab amp; Chassis R3500 2006

Электросхема регулировки положения педалей для Dodge Cab amp; Chassis R3500 2006 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Получить доступ ко всем электросхемам автомобиляDownload PDF file

Электросхема регулировки положения педалей для Dodge Cab amp; Chassis R3500 2006 - Список элементов:

  • Adjustable pedals motor (left side of steering column)
  • Adjustable pedals output
  • Adjustable pedals switch
  • All times
  • B(+)
  • Down
  • Electronics
  • Fuse 10a
  • Fused ignition switch output (run)
  • G203
  • Hot at
  • S225
  • Totally integrated power module (at left front fender)

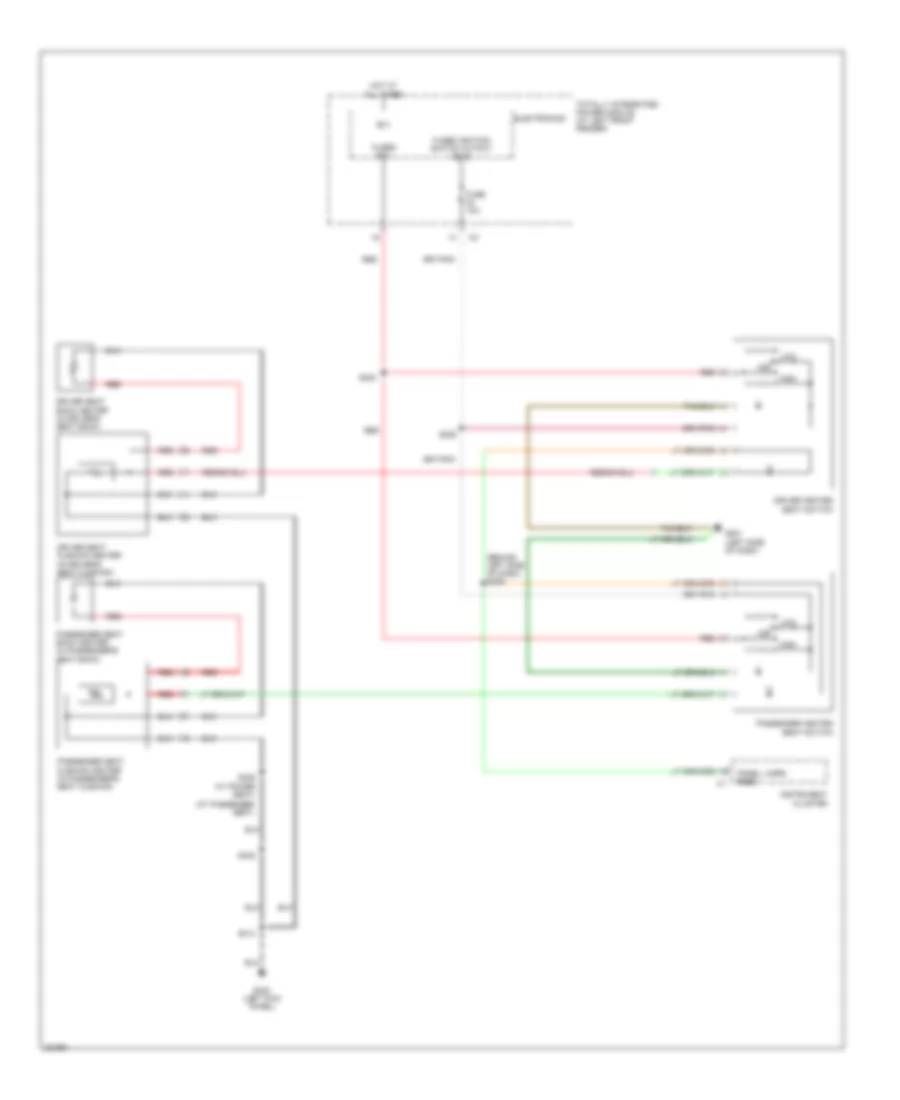

Электросхема подогрева сидений для Dodge Cab amp; Chassis R3500 2006

Электросхема подогрева сидений для Dodge Cab amp; Chassis R3500 2006 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Получить доступ ко всем электросхемам автомобиляDownload PDF file

Электросхема подогрева сидений для Dodge Cab amp; Chassis R3500 2006 - Список элементов:

  • (at passenger seat)
  • (behind left side of dash) s209
  • (left side of dash)
  • All times
  • B(+)
  • Driver heated seat switch
  • Driver seat back heater (in driver's seat back)
  • Driver seat cushion heater (in driver's seat cushion)
  • Electronics
  • Fuse 10a
  • Fused b(+)
  • Fused ignition switch output (run)
  • G201
  • G302 (left kick panel)
  • High
  • Hot at
  • Instrument cluster
  • Low
  • Off
  • Panel lamps feed
  • Passenger heated seat switch
  • Passenger seat back heater (in passenger's seat back)
  • Passenger seat cushion heater (in passenger's seat cushion)
  • Red
  • S223
  • S225
  • S314
  • S335
  • S336 (w/ power seat)
  • Totally integrated power module (at left front fender)

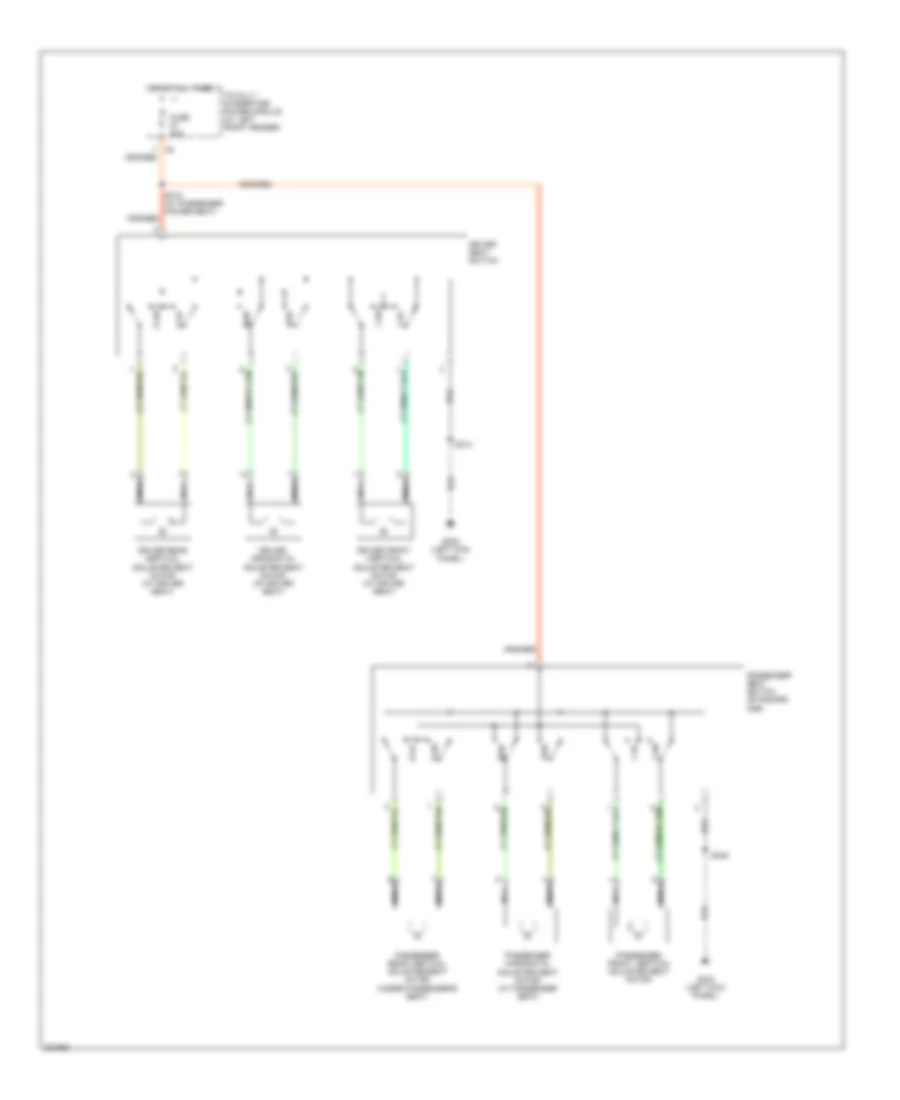

Электросхема привода сидений для Dodge Cab amp; Chassis R3500 2006

Электросхема привода сидений для Dodge Cab amp; Chassis R3500 2006 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Получить доступ ко всем электросхемам автомобиляDownload PDF file

Электросхема привода сидений для Dodge Cab amp; Chassis R3500 2006 - Список элементов:

  • Driver front vertical adjuster seat motor (at driver seat)
  • Driver horizontal adjuster seat motor (at driver seat)
  • Driver rear vertical adjuster seat motor (at driver seat)
  • Driver seat switch
  • F dn
  • F up
  • Fuse 40a
  • Fwd
  • G302 (left kick panel)
  • Hot at all times
  • Nca
  • Passenger front vertical adjuster seat motor
  • Passenger horizontal adjuster seat motor (at passenger seat)
  • Passenger rear vertical adjuster seat motor (under passenger's seat)
  • Passenger seat switch (standard cab)
  • R dn
  • R up
  • Rwd
  • S314
  • S316 (w/ passenger power seat)
  • S336
  • Totally integrated power module (at left front fender)
