Электросхемы ВНЕШНЕЕ ОСВЕЩЕНИЕ Dodge Cab amp; Chassis R2500 1998

ВНЕШНЕЕ ОСВЕЩЕНИЕ

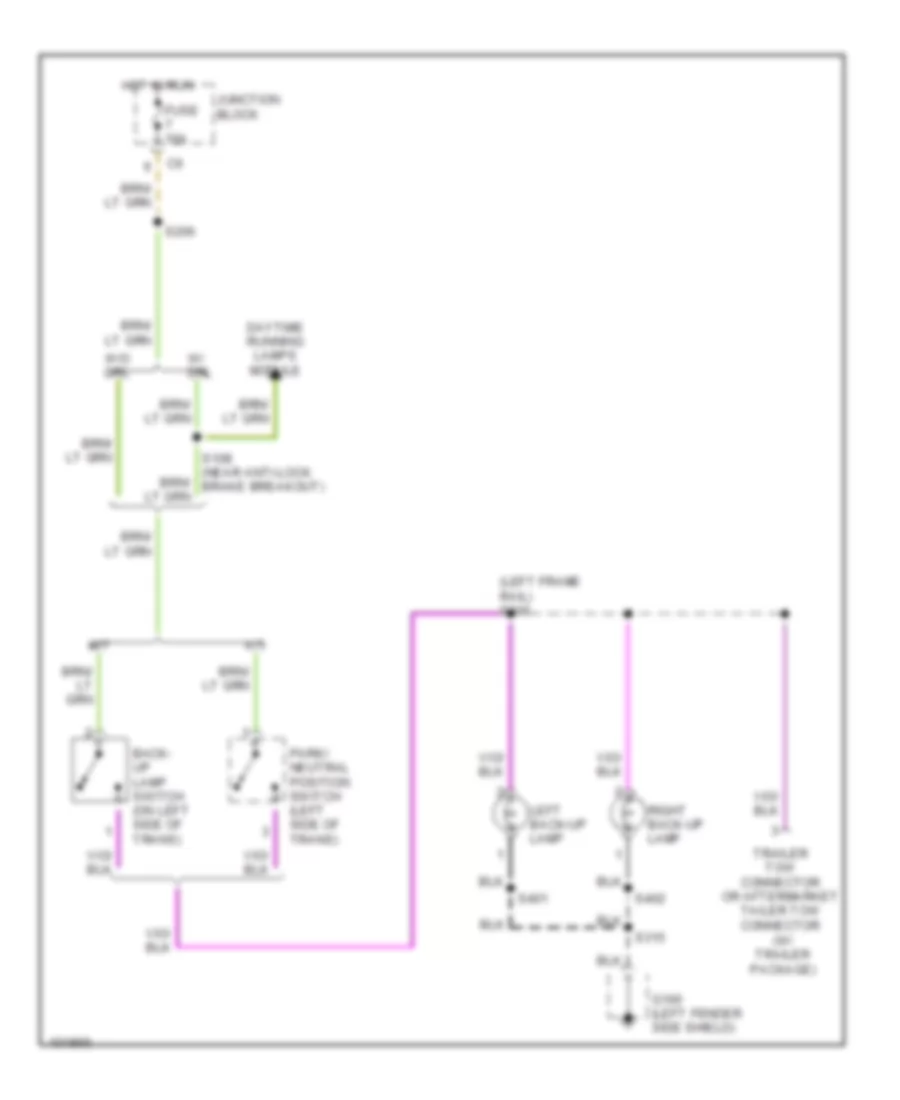

Электросхема заднего хода для Dodge Cab amp; Chassis R2500 1998

Электросхема заднего хода для Dodge Cab amp; Chassis R2500 1998 - Список элементов:

• (left frame rail) s316
• (w/ trailer package)
• A/t
• Back- up lamp switch (on left side of trans)
• Daytime running lamps module
• Fuse 10a
• G100 (left fender side shield)
• Hot in run
• Junction block
• Left back-up lamp
• M/t
• Park/ neutral position switch (left side of trans)
• Right back-up lamp
• S206
• S315
• S401
• S402
• Trailer tow connector or aftermarket tailer tow connector
• W/ drl
• W/o drl

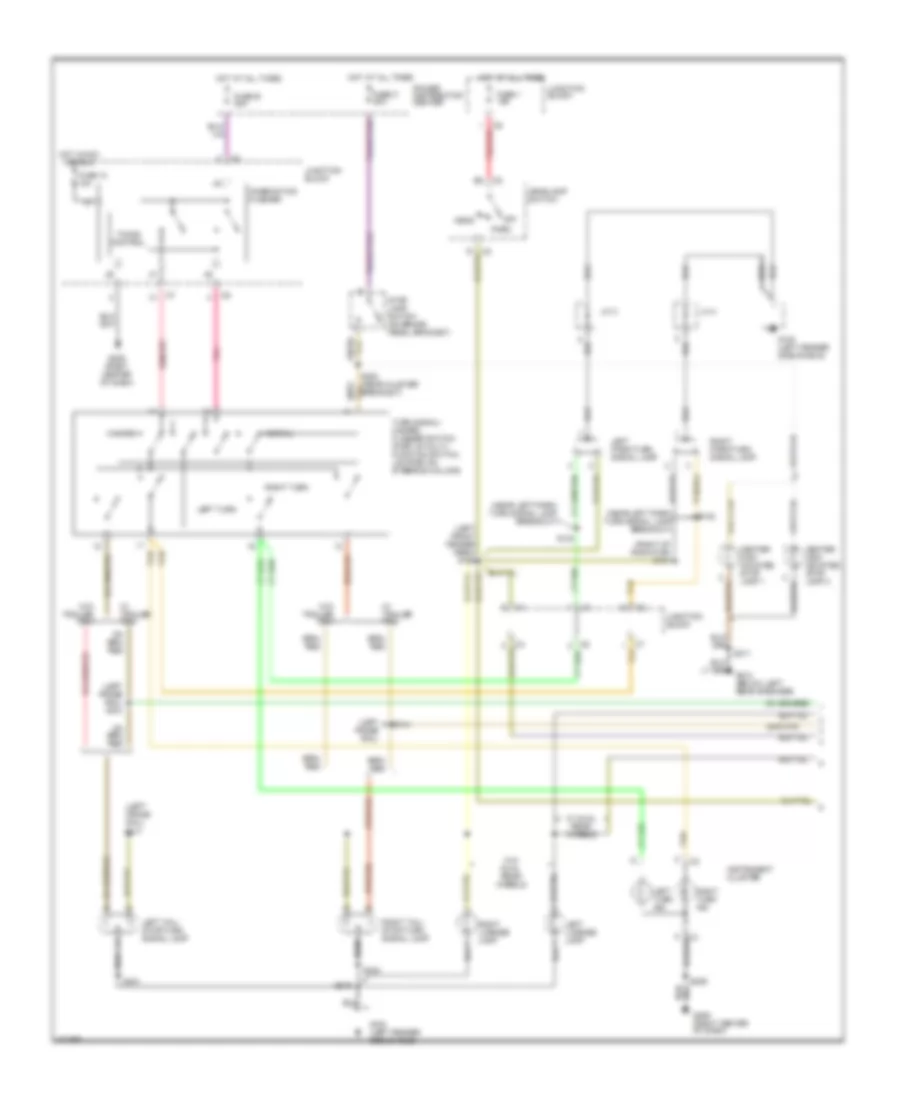

Электросхема внешнего освещения (1 из 2) для Dodge Cab amp; Chassis R2500 1998

Электросхема внешнего освещения (1 из 2) для Dodge Cab amp; Chassis R2500 1998 - Список элементов:

• (left frame rail)
• (left frame rail) s313
• (left front fender area) s104
• (near left park/ turn signal lamp breakout)
• (right of radiator) s101
• Center high mounted stop lamp 1
• Center high mounted stop lamp 2
• Combination flasher
• Fuse 1 15a
• Fuse 10 10a
• Fuse b 20a
• Fuse c 20a
• G100 (left fender side shield)
• G206 (right center of dash)
• G312 (below left rear speaker)
• Hazard
• Head
• Headlamp switch
• Hot at all times
• Hot in acc or run
• Instrument cluster
• J/4 4
• J/c 3
• Junction block
• Left license lamp
• Left park/turn signal lamp
• Left tail/ stop/turn signal lamp
• Left turn
• Left turn ind
• Normal
• Off
• Park
• Pnk
• Pnk/red
• Power distribution center
• Right license lamp
• Right park/turn signal lamp
• Right tail/ stop/turn signal lamp
• Right turn
• Right turn ind
• S102
• S103
• S200 (near cluster breakout)
• S206
• S311
• S314
• S315
• S317
• S401
• S402
• Stop lamp switch (on brake pedal bracket)
• Tan
• Timing control
• Turn signal/ hazard flasher switch (part of multi- function switch, located on steering column)
• W/ dual rear wheels
• W/ trailer tow
• W/o dual rear wheels
• W/o trailer tow

Электросхема внешнего освещения (2 из 2) для Dodge Cab amp; Chassis R2500 1998

Электросхема внешнего освещения (2 из 2) для Dodge Cab amp; Chassis R2500 1998 - Список элементов:

• (in trailer tow breakout)
• (right fender lamps) s401
• Backup lamps circuit
• Center identification lamp
• Electric brake provision
• Fuse 8 40a
• G100 (left fender side shield)
• G908 (at overhead console)
• Hot at all times
• J/c 1 (in power distribution center)
• J/c 2 (in power distribution center)
• Left front fender lamp
• Left license lamp
• Left outboard clearance lamp
• Left outboard identification lamp
• Left rear fender lamp
• Overhead console
• Power distribution center
• Red/tan
• Right forward fender lamp
• Right license lamp
• Right outboard clearance lamp
• Right outboard identification lamp
• Right rear fender lamp
• S315
• S318 (w/o aftermarket trailer tow)
• S319 (w/o aftermarket trailer tow)
• S320 (w/o aftermarket trailer tow) (in trailer tow breakout)
• S321 (w/o aftermarket trailer tow)
• S322 (at roof lamps)
• S325
• S402 (left fender lamps)
• S403
• S404
• Trailer tow connector or aftermarket trailer tow connector (if equipped)
• Trailer tow relay (w/ trailer package) (in power distribution center)
• W/ clearance & id lamps
• W/ optional dual rear wheels only
• W/o clearance & id lamps
