ВНУТРЕННЕЕ ОСВЕЩЕНИЕ
Электросхема ламп подсветки для Dodge Avenger 1996
Электросхема ламп подсветки для Dodge Avenger 1996 - Список элементов:
-
-
- (w/ rke)
- 10a
- 15a
- Acc
- B-39
- B-40
- B-41
- B-42
- B-43
- B-53
- B-54
- B-57
- B-63
- Combination meter
- Data link connector (below left side of i/p)
- Dome light
- Door
- Door locks system (keyless entry receiver)
- Engine compartment relay box
- Etacs ecu
- F10
- F8 10a
- G202 (left side of i/p)
- G300 (front floor, upper left crossmember)
- Glove box light
- Glove box light switch
- Hot at all times
- Hot w/ lights on
- Ignition key hole illumination light
- Ignition switch
- J/c 1 (left side of i/p)
- J/c 2 (left side of i/p)
- Junction block
- Left door switch
- Left front foot light
- Left vanity mirror light
- Luggage compartment light
- Luggage compartment light switch
- Nca
- Off
- Rear foot light
- Reciever
- Red/
- Right door switch
- Right front foot light
- Right vanity mirror light
- Start
- Theft
- Trunk lid switch
- W/ sunroof
- W/anti-
- W/anti- theft
- W/anti-theft
- W/o anti-
- W/o anti-theft
- W/o sunroof

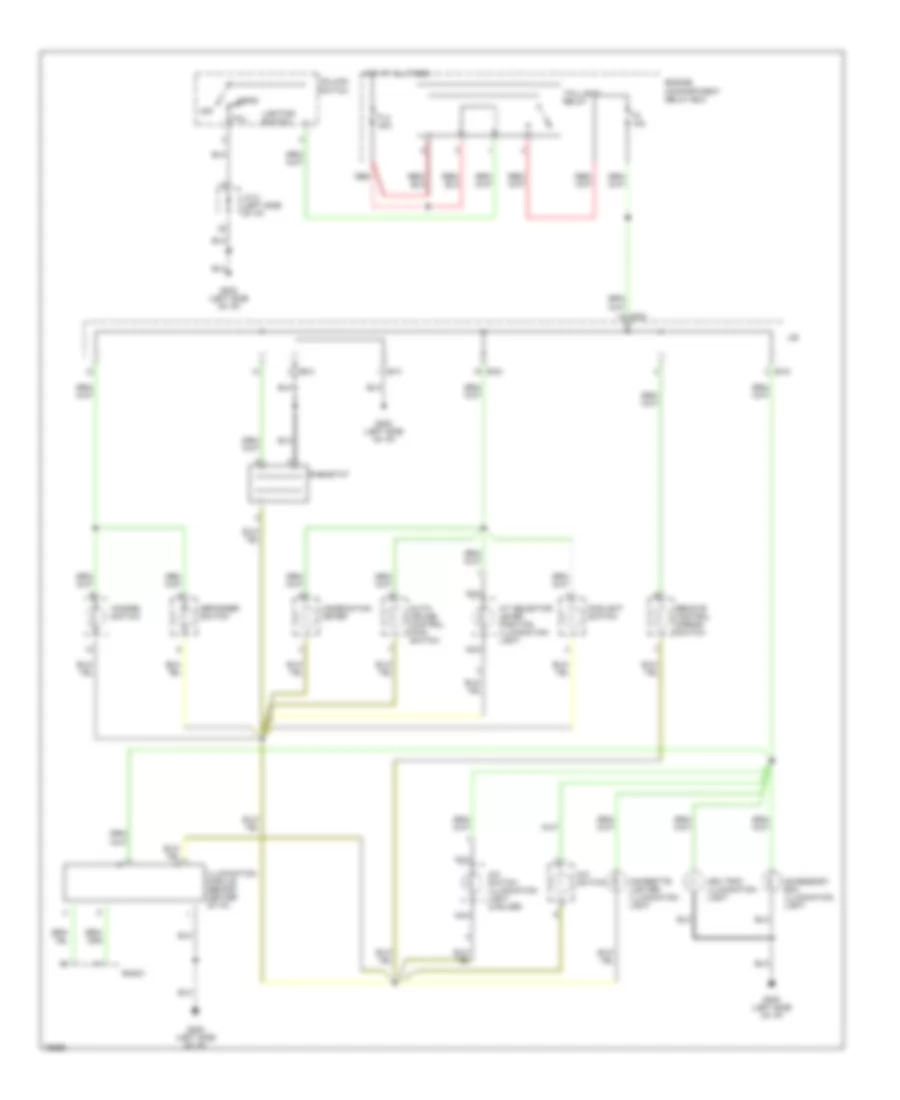

Электросхема подсветки приборов для Dodge Avenger 1996
Электросхема подсветки приборов для Dodge Avenger 1996 - Список элементов:
- A/c switch
- A/c switch illumination light (2 bulbs)
- A/t selector lever position illumination light
- Accessory box illumination light
- Ash tray illumination light
- Auto- cruise control main switch
- B-41
- B-43
- B-54
- B-63
- Cigarette lighter illumination light
- Column switch
- Combination meter
- Defogger switch
- Engine compartment relay box
- F4 15a
- Fl4 40a
- Foglight
- G202 (left side of i/p)
- Hazard switch
- Head
- Hot at all times
- Illumination module (behind center of i/p)
- J/b
- J/c 2 (left side of i/p)
- Lighting switch
- Nca
- Off
- Radio
- Red
- Remote control mirror switch
- Rheostat
- Switch
- Tail
- Taillight relay
