Электросхемы ЦЕНТРАЛЬНЫЙ ЗАМОК Audi Q7 3.0 TDI 2012

ЦЕНТРАЛЬНЫЙ ЗАМОК

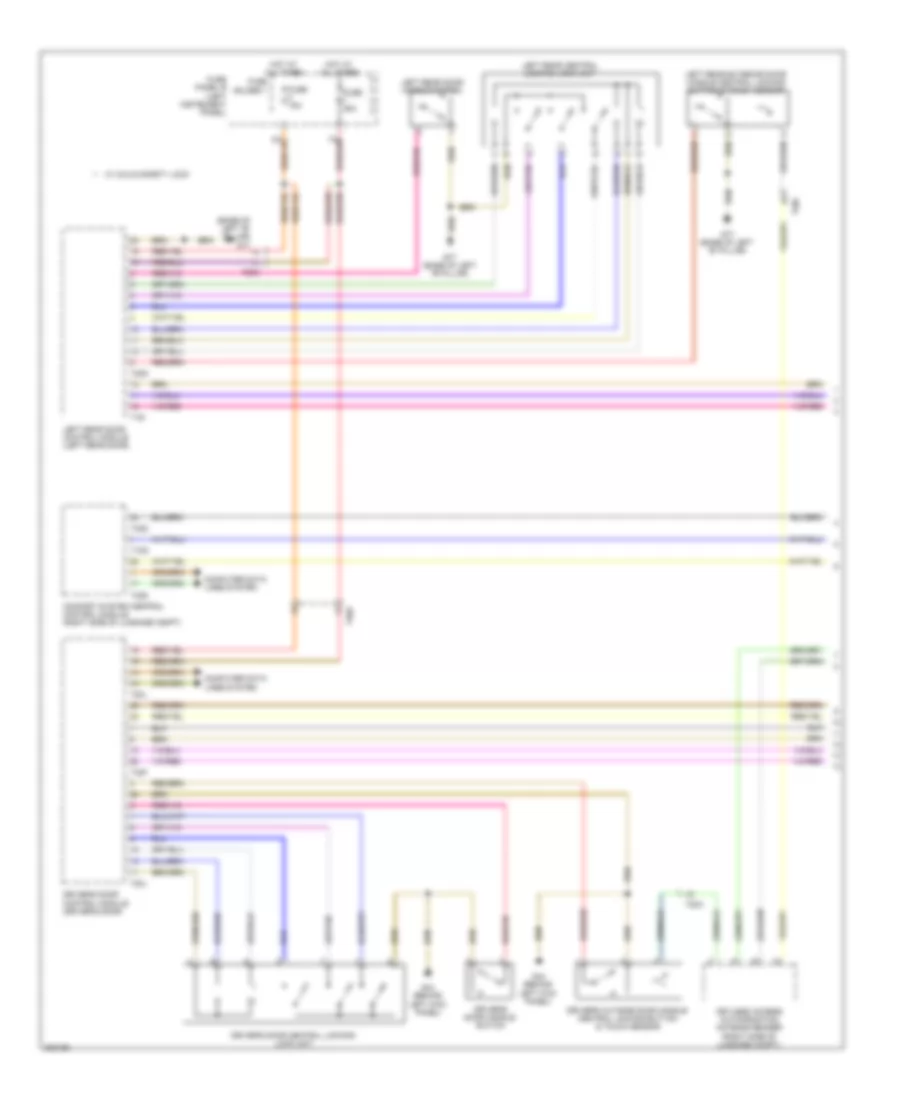

Электросхема центрального замка (1 из 3) для Audi Q7 3.0 TDI 2012

Электросхема центрального замка (1 из 3) для Audi Q7 3.0 TDI 2012 - Список элементов:

• (base of left "b" pillar) g77
• Comfort system central control module (right side of luggage compt)
• Computer data lines system
• Driver's door central locking lock unit
• Driver's door control module (driver's door)
• Driver's door handle switch
• Driver's outside door handle central locking button & touch sensor
• Fuse 15a
• Fuse 35a
• Fuse holder 1
• Fuse panel b (left instrument panel)
• G44 (behind left kick panel)
• G77 (base of left "b" pillar)
• Hot at all times
• Keyless access authorization antenna reader (right side of luggage compt)
• Left rear central locking lock unit
• Left rear door control module (left rear door)
• Left rear door handle switch
• Left rear exterior door handle central locking button & touch sensor
• T10g
• T16i
• T20a
• T20c
• T20l
• T20n
• T32d
• T32f
• W/ child safety lock

Электросхема центрального замка (2 из 3) для Audi Q7 3.0 TDI 2012

Электросхема центрального замка (2 из 3) для Audi Q7 3.0 TDI 2012 - Список элементов:

• Central locking safe indicator lamp
• Driver's interior lock switch
• Exterior lights system
• Front passenger interior lock switch
• G668 (left "d" pillar)
• Interior lights system
• Left rear interior lock switch
• License plate light & rear lid lock cylinder unlock button
• Lock
• Rear lid control module 2 (in rear lid control module motor)
• Rear lid remote release switch & fuel tank lid unlock button
• T10r
• T10s
• Trunk lid alarm switch & rear lid central locking system motor
• Un- lock
• W/ rear lid opening
• W/o rear lid opening

Электросхема центрального замка (3 из 3) для Audi Q7 3.0 TDI 2012

Электросхема центрального замка (3 из 3) для Audi Q7 3.0 TDI 2012 - Список элементов:

• (behind center of dash) g45
• (behind right kick panel) g43
• (right lower b-pillar) g78
• Computer data lines system
• Front passenger's door central locking lock unit
• Front passenger's door control module (front passenger's door)
• Front passenger's outside door handle central locking button & touch sensor
• Fuse 15a
• Fuse 35a
• Fuse holder
• Fuse panel c (right rear engine compt)
• G43 (behind right kick panel)
• G78 (right lower b-pillar)
• Glove compartment & display button
• Hot at all times
• Instrument cluster system
• Interior lights system
• Passenger's door handle switch
• Right rear central locking lock unit
• Right rear door control module (right rear door)
• Right rear door handle switch
• Right rear interior lock switch
• Right rear outside door handle central locking button & touch sensor
• T16m
• T20b
• T20d
• T20m
• T20o
• T32g
• T40a
• Vehicle electrical system control module 2 (under front passenger's seat)
• W/ child safety lock
