Электросхемы ЦЕНТРАЛЬНЫЙ ЗАМОК Cadillac DeVille d’Elegance 1997

ЦЕНТРАЛЬНЫЙ ЗАМОК

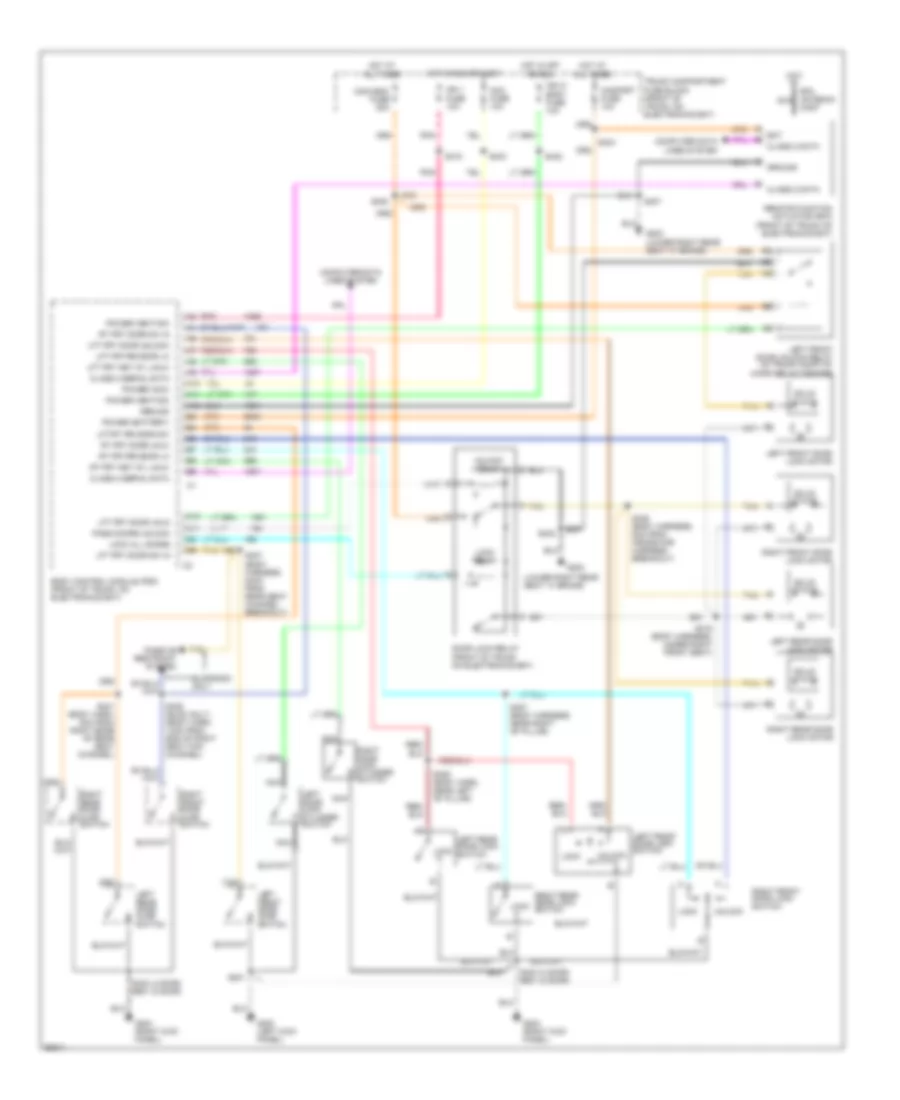

Электросхема центрального замка для Cadillac DeVille d'Elegance 1997

Электросхема центрального замка для Cadillac DeVille d'Elegance 1997 - Список элементов:

• (front of trunk on electronics bay)
• (lower right rear seat "x" brace)
• A tan
• A10
• A11
• A12
• Acc fuse 10a
• Bat
• Body control module (pzm) (front of trunk, on electronics bay)
• C10
• C11
• Class 2 data
• Class 2 serial data
• Comfort fuse 10a
• Computer data lines system
• Convenc fuse 20a
• Door lock relay
• Eldorado
• G200 (left kick panel)
• G203
• G203 (lower right rear seat "x" brace)
• G203 (right kick panel)
• Ground
• Hot at all times
• Hot in off or run
• Hot in run or accy
• Ign 1 fuse 10a
• Ign o- body fuse 10a
• Left door lock cylinder switch
• Left front door ajar switch
• Left front door lock motor
• Left front door lock switch
• Left front door unlock relay (in trunk compt #1 micro relay center)
• Left rear door ajar switch
• Left rear door lock motor
• Left rear door lock switch
• Lft frt door sw in
• Lft frt door unlk
• Lft frt door unlock
• Lft frt key cyl unlk
• Lft frt/rr door lk
• Lft/rt rr door sw
• Lock
• Lock all doors
• Lock relay
• Mast
• Nca
• Only
• Pass doors unlock
• Passive restraint system
• Pnk
• Power (acc)
• Power (battery)
• Power (ignition)
• Remote function actuator (rfa) (front of trunk on electronics bay)
• Rfa antenna nca
• Right door lock cylinder switch
• Right front door ajar switch
• Right front door lock motor
• Right front door lock switch
• Right rear door ajar switch
• Right rear door lock motor
• Right rear door lock switch
• Rt frt door sw in
• Rt frt door unlk
• Rt frt key cyl unlk
• Rt frt/rr door lk
• S201
• S307 (body harness, 54cm from rear seat channel breakout)
• S309 (body harn, near left "b" pillar)
• S315 (body harness, under right front seat)
• S318
• S323 (4 door) s601 (2 door)
• S325 (body harness, 8cm from cross-car harness breakout)
• S327 (body harness, near right "b" pillar)
• S328 (eldo only) (body harn, 13cm from end of right seat pan channel)
• S401 (body harn, 3cm from right edge of rear seat channel)
• S402
• S403
• S404
• S407
• S408
• S432
• Solid state
• Tan
• Trunk compartment fuse block (front of trunk, on electronics bay)
• Unlock
• Unlock relay
