Электросхемы Магнитола Мультимедия Jeep Grand Cherokee Overland 2006

Магнитола Мультимедия

Электросхема DVD плеера для Jeep Grand Cherokee Overland 2006

Электросхема DVD плеера для Jeep Grand Cherokee Overland 2006 - Список элементов:

• (left rear of body) s324
• (on body harness) s323
• Audio out ground
• Aux audio rtn/com
• Can b bus (+)
• Can b bus (-)
• Com-bmm1 address
• Com-bmm2 address
• Computer data lines system
• Dvd monitor (center of headliner)
• Fuse 27 15a
• Fused b (+)
• Fused b(+)
• G301 (rear of left rear door)
• Ground
• Hot at all times
• I/r audio left
• I/r audio return
• I/r audio right
• Integrated power module (left side of engine compt)
• Junction block (left side of dash)
• Left audio aux
• Monitor/dvd media system (rear of center console)
• Radio
• Remote ctrl func 1
• Remote ctrl func 2
• Remote ctrl function 1
• Remote ctrl function 2
• Right audio aux
• S202
• S321
• Shield
• Video play sig
• Video rtn
• Video sig

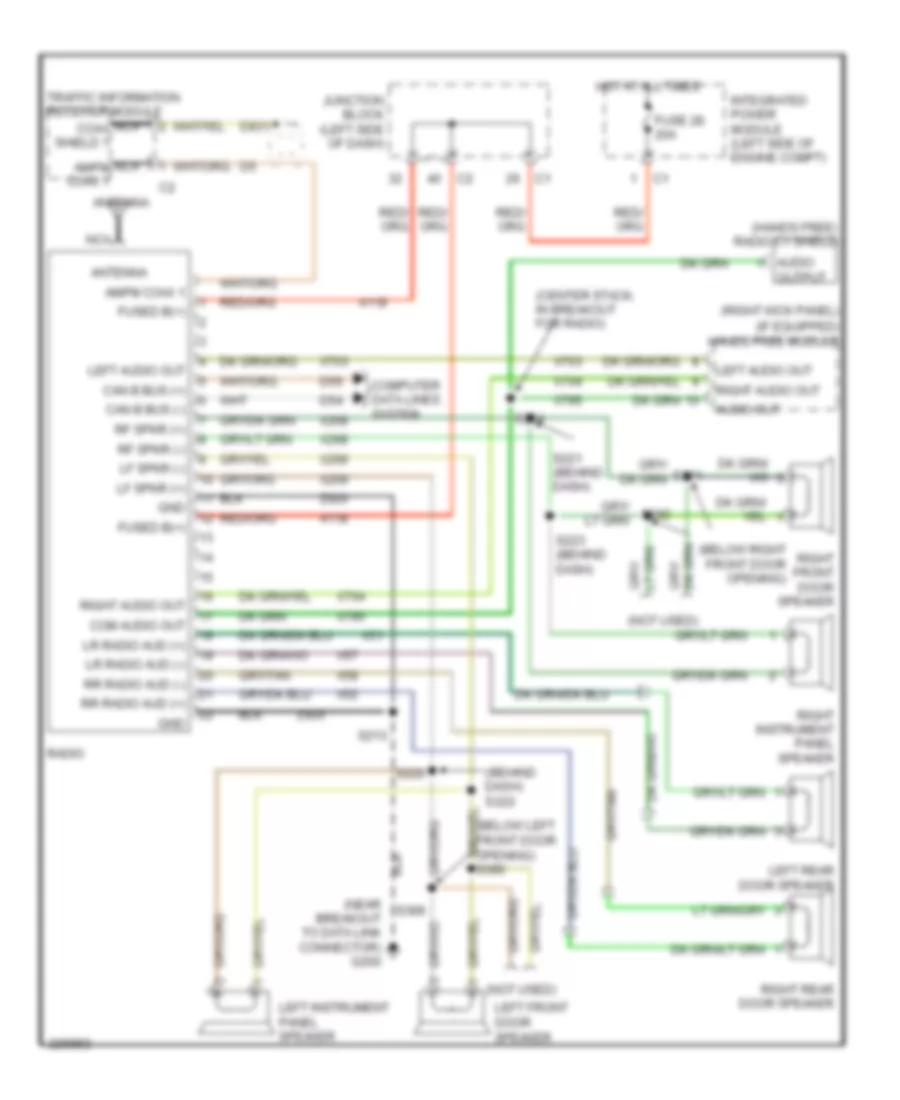

Электросхема магнитолы, стандартная комплектация для Jeep Grand Cherokee Overland 2006

Электросхема магнитолы, стандартная комплектация для Jeep Grand Cherokee Overland 2006 - Список элементов:

• (behind dash) s222
• (below right front door opening)
• (center stack, in breakout for radio)
• (hands free) radio c1 shield
• (if equipped) hands free module
• (near breakout to data link connector) g200
• (not used)
• (right kick panel)
• A118
• Am/fm coax 1
• Antenna
• Audio
• Audio out
• Can b bus (+)
• Can b bus (-)
• Com audio out
• Computer data lines system
• D54
• D55
• D931
• Fuse 28 20a
• Fused b(+)
• Gnd
• Hot at all times
• Integrated power module (left side of engine compt)
• Junction block (left side of dash)
• Left audio out
• Left front door speaker
• Left instrument panel speaker
• Left rear door speaker
• Lf spkr (+)
• Lf spkr (-)
• Lr radio aud (+)
• Lr radio aud (-)
• Nca
• Nca am/fm coax 1
• Nca coax shield 1
• Output
• Radio
• Rf spkr (+)
• Rf spkr (-)
• Right audio out
• Right front door speaker
• Right instrument panel speaker
• Right rear door speaker
• Rr radio aud (+)
• Rr radio aud (-)
• S213
• S220
• S221 (behind dash)
• S223 (behind dash)
• S224
• S389
• Traffic information receiver module
• X208
• X209
• X298
• X299
• X51
• X52
• X57
• X58
• X703
• X704
• X795
• Z920

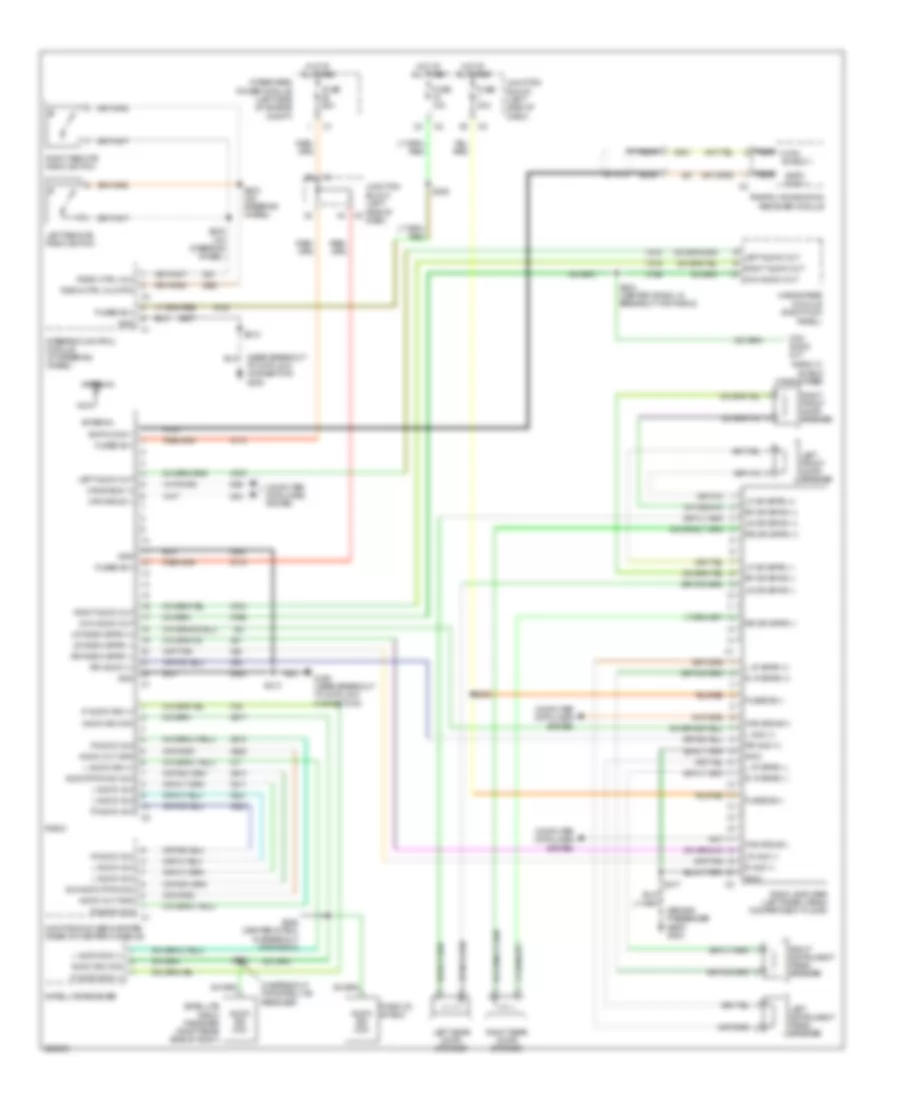

Электросхема магнитолы, Премиум класс для Jeep Grand Cherokee Overland 2006

Электросхема магнитолы, Премиум класс для Jeep Grand Cherokee Overland 2006 - Список элементов:

• (behind passenger seat) g300
• (in breakout for satellite receiver)
• (near breakout to data link connector) g200
• A108
• A118
• Am/fm coax 1
• Antenna
• Audio out gnd
• Audio rtn/com aux
• Audio sig com
• Aux audio rtn/com
• Can b bus (+)
• Can b bus (-)
• Can b bus(+)
• Can b bus(-)
• Coax
• Com audio out
• Computer data lines system
• D54
• D55
• D931
• Fuse 10a
• Fuse 20a
• Fuse 30a
• Fused b(+)
• G200 (near breakout to data link connector)
• Gnd
• Hands free module (right kick panel)
• Hot at all times
• Integrated power module (left side of engine compt)
• Junction block (left side of dash)
• L aud (+)
• L audio aux
• L audio sig (+)
• L i/p spkr (+)
• L i/p spkr (-)
• Left audio out
• Left front door speaker
• Left instrument panel speaker
• Left rear door speaker
• Left remote radio switch
• Lf dr spkr (+)
• Lf dr spkr (-)
• Lr aud (-)
• Lr dr spkr (+)
• Lr dr spkr (-)
• Lr radio spkr (+)
• Lr radio spkr (-)
• Monitor/dvd media system (rear of center console)
• Nca
• R aud (-)
• R audio aux
• R audio sig (+)
• R i/p spkr (+)
• R i/p spkr (-)
• Radio
• Radio amplifier (left rear cargo compartment floor)
• Radio c1 shield (hands free)
• Radio c2 shield
• Radio ctrl mux
• Radio ctrl mux rtn
• Rf dr spkr (+)
• Rf dr spkr (-)
• Right audio out
• Right front door speaker
• Right instrument panel speaker
• Right rear door speaker
• Right remote radio switch
• Rr aud (+)
• Rr audio (+)
• Rr dr spkr (+)
• Rr dr spkr (-)
• Rr radio spkr (-)
• S212
• S213
• S224 (center stack, in breakout for radio)
• S225 (center stack, in breakout for radio)
• S228
• S232 (on steering wheel)
• S233 (on steering wheel)
• S303
• S317
• S322
• Satellite radio receiver (right rear side of body)
• Satellite receiver
• Shield 1
• Steering control module (at steering wheel)
• Traffic information receiver module
• X16
• X17
• X20
• X51
• X510
• X511
• X52
• X521
• X522
• X57
• X58
• X703
• X704
• X795
• X910
• X917
• X920
• X926
• Z907
• Z920

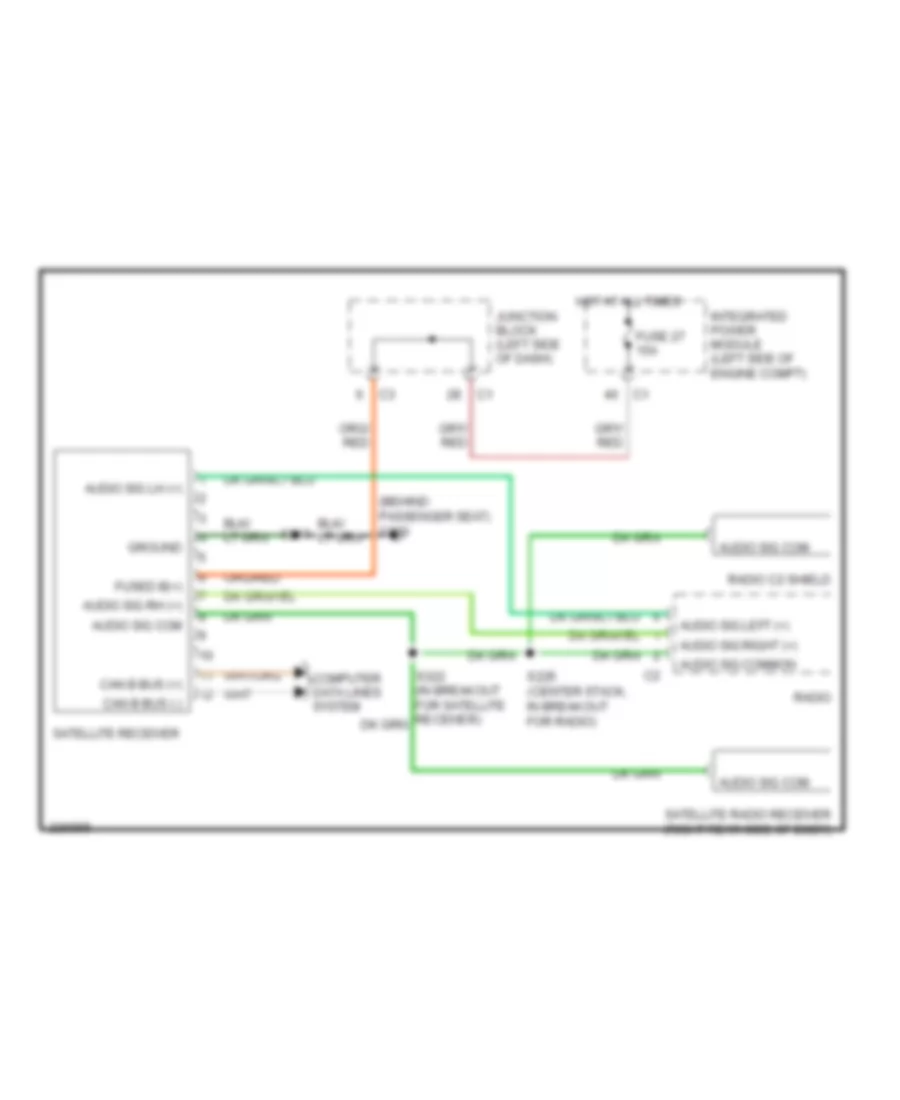

Электросхема спутникового радио для Jeep Grand Cherokee Overland 2006

Электросхема спутникового радио для Jeep Grand Cherokee Overland 2006 - Список элементов:

• (behind passenger seat) g300
• Audio sig com
• Audio sig common
• Audio sig left (+)
• Audio sig lh (+)
• Audio sig rh (+)
• Audio sig right (+)
• Can b bus (+)
• Can b bus (-)
• Computer data lines system
• Fuse 27 15a
• Fused b(+)
• Ground
• Hot at all times
• Integrated power module (left side of engine compt)
• Junction block (left side of dash)
• Radio
• Radio c2 shield
• S225 (center stack, in breakout for radio)
• S317
• Satellite radio receiver (right rear side of body)
• Satellite receiver
