Электросхемы ПРЕДУПРЕЖДАЮЩИЕ СИСТЕМЫ Jeep Wrangler Unlimited Rubicon 2014

ПРЕДУПРЕЖДАЮЩИЕ СИСТЕМЫ

Электросхема сигнала для Jeep Wrangler Unlimited Rubicon 2014

Электросхема сигнала для Jeep Wrangler Unlimited Rubicon 2014 - Список элементов:

• (right side of dash, in instrument panel harness) s374
• A412
• Ajar sw in drv ft dr
• Ajar sw in pass ft dr
• B(+)
• B20
• Belt sens drv seat
• Brake fluid level sensor (on brake fluid reservoir)
• Brk lvl sw sig
• Can c (+)
• Can c (-)
• Can ihs (+)
• Can ihs (-)
• Circuit board
• Cluster
• Computer data lines system
• D264
• D265
• D64
• D65
• Door locks system
• Dr ajar rr sig
• Dr lck sw sig
• Driver door latch
• Driver door lock switch
• Driver seat belt buckle switch (integral to driver seat belt buckle assembly)
• Drv seat belt sens
• Fsd b(+)
• Ft drv lck sw sig
• Fuse m13 20a
• G161
• G74
• G75
• G76
• G77
• G78
• G812a (left side of center console)
• G910a (left kick panel)
• G911a (right end of dash)
• G912a (left side of center console)
• G914a (left kick panel)
• G916a (right kick panel)
• Gnd
• Hot at all times
• I301
• I305
• I306
• I400
• I404
• I709
• I710
• K91
• Left multifunction switch
• Left rear door latch
• Lgate ajar sig
• Lin bus
• Lr sig dr ajar
• Lvl sig brake fluid
• P37
• Park brake sw sens c2
• Parking brake switch (base of brake lever)
• Pass ft dr ajar sw in
• Passenger door latch
• R57
• Red
• Right rear door latch
• S269
• S344
• S401
• S430
• S437
• S438
• Sen gnd
• Snsr gnd
• Sw rtn
• Sw sens prk brk
• Swing gate door latch
• Totally integrated power module (right front corner of engine compt)
• Wireless control module (integral to sentry key/remote entry module)
• Z914
• Z916

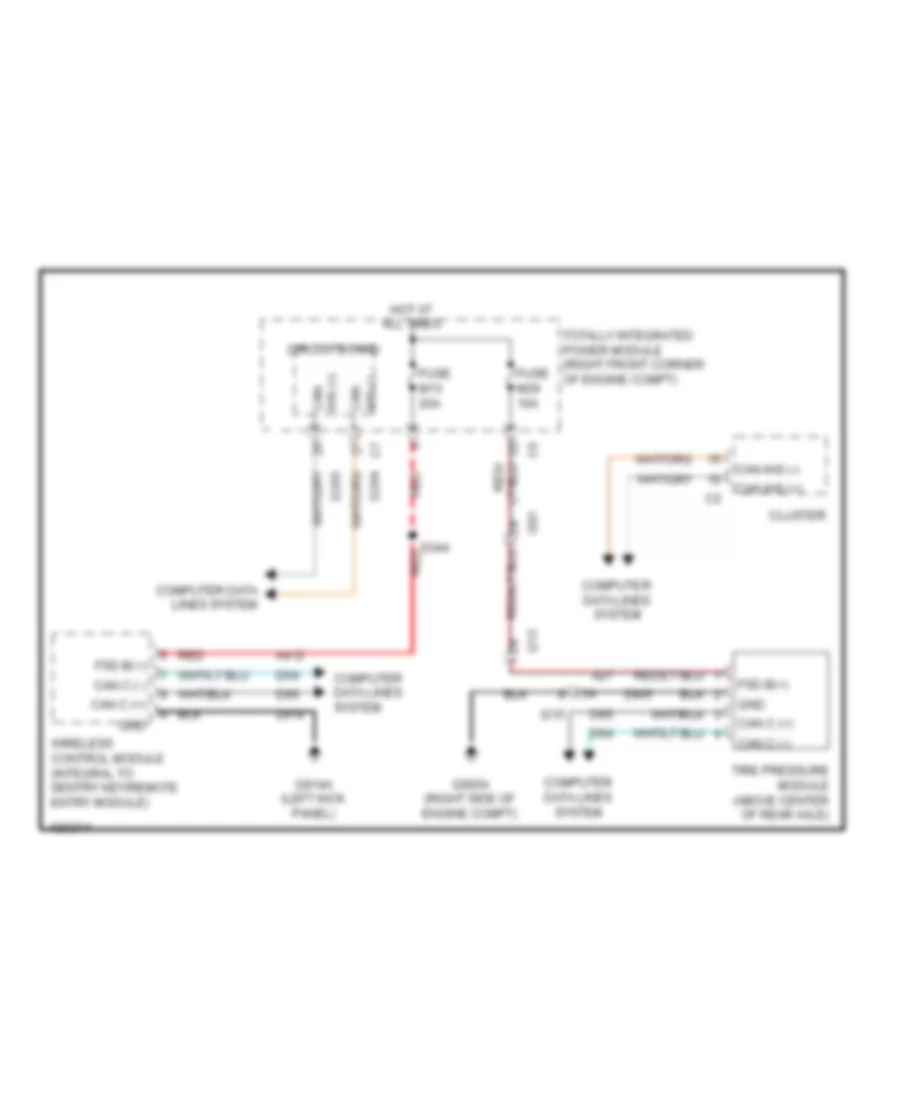

Электросхема системы контроля давления в шинах для Jeep Wrangler Unlimited Rubicon 2014

Электросхема системы контроля давления в шинах для Jeep Wrangler Unlimited Rubicon 2014 - Список элементов:

• A27
• A412
• Can c (+)
• Can c (-)
• Can ihs (+)
• Can ihs (-)
• Circuit board
• Cluster
• Computer data lines system
• D264
• D265
• D64
• D65
• Fsd b(+)
• Fuse m13 20a
• Fuse m29 10a
• G905a (right side of engine compt)
• G914a (left kick panel)
• Gnd
• Hot at all times
• I215
• I301
• Ihs (-) can
• Red
• S344
• Tire pressure module (above center of rear axle)
• Totally integrated power module (right front corner of engine compt)
• Wireless control module (integral to sentry key/remote entry module)
• Z905
• Z914
