Электросхемы ПРИБОРНАЯ ПАНЕЛЬ Jeep Grand Cherokee SE 1995

ПРИБОРНАЯ ПАНЕЛЬ

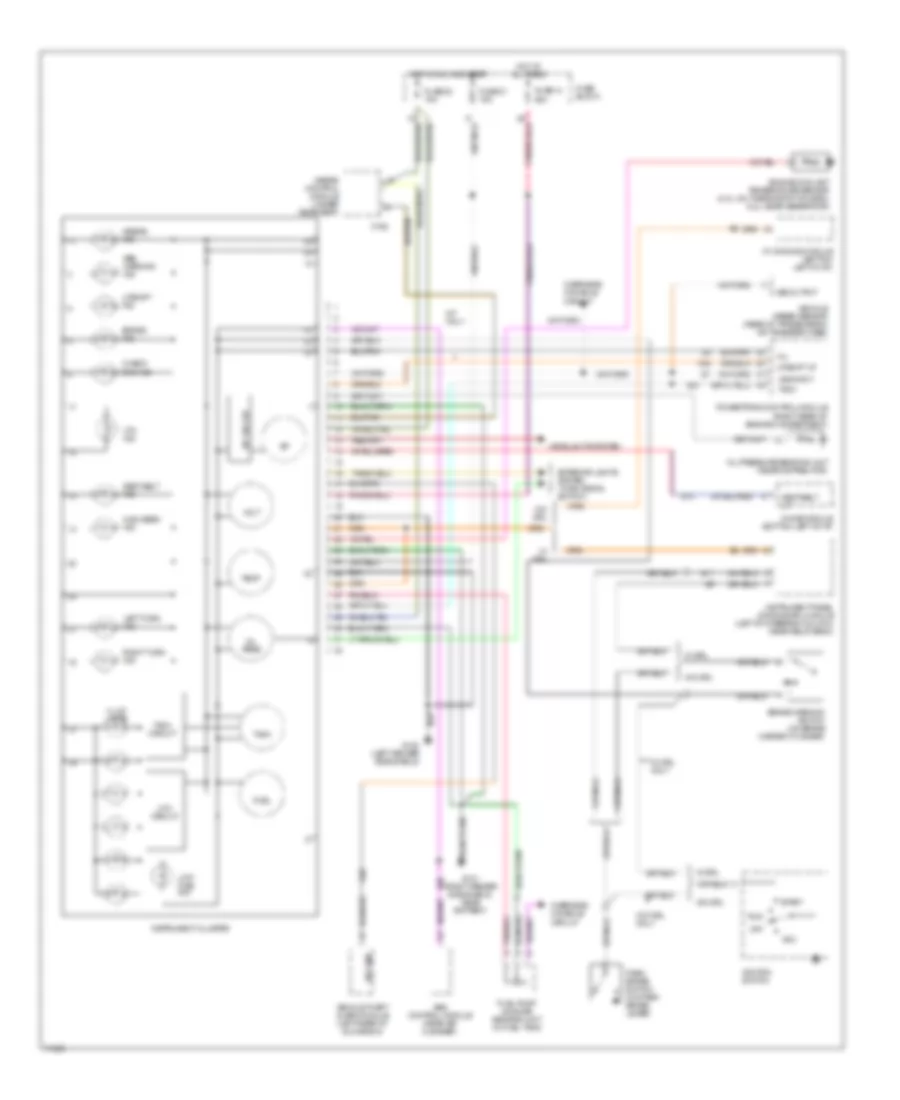

Электросхема панели приборов для Jeep Grand Cherokee SE 1995

Электросхема панели приборов для Jeep Grand Cherokee SE 1995 - Список элементов:

• Abs control module (near air cleaner)
• Abs warning ind
• Acc
• Airbag control module (under rear seat)
• Airbag ind
• Brake ind
• Brake warning switch (on brake master cylinder)
• C162
• Check eng ind
• Chime module (bottom left of i/p)
• Engine coolant temperature sensor (4.ol: on thermostat housing, 5.2l: near generator)
• Exterior lights system (turn signal switch)
• Fuel
• Fuel pump & gauge sending unit (in fuel tank)
• Fuse 14 20a
• Fuse 21 15a
• Fuse 22 15a
• Fuse block
• G100 (left fender side shield)
• G101 (right fender side shield, near battery)
• G11
• G13
• G21
• G69
• Headlights system
• High beam ind
• Hot at all times
• Hot in run and start
• I.p. dimming module (bottom left of i/p)
• Ignition switch
• Illum lamps
• Instrument cluster
• Instrument panel dimming/drl module (left of steering column, near relay bank)
• K54
• Left turn ind
• Lfw circuit
• Low fuel ind
• M/t only
• Mil
• Off
• Oil pres
• Oil pressure sending unit (near distributor)
• Overhead console circuit
• Park brake switch (on park brake lever)
• Powertrain control module (right rear of engine compartment)
• Right turn ind
• Run
• Seat belt ind
• Seat belt lp
• Set lmp
• Sp circuit
• Start
• Tach
• Tach circuit
• Temp
• Upshift ind
• Upshift lp
• Vehicle speed sensor (rear of transmission or transfer case)
• Vehicle theft alarm module (left rear of glove box)
• Volt
• Vss input
• Vss output
• Vta ind
• W/ drl
• W/ drl only
• W/o drl
• W/o drl only

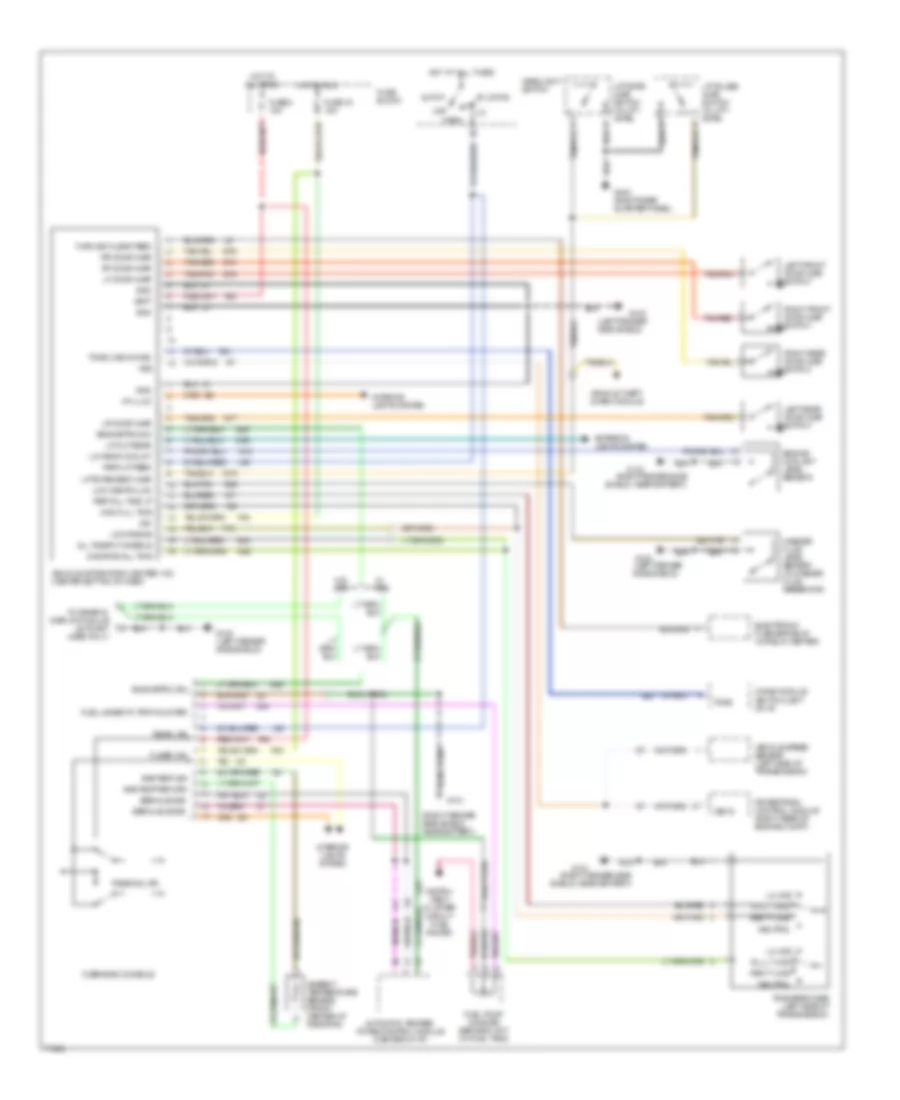

Overhead Console & VIC Схема для Jeep Grand Cherokee SE 1995

Overhead Console & VIC Схема для Jeep Grand Cherokee SE 1995 - Список элементов:

• (left fender side shield)
• (right fender side shield, near battery)
• 2wd/rwd/all time
• 4wd full time
• All time/fnt wheels
• Amb temp return
• Amb temp sig
• Ambient temperature sensor (front center of radiator)
• Auto
• Automatic temper- ature control module (center of i/p)
• Batt
• Chime module (bottom left of i/p)
• Electronic flasher relay (in relay center)
• Eng/metric sw
• Engine coolant level sensor
• Exterior lights system
• F60
• F83
• Fuel pump & gauge sending unit (in fuel tank)
• Fuel usage to trip counter
• Full t 4wd
• Fuse 19 15a
• Fuse 8 15a
• Fuse block
• Fused ign
• G100
• G100 (left fender side shield)
• G101
• G18
• G25
• G28
• G29
• G403 (right rear quarter panel)
• G42
• G44
• G46
• G74
• G75
• G76
• G77
• G78
• G81
• Gnd
• Headlight switch
• Hot at all times
• Hot in run
• I/p illum
• Ign
• Instru- ment cluster circuit (fuel gauge)
• Interior lights system
• L90
• Left front door ajar switch
• Left rear door ajar switch
• Lf door ajar
• Liftgate ajar switch (in lift- gate)
• Liftgate/deck ajar
• Liftglass ajar switch (in lift- gate)
• Lo 4wd
• Lo/fog
• Low eng coolnt
• Low range
• Low wshr fluid
• Lp out-rear
• Lr door ajar
• Neutral
• Off
• Overhead console
• Park
• Park lp feed
• Part t 4wd
• Part/all time lp
• Powertrain control module (right rear of engine compt)
• Reading lps
• Rear lps
• Rf door ajar
• Right front door ajar switch
• Right rear door ajar switch
• Rr door ajar
• Serial buss b+
• Serial buss-
• T19
• Tan/pnk
• Tan/red
• To graphic display module (in-plant used only)
• Tone
• Tone line (chime)
• Transfer case (left side of transmission)
• Turn sig flshr feed
• Vehicle information center (vic) (center bottom of dash)
• Vehicle speed sensor (left side of transmission)
• Vehicle theft alarm module
• Vss
• Vss in
• W/ atc
• W/o atc
• Washer fluid level sensor (in washer fluid reservoir)
• Z2
