ПРИВОД СТЕКЛОПОДЪЕМНИКОВ

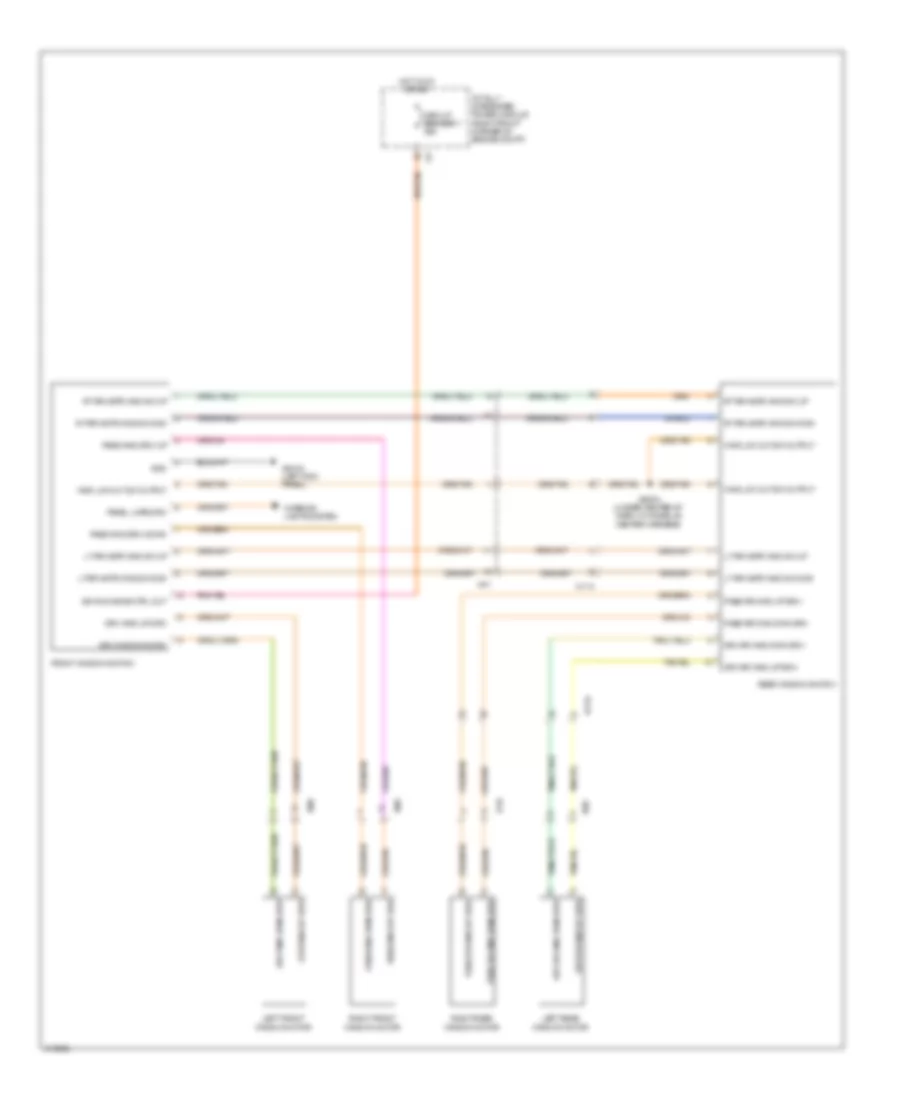

Электросхема стеклоподъемников для Jeep Wrangler Unlimited Rubicon 2014

Электросхема стеклоподъемников для Jeep Wrangler Unlimited Rubicon 2014 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Получить доступ ко всем электросхемам автомобиляDownload PDF file

Электросхема стеклоподъемников для Jeep Wrangler Unlimited Rubicon 2014 - Список элементов:

  • Circuit breaker 1 25a
  • Drv rr wnd dwn driv
  • Drv rr wnd up driv
  • Drv wnd dwn driv
  • Drv wnd up driv
  • Front window switch
  • G910a (left kick panel)
  • Gnd
  • Hot in on or acc
  • I305
  • I306
  • I401
  • I411a
  • I709
  • I710
  • Ign run/acce ctrl out
  • Interior lights system
  • Left front window motor
  • Left rear window motor
  • Lt rr mstr wnd sw dwn
  • Lt rr mstr wnd sw up
  • Panel lmps driv
  • Pass rr wnd dwn driv
  • Pass rr wnd up driv
  • Pass wnd driv down
  • Pass wnd driv up
  • Pass wnd dwn driv
  • Pass wnd up driv
  • Rear window switch
  • Right front window motor
  • Right rear window motor
  • Rt rr mstr wnd sw dwn
  • Rt rr mstr wnd sw up
  • S400a (under center of dash, in console center harness)
  • Totally integrated power module (right front corner of engine compt)
  • Wnd lck out sw output
