Электросхемы ПРИВОД ЗЕРКАЛ Cadillac DeVille d’Elegance 1997

ПРИВОД ЗЕРКАЛ

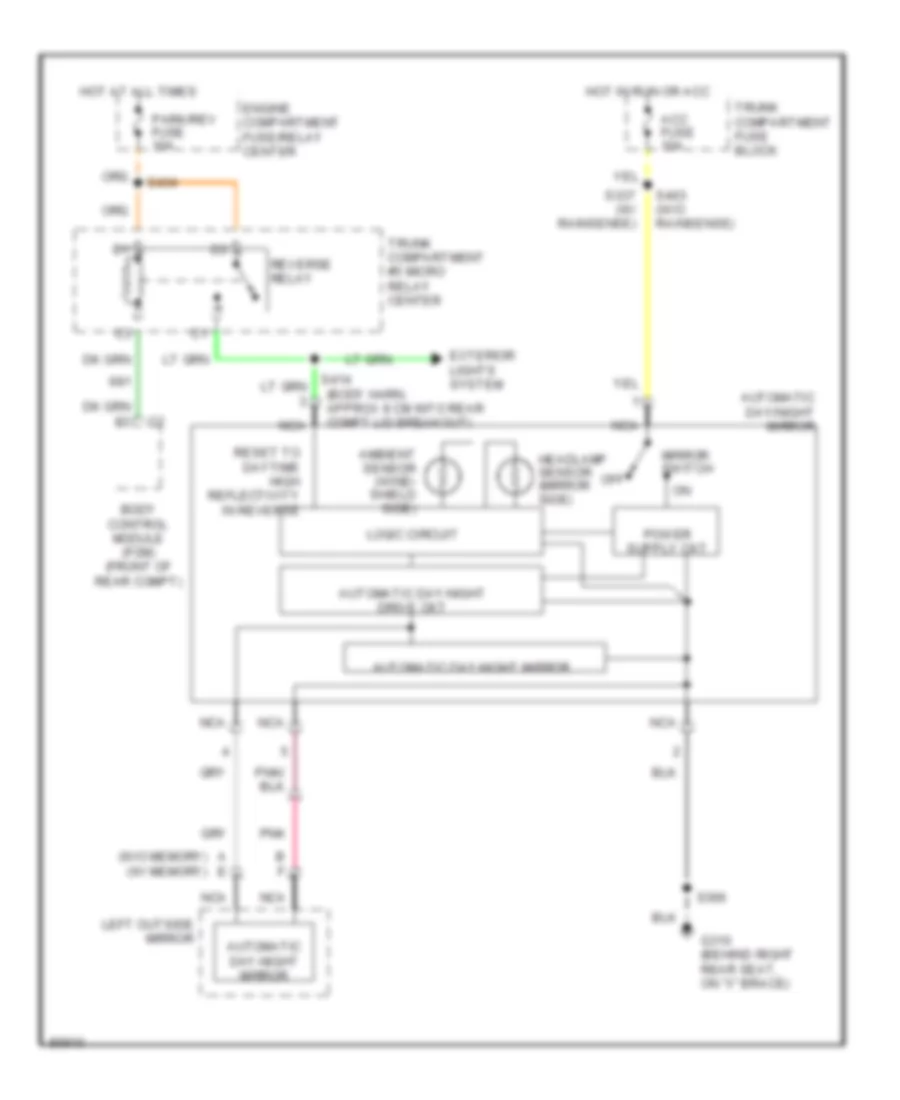

Электросхема затемняющегося зеркала заднего вида для Cadillac DeVille d'Elegance 1997

Электросхема затемняющегося зеркала заднего вида для Cadillac DeVille d'Elegance 1997 - Список элементов:

• (body harn, approx 8 cm into rear compt lid breakout)
• (w/o memory) (w/ memory)
• A e
• Acc fuse 10a
• Ambient sensor (wind- shield side)
• Automatic day-night drive ckt
• Automatic day-night mirror
• Automatic day/night mirror
• B f
• Body control module (pzm) (front of rear compt)
• Engine compartment fuse/relay center
• Exterior lights system
• G310 (behind right rear seat, on "x" brace)
• Headlamp sensor (mirror side)
• Hot at all times
• Hot in run or acc
• Left outside mirror
• Logic circuit
• Mirror switch
• Nca
• Off
• Park/rev fuse 10a
• Pnk
• Reset to daytime high reflectivity in reverse
• Reverse relay
• S337 (w/ rainsense)
• S366
• S403 (w/o rainsense)
• S434
• Trunk compartment #5 micro relay center
• Trunk compartment fuse block

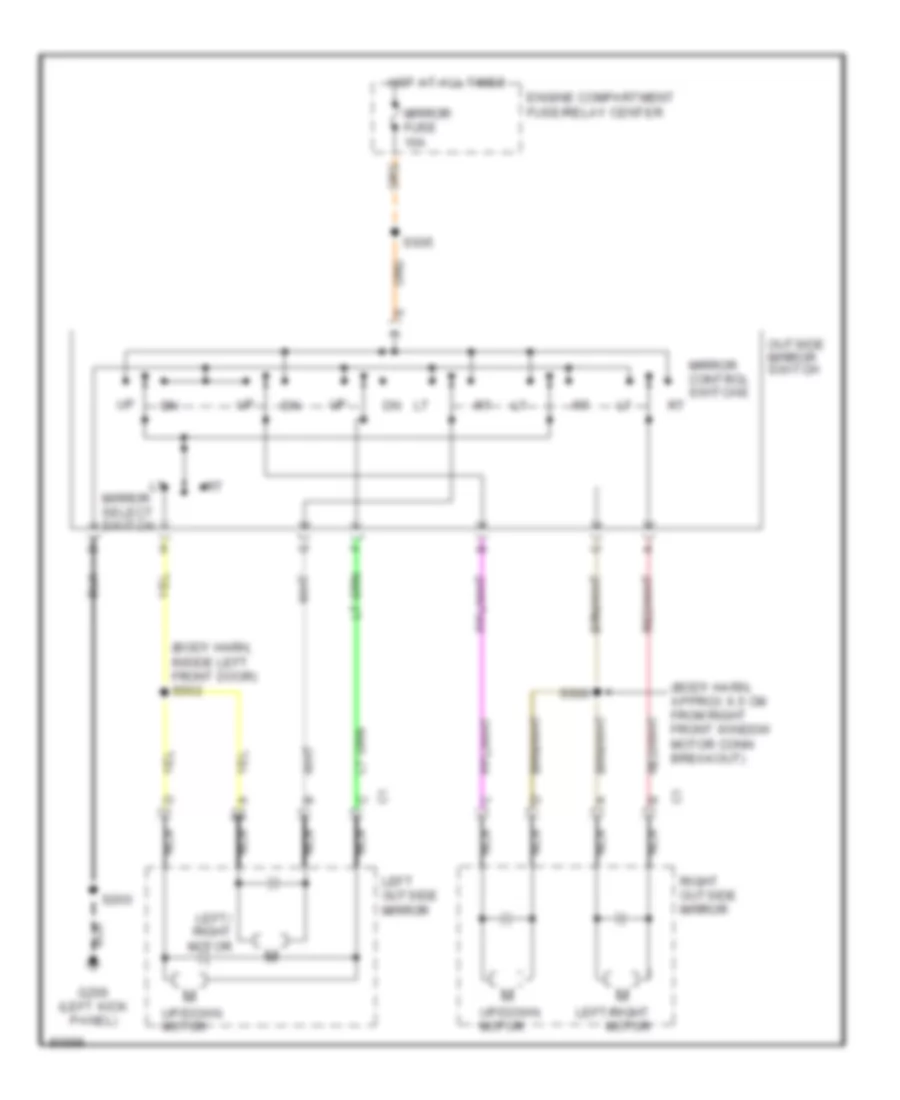

Электросхема привода зеркал для Cadillac DeVille d'Elegance 1997

Электросхема привода зеркал для Cadillac DeVille d'Elegance 1997 - Список элементов:

• (body harn, approx 6.5 cm from right front window motor conn breakout)
• (body harn, inside left front door) s502
• Engine compartment fuse/relay center
• G200 (left kick panel)
• Hot at all times
• Left outside mirror
• Left/ right motor
• Left/right motor
• Mirror control switchs
• Mirror fuse 10a
• Mirror select switch
• Nca
• Outside mirror switch
• Right outside mirror
• S200
• S505
• S600
• Up/down motor
