Электросхемы Противоугонная система Сигнализация Cadillac Seville SLS 2001

Противоугонная система Сигнализация

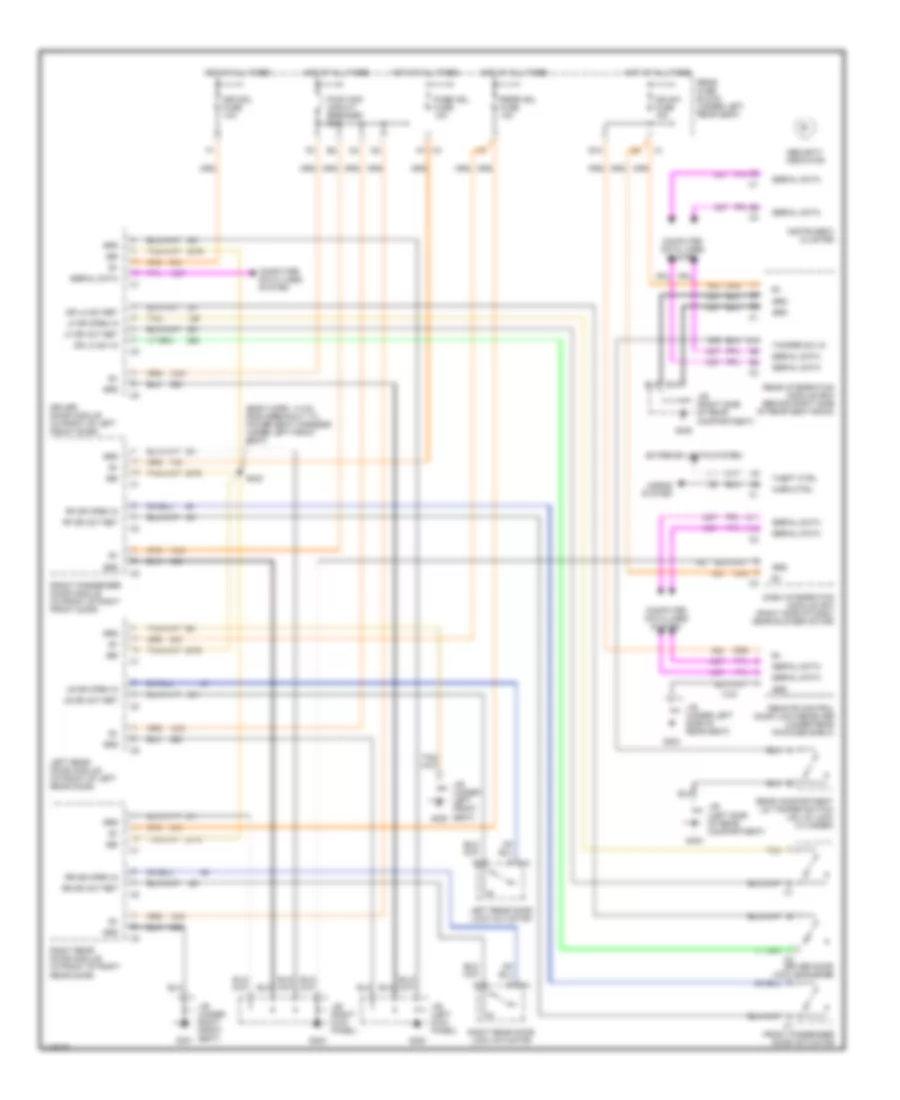

Электросхема открывания авто для Cadillac Seville SLS 2001

Электросхема открывания авто для Cadillac Seville SLS 2001 - Список элементов:

• (body harn, 14 cm from breakout to power seat harness under left front seat)
• A11
• A12
• A7 c3
• Computer data lines system
• Dash integration module (dim) (right side of dash, near blower motor)
• Dr lk sw in
• Dr lk sw ret
• Driver door lock actuator
• Driver door module (in front of left front door)
• Drvmdl fuse 10a
• E10
• Exterior lights system
• Front passenger door actuator
• Front passenger door module (in front of right front door)
• G200
• G203
• G300
• G301
• G304
• G404
• G405
• Grd
• Horn ctrl
• Horns system
• Hot at all times
• Ign sw fuse 15a
• Instrument cluster
• J/b (left kick panel)
• J/b (left side of rear compartment)
• J/b (right kick panel)
• J/b (right side of rear compartment)
• J/b (under left front seat)
• J/b (under left side of rear seat)
• J/b (under right front seat)
• Left rear door lock actuator
• Left rear door module (in front of left rear door)
• Lf dr act ret
• Lf dr open in
• Lr dr act ret
• Lr dr open in
• Pass mdl fuse 10a
• Pwr wdo circuit breaker 30a
• Rear compartment lid tamper switch (on lid lock cylinder)
• Rear fuse block (under left rear seat)
• Rear integration module (rim) (behind right side of rear seat back)
• Remote control door lock receiver (under rear package shelf)
• Rf dr act ret
• Rf dr open in
• Right rear door lock actuator
• Right rear door module (in front of right rear door)
• Rr dr act ret
• Rr dr open in
• Rrdr mdl fuse 10a
• S303
• Sbi
• Security indicator
• Serial data
• Tamper sw in
• Tan
• Theft ctrl

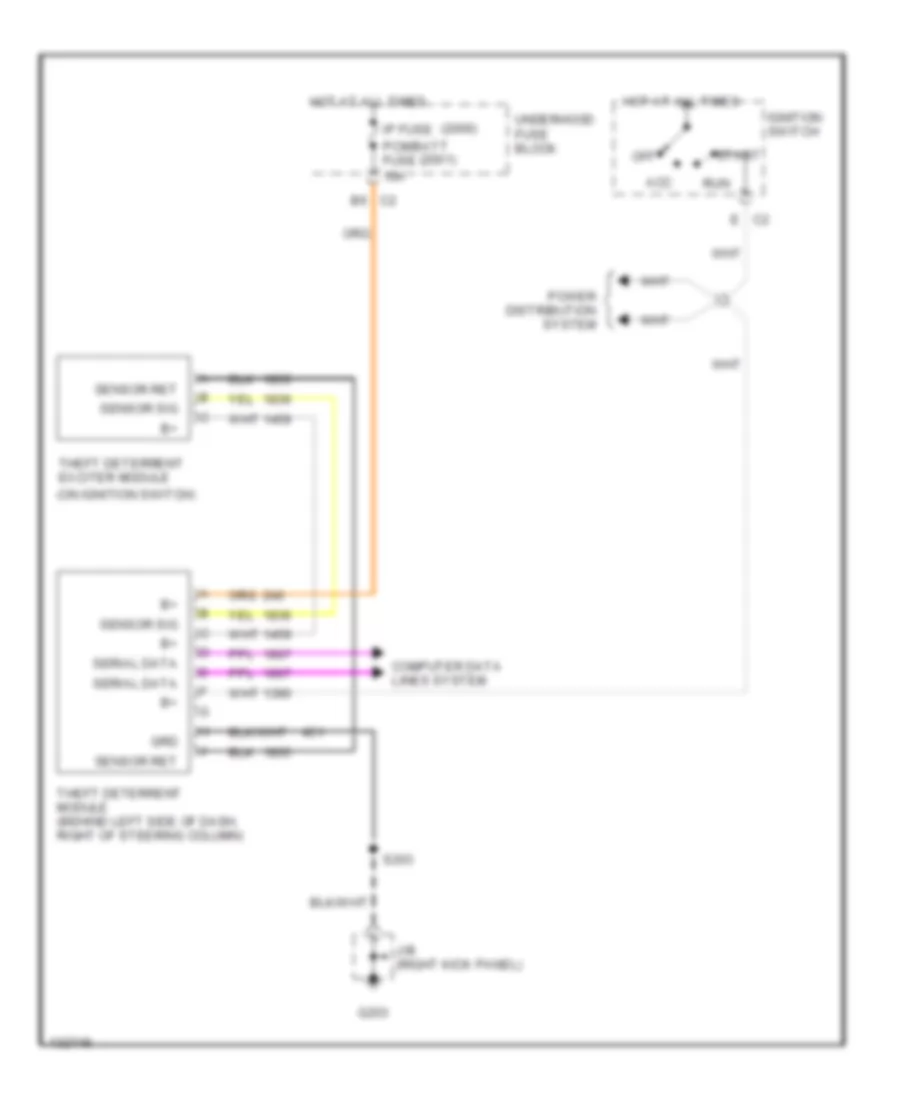

схема отмычки для Cadillac Seville SLS 2001

схема отмычки для Cadillac Seville SLS 2001 - Список элементов:

• (2000)
• (2001)
• (on ignition switch)
• 10a
• Acc
• B6 c2
• Computer data lines system
• E c2
• G203
• Grd
• Hot at all times
• Ignition switch
• Ip fuse
• J/b (right kick panel)
• Off
• Pcm/batt fuse
• Power distribution system
• Run
• S203
• Sensor ret
• Sensor sig
• Serial data
• Start
• Theft deterrent exciter module
• Theft deterrent module (behind left side of dash, right of steering column)
• Underhood fuse block
