СИСТЕМА ОХЛАЖДЕНИЯ

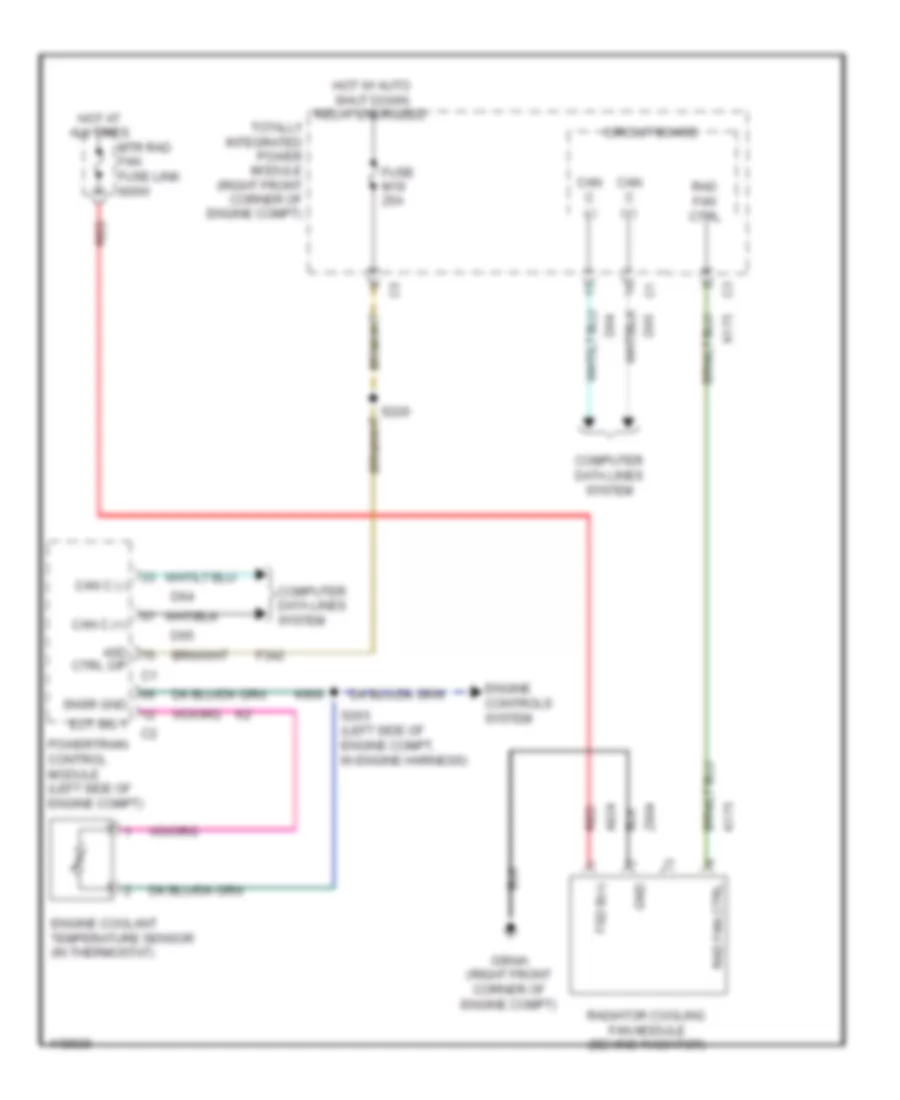

Электросхема системы охлаждения для Jeep Wrangler Unlimited Rubicon 2014

Электросхема системы охлаждения для Jeep Wrangler Unlimited Rubicon 2014 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Получить доступ ко всем электросхемам автомобиляDownload PDF file

Электросхема системы охлаждения для Jeep Wrangler Unlimited Rubicon 2014 - Список элементов:

  • A924
  • Asd
  • Can c (+)
  • Can c (-)
  • Circuit board
  • Computer data lines system
  • Ctrl o/p
  • D64
  • D65
  • Ect sig 1
  • Engine controls system
  • Engine coolant temperature sensor (in thermostat)
  • F342
  • Fsd b(+)
  • Fuse m19 25a
  • G904a (right front corner of engine compt)
  • Gnd
  • Hot at all times
  • Hot w/ auto shut down relay energized
  • K175
  • K900
  • Mtr rad fan fuse link 600w
  • Powertrain control module (left side of engine compt)
  • Rad fan ctrl
  • Radiator cooling fan module (behind radiator)
  • Red
  • S203 (left side of engine compt, in engine harness)
  • S220
  • Snsr gnd
  • Totally integrated power module (right front corner of engine compt)
  • Z904
