Электросхемы СИСТЕМЫ ПАМЯТИ Cadillac DeVille d’Elegance 1997

СИСТЕМЫ ПАМЯТИ

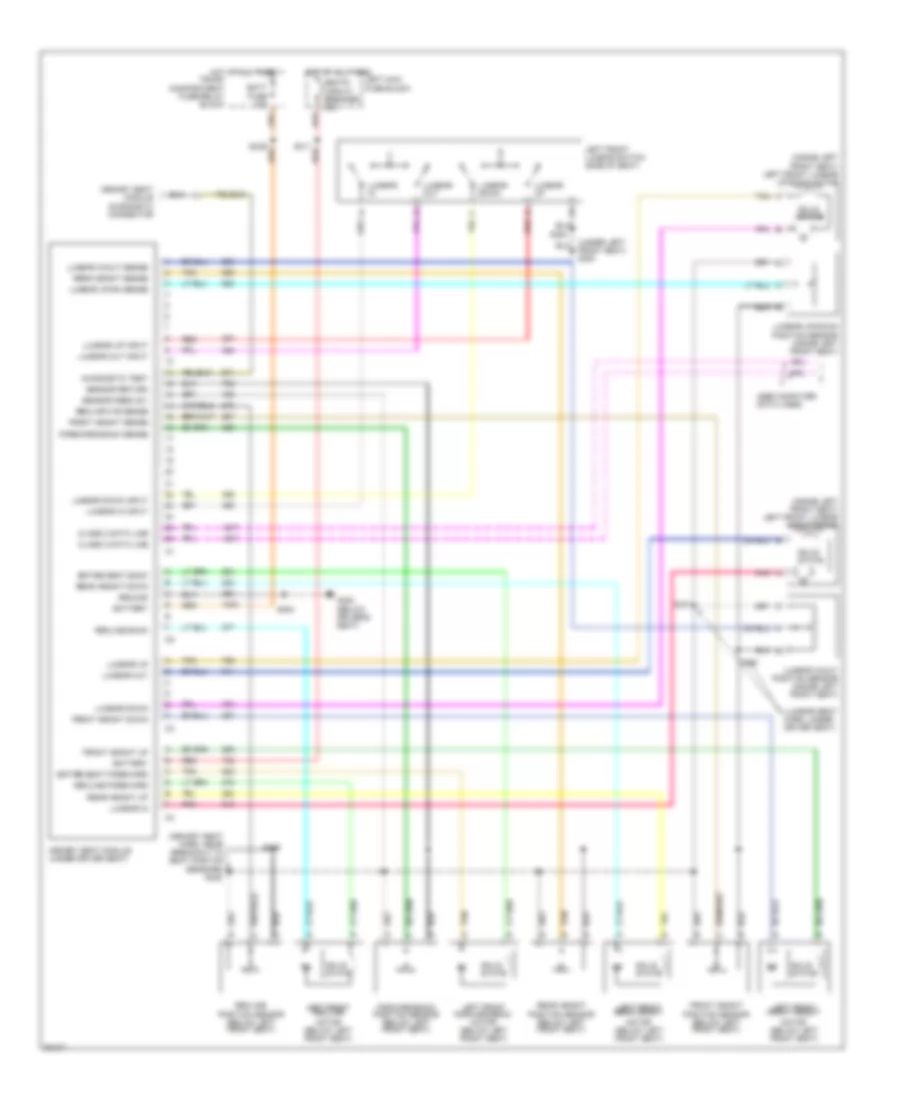

Схема Места/Зеркал Памяти (1 из 2) для Cadillac DeVille d'Elegance 1997

Схема Места/Зеркал Памяти (1 из 2) для Cadillac DeVille d'Elegance 1997 - Список элементов:

• (inside left front seat) left front lumbar in/out motor
• (inside left front seat) left front lumbar up/down motor
• (lumbar seat harn, under driver seat)
• (memory seat harn, near breakout to seat positon sensors) s348
• (see computer data lines)
• Batt fuse 10a
• Battery
• Class 2 data line
• Diagnostic test
• Entire seat back
• Entire seat foreward
• Foreward/back sense
• Forward/back position sensor (below left front seat)
• Front height
• Front height down
• Front height sense
• Front height up
• Front seat) g300
• G300 (below driver's seat)
• Ground
• Hot at all times
• Left front forward/back motor (below left front seat)
• Left front front height
• Left front lumbar switch (side of seat)
• Left front rear height
• Left front recline
• Left maxi fuse block
• Lumbar down
• Lumbar down input
• Lumbar in
• Lumbar in input
• Lumbar in/out position sensor (inside left front seat)
• Lumbar in/out sense
• Lumbar out
• Lumbar out input
• Lumbar up
• Lumbar up input
• Lumbar up/dn sense
• Lumbar up/down position sensor (inside left front seat)
• Memory seat module (under driver seat)
• Memory seat module diagnostic connector
• Motor (below left front seat)
• Pnk
• Position sensor (below left front seat)
• Rear height
• Rear height down
• Rear height sense
• Rear height up
• Recline
• Recline back
• Recline foreward
• Reclinpute sense
• Red
• S311 red
• S321
• S331
• S349
• S354
• Seats circuit breaker 30a
• Sensor feed (5v)
• Sensor return
• Solid state
• Tan
• Trunk compartment fuse/relay block

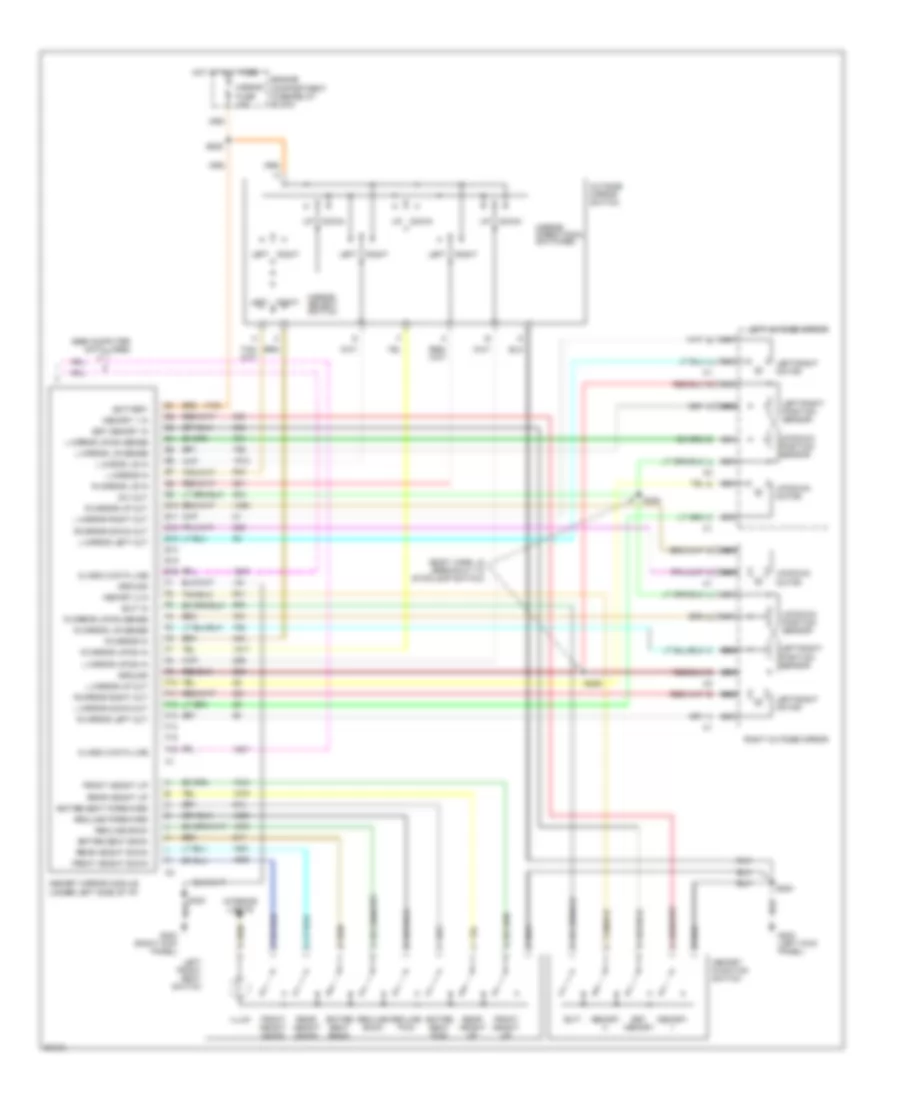

Схема Места/Зеркал Памяти (2 из 2) для Cadillac DeVille d'Elegance 1997

Схема Места/Зеркал Памяти (2 из 2) для Cadillac DeVille d'Elegance 1997 - Список элементов:

• (5v) out
• (body harn, in breakout to stoplamp switch)
• (see computer data lines)
• Battery
• Class 2 data line
• Down up
• E10
• E11
• E12
• E13
• E14
• E15
• E16
• Engine compartment fuse/relay block
• Entire seat back
• Entire seat foreward
• Entire seat fwd
• Exit
• Exit in
• F10
• F11
• F12
• F13
• F14
• F15
• F16
• Front height down
• Front height up
• G200 (left kick panel)
• G203 (right kick panel)
• Ground
• Hot at all times
• Illum
• Interior lights
• L miiror l/r in
• L mirror down out
• L mirror in
• L mirror l/r sense
• L mirror left out
• L mirror right out
• L mirror up out
• L mirror up/dn in
• L mirror up/dn sense
• Left front seat switch
• Left outside mirror
• Left right
• Left/right motor
• Left/right position sensor
• Memory
• Memory 1 in
• Memory 2 in
• Memory function switch
• Memory mirror module (under left side of i/p)
• Mirror directional switches
• Mirror fuse 10a
• Mirror select switch
• Nca
• Outside mirror switch
• R mirror down out
• R mirror in
• R mirror l/r in
• R mirror l/r sense
• R mirror left out
• R mirror right out
• R mirror up out
• R mirror up/dn in
• R mirror up/dn sense
• Rear height down
• Rear height up
• Recline back
• Recline foreward
• Recline fwd
• Right left
• Right outside mirror
• S200
• S225
• S226
• S323
• S505
• Set memory
• Set memory in
• Up down
• Up/down motor
• Up/down position sensor
