Электросхемы СИСТЕМЫ СИДЕНИЙ Cadillac DeVille d’Elegance 1997

СИСТЕМЫ СИДЕНИЙ

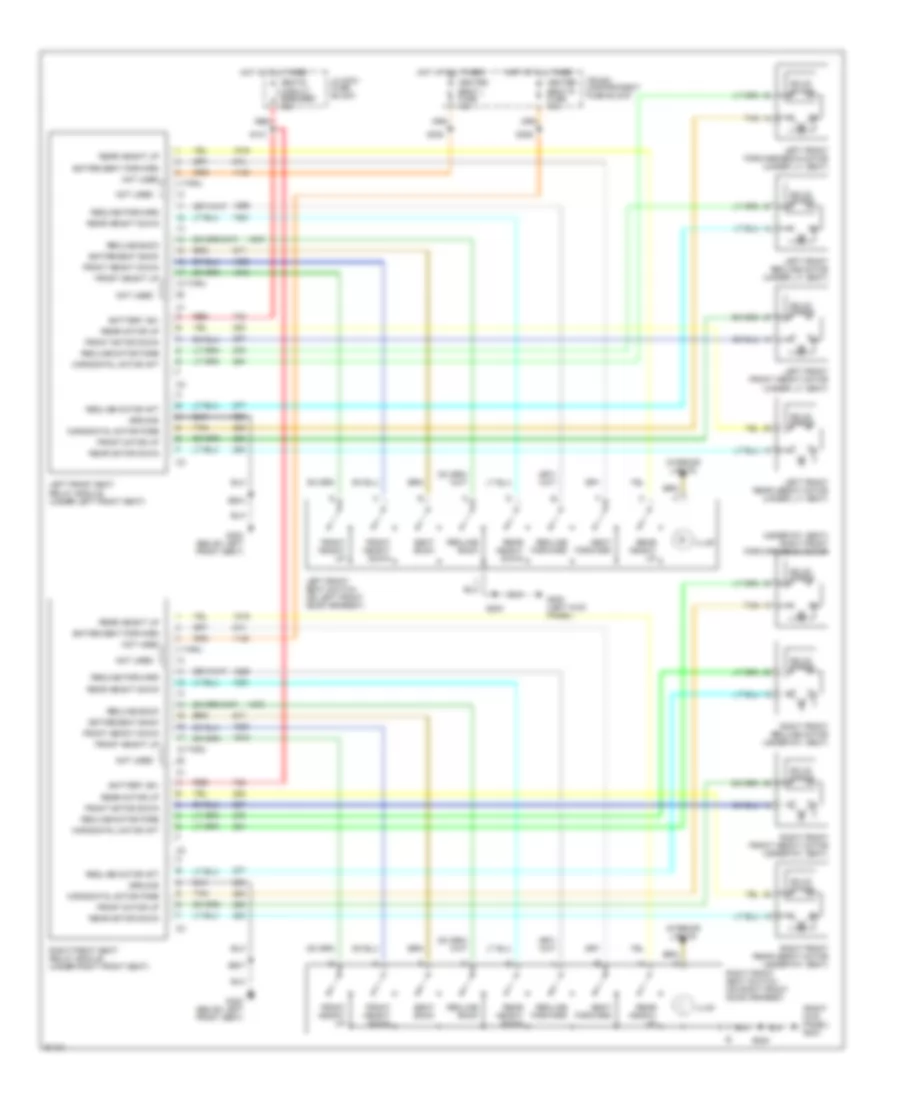

с 6 путями и Электросхема привода сидений глубокого кресла для Cadillac DeVille d'Elegance 1997

с 6 путями и Электросхема привода сидений глубокого кресла для Cadillac DeVille d'Elegance 1997 - Список элементов:

• (right kick panel) g203
• (under r.f. seat) right front forward/back motor
• 18 thru
• 4 thru
• Battery (b+)
• Entire seat back
• Entire seat forward
• Front height down
• Front height up
• Front motor down
• Front motor up
• G200 (left kick panel)
• G300 (below left front seat)
• Ground
• Heated seat l fuse 10a
• Heated seat r fuse 10a
• Horizontal motor aft
• Horizontal motor fore
• Hot at all times
• Illum
• Interior lights
• Left front forward/back motor (under l.f. seat)
• Left front front height motor (under l.f. seat)
• Left front rear height motor (under l.f. seat)
• Left front recline motor (under l.f. seat)
• Left front seat relay module (under left front seat)
• Left front seat switch (on left front door armrest)
• Lh maxi fuse block
• Not used
• Rear height down
• Rear height up
• Rear motor down
• Rear motor up
• Recline back
• Recline forward
• Recline motor aft
• Recline motor fore
• Red
• Right front front height motor (under r.f. seat)
• Right front rear height motor (under r.f. seat)
• Right front recline motor (under r.f. seat)
• Right front seat relay module (under right front seat)
• Right front seat switch (on right front door armrest)
• S101
• S200
• S330
• S354
• S357
• S358
• Seat back
• Seat forward
• Seats circuit breaker 30a
• Solid state
• Tan
• Trunk compartment fuse block

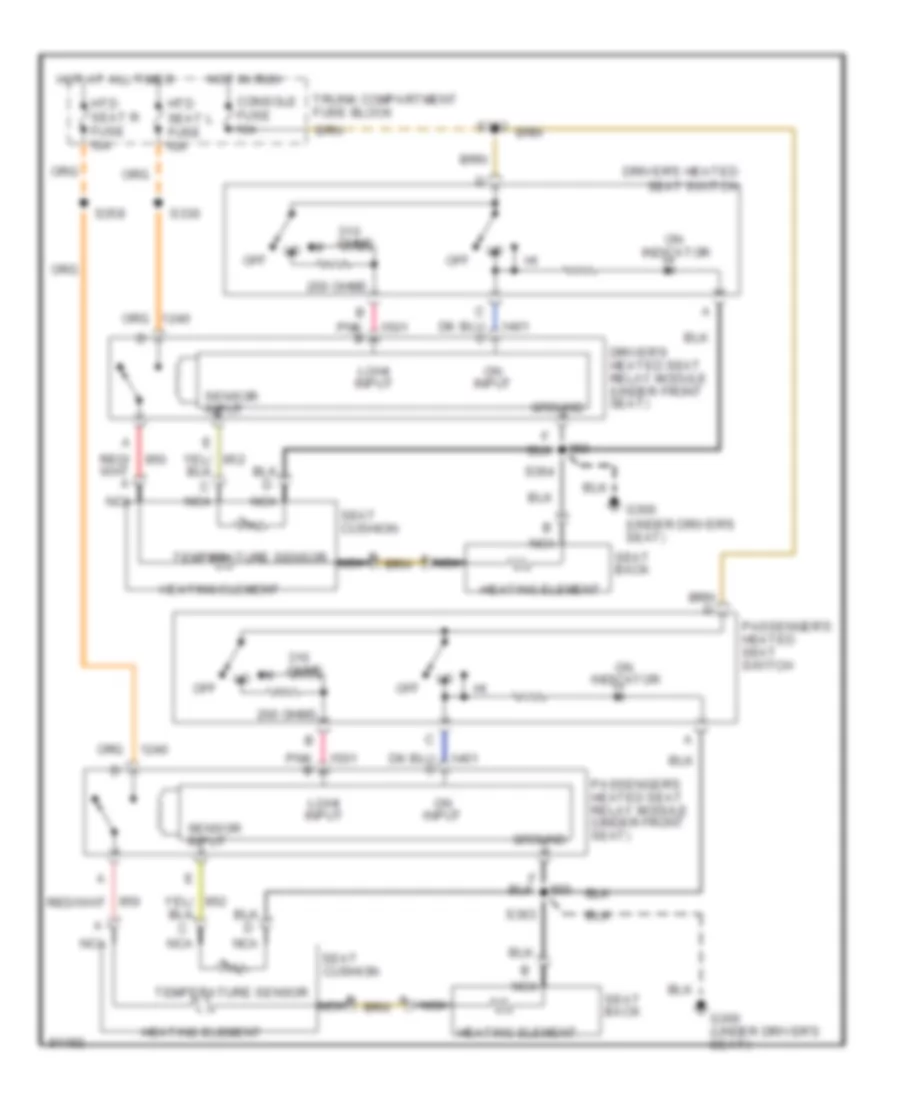

Электросхема подогрева сидений для Cadillac DeVille d'Elegance 1997

Электросхема подогрева сидений для Cadillac DeVille d'Elegance 1997 - Список элементов:

• 200 ohms
• B nca
• Console fuse 10a
• Driver's heated seat relay module (under front seat)
• Driver's heated seat switch
• G300 (under driver's seat)
• Ground
• Heating element
• Hot at all times
• Hot in run
• Htd seat l fuse 10a
• Htd seat r fuse 10a
• Lo/hi input
• Nca
• Off
• Ohms
• On indicator
• On input
• Passenger's heated seat relay module (under front seat)
• Passenger's heated seat switch
• Pnk b
• Red/
• S312
• S330
• S358
• S363
• S364
• Seat back
• Seat cushion
• Sensor input
• Temperature sensor
• Trunk compartment fuse block

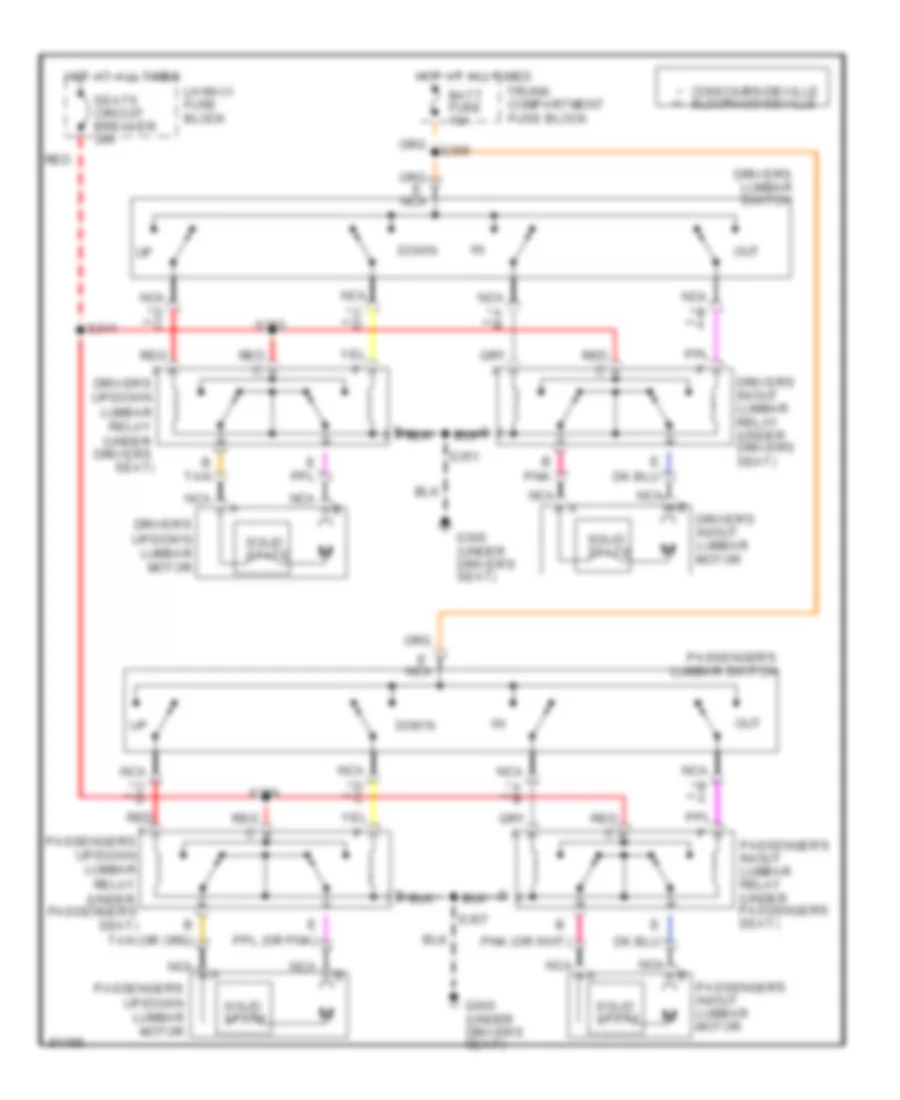

Электросхема регулировки поясницы для Cadillac DeVille d'Elegance 1997

Электросхема регулировки поясницы для Cadillac DeVille d'Elegance 1997 - Список элементов:

• (under
• B * **
• B driver's in/out lumbar motor
• B passenger's in/out lumbar motor
• B pnk
• B tan
• Batt fuse 10a
• C * **
• Concours/deville * eldorado/seville **
• D * **
• Down
• Driver's
• Driver's in/out lumbar relay (under driver's seat)
• Driver's lumbar switch
• Driver's up/down lumbar motor
• Driver's up/down lumbar relay
• E nca
• G300 (under driver's seat)
• Hot at all times
• Lh maxi fuse block
• Nca
• Nca a * **
• Nca c * **
• Nca d * **
• Out
• Passenger's
• Passenger's in/out lumbar relay (under passenger's seat)
• Passenger's lumbar switch
• Passenger's up/down lumbar motor
• Red
• Red a passenger's up/down lumbar relay
• Red c
• S306
• S311
• S351
• S352
• S356
• S357
• Seat)
• Seats circuit breaker 30a
• Solid state
• Trunk compartment fuse block
