Электросхемы Стартер Генератор Jeep Wrangler Unlimited Rubicon 2014

Стартер Генератор

Электросхема Генератора для Jeep Wrangler Unlimited Rubicon 2014

Электросхема Генератора для Jeep Wrangler Unlimited Rubicon 2014 - Список элементов:

• A804
• B(+)
• Battery
• Can c (+)
• Can c (-)
• Can ihs (+)
• Can ihs (-)
• Cluster
• Computer data lines system
• D64
• D65
• Fusible link
• G101 (left side of engine compt)
• G901a (left & right side of engine compt)
• Gen fd ctrl
• Gen snse
• Generator
• K20
• Powertrain control module (left side of engine compt)
• Red
• Starter
• Totally integrated power module (right front corner of engine compt)

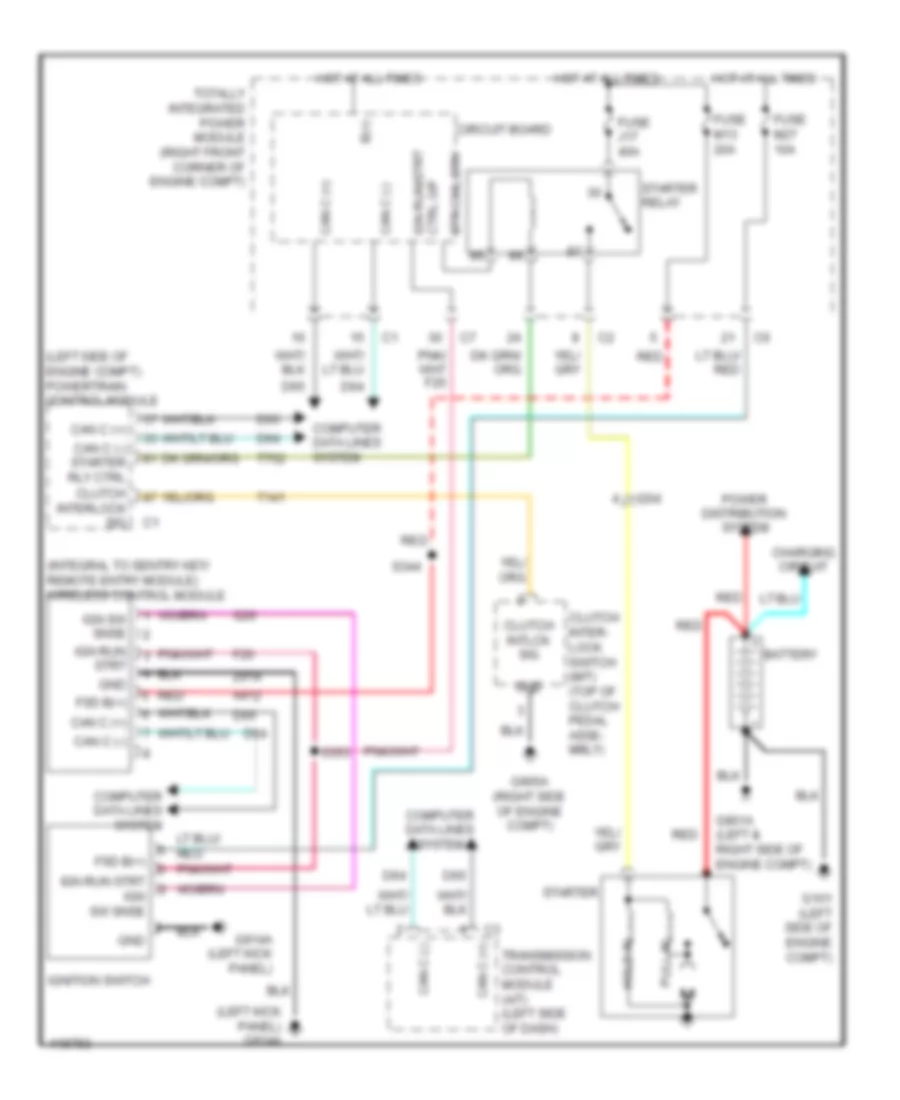

Электросхема стартера для Jeep Wrangler Unlimited Rubicon 2014

Электросхема стартера для Jeep Wrangler Unlimited Rubicon 2014 - Список элементов:

• (integral to sentry key/ remote entry module) wireless control module
• (left kick panel) g914a
• (left side of engine compt) powertrain control module
• A412
• B(+)
• Battery
• Can c (+)
• Can c (-)
• Can c (-) starter rly ctrl
• Charging circuit
• Circuit board
• Clutch inter- lock switch (m/t) (top of clutch pedal asse- mbly)
• Clutch interlock sig
• Clutch intlck sig
• Computer data lines system
• Ctrl o/p ign run/strt
• D64
• D65
• F20
• Fsd b(+)
• Fuse j17 40a
• Fuse m13 20a
• Fuse m27 10a
• G101 (left side of engine compt)
• G20
• G901a (left & right side of engine compt)
• G905a (right side of engine compt)
• G914a (left kick panel)
• Gnd
• Hold-in
• Hot at all times
• I204
• Ign run strt
• Ign run strt ign sw snse
• Ign sw snse
• Ignition switch
• Power distribution system
• Pull-in
• Red
• S344
• Starter
• Starter relay
• Str coil drv
• T141
• T752
• Totally integrated power module (right front corner of engine compt)
• Transmission control module (a/t) (left side of dash)
• Z914
