Электросхемы Стеклоочистители и Стеклоомыватели Дворники Cadillac DeVille d’Elegance 1997

Стеклоочистители и Стеклоомыватели Дворники

Электросхема стеклоочистителя, дворников и омывателя, С Rainsense для Cadillac DeVille d'Elegance 1997

Электросхема стеклоочистителя, дворников и омывателя, С Rainsense для Cadillac DeVille d'Elegance 1997 - Список элементов:

• (1996)
• (1996-97)
• (1997-98)
• (1998)
• (behind center of front fascia)
• 1.2m
• 160k
• 1996-97 w/ headlamp washer
• 24k
• 300k
• 560k
• 91k
• Acc fuse 10a
• Accessory relay
• Console fuse 10a
• Delay
• Engine compartment fuse/relay center (left side of engine compt)
• Engine compartment micro relay center engine compartment relay center (left side of engine compt)
• Except 1996-97 w/ headlamp washer
• G108 (left radiator support)
• G200 (left kick panel)
• G310 (behind right rear seat)
• Gnd
• Hdlp wash fuse 30a
• Headlamp washer module (1996)
• Headlamp washer pump motor (1996) headlamp washer pump (1997-98)
• Headlamp washer pump relay (1997-98)
• High
• Hot at all times
• Hot in acc or run
• Hot in run
• Instrument cluster
• Low
• Low/
• Max
• Min
• Mirrors system
• Mist
• Nca
• Off
• Park switch
• Pnk
• Rainsense module outside moisture sensor (near rearview mirror)
• Red
• Red (body harn, near breakout to sdm)
• Relay control
• S100 (body harn, near windshield wiper mtr)
• S200
• S210 (body harn, near breakout to inst cluster)
• S312
• S319
• S337
• S366
• S403
• Solid state
• Trunk compartment fuse block rear compartment fuse block (left front of rear compt)
• W/ headlamp washer only
• Wash
• Wash input
• Washer motor (1996) windshield washer pump (1997-98)
• Washer switch
• Washer wiper/ motor module (1996)
• Windshield wiper/ washer module (1997-98) (on left side of firewall, in engine compt)
• Wiper motor
• Wiper washer switch (1996) windshield wiper switch (1997-98)
• Wipers fuse 30a

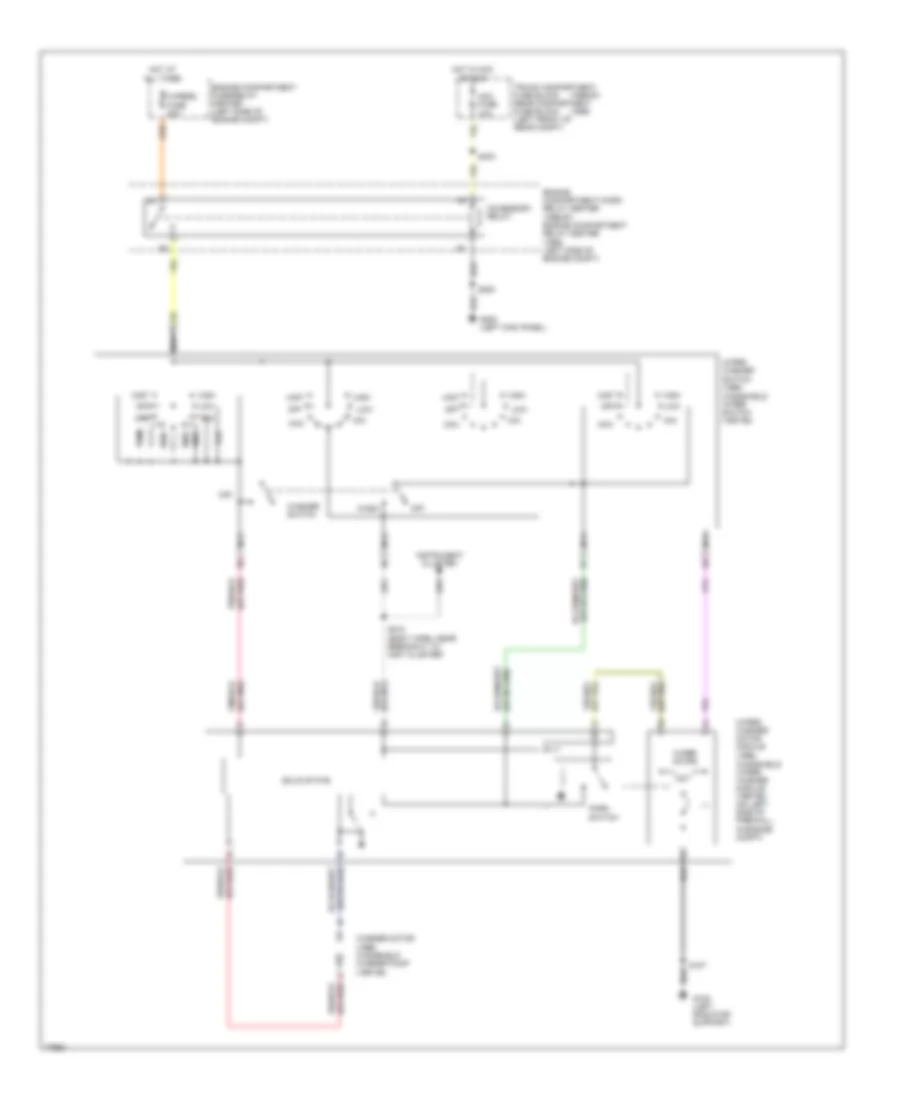

Электросхема стеклоочистителя, дворников и омывателя, без Rainsense для Cadillac DeVille d'Elegance 1997

Электросхема стеклоочистителя, дворников и омывателя, без Rainsense для Cadillac DeVille d'Elegance 1997 - Список элементов:

• (1996-97)
• (1998)
• 1.2m
• 160k
• 24k
• 300k
• 560k
• 91k
• Acc fuse 10a
• Accessory relay
• Engine compartment fuse/relay center (left side of engine compt)
• Engine compartment micro relay center (1996-97) engine compartment relay center (1998) (left side of engine compt)
• G108 (left radiator support)
• G200 (left kick panel)
• High
• Hot at all times
• Hot in acc or run
• Instrument cluster
• Low
• Max
• Min
• Mist
• Nca
• Off
• Park switch
• S107
• S200
• S210 (body harn, near breakout to inst cluster)
• S403
• Solid state
• Trunk compartment fuse block rear compartment fuse block (left front of rear compt)
• Wash
• Washer motor (1996) windshield washer pump (1997-98)
• Washer switch
• Windshield wiper/ washer module (1997-98) (on left side of firewall, in engine compt)
• Wiper motor
• Wiper washer switch (1996) windshield wiper switch (1997-98)
• Wiper/ washer motor module (1996)
• Wipers fuse 30a
