Электросхемы ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ Jeep Grand Cherokee Overland 2006

ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ

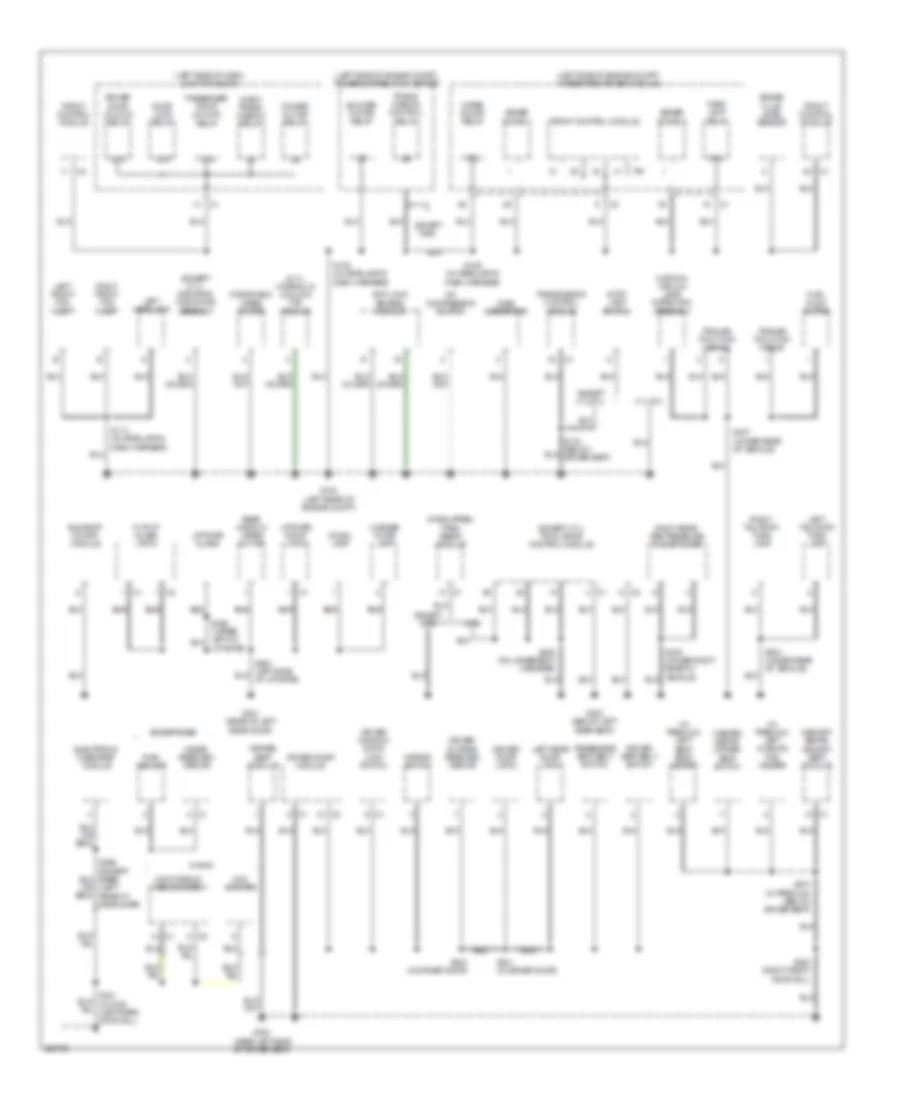

Электросхема подключение массы заземления (1 из 2) для Jeep Grand Cherokee Overland 2006

Электросхема подключение массы заземления (1 из 2) для Jeep Grand Cherokee Overland 2006 - Список элементов:

• (4.7l/5.7l) exhaust gas recirculation valve assembly
• (left side of engine compt) integrated power module
• 5.7l
• A/c control heater
• Automatic a/c
• Battery
• Cluster
• Console power outlet
• Data link connector
• Engine control module
• Except 3.7l
• Front blower power module
• Front control module
• G101 (left side of engine compt)
• G102 (left side of engine compt)
• G103 (in headlamp & dash harness)
• G104 (left side of engine compt)
• G105 (lower left rear of engine)
• G200 (near breakout to data link connector)
• G201 (under center console)
• G300 (behind passenger seat)
• Gnd
• Hands free module
• Horn 1
• Instrument panel power outlet
• Ipm
• Left front oxygen sensor
• Left front tire pressure transponder
• Left rear oxygen sensor
• Lower bank switch
• Manual a/c
• Multi displacement system solenoid cyl 1
• Multi displacement system solenoid cyl 4
• Multi displacement system solenoid cyl 6
• Multi displacement system solenoid cyl 7
• Occupant classification module
• Occupant restraint controller module
• Passenger door latch
• Passenger door module
• Passenger outside rearview mirror
• Passenger seat switch
• Powertrain control module
• Radio
• Radio amplifier
• Rear power outlet
• Right cushion pad heater
• Right front oxygen sensor
• Right front tire pressure transponder
• Right headlamp
• Right rear door latch
• Right rear oxygen sensor
• Right seat back heater
• S111 (in headlamp & dash harness)
• S135 (in headlamp & dash harness)
• S146 (3.7l: right side of transmission) (4.7l: right front of transmission) (5.7l: front of transmission)
• S147 (right rear of engine compt)
• S152 (in headlamp & dash harness)
• S154 (top of engine)
• S204 (center stack, in breakout to switch bank)
• S207 (lower left side of dash)
• S210 (near breakout for ignition switch)
• S211 (near breakout for ignition switch)
• S212 (near breakout for instrument panel power outlet)
• S213 (center stack, in breakout for radio)
• S317 (left rear door sill)
• S318 (right front door sill)
• S349 (in passenger door)
• Satellite receiver
• Seats) (below passenger seat)
• Sentry key remote entry module
• Shift lever assembly
• Speed control servo
• Steering column lock module
• Steering control module
• Traffic information receiver module
• Transfer case selector switch
• Upper bank switch
• W/ heated seats
• W/ memory
• W/o memory
• Washer fluid level sensor

Электросхема подключение массы заземления (2 из 2) для Jeep Grand Cherokee Overland 2006

Электросхема подключение массы заземления (2 из 2) для Jeep Grand Cherokee Overland 2006 - Список элементов:

• (5.7l) hydraulic cooling fan module
• (except 3.7l) final drive control module
• (except 5.7l) radiator fan/motor assembly
• (gas) generator
• (heated seats) driver seat switch
• (if equipped) park assist module
• (left side of dash) junction block
• (left side of engine compt) integrated power module
• (left side of engine compt) power distribution center
• (memory seats) memory seat module
• (nag1) trans- mission relay
• (w/ premium) left cushion pad heater
• (w/ premium) left seat back heater
• 4.7l/5.7l
• 4wd
• 87a
• A/c compressor clutch
• Anti-lock brakes module
• Blower motor relay
• Brake fluid level sensor
• Chmsl lamp
• Door lock relay
• Driver door latch
• Driver door module
• Driver door unlock relay
• Driver outside rearview mirror
• Driver seat belt switch
• Driver window/ door lock switch
• Dvd monitor
• Electronic overhead module
• Except 4.7l/5.7l
• Except 4wd
• Except base
• Except nag1
• Flip-up glass latch
• Front control module
• Fuel pump motor
• G100 (left rear of engine compt)
• G301 (rear of left rear door)
• G302 (below left rear seat)
• G303 (near left side of driver seat)
• Heated seat module
• Inside rearview mirror
• Ipm
• Left front fog lamp
• Left headlamp
• Left rear door latch
• Left tail/stop/ turn lamp
• License plate lamp
• Liftgate door latch
• Liftgate glass
• Liftgate)
• Mirror switch
• Monitor/dvd media system
• Natural vacuum leak detection assembly
• Park lamp relay
• Passenger door unlock relay
• Passenger seat belt switch
• Power outlet relay
• Rain sensor
• Rear window wiper motor
• Right front fog lamp
• Right rear tire pressure transponder
• Right tail/stop/ turn lamp
• S114 (in headlamp & dash harness)
• S129 (in headlamp & dash harness)
• S136 (in headlamp & dash harness)
• S304 (under rear of vehicle)
• S307 (under rear of vehicle)
• S320 (right front door sill)
• S335 (on underbody harness)
• S341 (in driver door)
• S343 (in driver door)
• S370 (w/ premium) (below driver seat)
• Stop lamp switch
• Sunroof motor/ module
• Trailer tow 4-way wiring
• Trailer tow 7-way wiring
• Trans- mission control relay
• Transmission control module
• W/ dvd
• Windshield wiper motor
• Wiper on/off relay
• Zener diode 1
• Zener diode 2
