Электросхемы ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ Jeep Grand Cherokee SE 1995

ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ

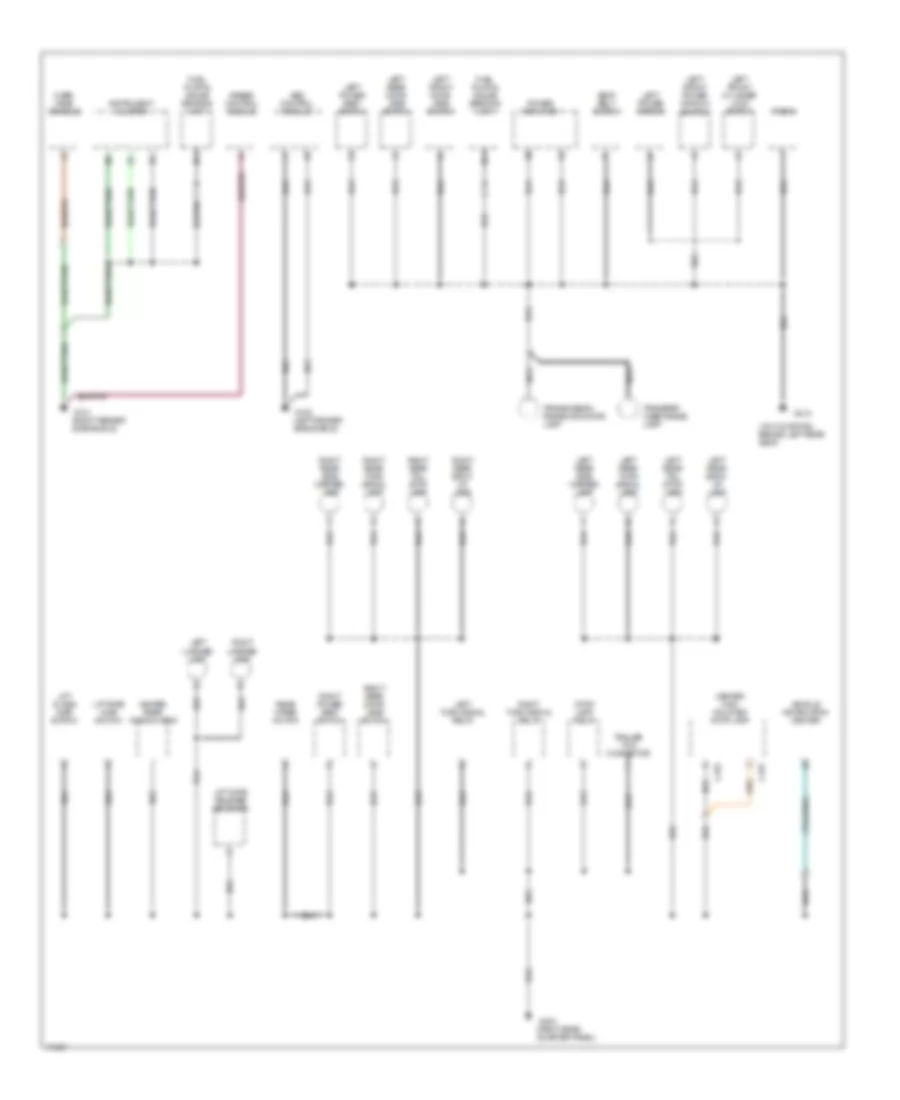

Электросхема подключение массы заземления (1 из 2) для Jeep Grand Cherokee SE 1995

Электросхема подключение массы заземления (1 из 2) для Jeep Grand Cherokee SE 1995 - Список элементов:

• blower power module
• (left fender side shield)
• (on bracket, near ignition coil)
• (right fender side shield)
• A/c control switch
• A/t only
• Abs
• Abs data link connector
• Abs pump motor
• Abs pump motor relay
• Ash receiver lamp
• Auto headlamp module
• Automatic day/night rear view mirror
• Automatic temperature control module
• Battery
• Blend air door motor
• Blower motor
• Chime module
• Cigar lighter
• Cigar lighter lamp
• Data link connector
• Dome/ reading lamp
• Door unlock relay
• E12
• Electronic flasher relay
• Engine coolant level sensor
• Engine starter motor relay
• Front washer pump motor
• G100
• G101
• G119
• G119 (below ignition coil)
• Generator
• Glove box lamp
• Headlamp switch
• Heated oxygen sensor
• Heated rear window & overdrive switch assembly
• Heated rear window relay
• Heated rear window switch
• Horn #1
• Horn #2
• I.p. dimming module
• I.p. dimming/ drl module
• Illum- inated entry relay
• Instrument cluster
• Inter- mittent wiper control module
• Left fog lamp
• Left front park lamp
• Left front turn signal lamp
• Left head- lamp
• Left visor/ vanity mirror
• M/t only
• Nca
• Pcm data link connector
• Power antenna relay
• Power mirror
• Power mirror switch
• Powertrain control module
• Rear washer pump motor
• Remote keyless entry module
• Right fog lamp
• Right front cylinder lock switch
• Right front door switch
• Right front park lamp
• Right front turn signal lamp
• Right head- lamp
• Right visor/ vanity mirror
• Stop lamp switch
• Sun- roof module
• Transfer case switch
• Transmission control module
• Under- hood lamp
• Vehicle information center
• Vehicle sspeed control servo
• Vehicle theft alarm module
• Vehicle theft alarm relay
• W/ atc
• W/ drl
• W/o atc
• W/o drl
• Washer fluid level sensor
• Windshield wiper motor

Электросхема подключение массы заземления (2 из 2) для Jeep Grand Cherokee SE 1995

Электросхема подключение массы заземления (2 из 2) для Jeep Grand Cherokee SE 1995 - Список элементов:

• (left fender side shield)
• (on floor pan, behind left rear seat)
• (right fender side shield)
• (right rear quarter panel)
• Abs control module
• Airbag control module
• C432
• C433
• Center high mounted stop lamp
• Fuel pump & gauge sending unit
• G100
• G101
• G312
• G403
• Heated rear window grid
• Instrument cluster
• Left
• Left front cylinder lock switch
• Left front door jamb switch
• Left front power window switch
• Left power mirror
• Left power seat switch
• Left rear back- up lamp
• Left rear door jamb switch
• Left rear side marker lamp
• Left rear tail/ stop lamp
• Left rear turn signal lamp
• Left turn signal relay
• License lamp
• Lift gate release solenoid
• Lift glass ajar switch
• Liftgate ajar switch
• Nca
• Over- head console
• Power amplifier
• Radio
• Rear wiper motor
• Right
• Right power seat switch
• Right rear back- up lamp
• Right rear door jamb switch
• Right rear side marker lamp
• Right rear tail/ stop lamp
• Right rear turn signal lamp
• Right turn signal relay
• Seat belt switch
• Stop lamp relay
• Trailer tow connector
• Transfer case range lamp
• Transmission range indicator lamp
• Vehicle information center
