Звуковой сигнал Гудок

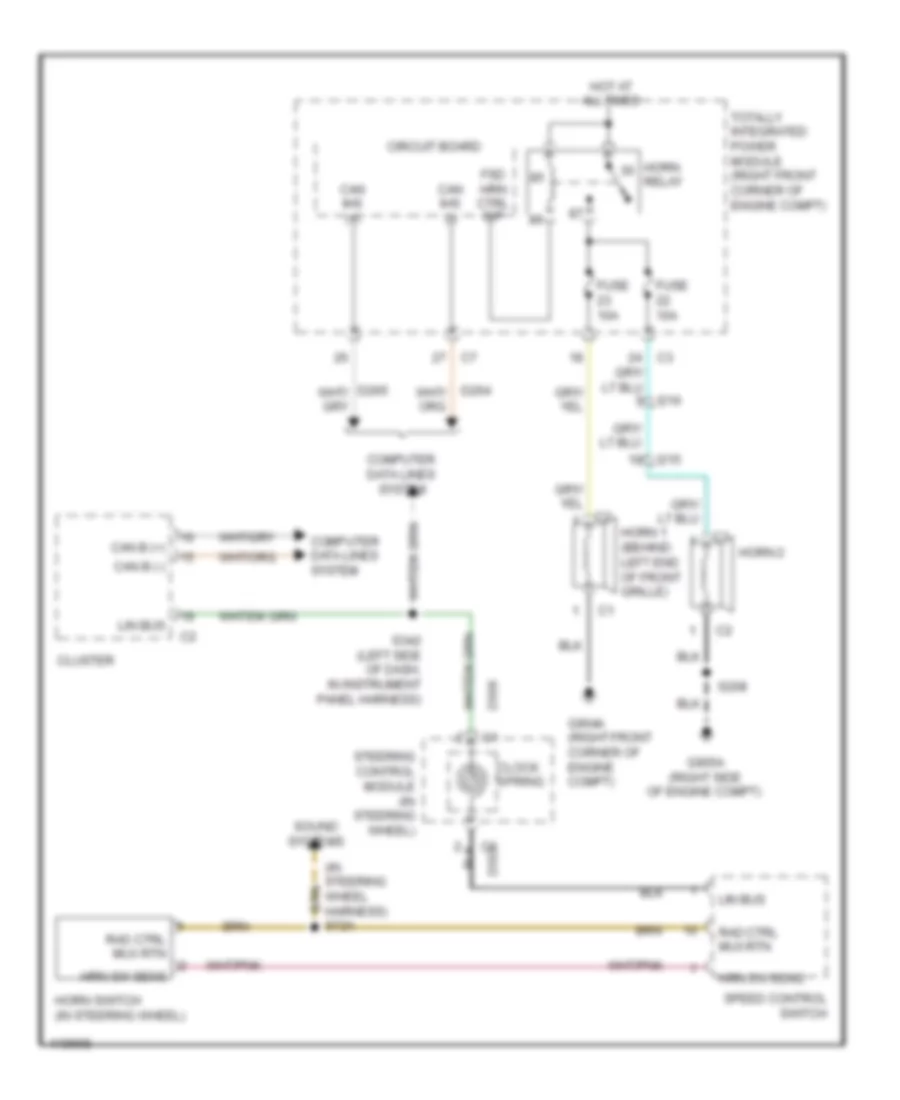

Электросхема звукового сигнал Гудка для Jeep Wrangler Unlimited Rubicon 2014

Электросхема звукового сигнал Гудка для Jeep Wrangler Unlimited Rubicon 2014 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Получить доступ ко всем электросхемам автомобиляDownload PDF file

Электросхема звукового сигнал Гудка для Jeep Wrangler Unlimited Rubicon 2014 - Список элементов:

  • (in steering wheel harness) s72a
  • C6 d507
  • Can b (+)
  • Can b (-)
  • Can ihs (+)
  • Can ihs (-)
  • Circuit board
  • Clock spring
  • Cluster
  • Computer data lines system
  • D506
  • Fsd hrn ctrl o/p
  • Fuse 10a
  • G904a (right front corner of engine compt)
  • G905a (right side of engine compt)
  • Horn 1 (behind left end of front grille)
  • Horn 2
  • Horn relay
  • Horn switch (in steering wheel)
  • Hot at all times
  • Hrn sw sens
  • I215
  • Lin bus
  • Rad ctrl mux rtn
  • S208
  • S342 (left side of dash, in instrument panel harness)
  • Sound systems
  • Speed control switch
  • Steering control module (in steering wheel)
  • Totally integrated power module (right front corner of engine compt)
