Электросхемы Система Фар Land Rover Discovery 3 HSE 2005

Система Фар

схема противотуманной фары для Land Rover Discovery 3 HSE 2005

схема противотуманной фары для Land Rover Discovery 3 HSE 2005 - Список элементов:

• (base of left "d" pillar) c2568
• (base of right "d" pillar) c1355
• (behind right headlight) c0561
• Battery junction box
• C0230
• C0582
• C0583l
• C0585l
• C2628 (right "a" pillar)
• Central junction box (behind right side of dash)
• Front fog lamp ind
• Front/ rear fog lamp switch
• Fuse 15a
• Fuse link 2 30a
• Hot with ignition relay energized
• Instrument cluster
• Left front fog lamp
• Left rear guard fog lamp
• Left stop lamp
• Lighting control switch
• Rear fog lamp ind
• Right front fog lamp
• Right rear guard fog lamp
• Right stop lamp

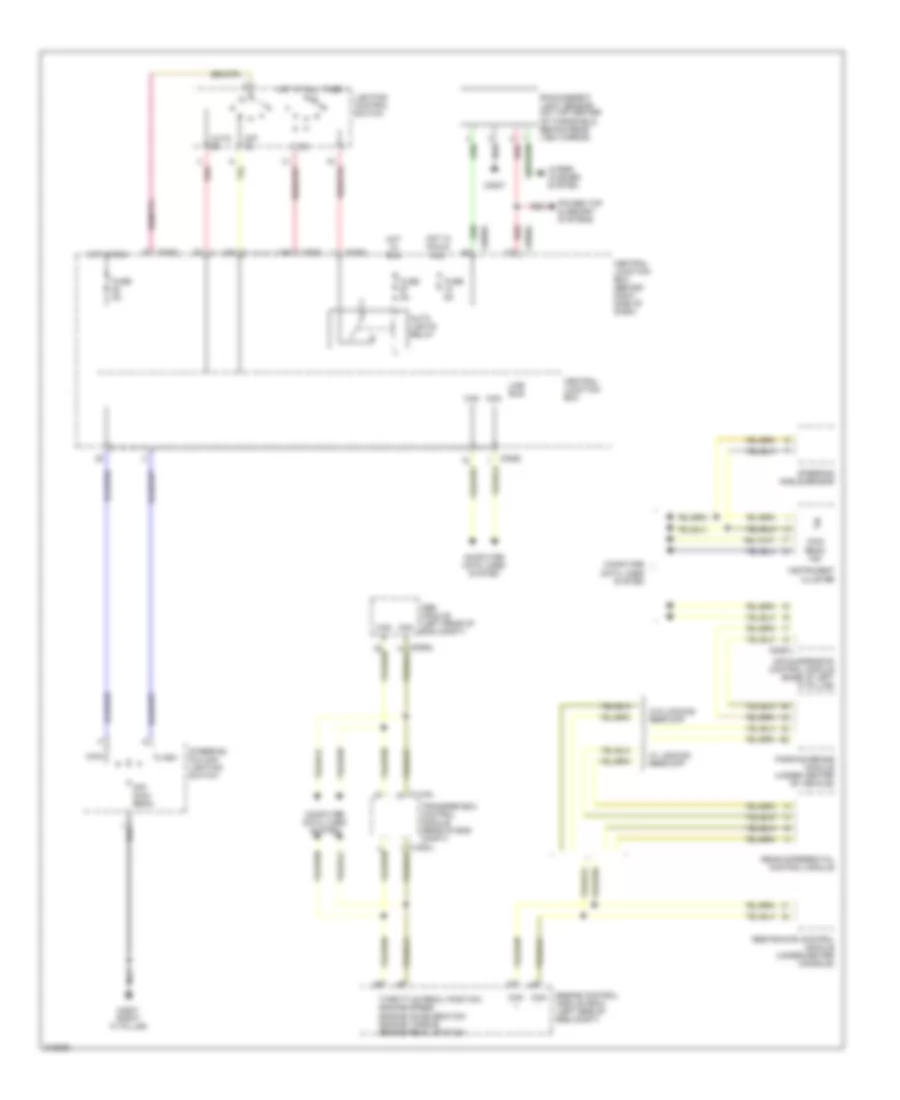

Электросхема фар, С Адаптивный Монитор Лампы (1 из 2) для Land Rover Discovery 3 HSE 2005

Электросхема фар, С Адаптивный Монитор Лампы (1 из 2) для Land Rover Discovery 3 HSE 2005 - Список элементов:

• -throttle pedal position -engine speed -engine acceleration -engine torque -brake pedal status
• Abs module (left rear of eng compt)
• Air suspension control module (base of left "a" pillar)
• Auto
• Auto lights relay
• C0580
• C0582
• C0585l
• C0586l
• C0807
• C0867l
• C1319l
• C2627 (right "a" pillar)
• Can +
• Can -
• Central junction box
• Central junction box (behind right side of dash)
• Computer data lines system
• Dip
• Dip/ main beam
• Engine control module (ecm) (left side of eng compt)
• Flash
• Fuse 5a
• Hot at all times
• Hot in run
• Hot in run & acc
• Instrument cluster
• Lighting control switch
• Line bus
• Main
• Main beam ind
• Parking brake module (under center of vehicle)
• Power top & memory systems
• Rain/ambient light sensor (on top center of windshield, behind rear view mirror)
• Rear differential control module
• Red
• Restraints control module (under center console)
• Steering angle sensor
• Steering column lighting switch
• Transfer box control module (rear of eng compt)
• W/ locking rear diff
• W/o locking rear diff
• Wiper/ washer system

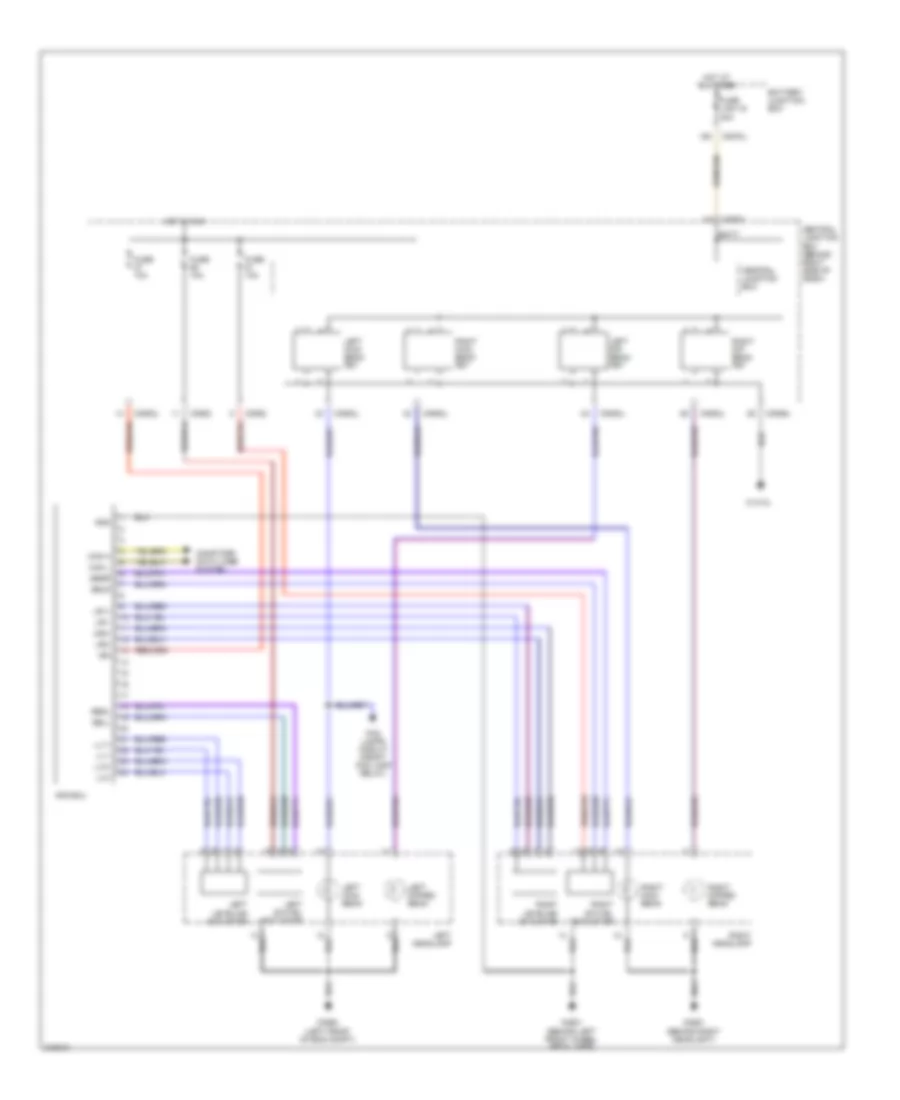

Электросхема фар, С Адаптивный Монитор Лампы (2 из 2) для Land Rover Discovery 3 HSE 2005

Электросхема фар, С Адаптивный Монитор Лампы (2 из 2) для Land Rover Discovery 3 HSE 2005 - Список элементов:

• Afs ecu
• Batt
• Battery junction box
• C0561 (behind right headlight)
• C0564 (left front of eng compt)
• C0570l
• C0582
• C0583l
• C0585l
• C1413l
• C2601 (behind left front wheel arch liner)
• Can h
• Can l
• Central junction box
• Central junction box (behind right side of dash)
• Computer data lines system
• Fog lamps circuit (front fog lamp relay)
• Fuse 10a
• Fuse link 16 40a
• Gnd
• Hot at all times
• Hot in run
• Ign
• Left dip beam fet
• Left dipped beam
• Left headlamp
• Left leveling actuator
• Left main beam
• Left main beam fet
• Left swivel actuator
• Ll1+
• Ll1-
• Ll2+
• Ll2-
• Lr1+
• Lr1-
• Lr2+
• Lr2-
• Right dip beam fet
• Right dipped beam
• Right headlamp
• Right leveling actuator
• Right main beam
• Right main beam fet
• Right swivel actuator
• Sbgl
• Sbgr
• Sbll
• Sblr

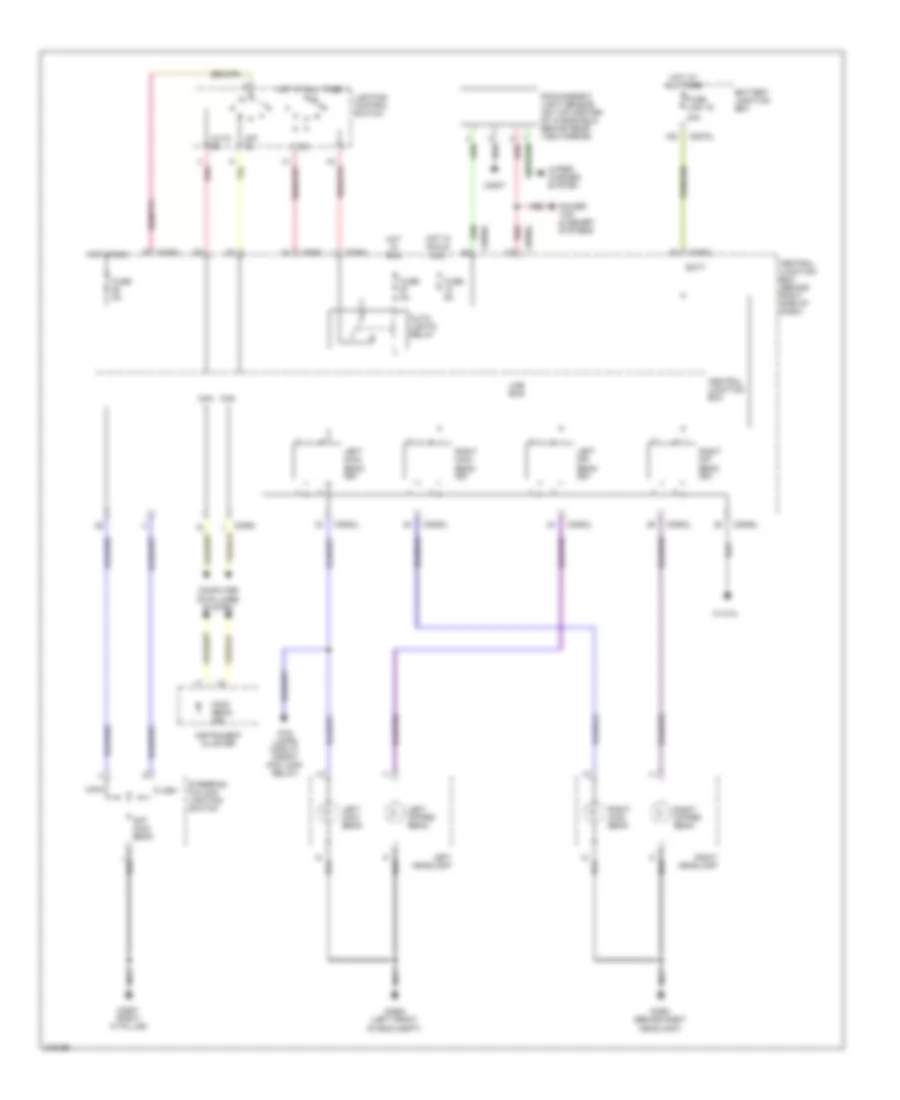

Электросхема фар, без Адаптивный Монитор Лампы для Land Rover Discovery 3 HSE 2005

Электросхема фар, без Адаптивный Монитор Лампы для Land Rover Discovery 3 HSE 2005 - Список элементов:

• 40a
• Auto
• Auto lights relay
• Batt
• Battery junction box
• C0561 (behind right headlight)
• C0564 (left front of eng compt)
• C0570l
• C0580
• C0582
• C0583l
• C0585l
• C0586l
• C0807
• C1413l
• C2627 (right "a" pillar)
• Can +
• Can -
• Central junction box
• Central junction box (behind right side of dash)
• Computer data lines system
• Dip
• Dip/ main beam
• Flash
• Fog lamps circuit (front fog lamp relay)
• Fuse 5a
• Fuse link 16
• Hot at all times
• Hot in run
• Hot in run & acc
• Instrument cluster
• Left dip beam fet
• Left dipped beam
• Left headlamp
• Left main beam
• Left main beam fet
• Lighting control switch
• Line bus
• Main
• Main beam ind
• Power top & memory systems
• Rain/ambient light sensor (on top center of windshield, behind rear view mirror)
• Red
• Right dip beam fet
• Right dipped beam
• Right headlamp
• Right main beam
• Right main beam fet
• Steering column lighting switch
• Wiper/ washer system
