Электросхемы СИСТЕМЫ ПАМЯТИ Land Rover Discovery 3 HSE 2005

СИСТЕМЫ ПАМЯТИ

Электросхем памяти регулировки зеркал заднего вида для Land Rover Discovery 3 HSE 2005

Электросхем памяти регулировки зеркал заднего вида для Land Rover Discovery 3 HSE 2005 - Список элементов:

• (bare end wire)
• C0324
• C0352
• C0353
• C0444
• C0560 (behind right headlight)
• C0585l
• C0586l
• C0807
• C1964l
• C2382
• C2383
• C2385
• Central junction box
• Central junction box (behind right side of dash)
• Defogger system
• Door mirror heater
• Down
• Driver door folding mirror motor
• Driver door side mirror
• Driver left/right adjustment mirror motor
• Driver up/down adjustment mirror motor
• Fold-back mirrors circuit
• Folding mirror switch
• Fuse 30a
• Fuse 5a
• Hot at all time
• Hot in run or acc
• Left
• Left mirror adjustment switch
• Left/ right
• Lin bus gnd
• Memory control module (under driver's seat)
• Mirror switch
• Mirrors system (fold-back mirror circuit)
• Passenger door folding mirror motor
• Passenger door side mirror
• Passenger left/right adjustment mirror motor
• Passenger up/down adjustment mirror motor
• Power gnd
• Rain/ambient light sensor (on top center of windshield, behind rearview mirror)
• Red
• Right
• Right mirror adjustment switch
• Roof opening panel control module
• Sjb lin
• Up/ down
• V batt
• Wiper/ washer system

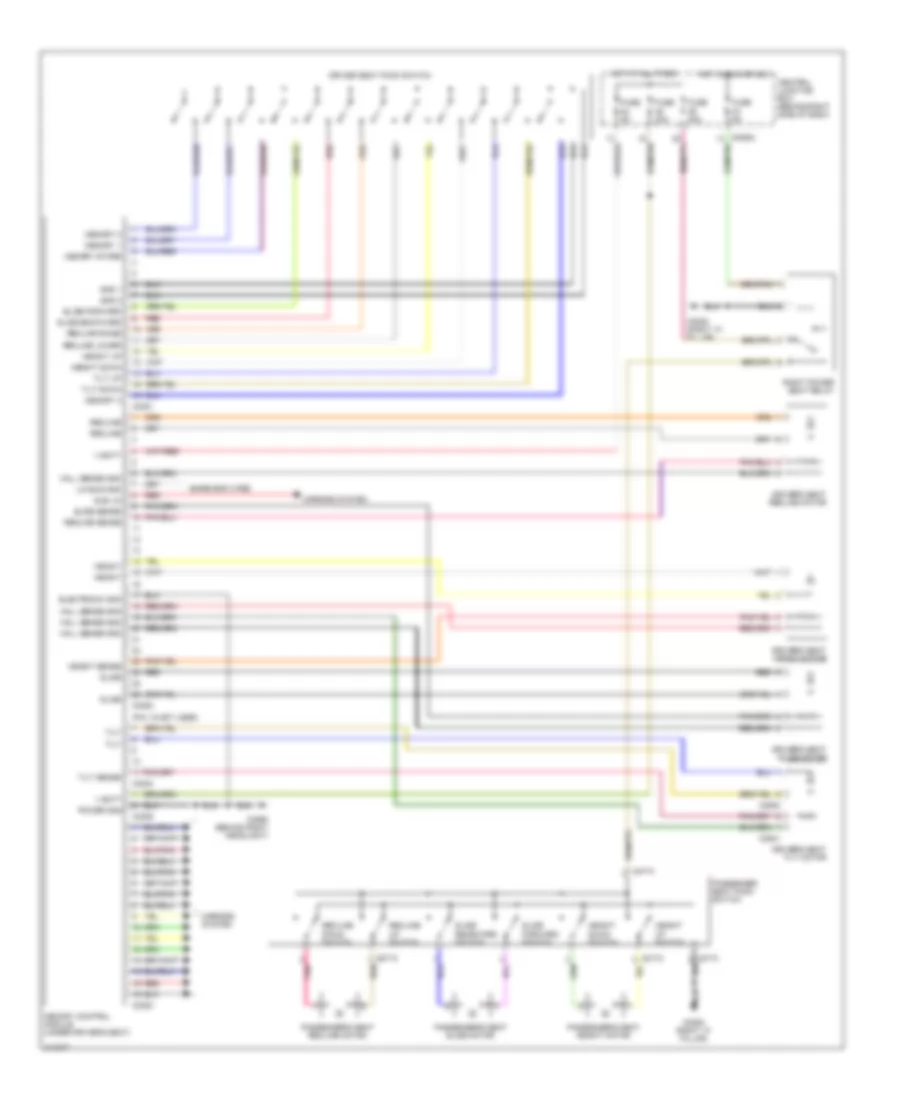

Электросхема памяти сидений для Land Rover Discovery 3 HSE 2005

Электросхема памяти сидений для Land Rover Discovery 3 HSE 2005 - Список элементов:

• (bare end wire)
• (pin 1-6 not used)
• C0560 (behind right headlight)
• C0774
• C0808 (right "a" pillar)
• C2381
• C2382
• C2383
• C2384
• C2385
• C2930
• C2931
• Central junction box (behind right side of dash)
• Driver seat pack switch
• Driver's seat height motor
• Driver's seat recline motor
• Driver's seat slide motor
• Driver's seat tilt motor
• Electronic gnd
• Fuse 30a
• Fuse 5a
• Gnd 1
• Gnd 2
• Hall sense gnd
• Height
• Height down
• Height down switch
• Height sense
• Height up
• Height up switch
• Hot at all times
• Hot in run or acc
• Lin bus gnd
• Memory 1
• Memory 2
• Memory 3
• Memory control module (under driver's seat)
• Memory store
• Mirrors system
• Passenger
• Passenger's seat height motor
• Passenger's seat recline motor
• Passenger's seat slide motor
• Pnk
• Power gnd
• Recline
• Recline down switch
• Recline lower
• Recline raise
• Recline sense
• Recline up switch
• Red
• Right power seat relay
• Seat pack switch
• Sjb lin
• Slide
• Slide backward
• Slide forward
• Slide forward switch
• Slide rearward switch
• Slide sense
• Tilt
• Tilt down
• Tilt sense
• Tilt up
• V batt
